Extract custom fields using web crawler and proxy

edit

Extract custom fields using web crawler and proxy

edit

This workaround is suited for use cases where making changes to a website’s source code is too complicated, or you don’t have access to the code.

When parsing body text from a webpage, the web crawler extracts the content and organizes it into fields based on HTML tags:

Text within title tags are mapped to the title field
Anchor tags (<a></a>) are parsed as links
The body tag is parsed as one big field (body_content) containing everything else.

But what if a website has a custom structure — for example, the color, size, and price included on product pages — and you want to capture these in specific fields?

You can add <<Robots meta tags, meta tags or data attributes>> to your website to create custom fields. But sometimes making changes on the website is too complicated, or you don’t have access to the source code. In this case, you can use a proxy to parse the content and add these custom fields on the fly.

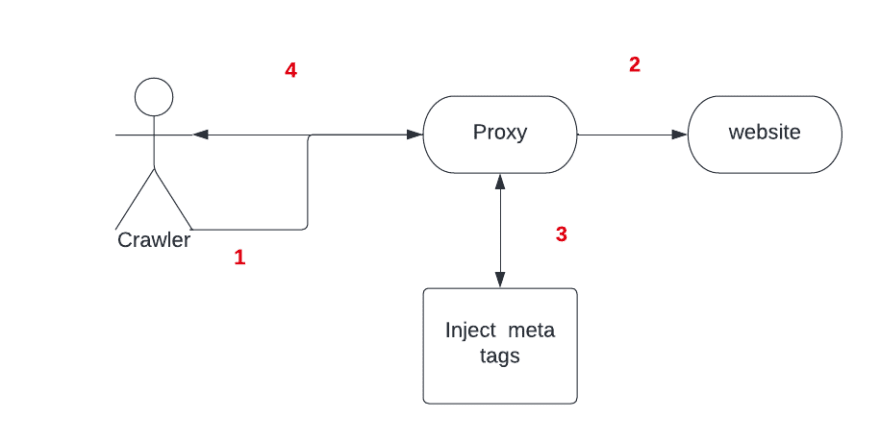

This document explains how to create a proxy between the crawler and the website, to perform the extraction, create the meta tags, and inject them into the new response.

Tools

edit

You will need the following tools for this exercise:

Nodejs: to create the example page and proxy
Ngrok: to expose the local proxy to the internet
App Search web crawler: to crawl the page

The body parsing solution

edit

In this example, we’ll create a NodeJS server that hosts a product page and a proxy that stands in front. This will receive the crawler request, hit the product page, inject the meta tags, and then return the page to the crawler.

The following code block adds custom fields using meta tags:

<head>
  <meta class="elastic" name="product_price" content="99.99">
</head>
<body>
  <h1 data-elastic-name="product_name">Printer</h1>
</body>

In this example, the first step is to serve a page that emulates a product page for a printer:

index.html
<html>
  <head>
    <title>Printer Page</title>
  </head>
  <body>
    <h1>Printer</h1>
    <div class="price-container">
      <div class="title">Price</div>
      <div class="value">2.99</div>
    </div>
  </body>
</html>

server.js
const express = require("express");
const app = express();

app.listen(1337, () => {
  console.log("Application started and Listening on port 1337");
});

app.get("/", (req, res) => {
  res.sendFile(__dirname + "/index.html");
});

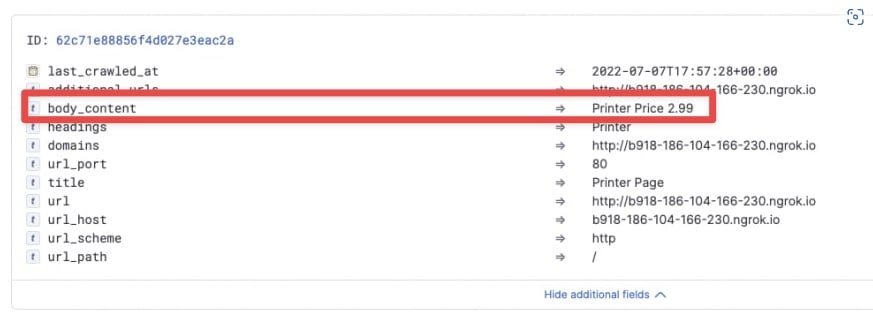

Now it’s time to crawl the page. The data you want to have as fields, such as the price, is put inside the body content field:

Next, create a proxy capable of recognizing this data and injecting a meta tag to the response, so the crawler can recognize this is a field.

proxy.js
const http = require("http"),
  connect = require("connect"),
  app = connect(),
  httpProxy = require("http-proxy");

app.use(function (req, res, next) {
  var _write = res.write;
  res.write = function (data) {
    _write.call(
      res,
      data
        .toString()
        .replace('class="value"', 'class="value" data-elastic-name="price"')
    );
  };
  next();
});

app.use(function (req, res) {
  proxy.web(req, res);
});

http.createServer(app).listen(8013);

var proxy = httpProxy.createProxyServer({
  target: "http://localhost:1337",
});

console.log("http proxy server" + " started " + "on port " + "8013");

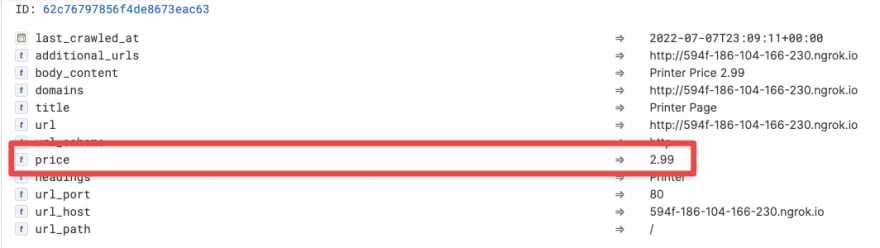

Finally, start your server and proxy to expose the proxy with Ngrok. Provide this domain to the crawler so that it crawls your website through the proxy. The price is now a separate field:

Use this guide as a blueprint for more sophisticated solutions. For example, you could build middleware that transforms the body response to add meta tags based on existing classes, but also based on the content itself.
