System process dataset

edit

System process dataset

edit

This functionality is in beta and is subject to change. The design and code is less mature than official GA features and is being provided as-is with no warranties. Beta features are not subject to the support SLA of official GA features.

This is the process dataset of the system module. It generates an event when a process starts and stops.

It is implemented for Linux, macOS (Darwin), and Windows.

Configuration options

edit

process.state.period: The interval at which the dataset sends full state information. If set this will take precedence over state.period. The default value is 12h.
process.hash.max_file_size: The maximum size of a file in bytes for which Auditbeat will compute hashes. Files larger than this size will not be hashed. The default value is 100 MiB. For convenience units can be specified as a suffix to the value. The supported units are b (default), kib, kb, mib, mb, gib, gb, tib, tb, pib, pb, eib, and eb.
process.hash.hash_types: A list of hash types to compute when the file changes. The supported hash types are blake2b_256, blake2b_384, blake2b_512, md5, sha1, sha224, sha256, sha384, sha512, sha512_224, sha512_256, sha3_224, sha3_256, sha3_384, sha3_512, and xxh64. The default value is sha1.

Example dashboard

edit

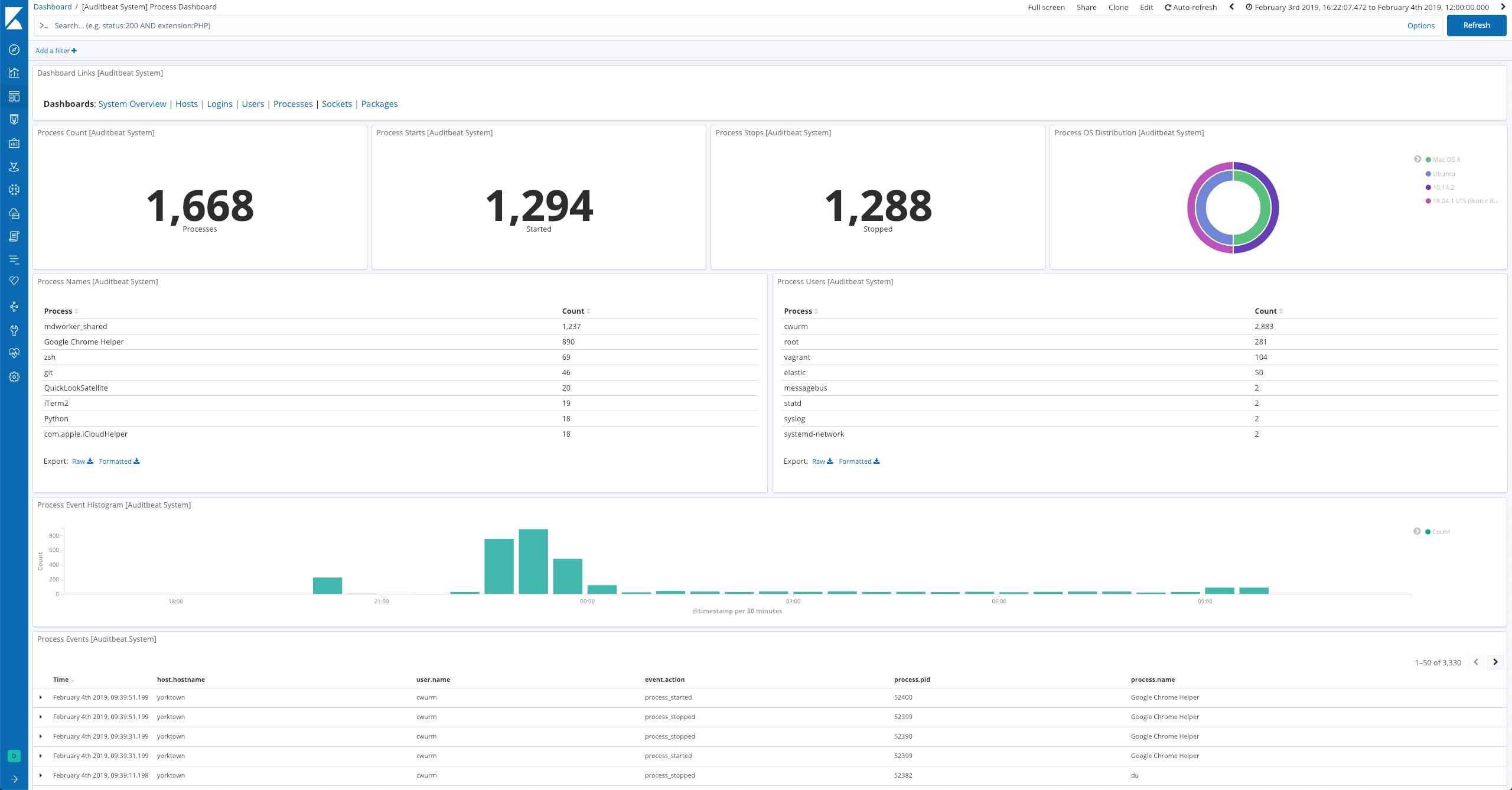

The dataset comes with a sample dashboard:

Fields

edit

For a description of each field in the dataset, see the exported fields section.

Here is an example document generated by this dataset:

{
    "@timestamp": "2017-10-12T08:05:34.853Z",
    "event": {
        "action": "process_stopped",
        "dataset": "process",
        "kind": "event",
        "module": "system"
    },
    "message": "Process zsh (PID: 9086) by user elastic STOPPED",
    "process": {
        "args": [
            "zsh"
        ],
        "entity_id": "+fYshazplsMYlr0y",
        "executable": "/bin/zsh",
        "hash": {
            "sha1": "33646536613061316366353134643135613631643363383733653261373130393737633131303364"
        },
        "name": "zsh",
        "pid": 9086,
        "ppid": 9085,
        "start": "2019-01-01T00:00:01Z",
        "working_directory": "/home/elastic"
    },
    "service": {
        "type": "system"
    },
    "user": {
        "effective": {
            "group": {
                "id": "1000"
            },
            "id": "1000"
        },
        "group": {
            "id": "1000",
            "name": "elastic"
        },
        "id": "1000",
        "name": "elastic",
        "saved": {
            "group": {
                "id": "1000"
            },
            "id": "1000"
        }
    }
}
