WARNING: Version 6.0 of Metricbeat has passed its EOL date.
This documentation is no longer being maintained and may be removed. If you are running this version, we strongly advise you to upgrade. For the latest information, see the current release documentation.
Apache module
editApache module
editThis module periodically fetches metrics from Apache HTTPD servers.
Compatibility
editThe Apache metricsets were tested with Apache 2.4.20 and are expected to work with all versions >= 2.2.31 and >= 2.4.16.
Dashboard

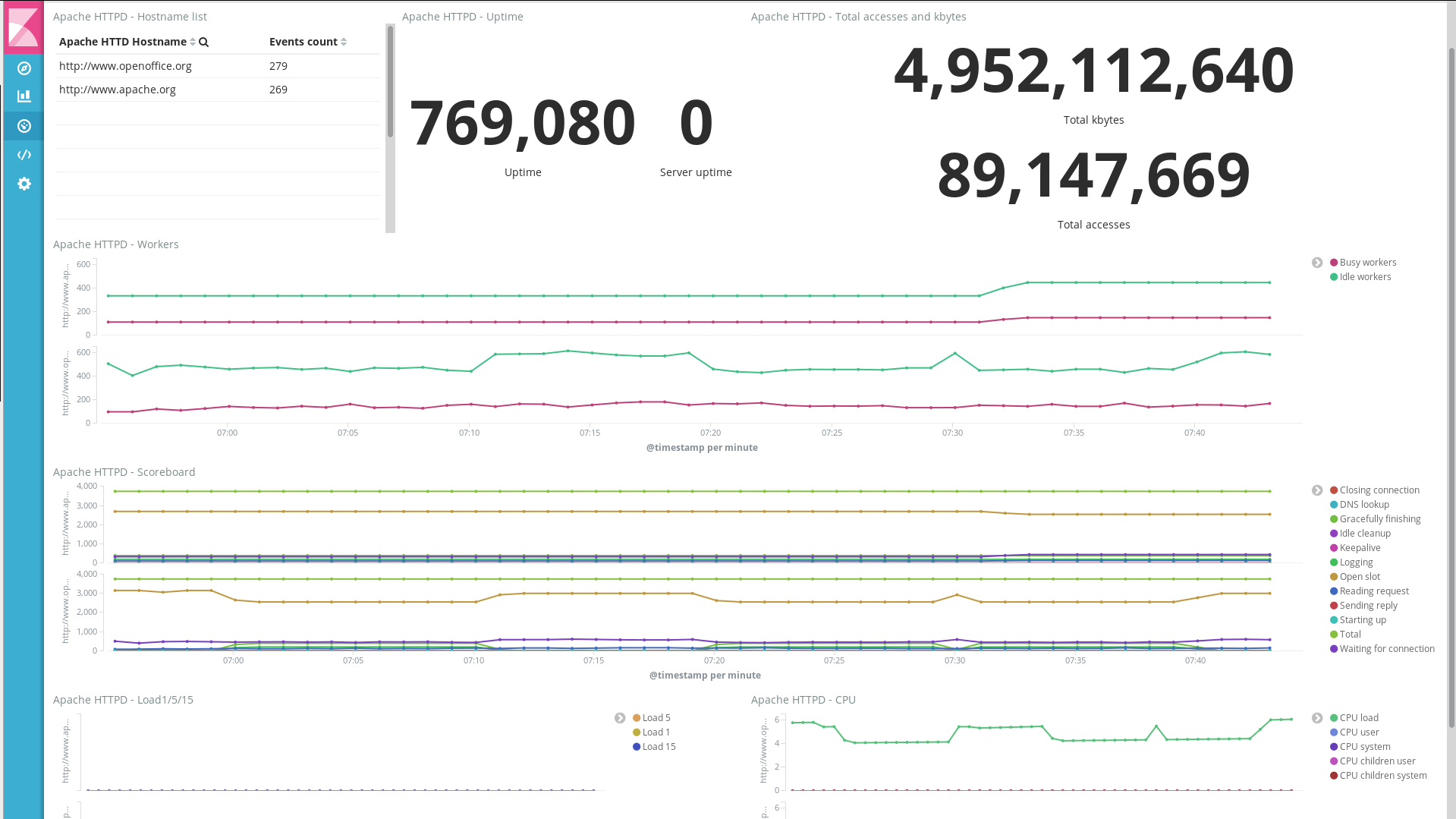

editThe Apache module comes with a predefined dashboard. For example:
Example configuration
editThe Apache module supports the standard configuration options that are described in Specify which modules to run. Here is an example configuration:
metricbeat.modules: - module: apache metricsets: ["status"] period: 10s # Apache hosts hosts: ["http://127.0.0.1"]
Metricsets
editThe following metricsets are available:
