Apache module

edit

Apache module

edit

This module periodically fetches metrics from Apache HTTPD servers.

Compatibility

edit

The Apache metricsets were tested with Apache 2.4.20 and are expected to work with all versions >= 2.2.31 and >= 2.4.16.

Dashboard

edit

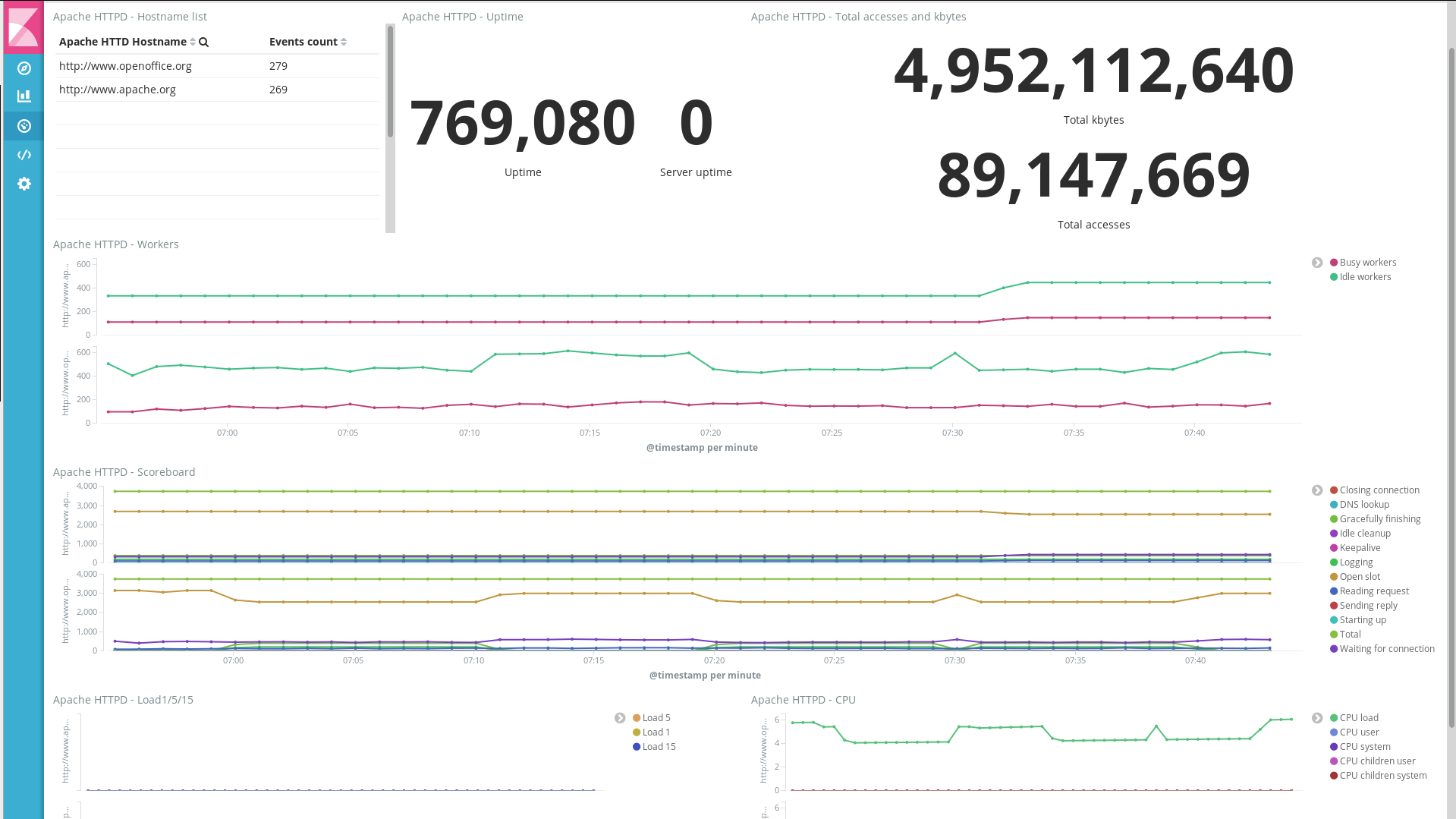

The Apache module comes with a predefined dashboard. For example:

apache httpd server status

Example configuration

edit

The Apache module supports the standard configuration options that are described in Specify which modules to run. Here is an example configuration:

metricbeat.modules:
- module: apache
  metricsets: ["status"]
  period: 10s

  # Apache hosts
  hosts: ["http://127.0.0.1"]

This module supports TLS connection when using ssl config field, as described in Specify SSL settings.

Metricsets

edit

The following metricsets are available:
