Step 6: View the sample Kibana dashboards

edit

Step 6: View the sample Kibana dashboards

edit

To make it easier for you to start monitoring your servers in Kibana, we have created example Metricbeat dashboards. You loaded the dashboards earlier when you ran the setup command.

To open the dashboards, launch the Kibana web interface by pointing your browser to port 5601. For example, http://localhost:5601. Replace localhost with the name of the Kibana host. If you’re using our hosted Elasticsearch Service instance, log in to your cloud account, then navigate to the Kibana endpoint in your deployment.

In the side navigation, click Discover. To see Metricbeat data, make sure the predefined metricbeat-* index pattern is selected.

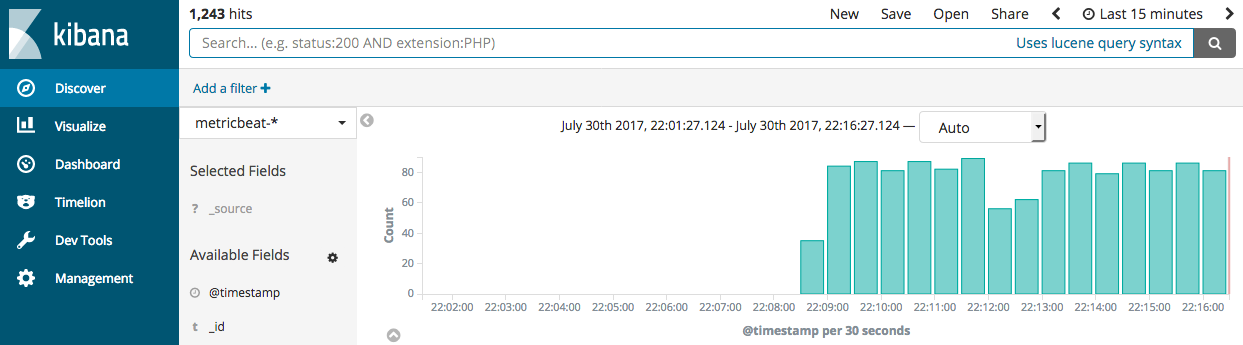

Discover tab with index selected

If you don’t see data in Kibana, try changing the date range to a larger range. By default, Kibana shows the last 15 minutes.

In the side navigation, click Dashboard, then select the dashboard that you want to open.

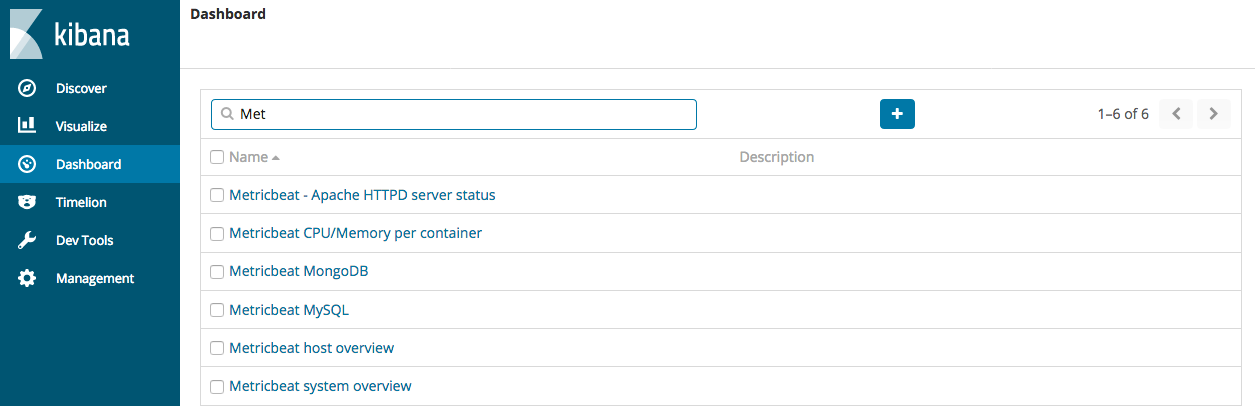

Navigation widget in Kibana

The dashboards are provided as examples. We recommend that you customize them to meet your needs.

Metricbeat Dashboard
