IIS application_pool metricset

edit

This is the application_pool metricset of the module iis.

This metricset allows users to retrieve relevant metrics for the application pools running on IIS.

Metric values are divided in several groups:

The process object contains System/Process counters like the the overall server and CPU usage for the IIS Worker Process and memory (currently used and available memory for the IIS Worker Process).

The net_clr object which returns ASP.NET error rate counter values. Users can specify the application pools they would like to monitor using the configuration option application_pool.name, else, all application pools are considered.

Dashboard

edit

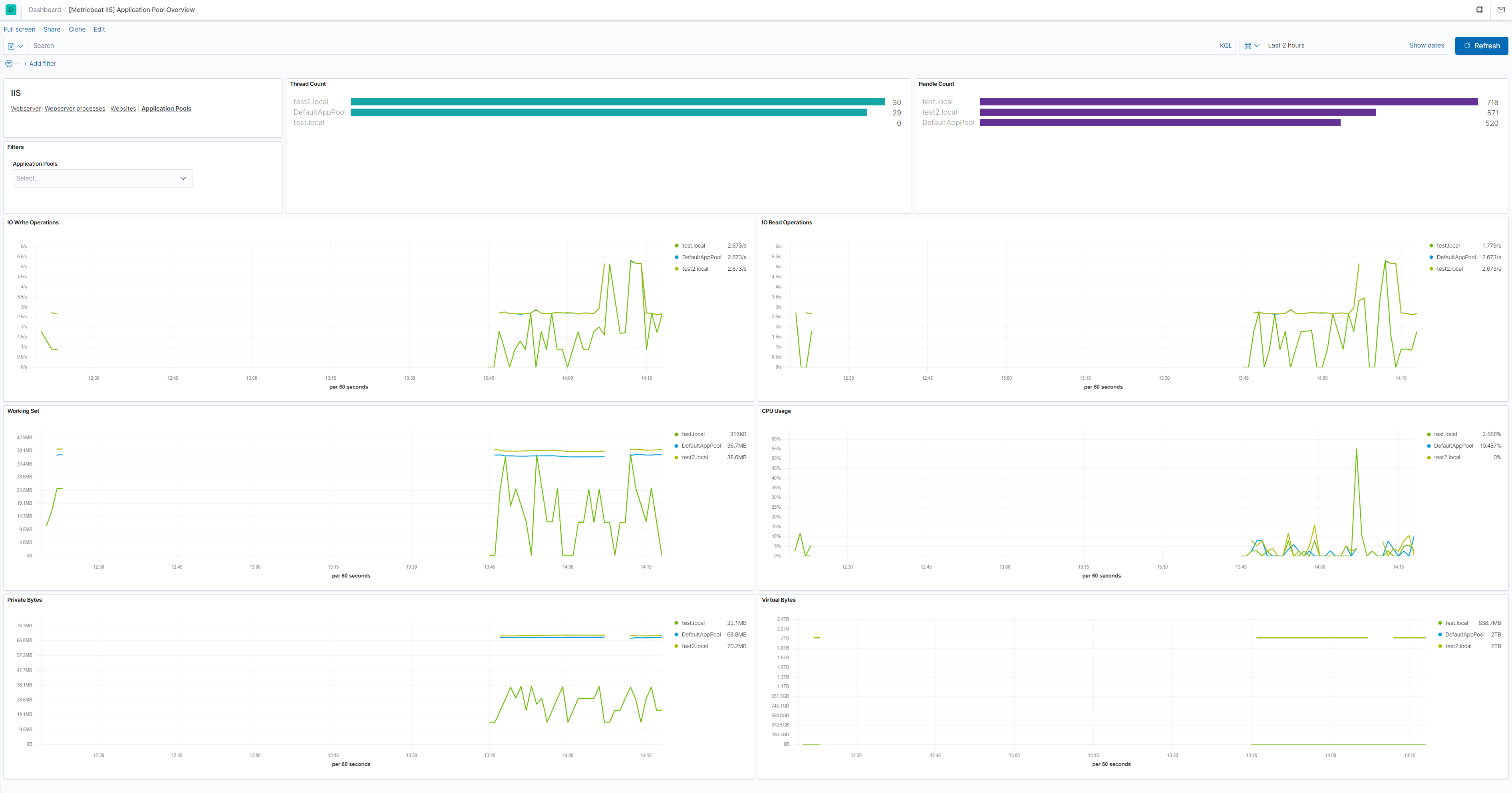

metricbeat iis application pool overview

Fields

For a description of each field in the metricset, see the exported fields section.

Here is an example document generated by this metricset:

{
    "@timestamp": "2017-10-12T08:05:34.853Z",
    "event": {
        "dataset": "iis.application_pool",
        "duration": 115000,
        "module": "iis"
    },
    "iis": {
        "application_pool": {
            "name": "test.local",
            "net_clr": {
                "total_exceptions_thrown": 0
            },
            "process": {
                "handle_count": 532,
                "private_byte": 35258368,
                "thread_count": 29,
                "virtual_bytes": 667226112,
                "working_set": 36044800
            }
        }
    },
    "metricset": {
        "name": "application_pool",
        "period": 10000
    },
    "process": {
        "pid": 748
    },
    "service": {
        "type": "iis"
    }
}
