Apache module

edit

Apache module

edit

Prefer to use Elastic Agent for this use case?

Refer to the Elastic Integrations documentation.

Learn more

Elastic Agent is a single, unified way to add monitoring for logs, metrics, and other types of data to a host. It can also protect hosts from security threats, query data from operating systems, forward data from remote services or hardware, and more. Refer to the documentation for a detailed comparison of Beats and Elastic Agent.

This module periodically fetches metrics from Apache HTTPD servers. The default metricset is status.

Compatibility

edit

The Apache metricsets were tested with Apache 2.4.12 and 2.4.54 and are expected to work with all versions >= 2.2.31 and >= 2.4.16.

Dashboard

edit

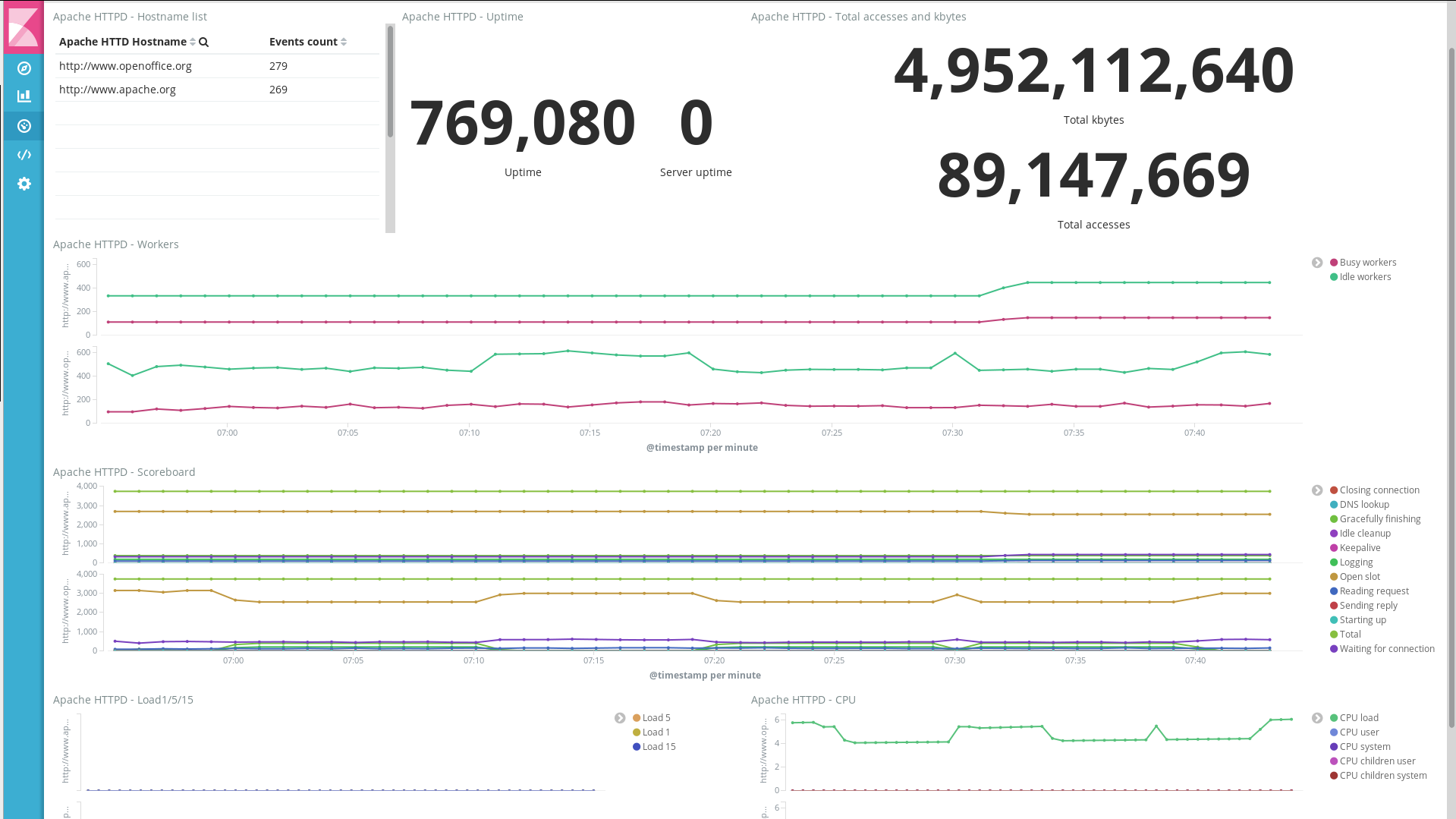

The Apache module comes with a predefined dashboard. For example:

apache httpd server status

Example configuration

The Apache module supports the standard configuration options that are described in Modules. Here is an example configuration:

metricbeat.modules:
- module: apache
  metricsets: ["status"]
  period: 10s
  enabled: true

  # Apache hosts
  hosts: ["http://127.0.0.1"]

  # Path to server status. Default server-status
  #server_status_path: "server-status"

  # Username of hosts.  Empty by default
  #username: username

  # Password of hosts. Empty by default
  #password: password

This module supports TLS connections when using ssl config field, as described in SSL. It also supports the options described in Standard HTTP config options.

Metricsets

The following metricsets are available:
