CouchDB module

edit

CouchDB module

edit

This is the couchdb module.

The default metricset is server.

Compatibility

edit

The Couchdb module is tested in CI with Couchdb 1.7 and 2.3. Because of the differences between v1 and v2 for exposing metrics, the path to request metrics for each version is different:

  • v1.* uses [host]:5984/_stats so the hosts of your config should just be [host]:5984
  • v2.* exposes metrics in various places. Local in [host]:5986/_stats and cluster wide in [host]:5984/_node/[node-name]/_stats or [host]:5984/_node/_local/_stats. Recommended config is [host]:5986 to use the local path (double check that you are using port 5986) or to use the full path on 5984 [host]:5984/_node/[node name or _local]/_stats

Dashboard

edit

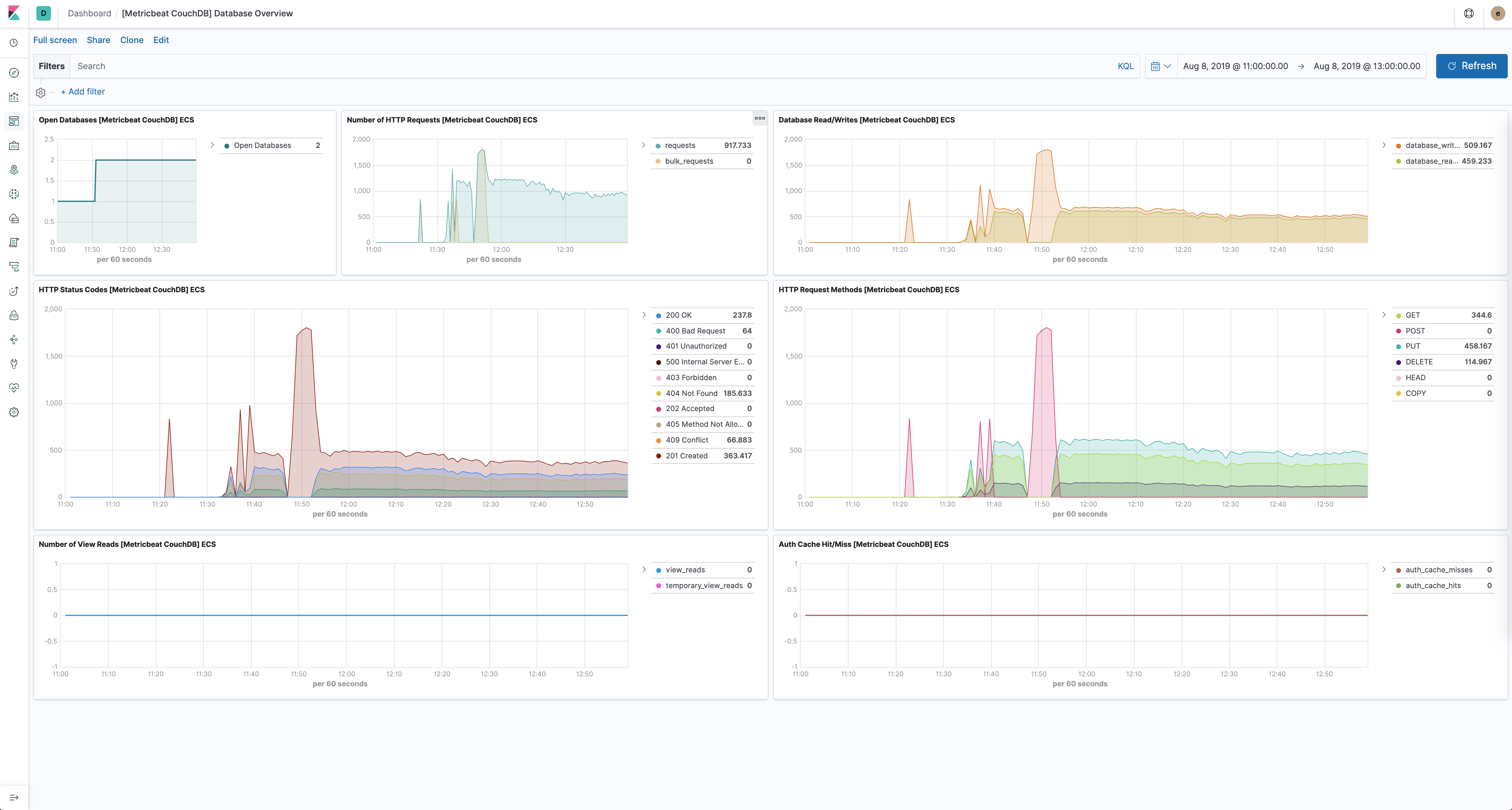

The CouchDB module comes with a predefined dashboard for CouchDB database specific stats. For example:

metricbeat couchdb overview

Example configuration

The CouchDB module supports the standard configuration options that are described in Modules. Here is an example configuration:

metricbeat.modules:
- module: couchdb
  metricsets: ["server"]
  period: 10s
  hosts: ["localhost:5984"]

This module supports TLS connections when using ssl config field, as described in SSL. It also supports the options described in Standard HTTP config options.

Metricsets

The following metricsets are available:
