Aerospike module

The Aerospike module uses the Info command to collect metrics. The default metricset is namespace.

Compatibility

The Aerospike metricsets were tested with Aerospike Enterprise Edition 7.2.0.1 and are expected to work with all versions >= 4.9.

Dashboard

edit

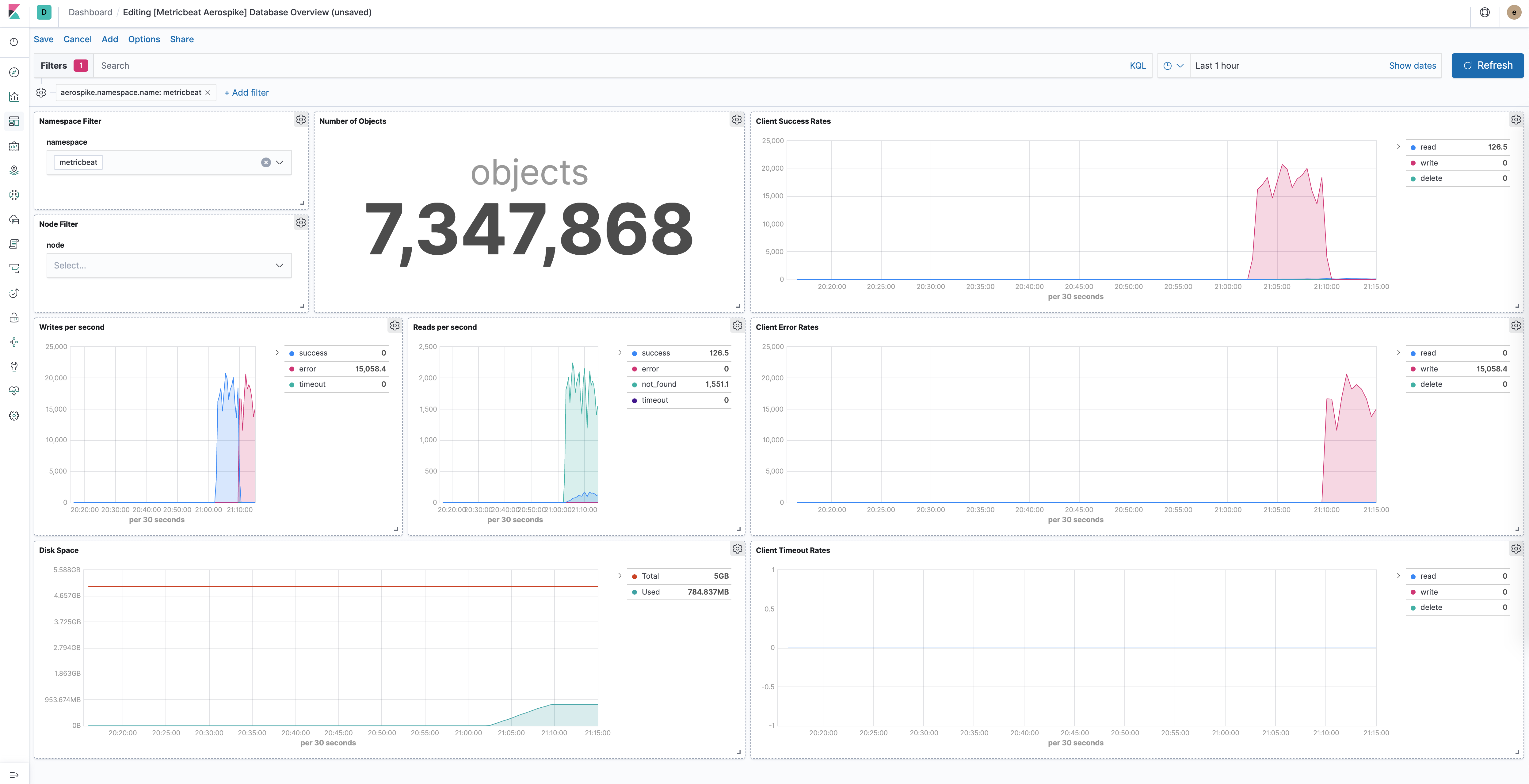

The Aerospike module comes with a predefined dashboard for Aerospike namespace, node specific stats. For example:

Example configuration

The Aerospike module supports the standard configuration options that are described in Modules. Here is an example configuration:

metricbeat.modules:
- module: aerospike
  metricsets: ["namespace"]
  enabled: true
  period: 10s
  hosts: ["localhost:3000"]

  # Aerospike Cluster Name
  #cluster_name: myclustername

  # Username of hosts. Empty by default.
  #username: root

  # Password of hosts. Empty by default.
  #password: secret

  # Authentication modes: https://aerospike.com/docs/server/guide/security/access-control
  # Possible values: internal (default), external, pki
  #auth_mode: internal

  # Optional SSL/TLS (disabled by default)
  #ssl.enabled: true

  # List of root certificates for SSL/TLS server verification
  #ssl.certificate_authorities: ["/etc/pki/root/ca.crt"]

  # Certificate for SSL/TLS client authentication
  #ssl.certificate: "/etc/pki/client/cert.crt"

  # Client certificate key file
  #ssl.key: "/etc/pki/client/cert.key"

This module supports TLS connections when using ssl config field, as described in SSL.

Metricsets

The following metricsets are available:

namespace
