Step 6: View the sample Kibana dashboards

edit

Step 6: View the sample Kibana dashboards

edit

To make it easier for you to get application performance insights from packet data, we have created example Packetbeat dashboards. You loaded the dashboards earlier when you ran the setup command.

To open the dashboards, launch the Kibana web interface by pointing your browser to port 5601. For example, http://127.0.0.1:5601.

On the Discover page, make sure that the predefined packetbeat-* index pattern is selected to see Packetbeat data.

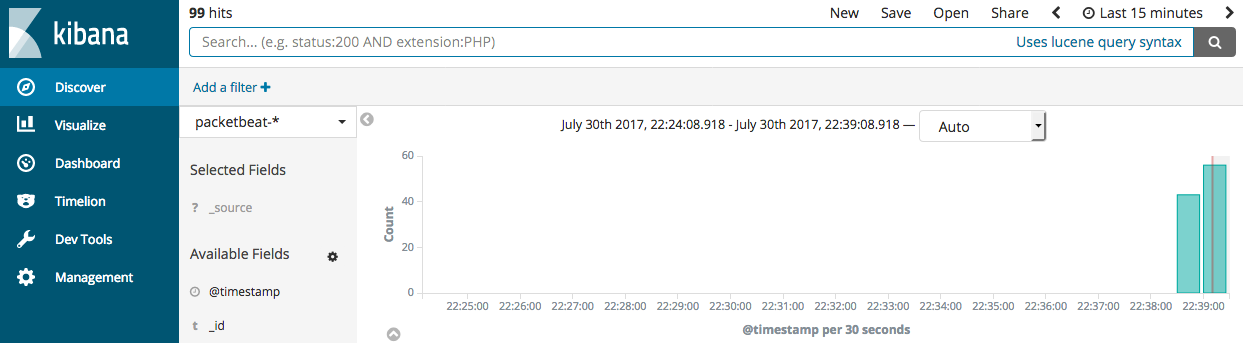

Discover tab with index selected

Go to the Dashboard page and select the dashboard that you want to open.

Navigation widget in Kibana

The dashboards are provided as examples. We recommend that you customize them to meet your needs.

Packetbeat statistics
