Cardinality Aggregation

edit

Cardinality Aggregation

edit

A single-value metrics aggregation that calculates an approximate count of distinct values. Values can be extracted either from specific fields in the document or generated by a script.

This functionality is in technical preview and may be changed or removed in a future release. Elastic will work to fix any issues, but features in technical preview are not subject to the support SLA of official GA features.

Assume you are indexing books and would like to count the unique authors that match a query:

{
    "aggs" : {
        "author_count" : {
            "cardinality" : {
                "field" : "author"
            }
        }
    }
}

This aggregation also supports the precision_threshold and rehash options:

{
    "aggs" : {
        "author_count" : {
            "cardinality" : {
                "field" : "author_hash",
                "precision_threshold": 100,
                "rehash": false
            }
        }
    }
}

The precision_threshold options allows to trade memory for accuracy, and defines a unique count below which counts are expected to be close to accurate. Above this value, counts might become a bit more fuzzy. The maximum supported value is 40000, thresholds above this number will have the same effect as a threshold of 40000. Default value depends on the number of parent aggregations that multiple create buckets (such as terms or histograms).

If you computed a hash on client-side, stored it into your documents and want Elasticsearch to use them to compute counts using this hash function without rehashing values, it is possible to specify rehash: false. Default value is true. Please note that the hash must be indexed as a long when rehash is false.

Counts are approximate

edit

Computing exact counts requires loading values into a hash set and returning its size. This doesn’t scale when working on high-cardinality sets and/or large values as the required memory usage and the need to communicate those per-shard sets between nodes would utilize too many resources of the cluster.

This cardinality aggregation is based on the HyperLogLog++ algorithm, which counts based on the hashes of the values with some interesting properties:

configurable precision, which decides on how to trade memory for accuracy,
excellent accuracy on low-cardinality sets,
fixed memory usage: no matter if there are tens or billions of unique values, memory usage only depends on the configured precision.

For a precision threshold of c, the implementation that we are using requires about c * 8 bytes.

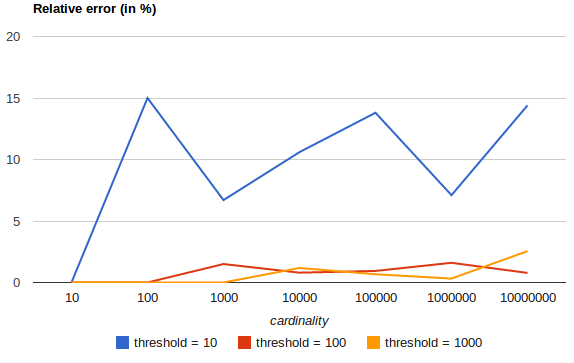

The following chart shows how the error varies before and after the threshold:

cardinality error

For all 3 thresholds, counts have been accurate up to the configured threshold (although not guaranteed, this is likely to be the case). Please also note that even with a threshold as low as 100, the error remains under 5%, even when counting millions of items.

Pre-computed hashes

edit

If you don’t want Elasticsearch to re-compute hashes on every run of this aggregation, it is possible to use pre-computed hashes, either by computing a hash on client-side, indexing it and specifying rehash: false, or by using the special murmur3 field mapper, typically in the context of a multi-field in the mapping:

{
    "author": {
        "type": "string",
        "fields": {
            "hash": {
                "type": "murmur3"
            }
        }
    }
}

With such a mapping, Elasticsearch is going to compute hashes of the author field at indexing time and store them in the author.hash field. This way, unique counts can be computed using the cardinality aggregation by only loading the hashes into memory, not the values of the author field, and without computing hashes on the fly:

{
    "aggs" : {
        "author_count" : {
            "cardinality" : {
                "field" : "author.hash"
            }
        }
    }
}

rehash is automatically set to false when computing unique counts on a murmur3 field.

Pre-computing hashes is usually only useful on very large and/or high-cardinality fields as it saves CPU and memory. However, on numeric fields, hashing is very fast and storing the original values requires as much or less memory than storing the hashes. This is also true on low-cardinality string fields, especially given that those have an optimization in order to make sure that hashes are computed at most once per unique value per segment.

Script

edit

The cardinality metric supports scripting, with a noticeable performance hit however since hashes need to be computed on the fly.

{
    "aggs" : {
        "author_count" : {
            "cardinality" : {
                "script": "doc['author.first_name'].value + ' ' + doc['author.last_name'].value"
            }
        }
    }
}

The script parameter expects an inline script. Use script_id for indexed scripts and script_file for scripts in the config/scripts/ directory.
