Tutorial: Transforming the eCommerce sample data

edit

Tutorial: Transforming the eCommerce sample data

edit

Transforms enable you to retrieve information from an Elasticsearch index, transform it, and store it in another index. Let’s use the Kibana sample data to demonstrate how you can pivot and summarize your data with transforms.

Verify that your environment is set up properly to use transforms. If the Elasticsearch security features are enabled, to complete this tutorial you need a user that has authority to preview and create transforms. You must also have specific index privileges for the source and destination indices. See Setup.
Choose your source index.

In this example, we’ll use the eCommerce orders sample data. If you’re not already familiar with the kibana_sample_data_ecommerce index, use the Revenue dashboard in Kibana to explore the data. Consider what insights you might want to derive from this eCommerce data.
Choose the pivot type of transform and play with various options for grouping and aggregating the data.

There are two types of transforms, but first we’ll try out pivoting your data, which involves using at least one field to group it and applying at least one aggregation. You can preview what the transformed data will look like, so go ahead and play with it! You can also enable histogram charts to get a better understanding of the distribution of values in your data.

For example, you might want to group the data by product ID and calculate the total number of sales for each product and its average price. Alternatively, you might want to look at the behavior of individual customers and calculate how much each customer spent in total and how many different categories of products they purchased. Or you might want to take the currencies or geographies into consideration. What are the most interesting ways you can transform and interpret this data?

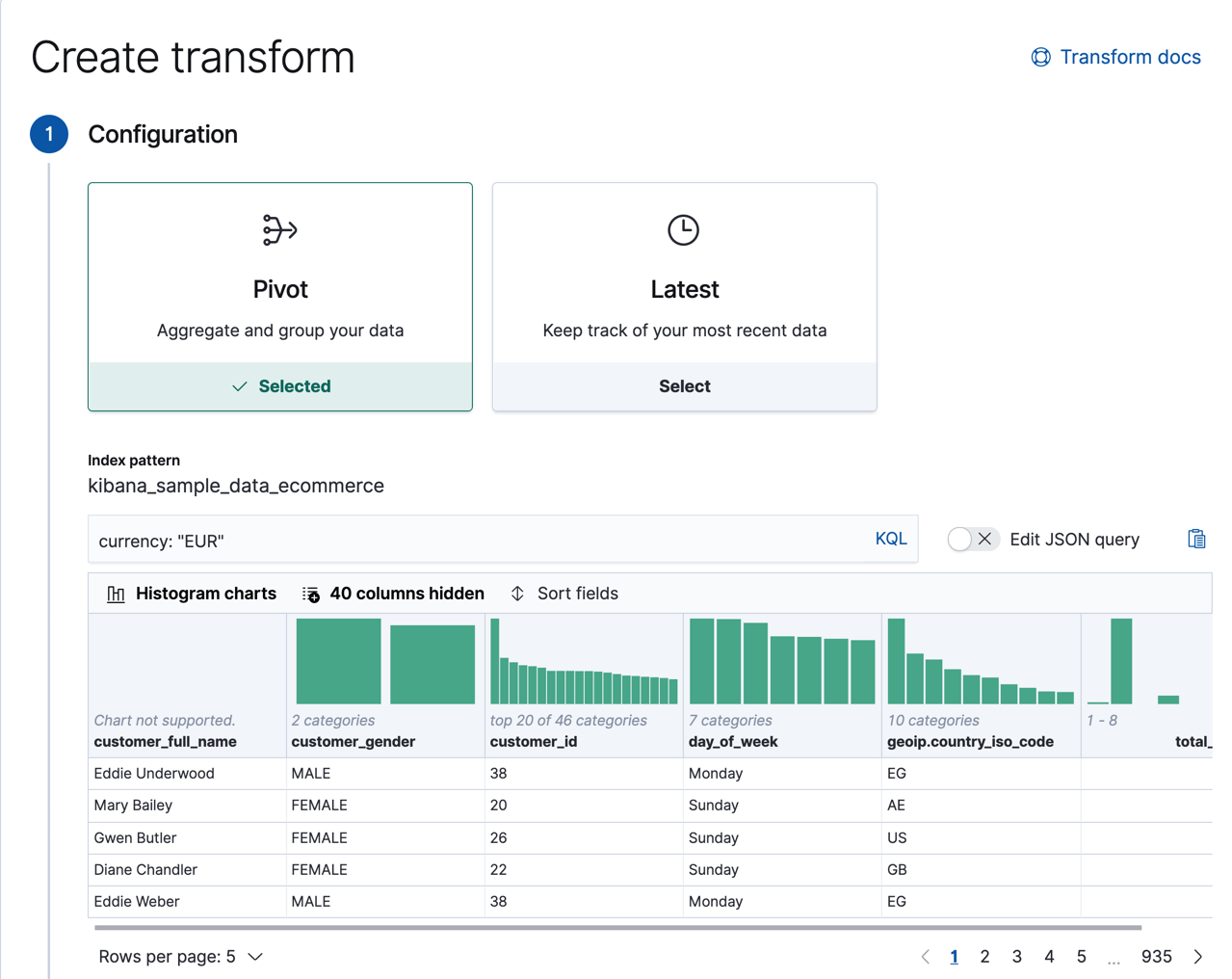

Go to Management > Stack Management > Data > Transforms in Kibana and use the wizard to create a transform:

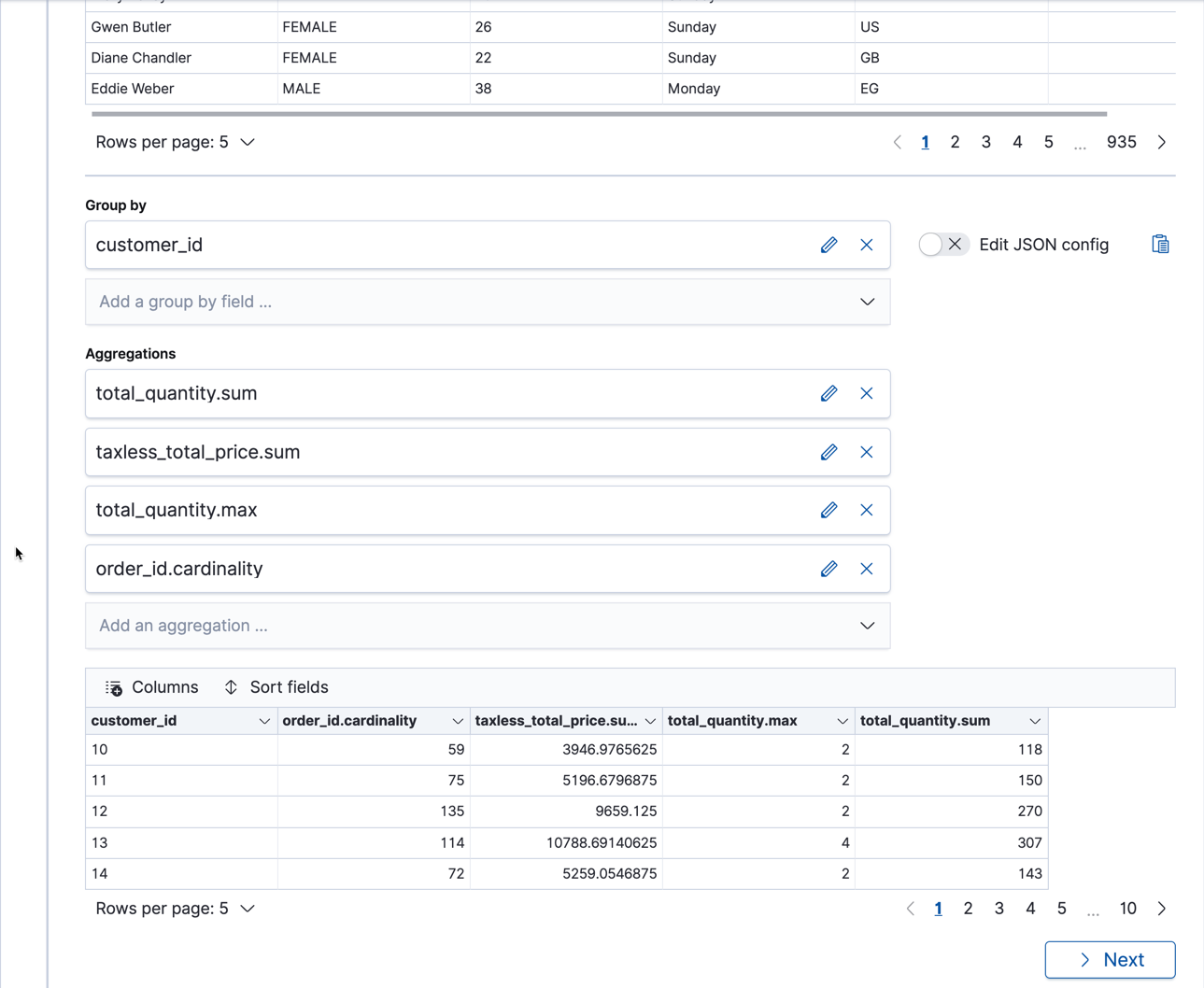

Group the data by customer ID and add one or more aggregations to learn more about each customer’s orders. For example, let’s calculate the sum of products they purchased, the total price of their purchases, the maximum number of products that they purchased in a single order, and their total number of orders. We’ll accomplish this by using the sum aggregation on the total_quantity and taxless_total_price fields, the max aggregation on the total_quantity field, and the cardinality aggregation on the order_id field:

If you’re interested in a subset of the data, you can optionally include a query element. In this example, we’ve filtered the data so that we’re only looking at orders with a currency of EUR. Alternatively, we could group the data by that field too. If you want to use more complex queries, you can create your data frame from a saved search.

If you prefer, you can use the preview transforms API.
API example
```
POST _transform/_preview
{
  "source": {
    "index": "kibana_sample_data_ecommerce",
    "query": {
      "bool": {
        "filter": {
          "term": {"currency": "EUR"}
        }
      }
    }
  },
  "pivot": {
    "group_by": {
      "customer_id": {
        "terms": {
          "field": "customer_id"
        }
      }
    },
    "aggregations": {
      "total_quantity.sum": {
        "sum": {
          "field": "total_quantity"
        }
      },
      "taxless_total_price.sum": {
        "sum": {
          "field": "taxless_total_price"
        }
      },
      "total_quantity.max": {
        "max": {
          "field": "total_quantity"
        }
      },
      "order_id.cardinality": {
        "cardinality": {
          "field": "order_id"
        }
      }
    }
  }
}
```
When you are satisfied with what you see in the preview, create the transform.

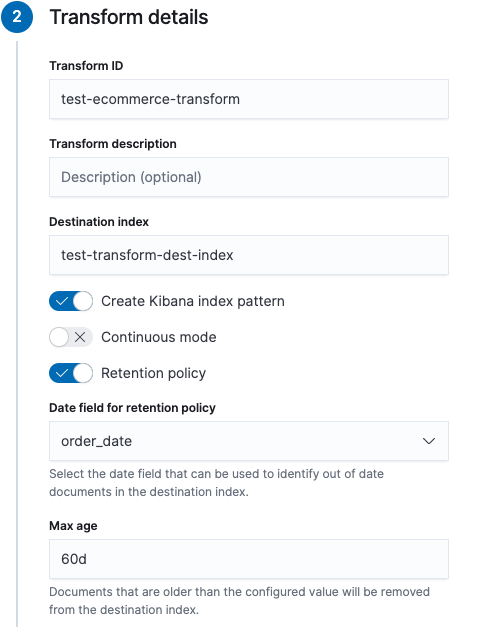

1. Supply a transform ID, the name of the target (or destination) index and optionally a description. If the target index does not exist, it will be created automatically.
2. Decide whether you want the transform to run once or continuously. Since this sample data index is unchanging, let’s use the default behavior and just run the transform once. If you want to try it out, however, go ahead and click on Continuous mode. You must choose a field that the transform can use to check which entities have changed. In general, it’s a good idea to use the ingest timestamp field. In this example, however, you can use the order_date field.
3. Optionally, you can configure a retention policy that applies to your transform. Select a date field that is used to identify old documents in the destination index and provide a maximum age. Documents that are older than the configured value are removed from the destination index.
If you prefer, you can use the create transforms API.
API example
```
PUT _transform/ecommerce-customer-transform
{
  "source": {
    "index": [
      "kibana_sample_data_ecommerce"
    ],
    "query": {
      "bool": {
        "filter": {
          "term": {
            "currency": "EUR"
          }
        }
      }
    }
  },
  "pivot": {
    "group_by": {
      "customer_id": {
        "terms": {
          "field": "customer_id"
        }
      }
    },
    "aggregations": {
      "total_quantity.sum": {
        "sum": {
          "field": "total_quantity"
        }
      },
      "taxless_total_price.sum": {
        "sum": {
          "field": "taxless_total_price"
        }
      },
      "total_quantity.max": {
        "max": {
          "field": "total_quantity"
        }
      },
      "order_id.cardinality": {
        "cardinality": {
          "field": "order_id"
        }
      }
    }
  },
  "dest": {
    "index": "ecommerce-customers"
  },
  "retention_policy": {
    "time": {
      "field": "order_date",
      "max_age": "60d"
    }
  }
}
```
Start the transform.

Even though resource utilization is automatically adjusted based on the cluster load, a transform increases search and indexing load on your cluster while it runs. If you’re experiencing an excessive load, however, you can stop it.

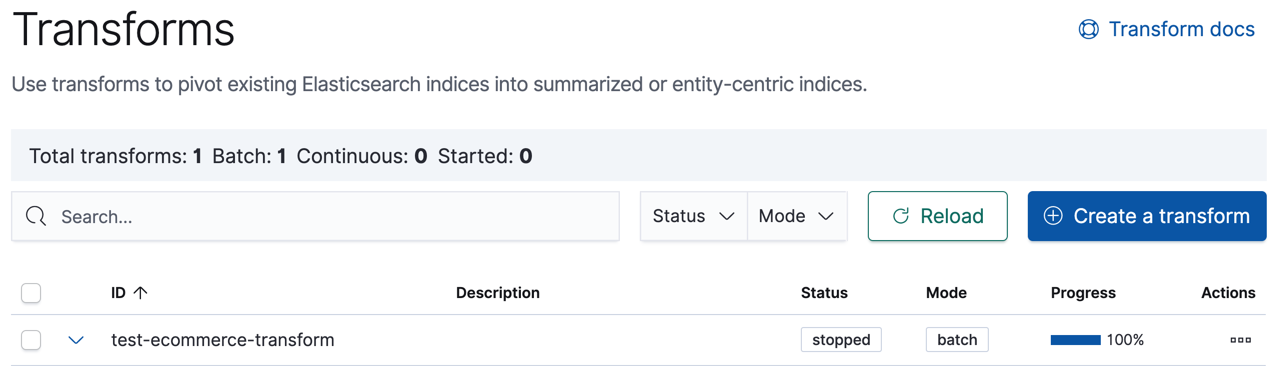

You can start, stop, and manage transforms in Kibana:

Alternatively, you can use the start transforms and stop transforms APIs.
API example
```
POST _transform/ecommerce-customer-transform/_start
```
If you chose a batch transform, it is a single operation that has a single checkpoint. You cannot restart it when it’s complete. Continuous transforms differ in that they continually increment and process checkpoints as new source data is ingested.
Explore the data in your new index.

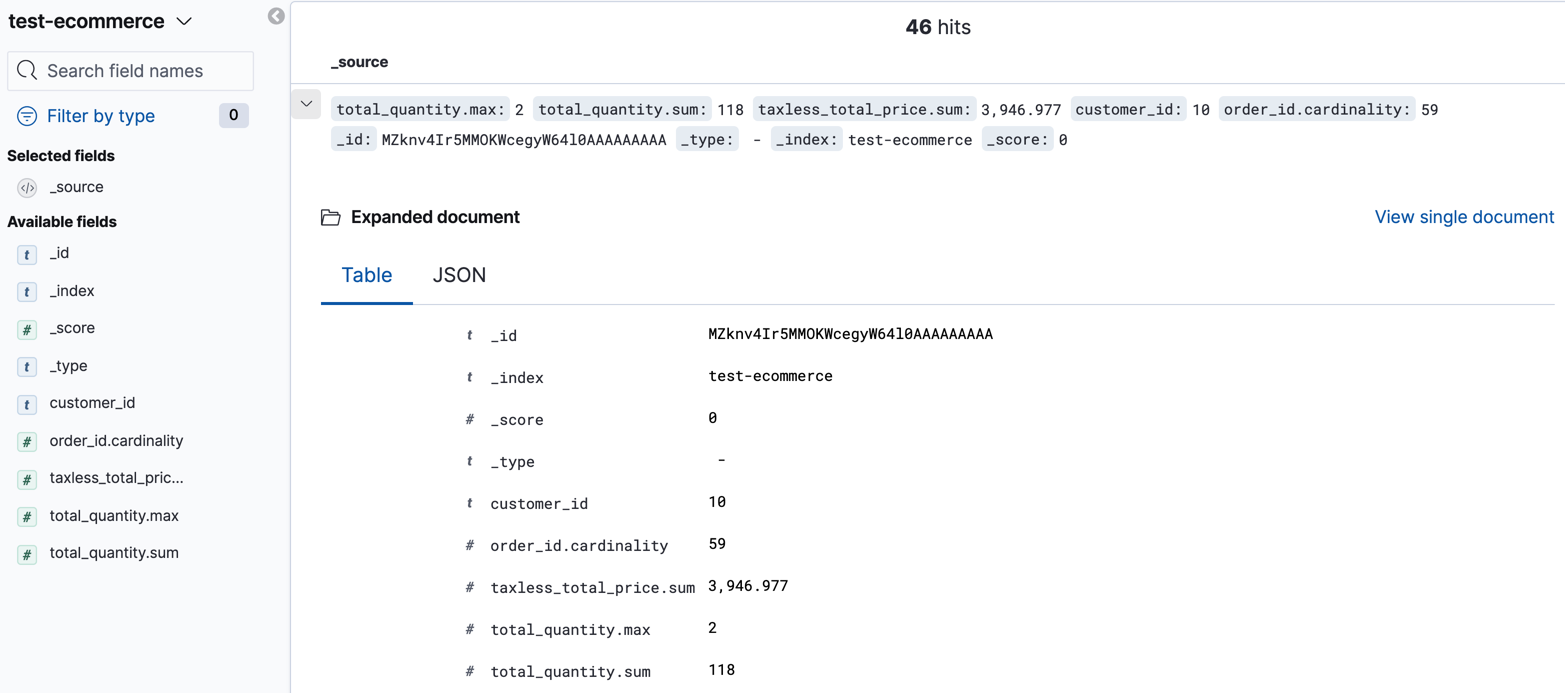

For example, use the Discover application in Kibana:

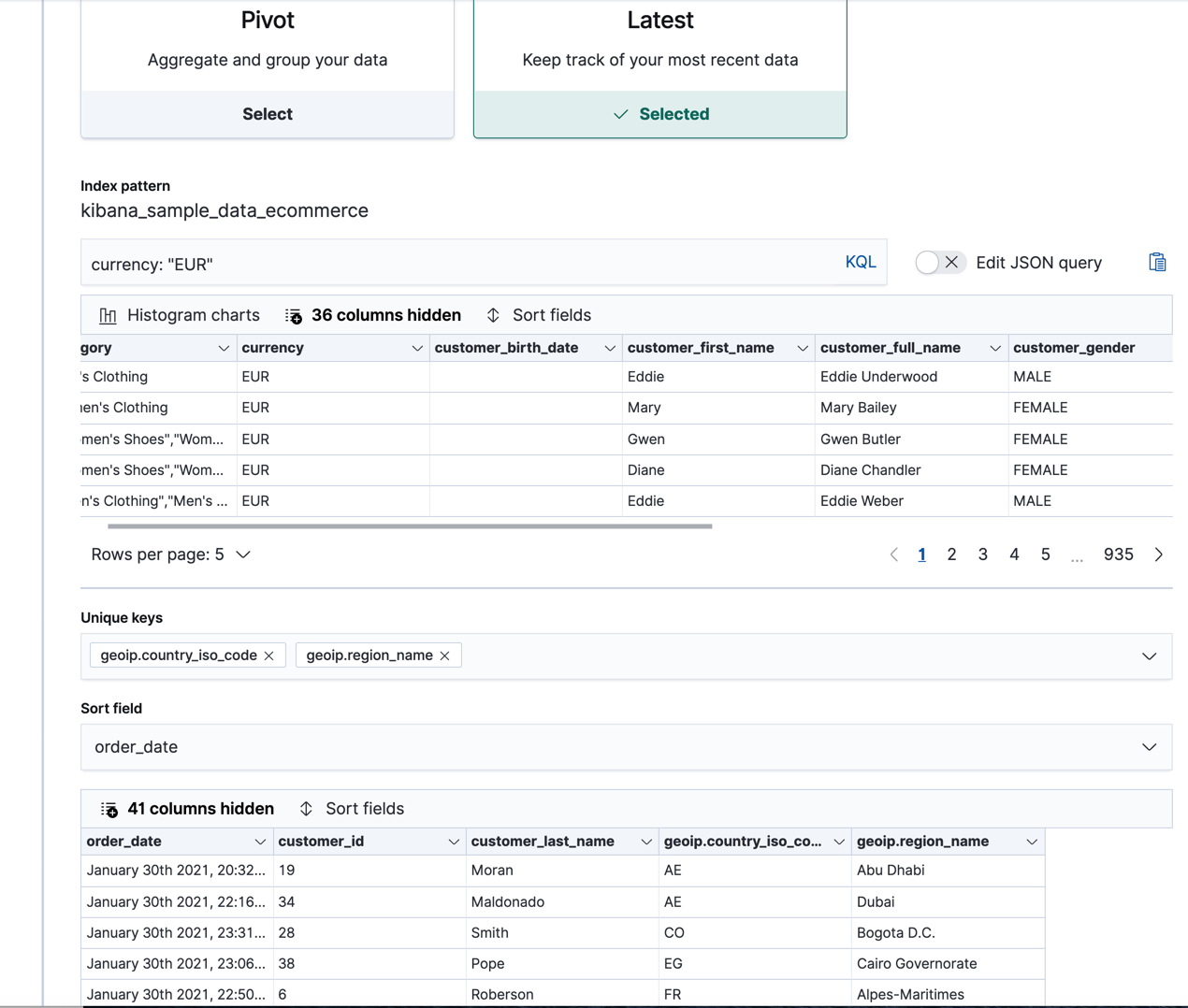

Optional: Create another transform, this time using the latest method.

This method populates the destination index with the latest documents for each unique key value. For example, you might want to find the latest orders (sorted by the order_date field) for each customer or for each country and region.

API example

POST _transform/_preview
{
  "source": {
    "index": "kibana_sample_data_ecommerce",
    "query": {
      "bool": {
        "filter": {
          "term": {"currency": "EUR"}
        }
      }
    }
  },
  "latest": {
    "unique_key": ["geoip.country_iso_code", "geoip.region_name"],
    "sort": "order_date"
  }
}

If you do not want to keep a transform, you can delete it in Kibana or use the delete transform API. By default, when you delete a transform, its destination index and Kibana index patterns remain.

Now that you’ve created simple transforms for Kibana sample data, consider possible use cases for your own data. For more ideas, see When to use transforms and Examples.
