SQL Workbench/J

edit

SQL Workbench/J

edit

You can use the Elasticsearch JDBC driver to access Elasticsearch data from SQL Workbench/J.

Elastic does not endorse, promote or provide support for this application; for native Elasticsearch integration in this product, please reach out to its vendor.

Prerequisites

edit

Add Elasticsearch JDBC driver

edit

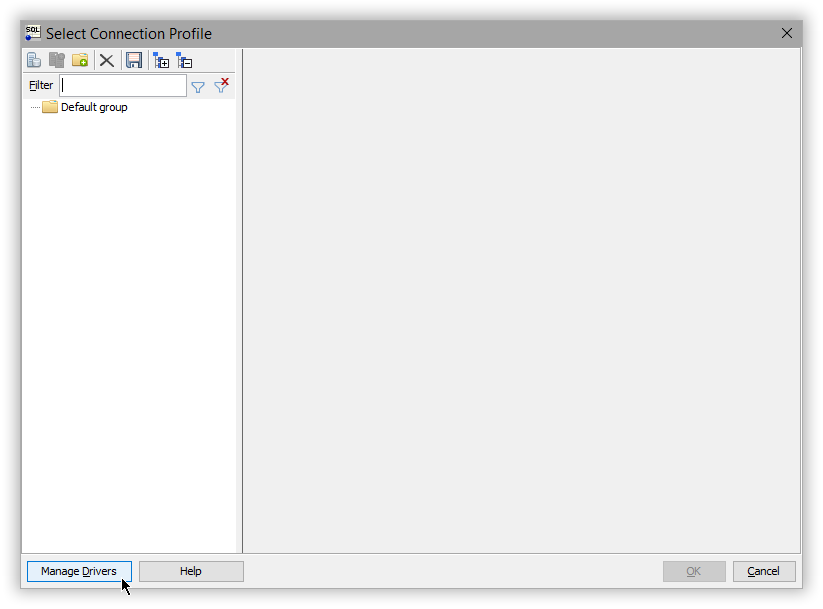

Add the Elasticsearch JDBC driver to SQL Workbench/J through Manage Drivers either from the main windows in the File menu or from the Connect window:

workbench 1 manage drivers

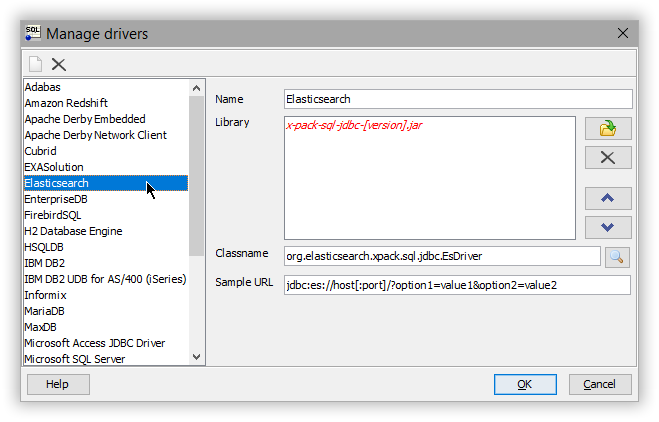

Select Elasticsearch profile from the left-hand side (if it is missing check the SQL Workbench/J version or add a new entry to the list through the blank page button in the upper left corner):

workbench 2 select driver

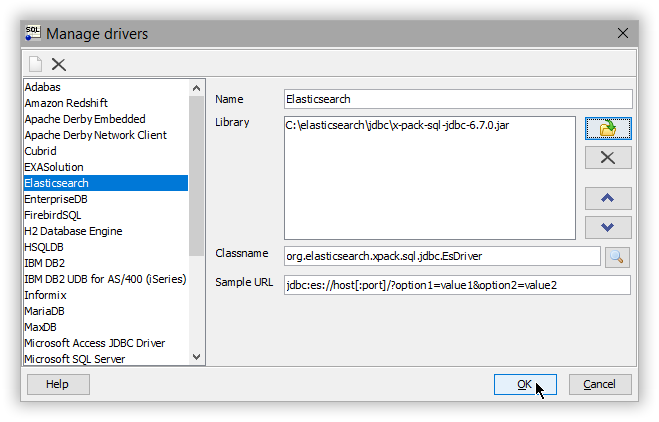

Add the JDBC jar (if the driver name hasn’t been picked up already, click on the magnifier button):

workbench 3 add jar

Create a new connection profile

edit

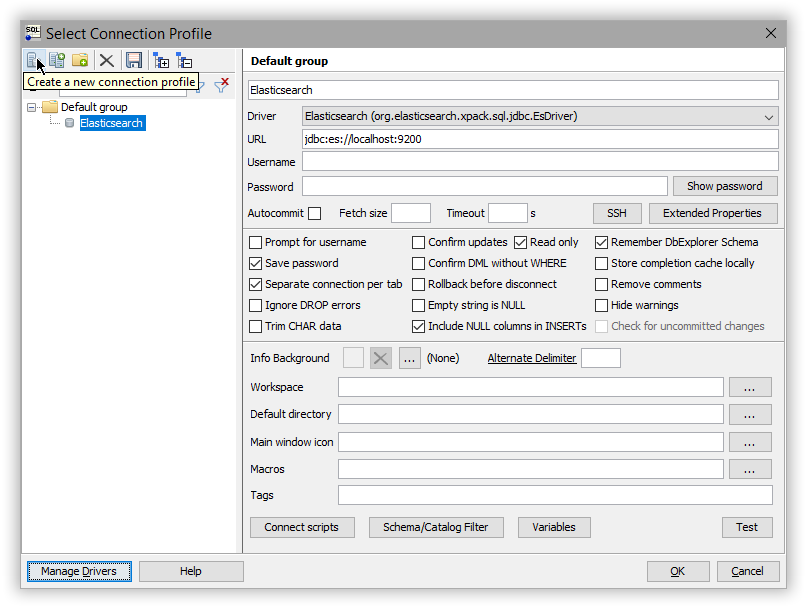

With the driver configured, create a new connection profile through File > Connect Window (or Alt+C shortcut):

workbench 4 connection

Select the previously configured driver and set the URL of your cluster using the JDBC syntax. Verify the connection through the Test button - a confirmation window should appear that everything is properly configured.

The setup is complete.

Execute SQL queries

edit

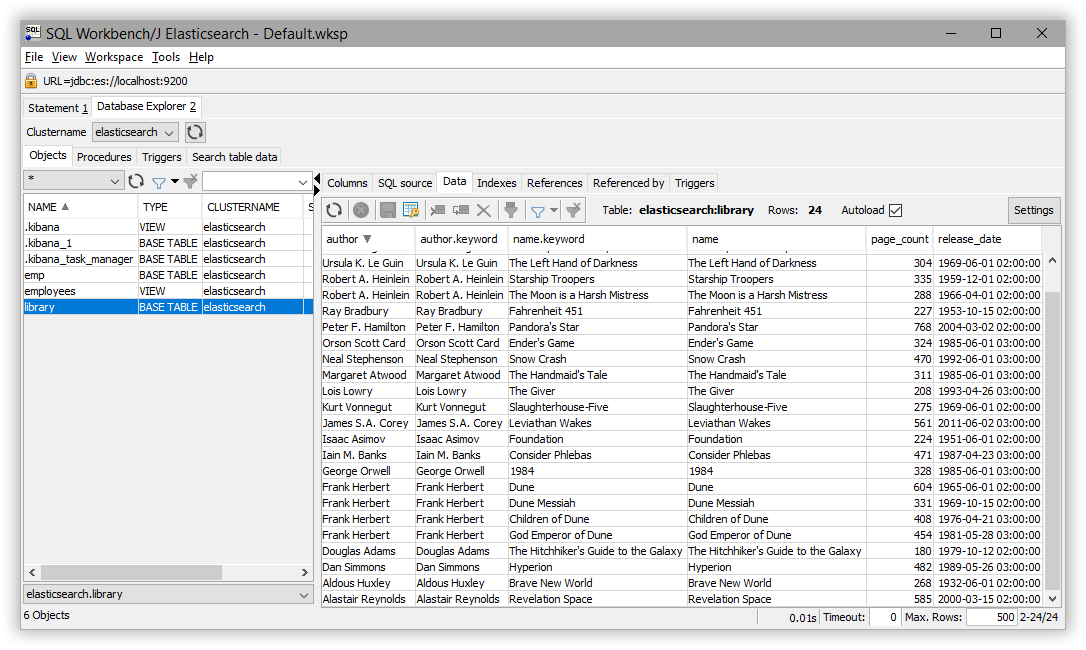

SQL Workbench/J is ready to talk to Elasticsearch through SQL: click on the profile created to execute statements or explore the data:

workbench 5 data
