Elastic Agent to proxy to Elasticsearch

edit

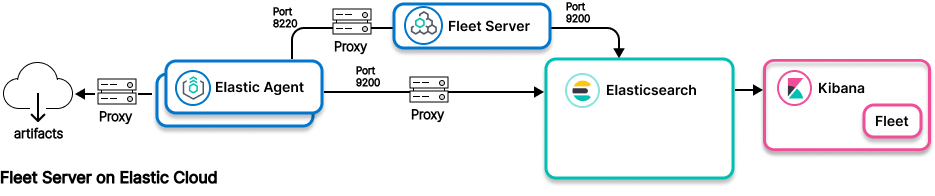

Image showing connections between Elastic Agent and Elasticsearch using a proxy when Fleet Server is managed by Elastic

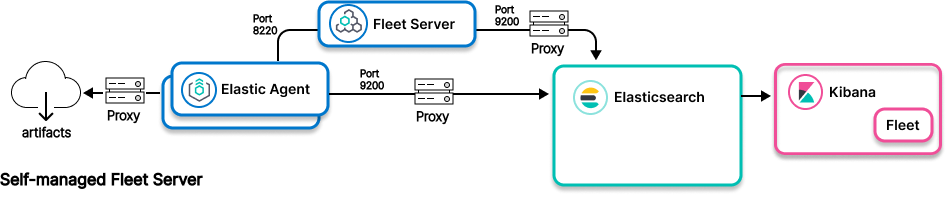

Image showing connections between Elastic Agent and Elasticsearch using a proxy

This architecture works with a variety of proxying tools to allow for more flexibility in your environment. Consider using Logstash as a proxy, as Logstash and the rest of the Elastic Stack are designed and tested to work together, and can be easier to support.

Ingest model

Control path for Fleet Server on Elastic Cloud: Elastic Agent to proxy to Fleet Server to Elasticsearch
Control path for self-managed Fleet Server: Elastic Agent to Fleet Server to proxy to Elasticsearch
Data path: Elastic Agent to proxy to Elasticsearch
Use when
  • Network restrictions prevent connection between Elastic Agent network and network where Fleet Server and Elastic Stack are deployed, as when Fleet Server is deployed on Elastic Cloud
  • Network restrictions prevent connection between Elastic Agent and Fleet Server network and the network where Elastic Stack is deployed, as when Elastic Stack is deployed on Elastic Cloud
  • Using Logstash as proxy is not feasible.

Currently Elastic Agent is not able to present a certificate for connectivity to Fleet Server. Therefore if a proxy placed between the Elastic Agent and Fleet Server is configured for mutual TLS, Elastic Agents won’t be able to establish connectivity to {fleet server}.

Resources

edit

Info on Elastic Agent and agent integrations:

Info on using a proxy server:

Info on Elasticsearch:
