ServiceNow connector and action
editServiceNow connector and action
editThe ServiceNow connector uses the V2 Table API to create ServiceNow incidents. The ServiceNow ITSM connector can be used for rule actions and cases. The ServiceNow SecOps connector can only be used for cases.
Connector configuration
editServiceNow connectors have the following configuration properties.
- Name
- The name of the connector. The name is used to identify a connector in the Stack Management UI connector listing, and in the connector list when configuring an action.
- URL
- ServiceNow instance URL.
- Username
- Username for HTTP Basic authentication.
- Password
- Password for HTTP Basic authentication.
The ServiceNow user requires at minimum read, create, and update access to the Incident table and read access to the sys_choice. If you don’t provide access to sys_choice, then the choices will not render.
Connector networking configuration
editUse the Action configuration settings to customize connector networking configurations, such as proxies, certificates, or TLS settings. You can set configurations that apply to all your connectors or use xpack.actions.customHostSettings
to set per-host configurations.
Preconfigured connector type
editmy-servicenow: name: preconfigured-servicenow-connector-type actionTypeId: .servicenow config: apiUrl: https://dev94428.service-now.com/ secrets: username: testuser password: passwordkeystorevalue
Config defines information for the connector type.
-
apiUrl
- An address that corresponds to URL.
Secrets defines sensitive information for the connector type.
-
username
- A string that corresponds to Username.
-
password
- A string that corresponds to Password. Should be stored in the Kibana keystore.

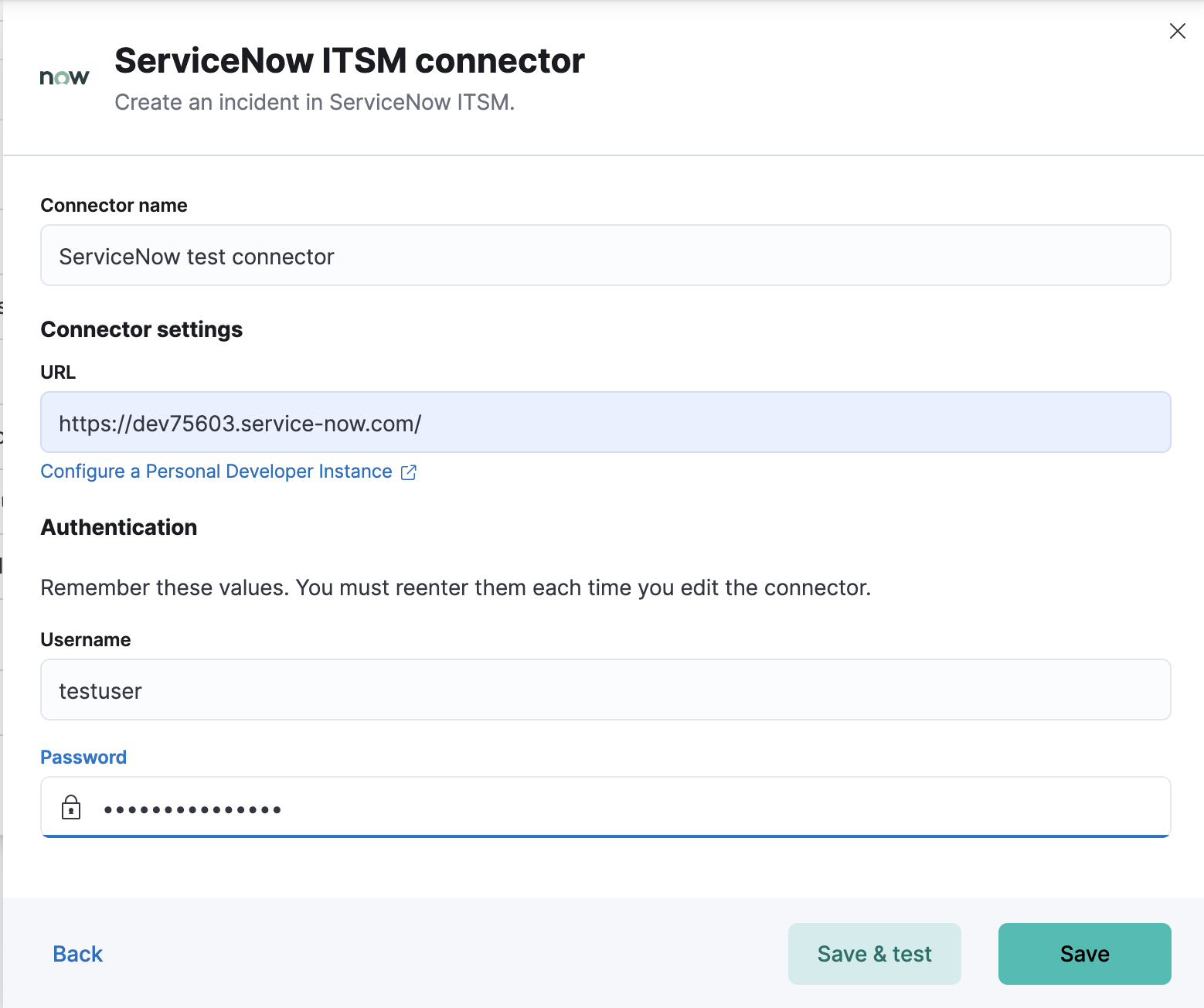

Define connector in Stack Management
editDefine ServiceNow connector properties.

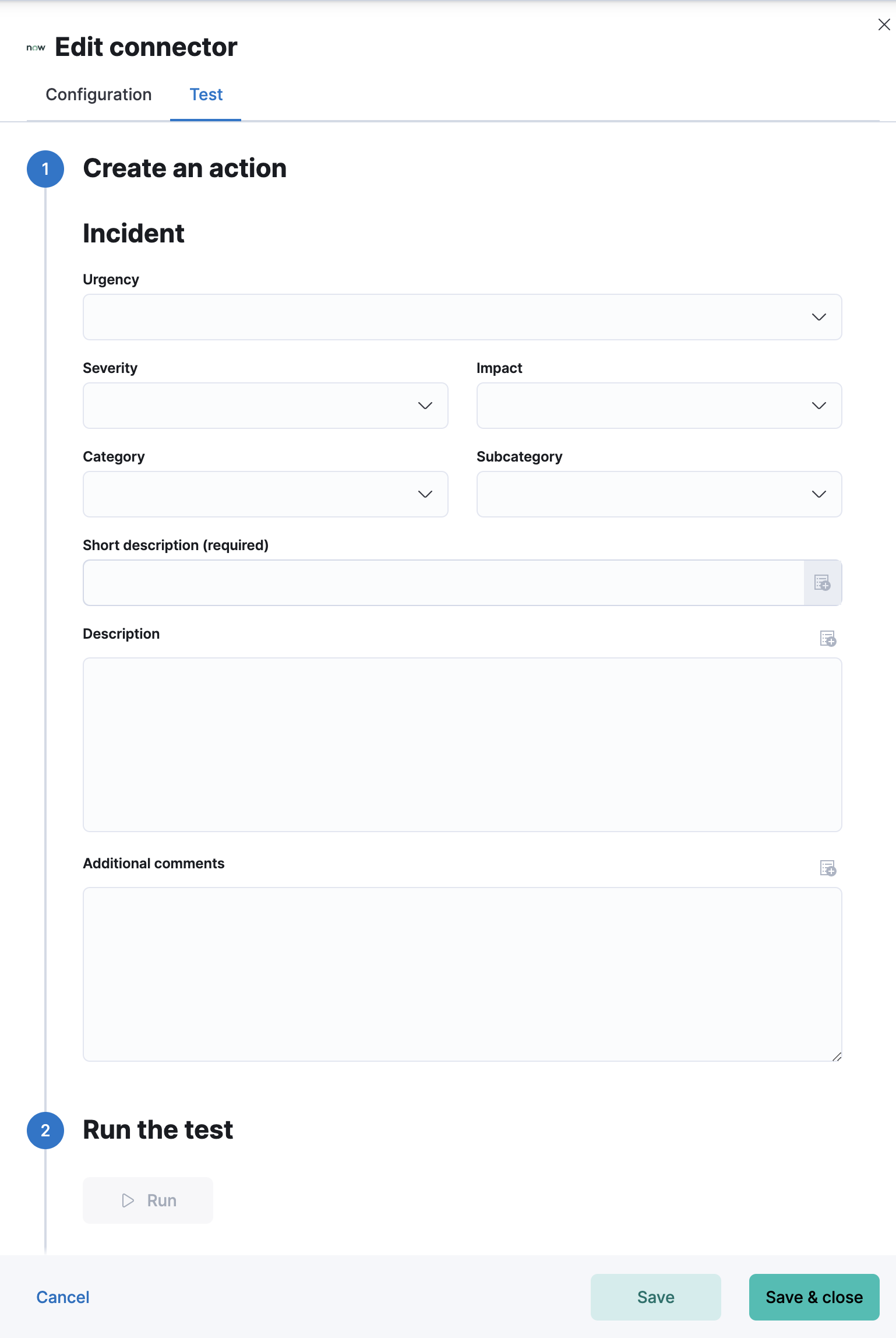

Test ServiceNow action parameters.
Action configuration
editServiceNow actions have the following configuration properties.
- Urgency
- The extent to which the incident resolution can delay.
- Severity
- The severity of the incident.
- Impact
- The effect an incident has on business. Can be measured by the number of affected users or by how critical it is to the business in question.
- Short description
- A short description for the incident, used for searching the contents of the knowledge base.
- Description
- The details about the incident.
- Additional comments
- Additional information for the client, such as how to troubleshoot the issue.
Configure ServiceNow
editServiceNow offers free Personal Developer Instances, which you can use to test incidents.
