Debug grok expressions

edit

Debug grok expressions

edit

You can build and debug grok patterns in the Kibana Grok Debugger before you use them in your data processing pipelines. Grok is a pattern matching syntax that you can use to parse arbitrary text and structure it. Grok is good for parsing syslog, apache, and other webserver logs, mysql logs, and in general, any log format that is written for human consumption.

Grok patterns are supported in the ingest node grok processor and the Logstash grok filter. See grok basics for more information on the syntax for a grok pattern.

The Elastic Stack ships with more than 120 reusable grok patterns. See Ingest node grok patterns and Logstash grok patterns for the complete list of patterns.

Because ingest node and Logstash share the same grok implementation and pattern libraries, any grok pattern that you create in the Grok Debugger will work in ingest node and Logstash.

Get started

edit

This example walks you through using the Grok Debugger. This tool is automatically enabled in Kibana.

If you’re using Elastic Stack security features, you must have the manage_pipeline permission to use the Grok Debugger.

  1. Open the main menu, click Dev Tools, then click Grok Debugger.

  2. In Sample Data, enter a message that is representative of the data that you want to parse. For example:

    55.3.244.1 GET /index.html 15824 0.043

  3. In Grok Pattern, enter the grok pattern that you want to apply to the data.

    To parse the log line in this example, use:

    %{IP:client} %{WORD:method} %{URIPATHPARAM:request} %{NUMBER:bytes} %{NUMBER:duration}

  4. Click Simulate.

    You’ll see the simulated event that results from applying the grok pattern.

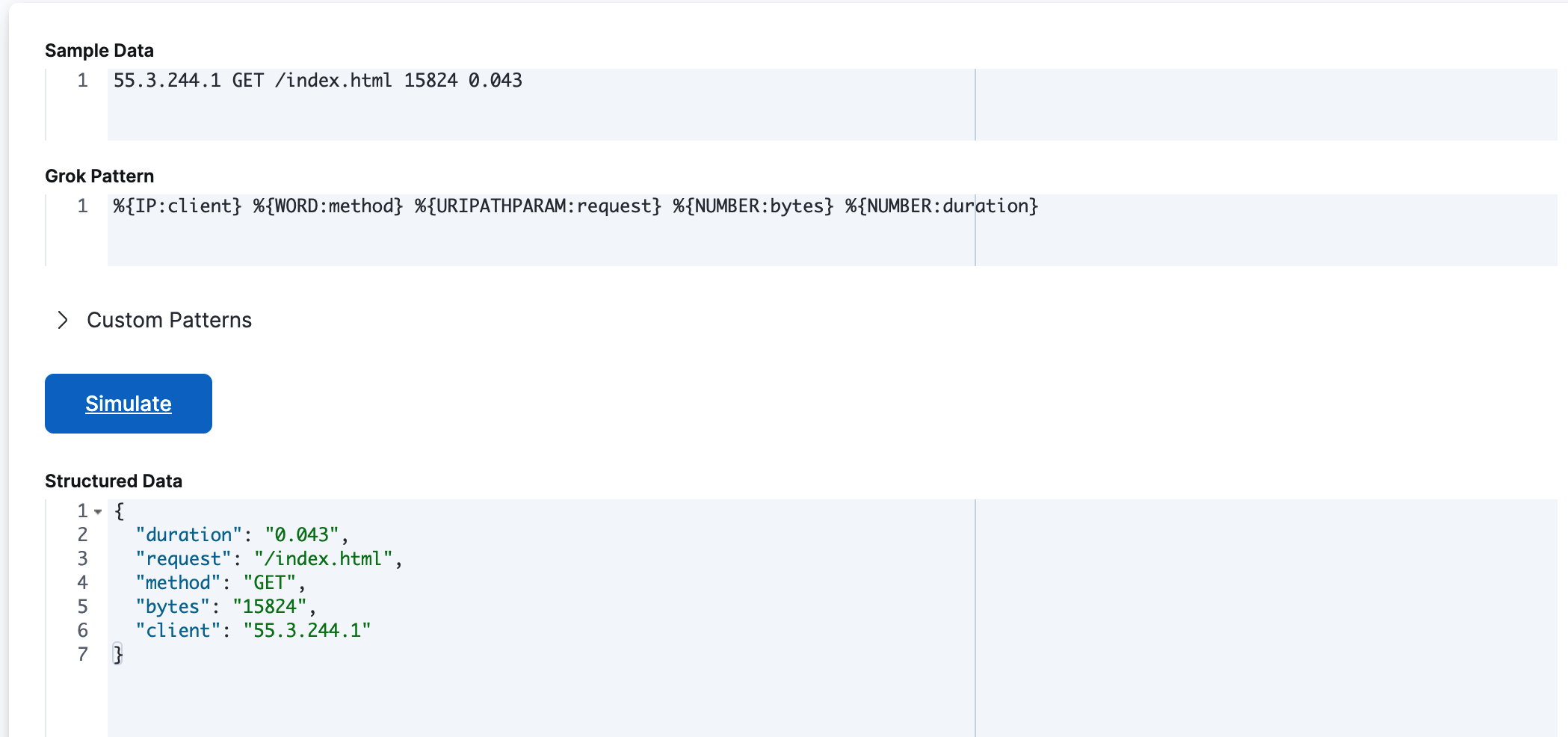

    Grok Debugger

Test custom patterns

edit

If the default grok pattern dictionary doesn’t contain the patterns you need, you can define, test, and debug custom patterns using the Grok Debugger.

Custom patterns that you enter in the Grok Debugger are not saved. Custom patterns are only available for the current debugging session and have no side effects.

Follow this example to define a custom pattern.

  1. In Sample Data, enter the following sample message:

    Jan  1 06:25:43 mailserver14 postfix/cleanup[21403]: BEF25A72965: message-id=<20130101142543.5828399CCAF@mailserver14.example.com>

  2. Enter this grok pattern:

    %{SYSLOGBASE} %{POSTFIX_QUEUEID:queue_id}: %{MSG:syslog_message}

    Notice that the grok pattern references custom patterns called POSTFIX_QUEUEID and MSG.

  3. Expand Custom Patterns and enter pattern definitions for the custom patterns that you want to use in the grok expression. You must specify each pattern definition on its own line.

    For this example, you must specify pattern definitions for POSTFIX_QUEUEID and MSG:

    POSTFIX_QUEUEID [0-9A-F]{10,11}
MSG message-id=<%{GREEDYDATA}>

  4. Click Simulate.

    You’ll see the simulated output event that results from applying the grok pattern that contains the custom pattern:

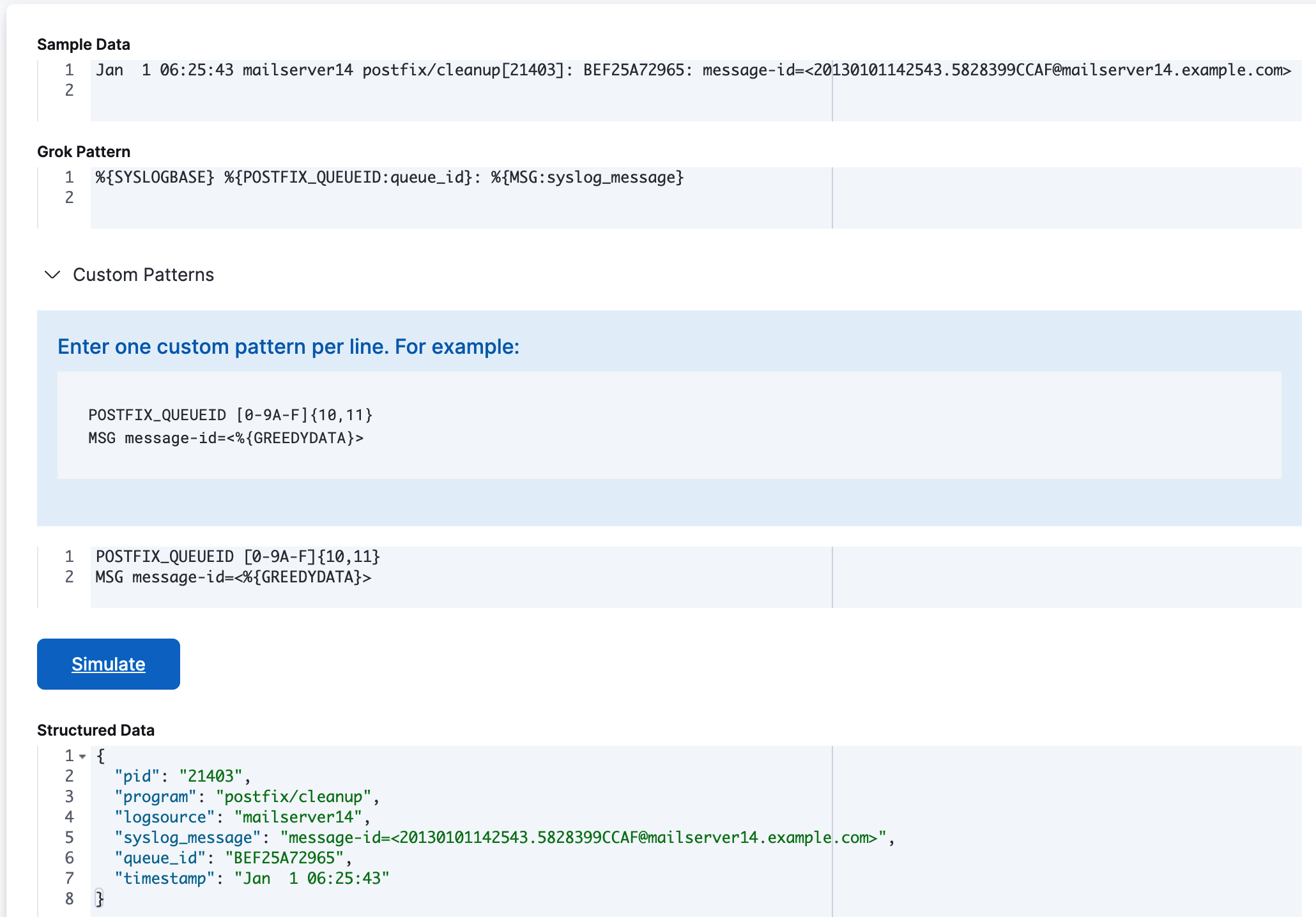

    Debugging a custom pattern

    If an error occurs, you can continue iterating over the custom pattern until the output matches the event that you expect.
