Overview

The Uptime overview is intended to help you quickly identify and diagnose outages and other connectivity issues within your network or environment. There is a date range selection that is global to the Uptime UI; you can use this selection to highlight an absolute date range, or a relative one, similar to other areas of Kibana.

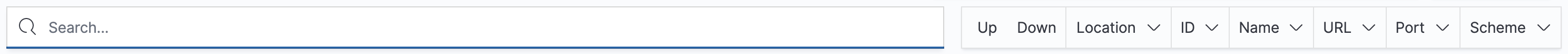

The filter bar is designed to let you quickly view specific groups of monitors, or even an individual monitor, if you have defined many.

This control allows you to use automated filter options, as well as input custom filter text to select specific monitors by field, URL, ID, and other attributes.

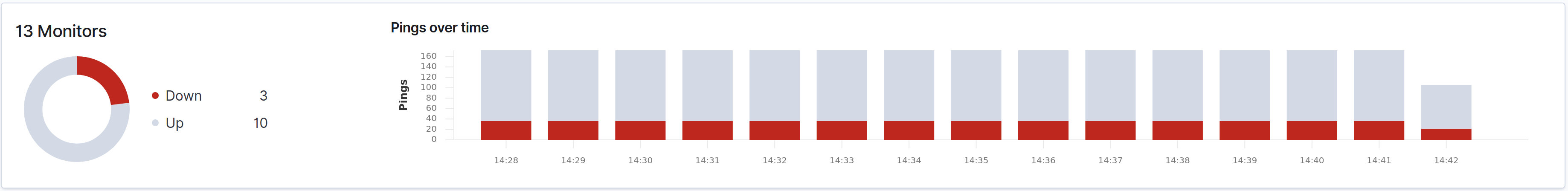

This panel is intended to quickly give you a sense of the overall status of the environment you’re monitoring, or a subset of those monitors. Here, you can see the total number of detected monitors within the selected Uptime date range. In addition to the total, the counts for the number of monitors in an up or down state are displayed, based on the last check reported by Heartbeat for each monitor.

Next to the counts, there is a histogram displaying the change over time throughout the selected date range.

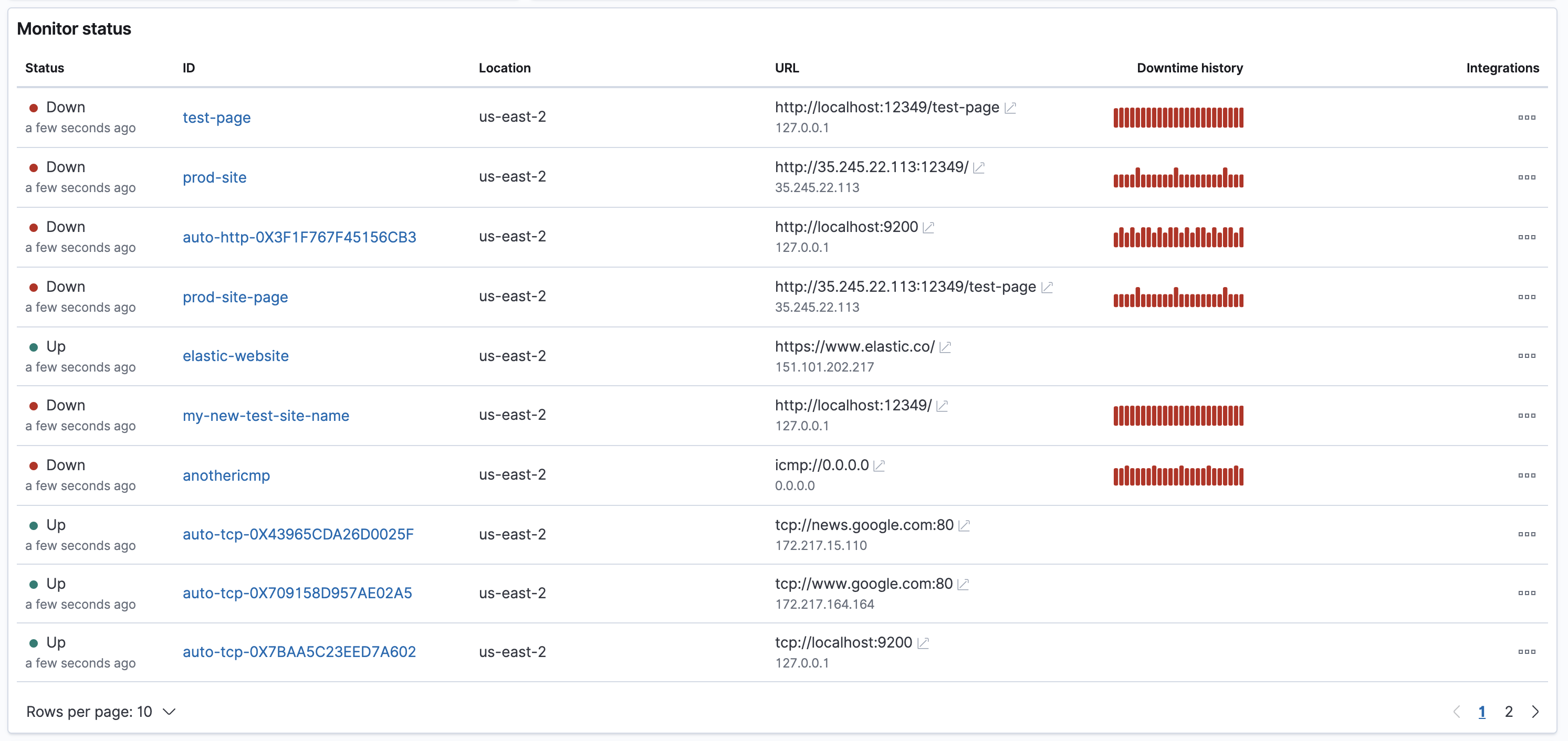

The Monitor list displays information at the level of individual monitors. The data shown here will flesh out your individual monitors, and provide a quick way to navigate to a more in-depth visualization for interesting hosts or endpoints.

This table includes information like the most recent status, when the monitor was last checked, its ID and URL, its IP address, and a dedicated sparkline showing its check status over time.

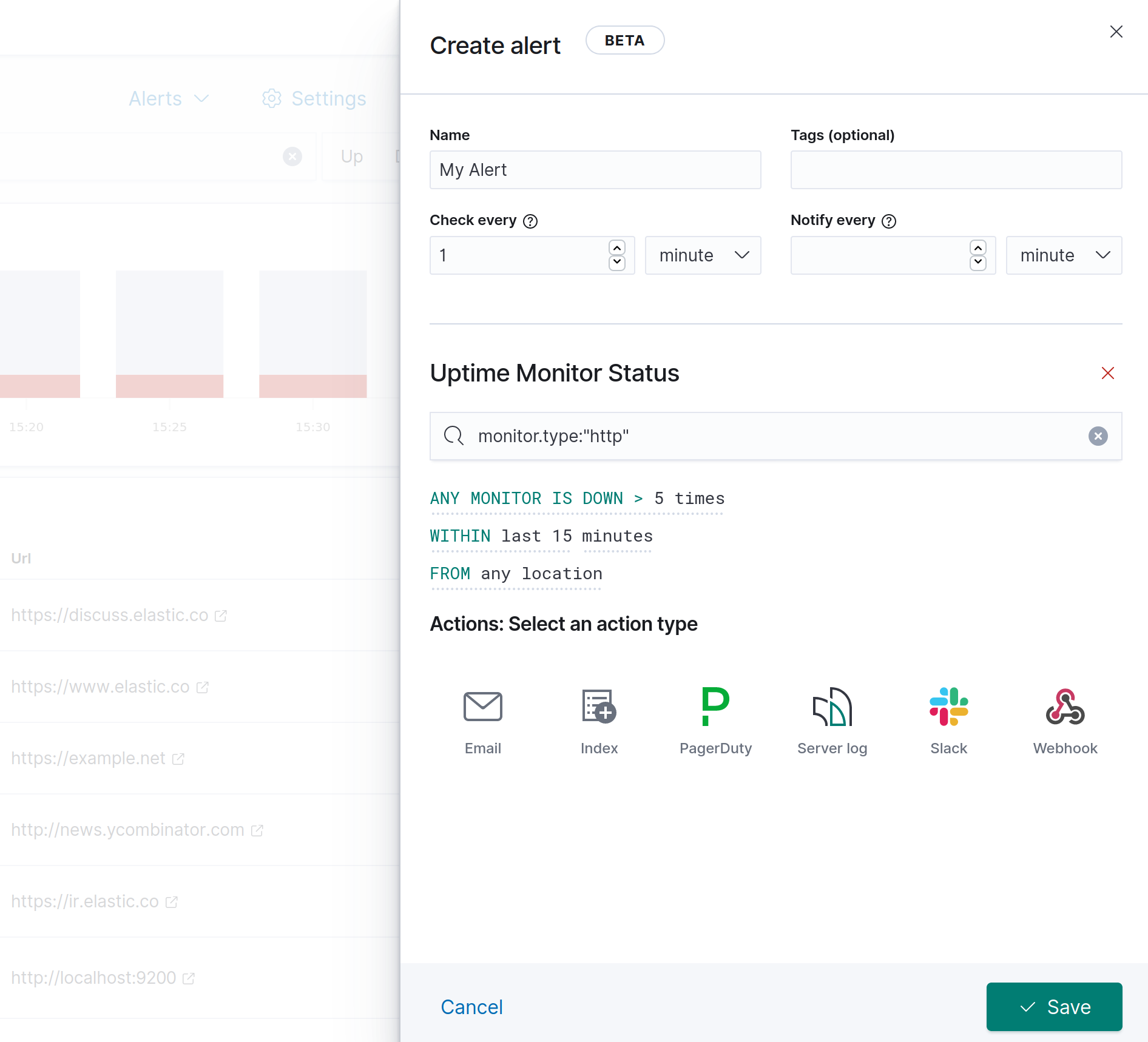

To receive alerts when a monitor goes down, use the alerting menu at the top of the overview page. Use a query in the alert flyout to determine which monitors to check with your alert. If you already have a query in the overview page search bar it will be carried over into this box.

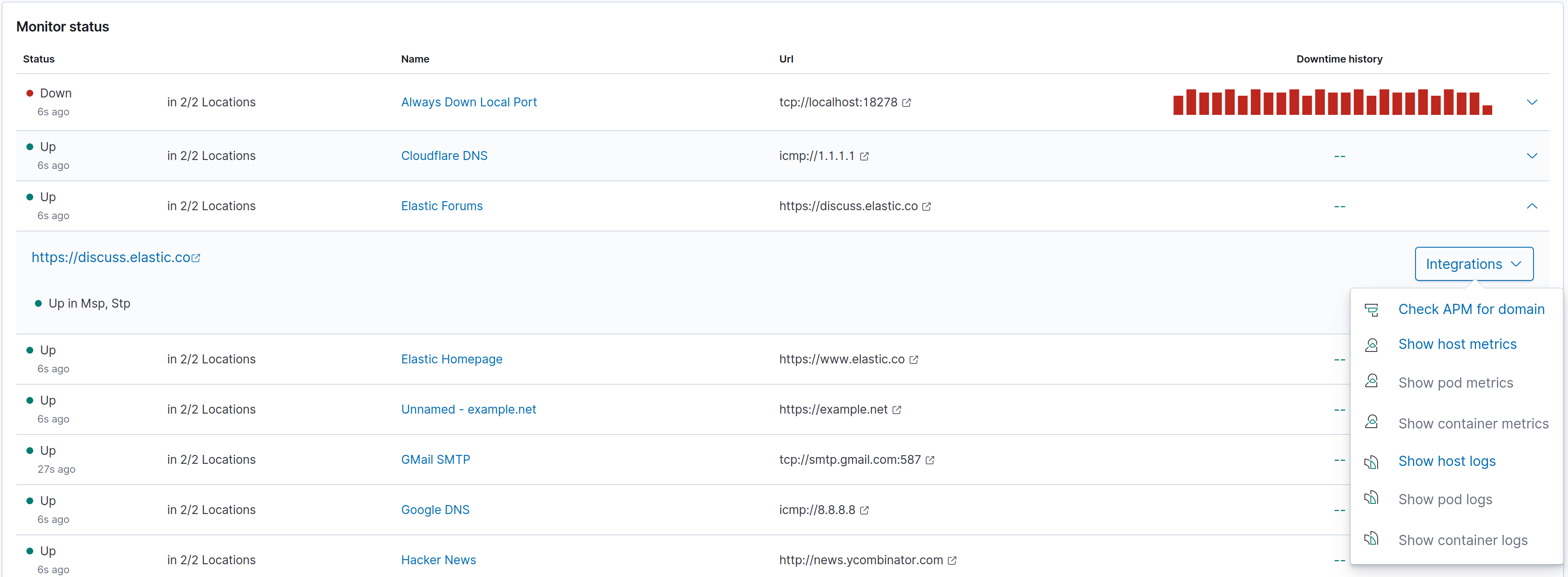

The Monitor list also contains a menu of possible integrations. If Uptime detects Kubernetes or Docker related host information, it will provide links to open the Metrics app or Logs app pre-filtered for this host. Additionally, this feature supplies links to simply filter the other views on the host’s IP address, to help you quickly determine if these other solutions contain data relevant to your current interest.
