Aggregation-based

edit

Aggregation-based visualizations are the core Kibana panels, and are not optimized for a specific use case.

With aggregation-based visualizations, you can:

  • Split charts up to three aggregation levels, which is more than Lens and TSVB
  • Create visualization with non-time series data
  • Use a saved search as an input
  • Sort data tables and use the summary row and percentage column features
  • Assign colors to data series
  • Extend features with plugins

Aggregation-based visualizations include the following limitations:

  • Limited styling options
  • Math is unsupported
  • Multiple indices is unsupported

Types of aggregation-based visualizations

edit

Kibana supports the following types of aggregation-based visualizations.

Area

Displays data points, connected by a line, where the area between the line and axes are shaded. Use area charts to compare two or more categories over time, and display the magnitude of trends.

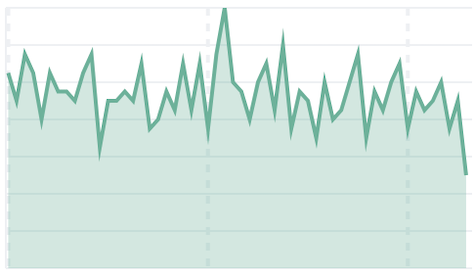

Area chart

Data table

Displays your aggregation results in a tabular format. Use data tables to display server configuration details, track counts, min, or max values for a specific field, and monitor the status of key services.

Data table

Gauge

Displays your data along a scale that changes color according to where your data falls on the expected scale. Use the gauge to show how metric values relate to reference threshold values, or determine how a specified field is performing versus how it is expected to perform.

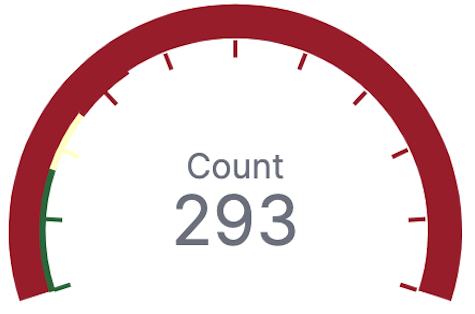

Gauge

Goal

Displays how your metric progresses toward a fixed goal. Use the goal to display an easy to read visual of the status of your goal progression.

Goal

Heat map

Displays graphical representations of data where the individual values are represented by colors. Use heat maps when your data set includes categorical data. For example, use a heat map to see the flights of origin countries compared to destination countries using the sample flight data.

Heat map

Horizontal Bar

Displays bars side-by-side where each bar represents a category. Use bar charts to compare data across a large number of categories, display data that includes categories with negative values, and easily identify the categories that represent the highest and lowest values. Kibana also supports vertical bar charts.

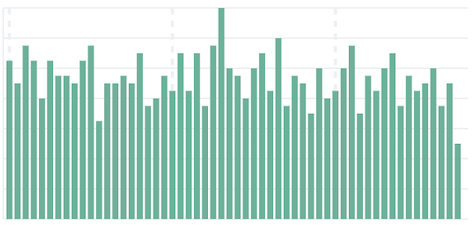

Bar chart

Line

Displays data points that are connected by a line. Use line charts to visualize a sequence of values, discover trends over time, and forecast future values.

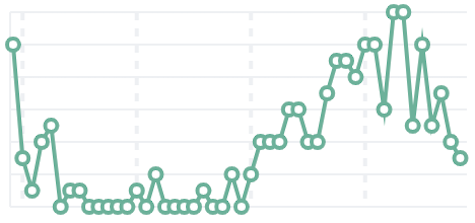

Line chart

Metric

Displays a single numeric value for an aggregation. Use the metric visualization when you have a numeric value that is powerful enough to tell a story about your data.

Metric

Pie

Displays slices that represent a data category, where the slice size is proportional to the quantity it represents. Use pie charts to show comparisons between multiple categories, illustrate the dominance of one category over others, and show percentage or proportional data.

Pie chart

Tag cloud

Graphical representations of how frequently a word appears in the source text. Use tag clouds to easily produce a summary of large documents and create visual art for a specific topic.

Tag cloud

Create an aggregation-based visualization panel

edit

Choose the type of visualization you want to create, then use the editor to configure the options.

  1. On the dashboard, click All types > Aggregation based.

    1. Select the visualization type you want to create.

    2. Select the data source you want to visualize.

      There is no performance impact on the data source you select. For example, Discover saved searches perform the same as data views.

  2. Add the aggregations you want to visualize using the editor, then click Update.

    For the Date Histogram to use an auto interval, the date field must match the primary time field of the data view.

  3. To change the order, drag and drop the aggregations in the editor.

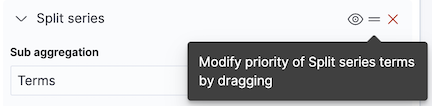

    Option to change the order of aggregations

  4. To customize the series colors, click the series in the legend, then select the color you want to use.

    Color picker

Try it: Create an aggregation-based bar chart

edit

You collected data from your web server, and you want to visualize and analyze the data on a dashboard. To create a dashboard panel of the data, create a bar chart that displays the top five log traffic sources for every three hours.

Add the data and create the dashboard
edit

Add the sample web logs data that you’ll use to create the bar chart, then create the dashboard.

  1. On the home page, click Try sample data.
  2. Click Other sample data sets.
  3. On the Sample web logs card, click Add data.
  4. Open the main menu, then click Dashboard.
  5. On the Dashboards page, click Create dashboard.
Open and set up the aggregation-based bar chart
edit

Open the Aggregation based editor and change the time range.

  1. On the dashboard, click All types > Aggregation based, select Vertical bar, then select Kibana Sample Data Logs.
  2. Make sure the time filter is Last 7 days.
Create the bar chart
edit

To create the bar chart, add a bucket aggregation, then add the terms sub-aggregation to display the top values.

  1. Add a Buckets aggregation.

    1. Click Add, then select X-axis.
    2. From the Aggregation dropdown, select Date Histogram.

    3. Click Update.

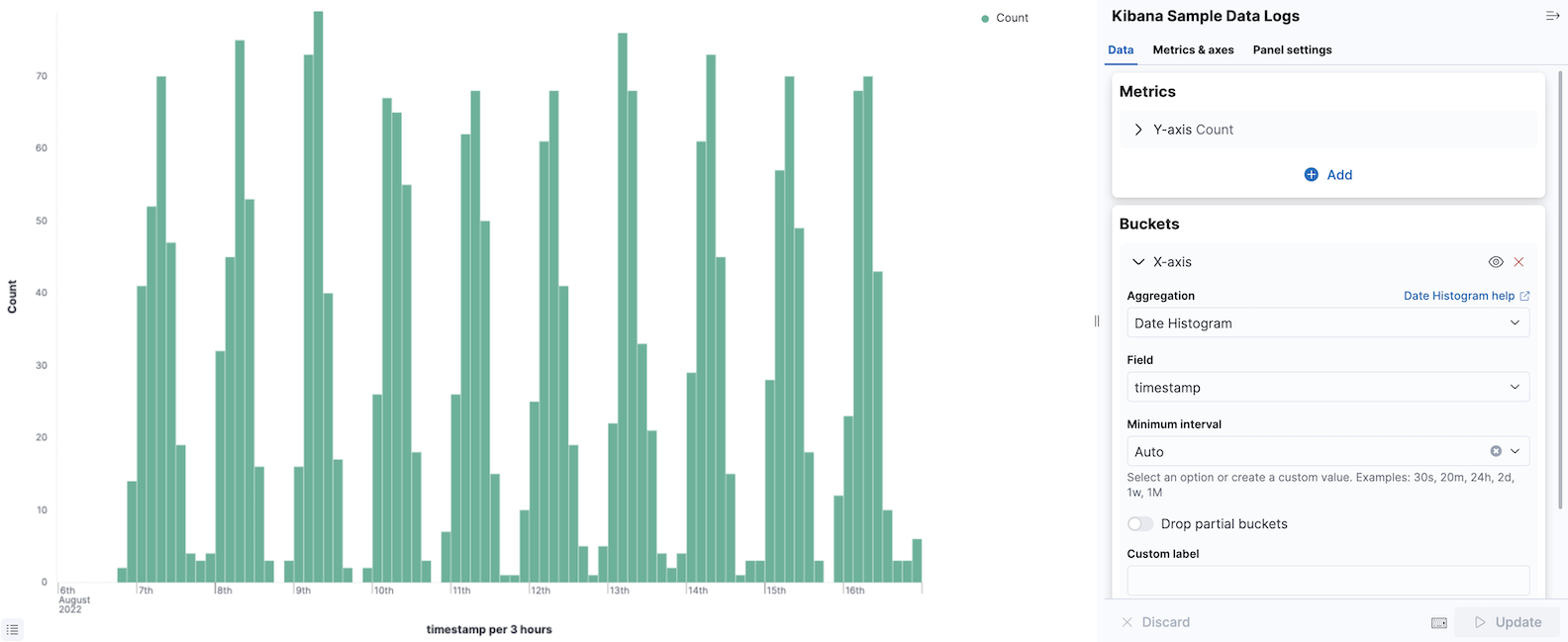

      Bar chart with sample logs data

  2. To show the top five log traffic sources, add a sub-bucket aggregation.

    1. Click Add, then select Split series.

      Aggregation-based panels support a maximum of three Split series.

    2. From the Sub aggregation dropdown, select Terms.
    3. From the Field dropdown, select geo.src.

    4. Click Update.

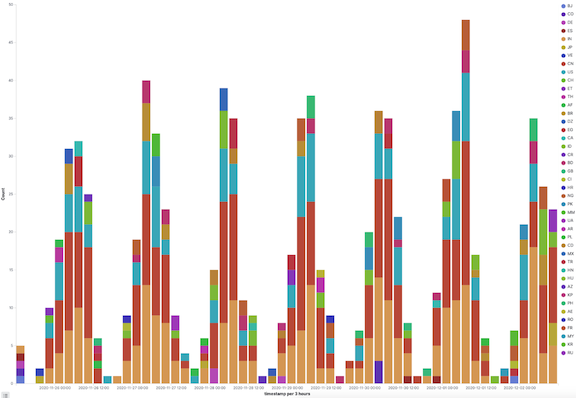

      Bar chart with sample logs data

Open and edit aggregation-based visualizations in Lens

edit

When you open aggregation-based visualizations in Lens, all configuration options appear in the Lens visualization editor.

You can open the following aggregation-based visualizations in Lens:

  • Area
  • Data table
  • Gauge
  • Goal
  • Heat map
  • Horizontal bar
  • Line
  • Metric
  • Pie
  • Vertical bar

To get started, click Edit visualization in Lens in the toolbar.

For more information, check out Create visualizations with Lens.

Save and add the panel
edit

Save the panel to the Visualize Library and add it to the dashboard, or add it to the dashboard without saving.

To save the panel to the Visualize Library:

  1. Click Save to library.
  2. Enter the Title and add any applicable Tags.
  3. Make sure that Add to Dashboard after saving is selected.
  4. Click Save and return.

To save the panel to the dashboard:

  1. Click Save and return.

  2. Add an optional title to the panel.

    1. In the panel header, click No Title.
    2. On the Panel settings window, select Show title.
    3. Enter the Title, then click Save.
