Webhook - Case Management connector and action

edit

Webhook - Case Management connector and action

edit

The Webhook - Case Management connector uses axios to send POST, PUT, and GET requests to a case management RESTful API web service. [8.15.0] Added in 8.15.0.

Create connectors in Kibana

edit

You can create connectors in Stack Management > Connectors or as needed when you’re creating a rule. In the first step, you must provide a name for the connector and its authentication details. For example:

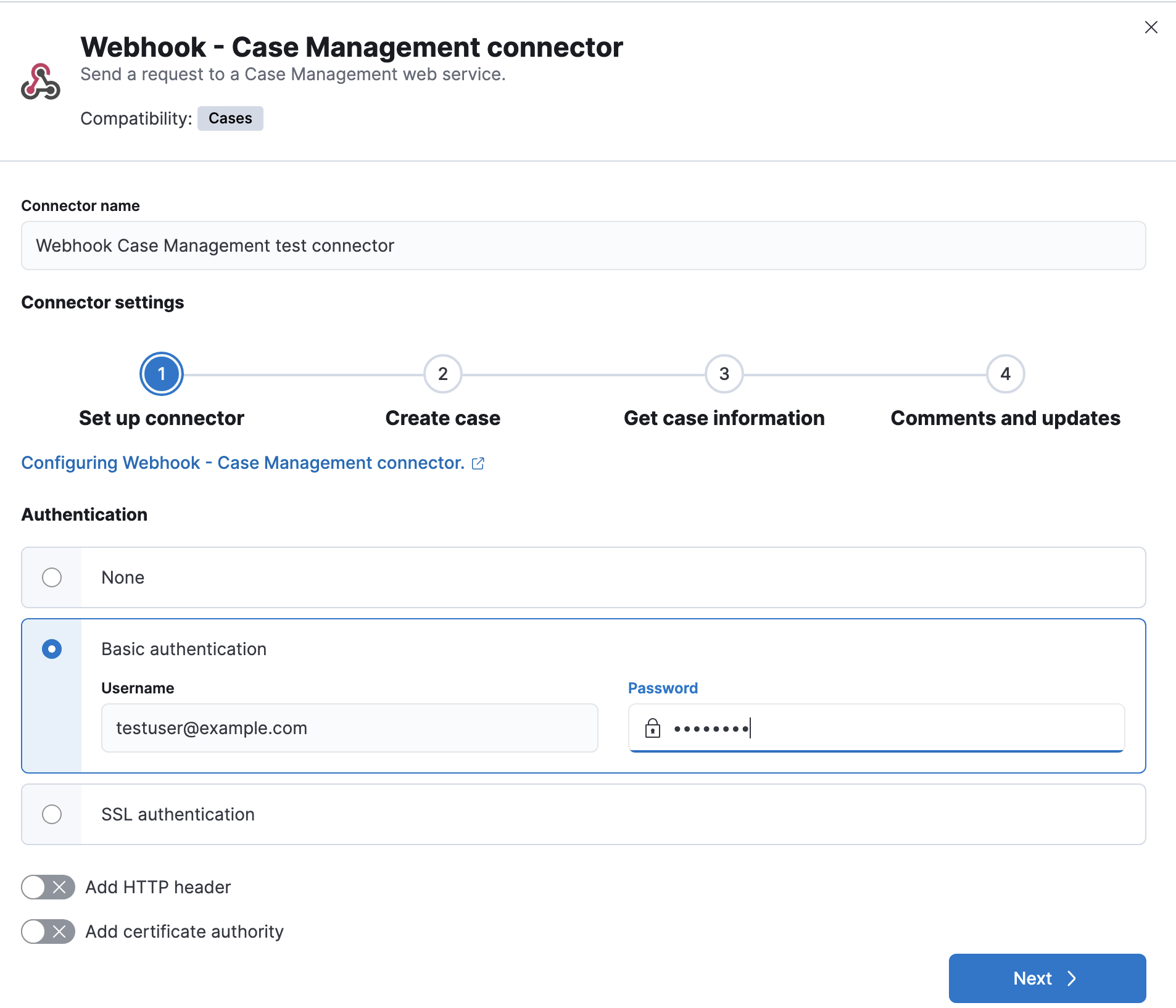

Set authentication details in the Webhook - Case Management connector

In the second step, you must provide the information necessary to create cases in the external system. For example:

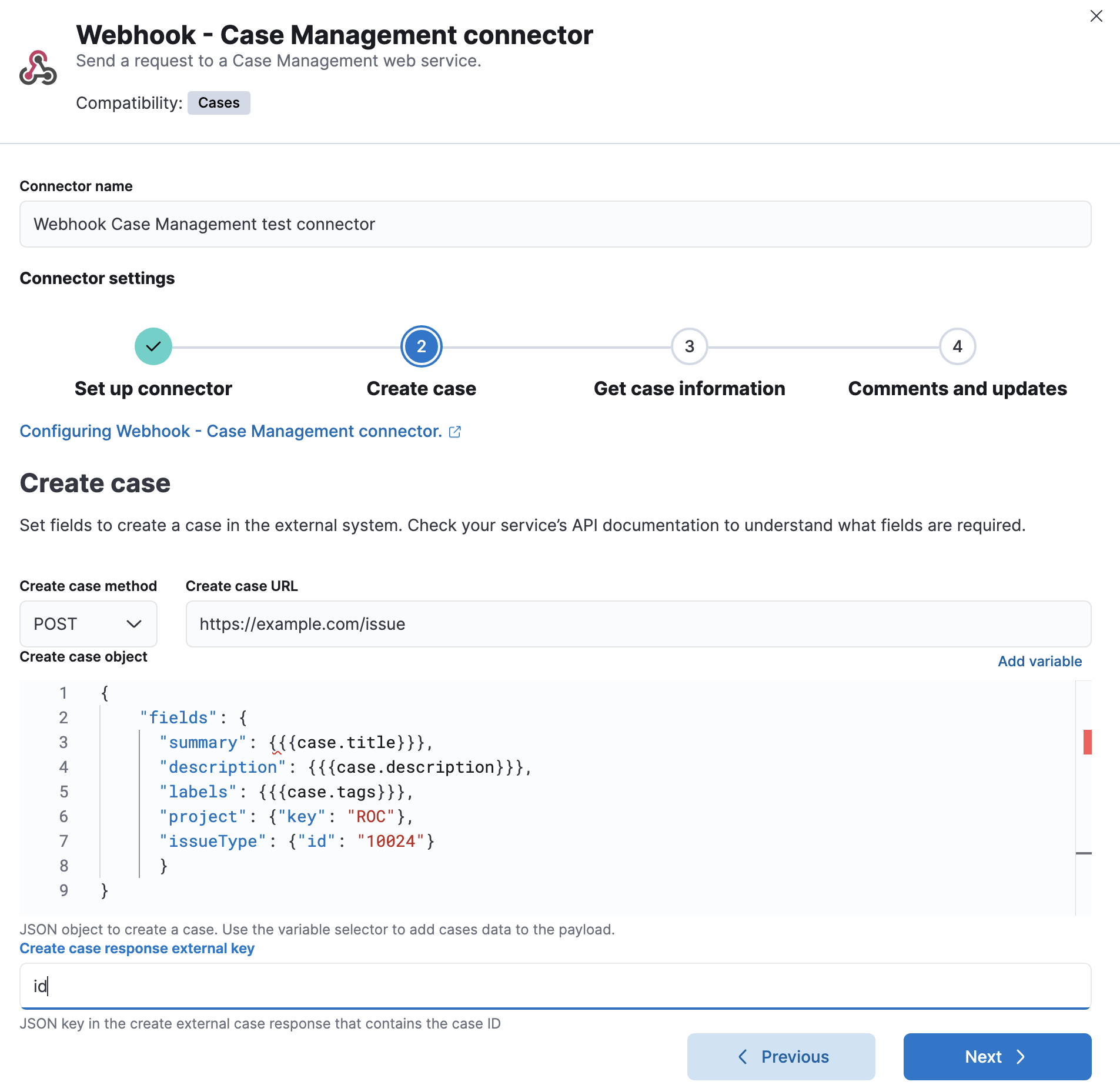

Add case creation details in the Webhook - Case Management connector

In the third step, you must provide information related to retrieving case details from the external system. For example:

Add case retrieval details in the Webhook - Case Management connector

In the fourth step, you must provide information necessary to update cases in the external system. You can also optionally provide information to add comments to cases. For example:

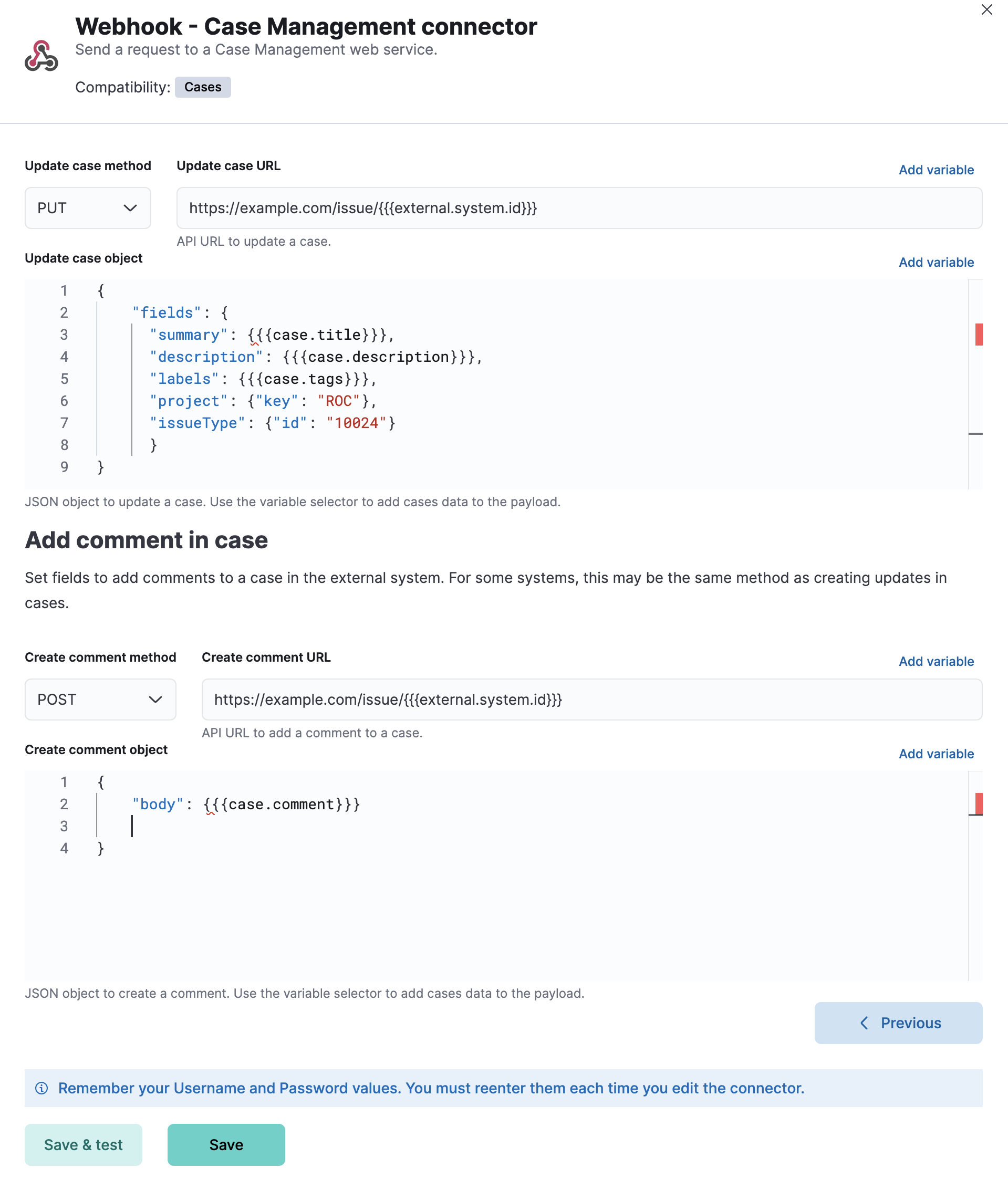

Add case update and comment details in the Webhook - Case Management connector
Connector configuration
edit

Webhook - Case Management connectors have the following configuration properties:

Authentication
The authentication type: none, basic, or SSL. If you choose basic authentication, you must provide a user name and password. If you choose SSL authentication, you must provide SSL server certificate authentication data in a CRT and key file format or a PFX file format. You can also optionally provide a passphrase if the files are password-protected.
Certificate authority

A certificate authority (CA) that the connector can trust, for example to sign and validate server certificates. This option is available for all authentication types. You can choose from the following verification modes:

  • Full: Validate that the certificate has an issue date within the not_before and not_after dates, chains to a trusted certificate authority, and has a hostname or IP address that matches the names within the certificate.
  • Certificate: Validate that the certificate it is signed by a trusted authority. This option does not check the certificate hostname.
  • None: Skip certificate validation.
Create case method
The REST API HTTP request method to create a case in the third-party system: post(default), put, or patch.
Create case object

A JSON payload sent to the create case URL to create a case. Use the variable selector to add case data to the payload. Required variables are case.title and case.description. For example:

{
	"fields": {
	  "summary": {{{case.title}}},
	  "description": {{{case.description}}},
	  "labels": {{{case.tags}}}
	}
}

Due to Mustache template variables (the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated after the Mustache variables have been placed when REST method runs. Manually ensure that the JSON is valid, disregarding the Mustache variables, so the later validation will pass.

Create case response external key
The JSON key in the create external case response that contains the case ID.
Create case URL
The REST API URL to create a case in the third-party system. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts.
Create comment method
The optional REST API HTTP request method to create a case comment in the third-party system: post, put(default), or patch.
Create comment object

An optional JSON payload sent to the create comment URL to create a case comment. Use the variable selector to add Kibana cases data to the payload. The required variable is case.comment. For example:

{
  "body": {{{case.comment}}}
}

Due to Mustache template variables (the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated once the mustache variables have been placed and when REST method runs. We recommend manually ensuring that the JSON is valid, disregarding the Mustache variables, so the later validation will pass.

Create comment URL

The optional REST API URL to create a case comment by ID in the third-party system. Use the variable selector to add the external system ID to the URL. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts. For example:

https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}/comment
External case view URL

The URL to view the case in the external system. Use the variable selector to add the external system ID or external system title to the URL. For example:

https://testing-jira.atlassian.net/browse/{{{external.system.title}}}
Get case response external title key
The JSON key in the get external case response that contains the case title.
Get case URL

The REST API URL to GET case by ID from the third-party system. Use the variable selector to add the external system ID to the URL. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts. For example:

https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}

Due to Mustache template variables (the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated after the Mustache variables have been placed when REST method runs. Manually ensure that the JSON is valid, disregarding the Mustache variables, so the later validation will pass.

HTTP headers
A set of key-value pairs sent as headers with the request URLs for the create case, update case, get case, and create comment methods. For example, set Content-Type to the appropriate media type for your requests.
Update case method
The REST API HTTP request method to update the case in the third-party system: post, put(default), or patch.
Update case object

A JSON payload sent to the update case URL to update the case. Use the variable selector to add {Kibana} cases data to the payload. Required variables are case.title and case.description. For example:

{
	"fields": {
	  "summary": {{{case.title}}},
	  "description": {{{case.description}}},
	  "labels": {{{case.tags}}}
	}
}

Due to Mustache template variables (which is the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated after the Mustache variables have been placed when REST method runs. Manually ensure that the JSON is valid to avoid future validation errors; disregard Mustache variables during your review.

Update case URL

The REST API URL to update the case by ID in the third-party system. Use the variable selector to add the external system ID to the URL. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts. For example:

https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.ID}}}

Test connectors

edit

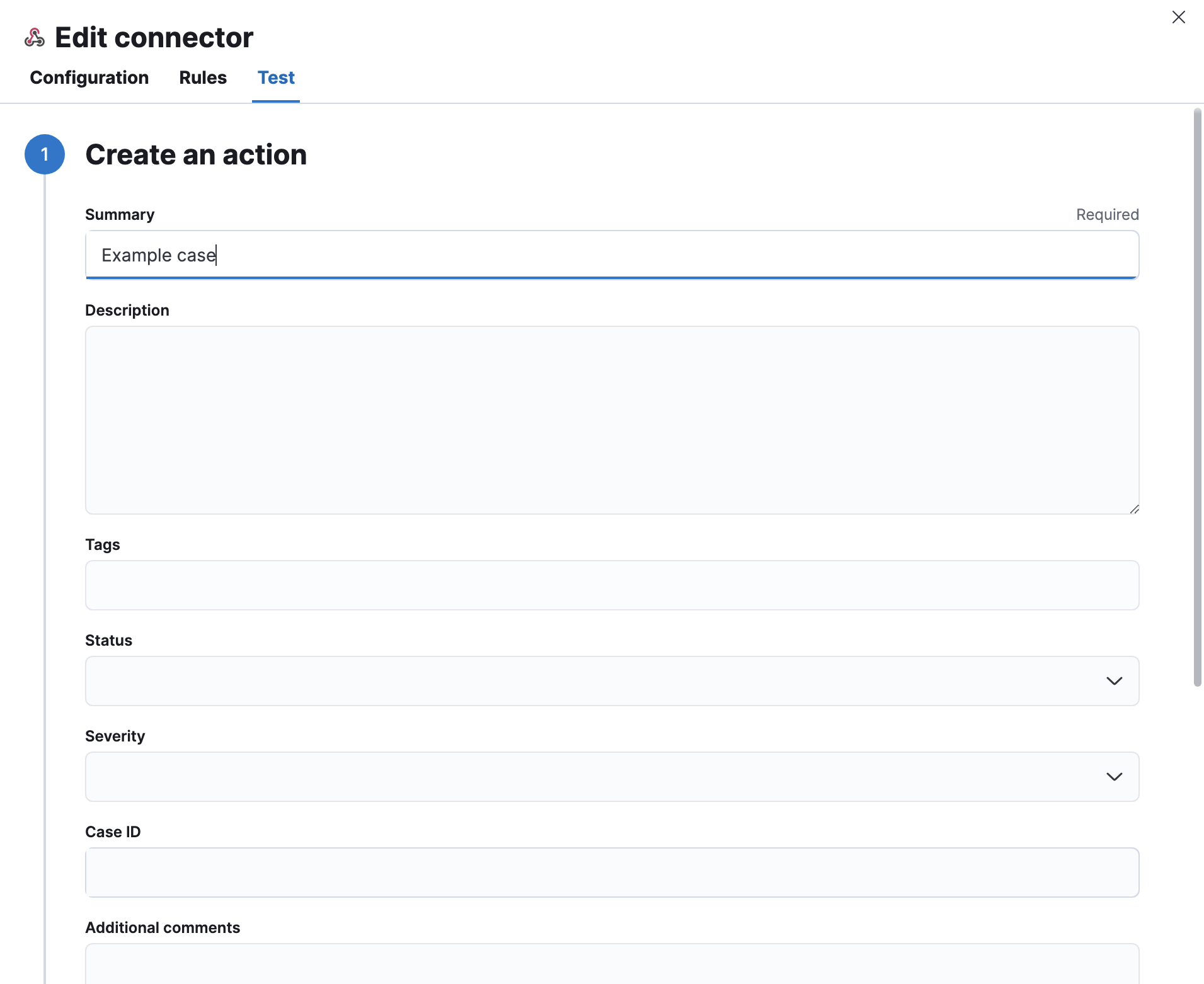

You can test connectors as you’re creating or editing the connector in Kibana. For example:

Webhook - Case Management params test

Webhook - Case Management actions have the following configuration properties:

Additional comments
Additional information for the client, such as how to troubleshoot the issue.
Case ID
A unique case identifier.
Description
The details about the incident.
Labels
The labels for the incident.
Severity
The severity of the case can be critical, high, low, or medium.
Status
The status of the case can be closed, in-progress or open.
Summary
A brief case summary.
Tags
A list of tags that can be used to filter cases.

Connector networking configuration

edit

Use the action configuration settings to customize connector networking configurations, such as proxies, certificates, or TLS settings. You can set configurations that apply to all your connectors or use xpack.actions.customHostSettings to set per-host configurations.
