Text panels

edit

Text panels

edit

To provide context to your dashboard panels, add Text panels that display important information, instructions, images, and more. You can create Text panels using GitHub-flavored Markdown text.

  1. From your dashboard, select Add panel.
  2. In the Add panel flyout, select Text. A Markdown editor appears and lets you configure the information you want to display.
  3. In the Markdown field, enter your text, then click Update.

For example, when you enter:

Markdown text with links

The following instructions are displayed:

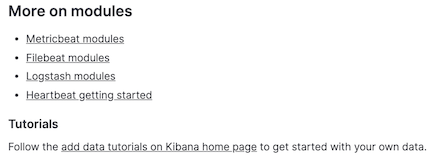

Panel with markdown link text

Or when you enter:

Markdown text with image file

The following image is displayed:

Panel with markdown image

For detailed information about writing on GitHub, click Help on the top-right of the Markdown editor.
