Create anomaly detection jobs

edit

Create anomaly detection jobs

edit

Anomaly detection jobs contain the configuration information and metadata necessary to perform an analytics task.

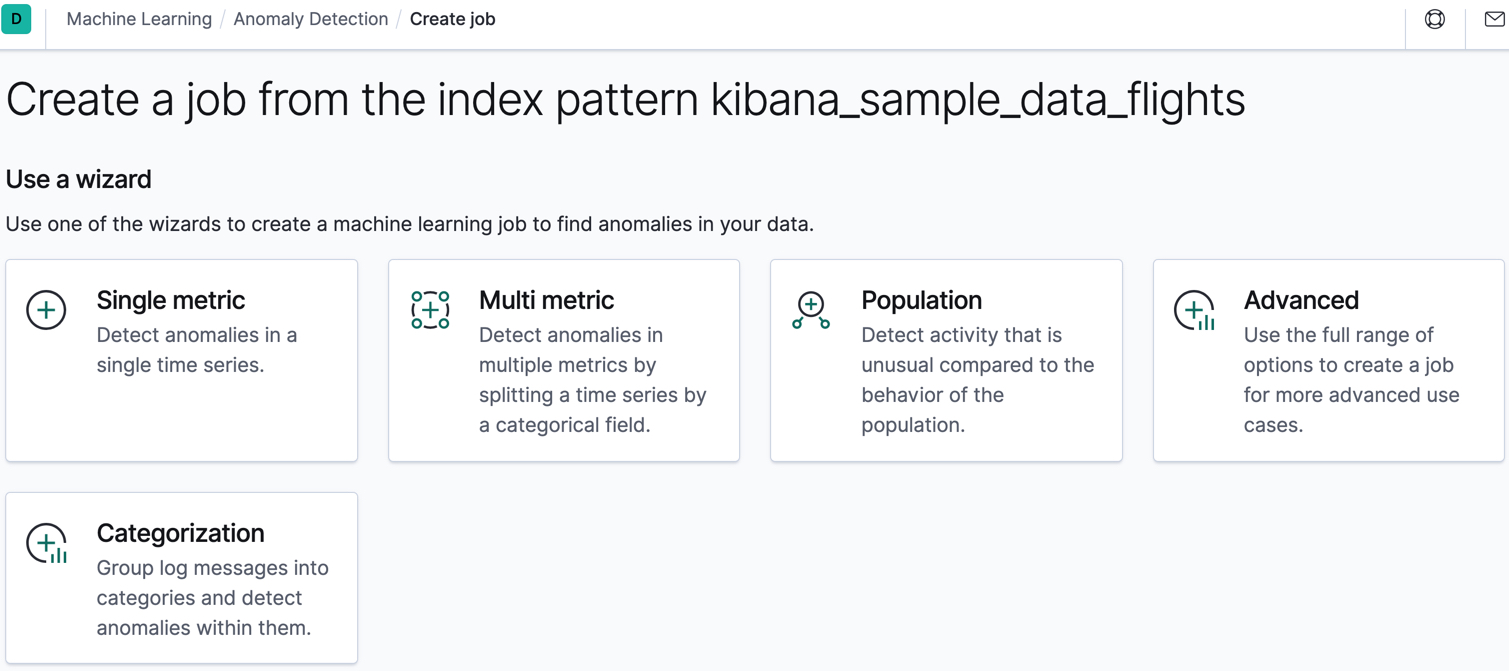

You can create anomaly detection jobs by using the Create anomaly detection jobs API. Kibana also provides the following wizards to make it easier to create jobs:

A single metric job is a simple job that contains a single detector. A detector defines the type of analysis that will occur and which fields to analyze. In addition to limiting the number of detectors, the single metric job creation wizard omits many of the more advanced configuration options.

A multi-metric job can contain more than one detector, which is more efficient than running multiple jobs against the same data.

A population job detects activity that is unusual compared to the behavior of the population. For more information, see Performing population analysis.

A categorization job groups log messages into categories and uses count or rare functions to detect anomalies within them. See Detecting anomalous categories of data.

An advanced job can contain multiple detectors and enables you to configure all job settings.

Kibana can also recognize certain types of data and provide specialized wizards for that context. For example, if you added the sample web log data set, the following wizard appears:

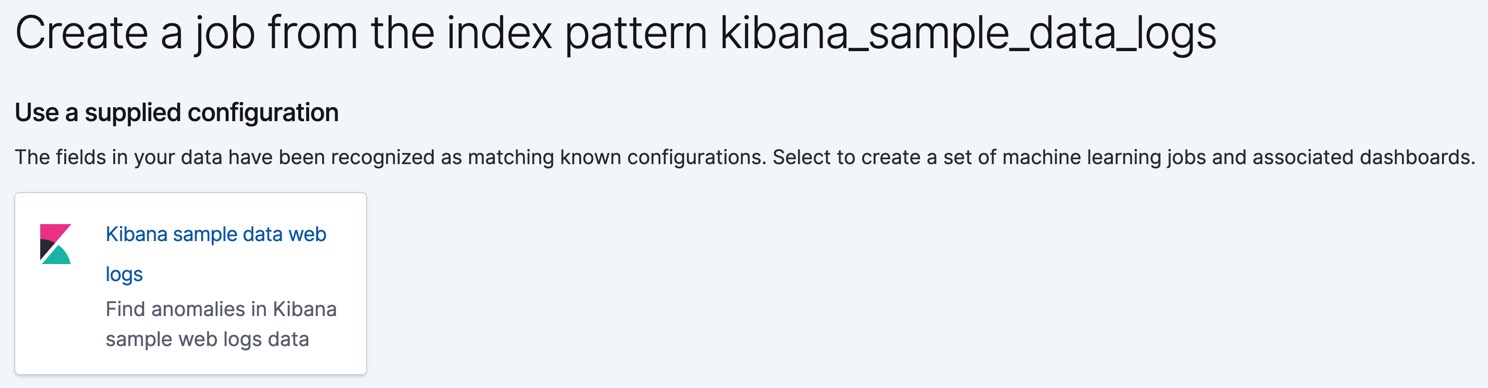

A screenshot of the Kibana sample data web log job creation wizard

Alternatively, after you load a sample data set on the Kibana home page, you can click View data > ML jobs. There are anomaly detection jobs for both the sample eCommerce orders data set and the sample web logs data set.

If you use Elastic APM, Kibana also detects this data and provides wizards for anomaly detection jobs. For example:

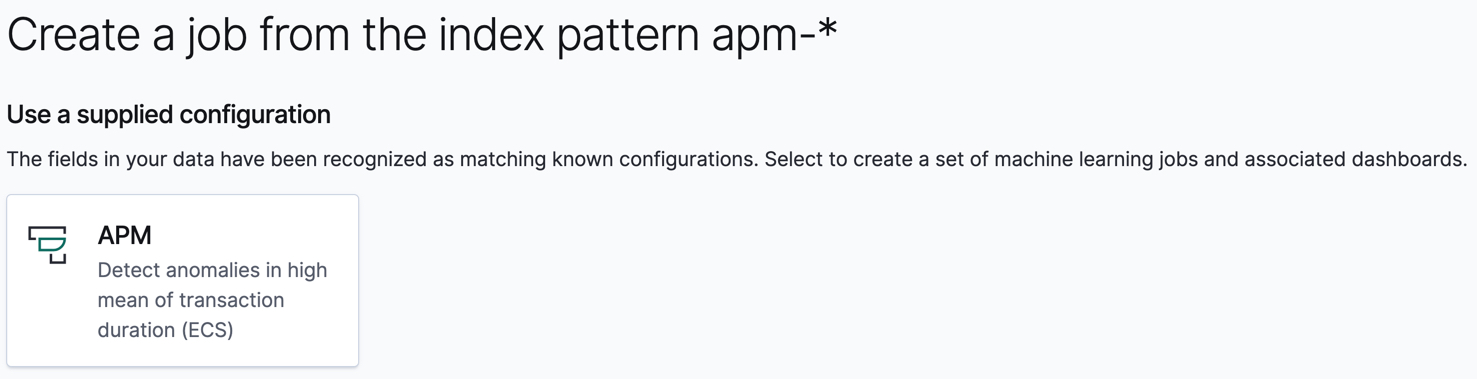

A screenshot of the Kibana APM job creation wizard

If you use Filebeat to ship access logs from your Nginx and Apache HTTP servers to Elasticsearch and store it using fields and datatypes from the Elastic Common Schema (ECS), the following wizards appear:

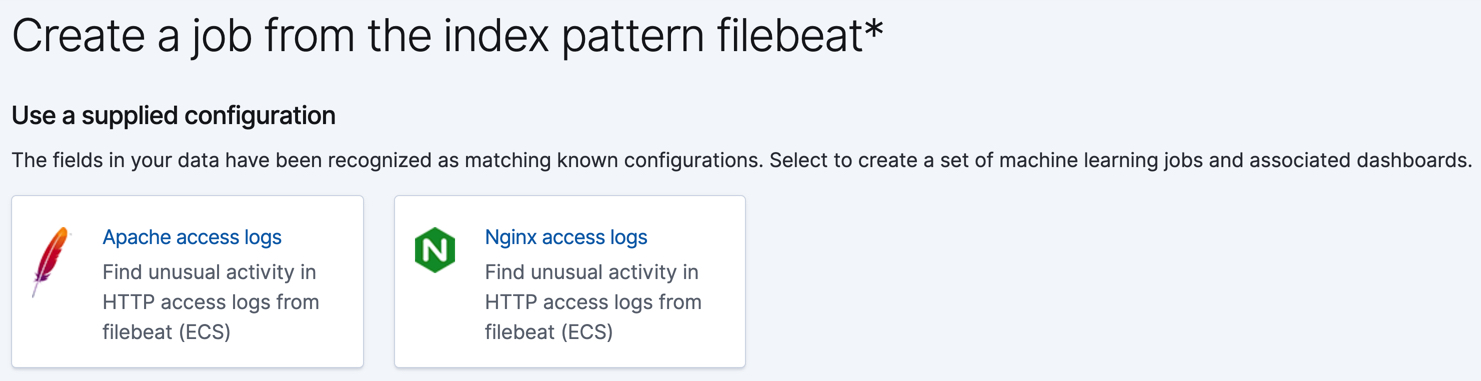

A screenshot of the Filebeat job creation wizards

If you use Auditbeat to audit process activity on your systems, the following wizards appear:

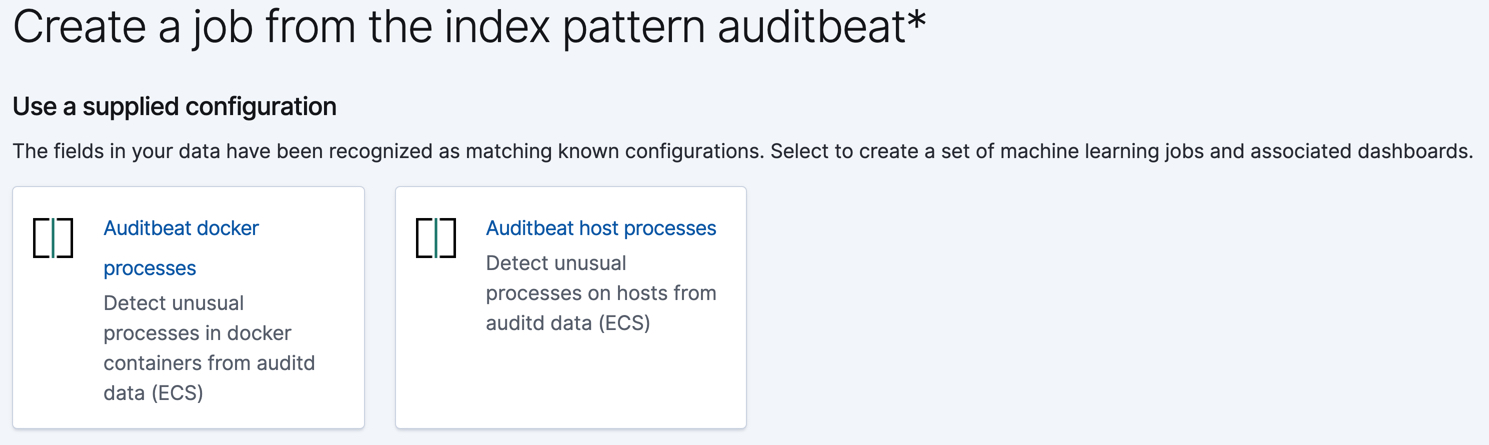

A screenshot of the Auditbeat job creation wizards

Likewise, if you use the Metricbeat system module to monitor your servers, the following wizards appear:

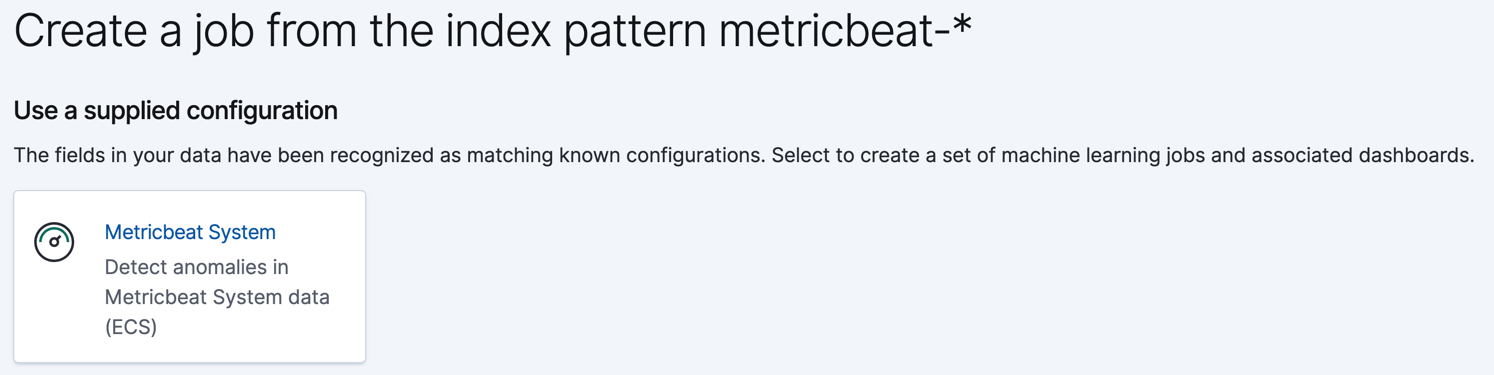

A screenshot of the Metricbeat job creation wizards

These wizards create anomaly detection jobs, dashboards, searches, and visualizations that are customized to help you analyze your Auditbeat, Filebeat, and Metricbeat data.

If your data is located outside of Elasticsearch, you cannot use Kibana to create your jobs and you cannot use datafeeds to retrieve your data in real time. Anomaly detection is still possible, however, by using APIs to create and manage jobs and post data to them. For more information, see Machine learning anomaly detection APIs.

Machine learning job tips

edit

When you create an anomaly detection job in Kibana, the job creation wizards can provide advice based on the characteristics of your data. By heeding these suggestions, you can create jobs that are more likely to produce insightful machine learning results.

Bucket span

edit

The bucket span is the time interval that machine learning analytics use to summarize and model data for your job. When you create an anomaly detection job in Kibana, you can choose to estimate a bucket span value based on your data characteristics.

The bucket span must contain a valid time interval. See Time units.

If you choose a value that is larger than one day or is significantly different than the estimated value, you receive an informational message. For more information about choosing an appropriate bucket span, see Buckets.

Cardinality

edit

If there are logical groupings of related entities in your data, machine learning analytics can make data models and generate results that take these groupings into consideration. For example, you might choose to split your data by user ID and detect when users are accessing resources differently than they usually do.

If the field that you use to split your data has many different values, the job uses more memory resources. In particular, if the cardinality of the by_field_name, over_field_name, or partition_field_name is greater than 1000, you are advised that there might be high memory usage.

Likewise if you are performing population analysis and the cardinality of the over_field_name is below 10, you are advised that this might not be a suitable field to use. For more information, see Performing population analysis.

Detectors

edit

Each anomaly detection job must have one or more detectors. A detector applies an analytical function to specific fields in your data. If your job does not contain a detector or the detector does not contain a valid function, you receive an error.

If a job contains duplicate detectors, you also receive an error. Detectors are duplicates if they have the same function, field_name, by_field_name, over_field_name and partition_field_name.

Influencers

edit

See Influencers.

Model memory limits

edit

For each anomaly detection job, you can optionally specify a model_memory_limit, which is the approximate maximum amount of memory resources that are required for analytical processing. The default value is 1 GB. Once this limit is approached, data pruning becomes more aggressive. Upon exceeding this limit, new entities are not modeled.

You can also optionally specify the xpack.ml.max_model_memory_limit setting. By default, it’s not set, which means there is no upper bound on the acceptable model_memory_limit values in your jobs.

If you set the model_memory_limit too high, it will be impossible to open the job; jobs cannot be allocated to nodes that have insufficient memory to run them.

If the estimated model memory limit for an anomaly detection job is greater than the model memory limit for the job or the maximum model memory limit for the cluster, the job creation wizards in Kibana generate a warning. If the estimated memory requirement is only a little higher than the model_memory_limit, the job will probably produce useful results. Otherwise, the actions you take to address these warnings vary depending on the resources available in your cluster:

If you are using the default value for the model_memory_limit and the machine learning nodes in the cluster have lots of memory, the best course of action might be to simply increase the job’s model_memory_limit. Before doing this, however, double-check that the chosen analysis makes sense. The default model_memory_limit is relatively low to avoid accidentally creating a job that uses a huge amount of memory.
If the machine learning nodes in the cluster do not have sufficient memory to accommodate a job of the estimated size, the only options are:
- Add bigger machine learning nodes to the cluster, or
- Accept that the job will hit its memory limit and will not necessarily find all the anomalies it could otherwise find.

If you are using Elastic Cloud Enterprise or the hosted Elasticsearch Service on Elastic Cloud, xpack.ml.max_model_memory_limit is set to prevent you from creating jobs that cannot be allocated to any machine learning nodes in the cluster. If you find that you cannot increase model_memory_limit for your machine learning jobs, the solution is to increase the size of the machine learning nodes in your cluster.

Dedicated indices

edit

For each anomaly detection job, you can optionally specify a dedicated index to store the anomaly detection results. As anomaly detection jobs may produce a large amount of results (for example, jobs with many time series, small bucket span, or with long running period), it is recommended to use a dedicated results index by choosing the Use dedicated index option in Kibana or specifying the results_index_name via the Create anomaly detection jobs API.
