Quickstart: Collect data with AWS Firehose

edit

Quickstart: Collect data with AWS Firehose

edit

This functionality is in technical preview and may be changed or removed in a future release. Elastic will work to fix any issues, but features in technical preview are not subject to the support SLA of official GA features.

In this quickstart guide, you’ll learn how to use AWS Firehose to send logs and metrics to Elastic.

The AWS Firehose streams are created using a CloudFormation template, which can collect all available CloudWatch logs and metrics for your AWS account.

This approach requires minimal configuration as the CloudFormation template creates a Firehose stream, enables CloudWatch metrics collection across all namespaces, and sets up an account-level subscription filter for CloudWatch log groups to send logs to Elastic via Firehose. You can use an AWS CLI command or upload the template to the AWS CloudFormation portal to customize the following parameter values:

Required Input Parameters

ElasticEndpointURL: Elastic endpoint URL.
ElasticAPIKey: Elastic API Key.

Optional Input Parameters

HttpBufferInterval: The Kinesis Firehose HTTP buffer interval, in seconds. Default is 60.
HttpBufferSize: The Kinesis Firehose HTTP buffer size, in MiB. Default is 1.
S3BackupMode: Source record backup in Amazon S3, failed data only or all data. Default is FailedDataOnly.
S3BufferInterval: The Kinesis Firehose S3 buffer interval, in seconds. Default is 300.
S3BufferSize: The Kinesis Firehose S3 buffer size, in MiB. Default is 5.
S3BackupBucketARN: By default, an S3 bucket for backup will be created. You can override this behaviour by providing an ARN of an existing S3 bucket that ensures the data can be recovered if record processing transformation does not produce the desired results.
Attributes: List of attribute name-value pairs for HTTP endpoint separated by commas. For example "name1=value1,name2=value2".

Optional Input Parameters Specific for Metrics

EnableCloudWatchMetrics: Enable CloudWatch Metrics collection. Default is true. When CloudWatch metrics collection is enabled, by default a metric stream will be created with metrics from all namespaces.
FirehoseStreamNameForMetrics: Name for Amazon Data Firehose Stream for collecting CloudWatch metrics. Default is elastic-firehose-metrics.
IncludeOrExclude: Select the metrics you want to stream. You can include or exclude specific namespaces and metrics. If no filter namespace is given, then default to all namespaces. Default is Include.
MetricNameFilters: Comma-delimited list of namespace-metric names pairs to use for filtering metrics from the stream. If no metric name filter is given, then default to all namespaces and all metrics. For example "AWS/EC2:CPUUtilization|NetworkIn|NetworkOut,AWS/RDS,AWS/S3:AllRequests".
IncludeLinkedAccountsMetrics: If you are creating a metric stream in a monitoring account, specify true to include metrics from source accounts that are linked to this monitoring account, in the metric stream. Default is false.
Tags: Comma-delimited list of tags to apply to the metric stream. For example "org:eng,project:firehose".

Optional Input Parameters Specific for Logs

EnableCloudWatchLogs: Enable CloudWatch Logs collection. Default is true. When CloudWatch logs collection is enabled, an account-level subscription filter policy is created for all CloudWatch log groups (except the log groups created for Firehose logs).
FirehoseStreamNameForLogs: Name for Amazon Data Firehose Stream for collecting CloudWatch logs. Default is elastic-firehose-logs.

Some AWS services need additional manual configuration to properly ingest logs and metrics. For more information, check the AWS integration documentation.

Data collection with AWS Firehose is supported on ESS deployments in AWS, Azure and GCP.

Prerequisites

edit

A deployment using our hosted Elasticsearch Service on Elastic Cloud. The deployment includes an Elasticsearch cluster for storing and searching your data, and Kibana for visualizing and managing your data.
A user with the superuser built-in role or the privileges required to onboard data.
Expand to view required privileges
- Cluster: ['monitor', 'manage_own_api_key']
- Index: { names: ['logs-*-*', 'metrics-*-*'], privileges: ['auto_configure', 'create_doc'] }
- Kibana: { spaces: ['*'], feature: { fleet: ['all'], fleetv2: ['all'] } }
An active AWS account and the necessary permissions to create delivery streams.

The default CloudFormation stack is created in the AWS region selected for the user’s account. This region can be modified either through the AWS Console interface or by specifying a --region parameter in the AWS CLI command when creating the stack.

Limitations

edit

The AWS Firehose receiver has the following limitations:

It does not support AWS PrivateLink.
It is not available for on-premise Elastic Stack deployments.
The CloudFormation template detects and ingests logs and metrics within a single AWS region only.

The following table shows the type of data ingested by the supported AWS services:

AWS Service	Data type
VPC Flow Logs	Logs
API Gateway	Logs, Metrics
CloudTrail	Logs
Network Firewall	Logs, Metrics
Route53	Logs
WAF	Logs
DynamoDB	Metrics
EBS	Metrics
EC2	Metrics
ECS	Metrics
ELB	Metrics
EMR	Metrics
MSK	Metrics
Kinesis Data Stream	Metrics
Lambda	Metrics
NAT Gateway	Metrics
RDS	Metrics
S3	Metrics
SNS	Metrics
SQS	Metrics
Transit Gateway	Metrics
AWS Usage	Metrics
VPN	Metrics
Uncategorized Firehose Logs	Logs

Collect your data

edit

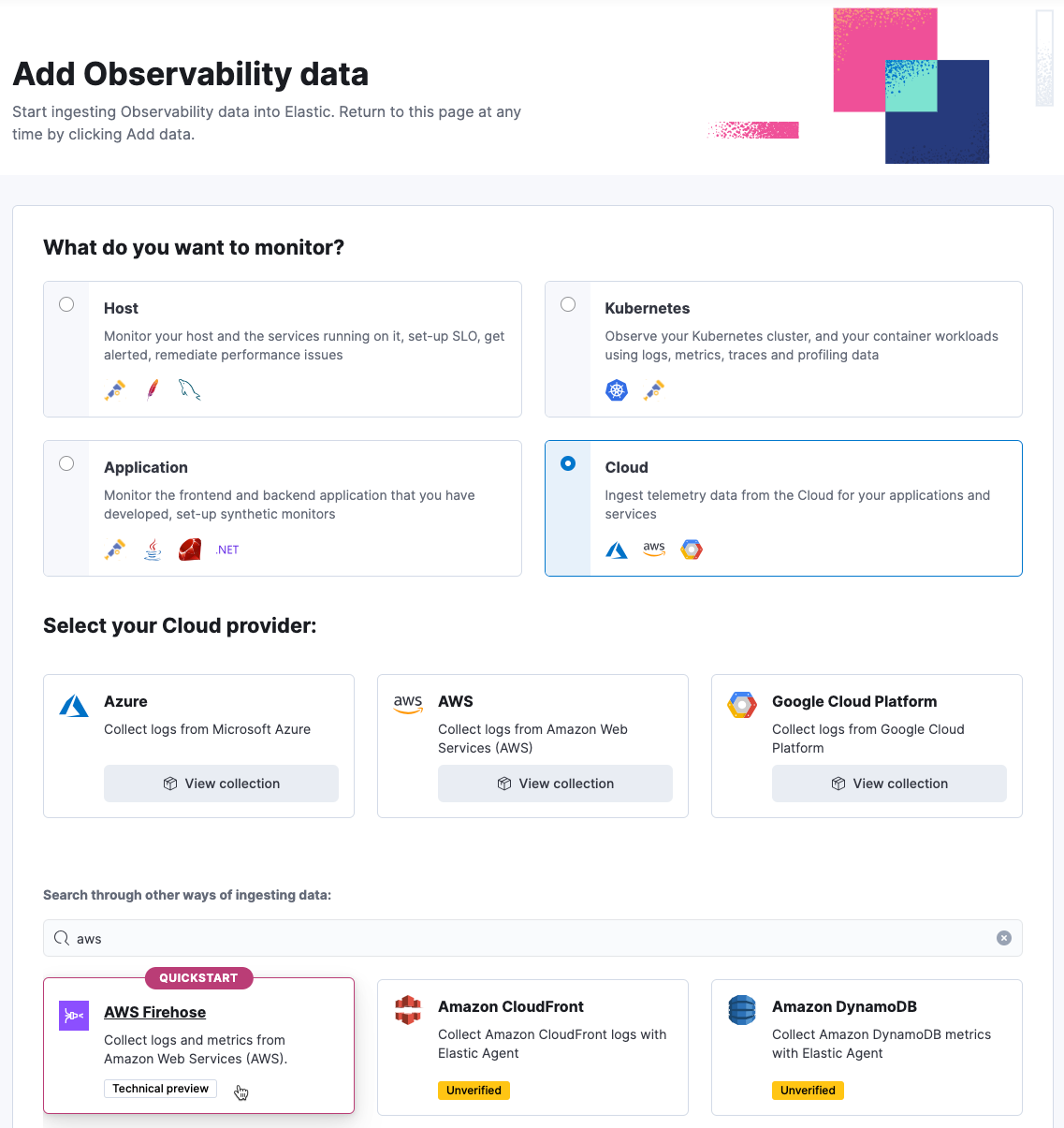

In Kibana, go to the Observability UI and click Add Data.
Under What do you want to monitor? select Cloud, AWS, and then select AWS Firehose.
Click Create Firehose Stream in AWS to create a CloudFormation stack from the CloudFormation template.
Go back to the Add Observability Data page.

Visualize your data

edit

After installation is complete and all relevant data is flowing into Elastic, the Visualize your data section allows you to access the different dashboards for the various services.

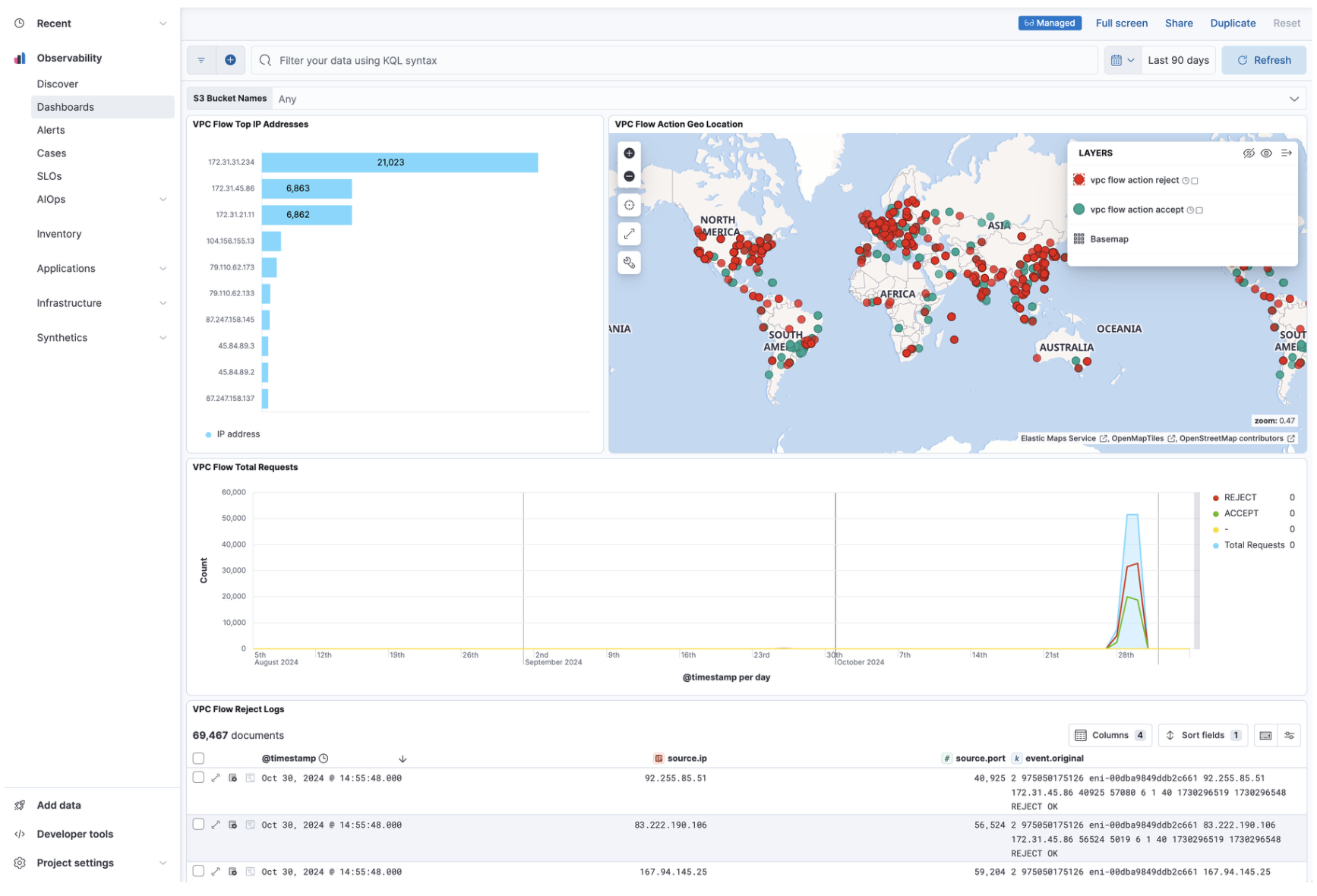

Here is an example of the VPC Flow logs dashboard:

Refer to What is Elastic Observability? for a description of other useful features.
