Connecting Google Drive

edit

Connecting Google Drive

edit

Google Drive is a cloud-based storage service for organizations of all sizes, with a focus on G Suite document (Google Docs, Sheets, Slides, etc) storage and collaboration. The Google Drive connector provided with Workplace Search automatically captures, syncs and indexes the following items:

G Suite Documents	Including ID, File Metadata, File Content, Collaborators, and Timestamps
Stored Files	Including ID, File Metadata, File Content, Updated by, and Timestamps

Configuring the Google Drive Connector

edit

Configuring the Google Drive connector is the first step prior to connecting the Google Drive service to Workplace Search, and requires that you create an OAuth App from the Google Drive platform.

Step 1. To get started, log in to the Google Developer Console.

Make sure that you create this project with a trusted and stable Google account. Personal documents of the Google account used to connect are also indexed. We recommend using a team-owned account.

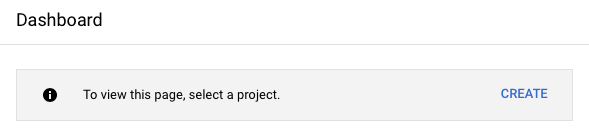

Step 2. We must first create a project, add access to the Google Drive API to it. Click Create when prompted:

Figure 48. Connecting Google Drive

If you already have active projects, you can create a new project from the Project Dropdown menu:

Figure 49. Connecting Google Drive

Fill in the project information in a way that best suits your organization.

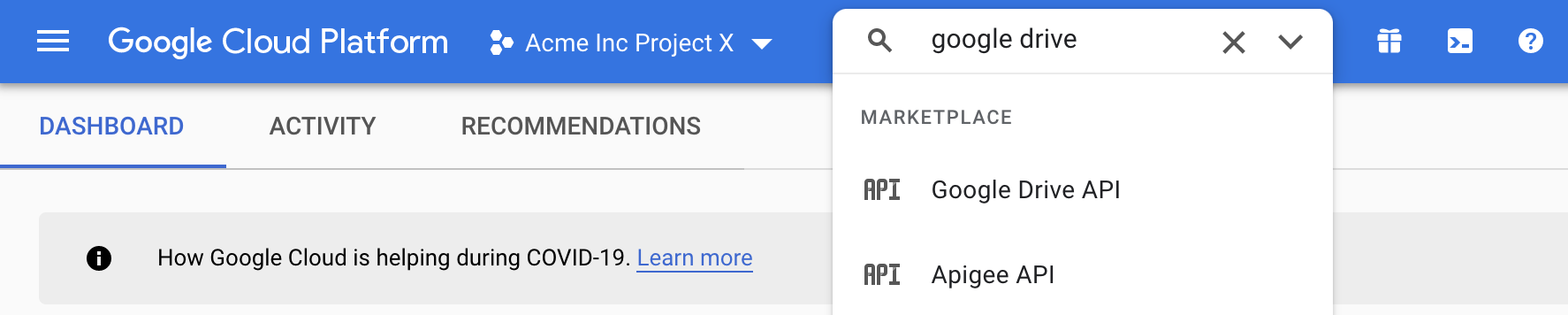

Step 3. Using the search bar located at the top of the console, navigate to the Google Drive API:

Figure 50. Connecting Google Drive

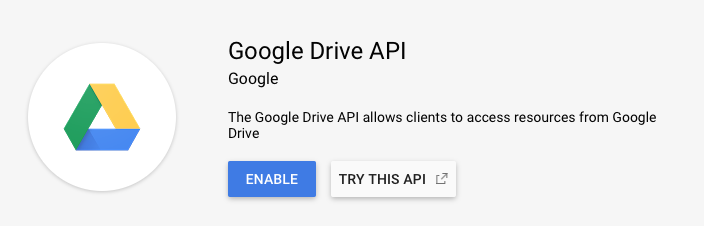

Step 4. Enable access to the Google Drive API for this project:

Figure 51. Connecting Google Drive

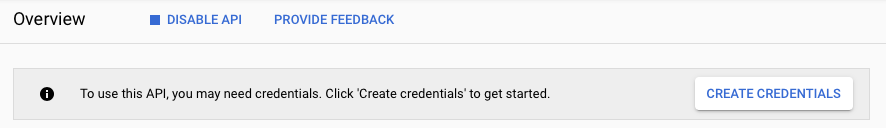

Step 5. You will be prompted to Create Credentials:

Figure 52. Connecting Google Drive

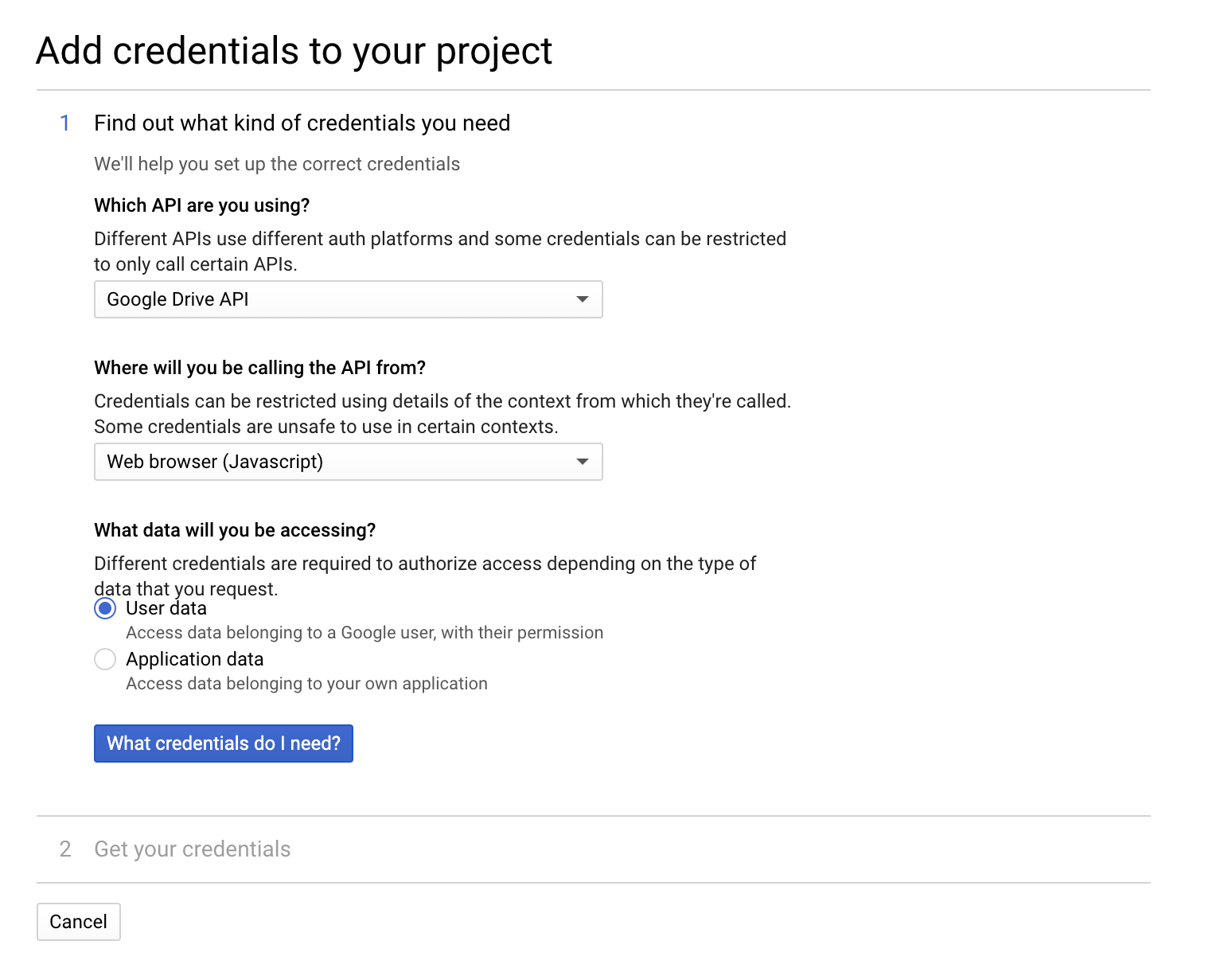

Step 6. Select Google Drive API as the API you are using. You will call it from Web browser to access User data:

Figure 53. Connecting Google Drive

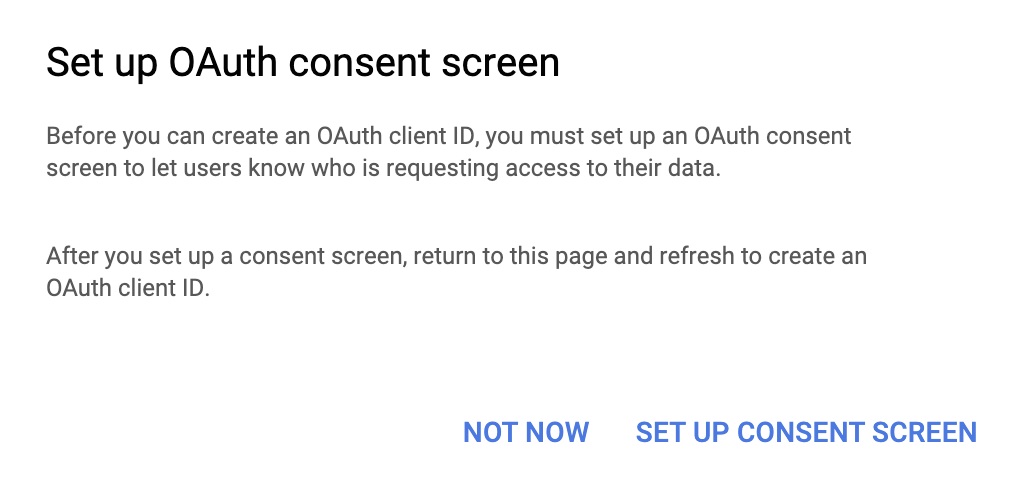

Step 7. Click What credentials do I need?, and select the Set up consent screen option:

Figure 54. Connecting Google Drive

Step 8. Select Internal as User Type.

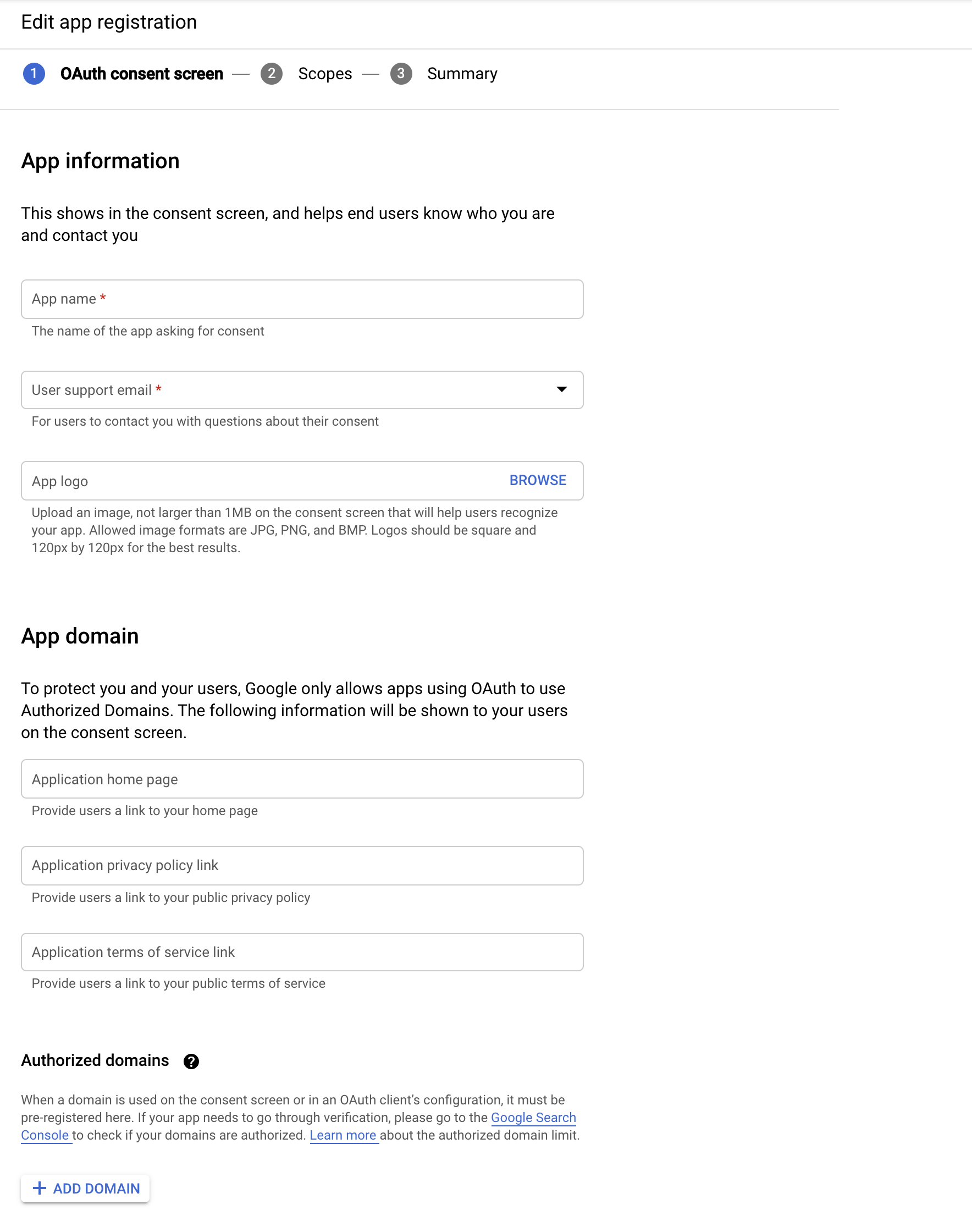

Step 9. Fill out the information in the OAuth Consent Screen form.

Figure 55. Connecting Google Drive

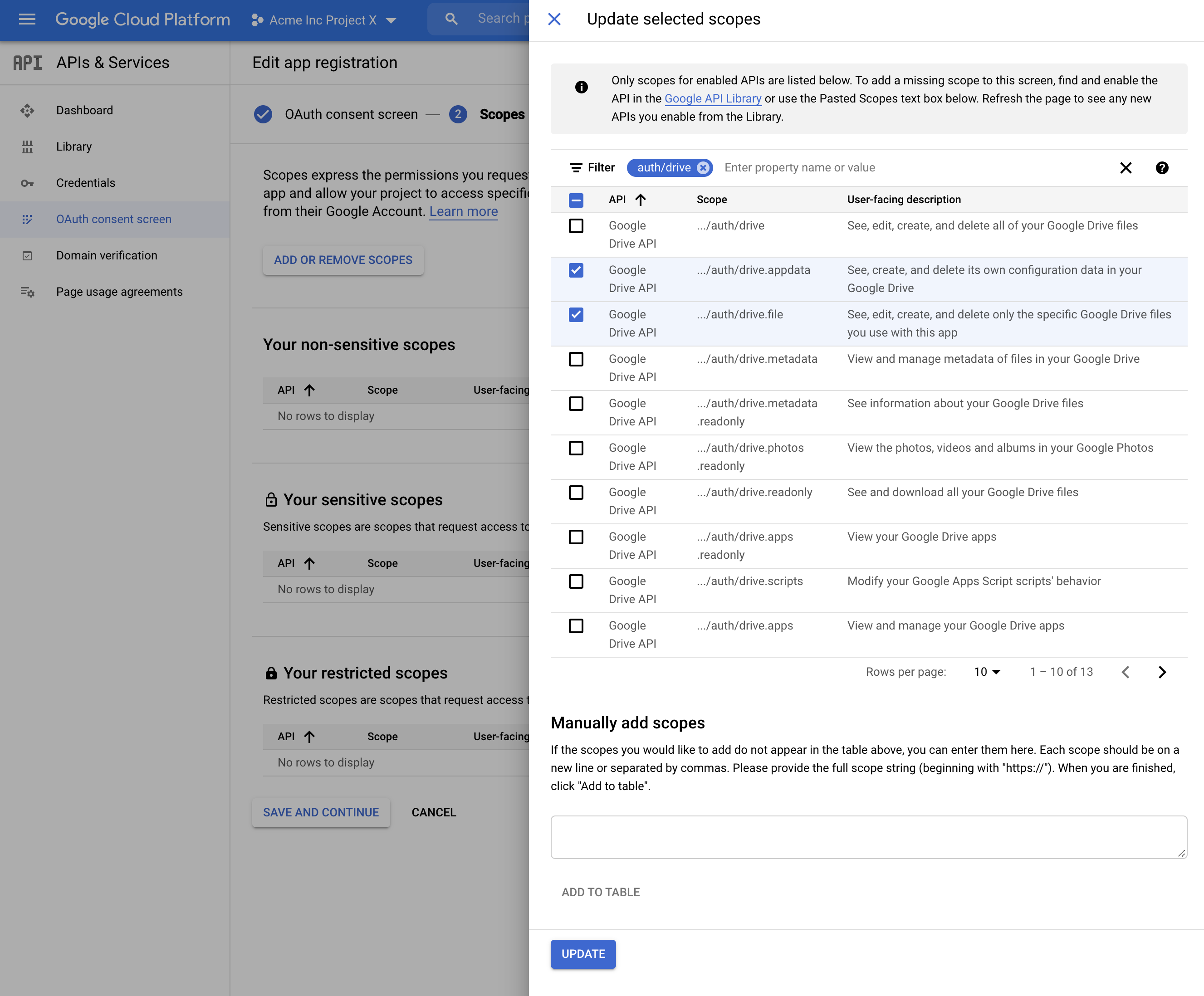

Step 10. In the Scopes for Google APIs section, click Add scope and select the following scopes for the Google Drive API:

../auth/drive.file
../auth/drive.appdata

Figure 56. Connecting Google Drive

Save the changes.

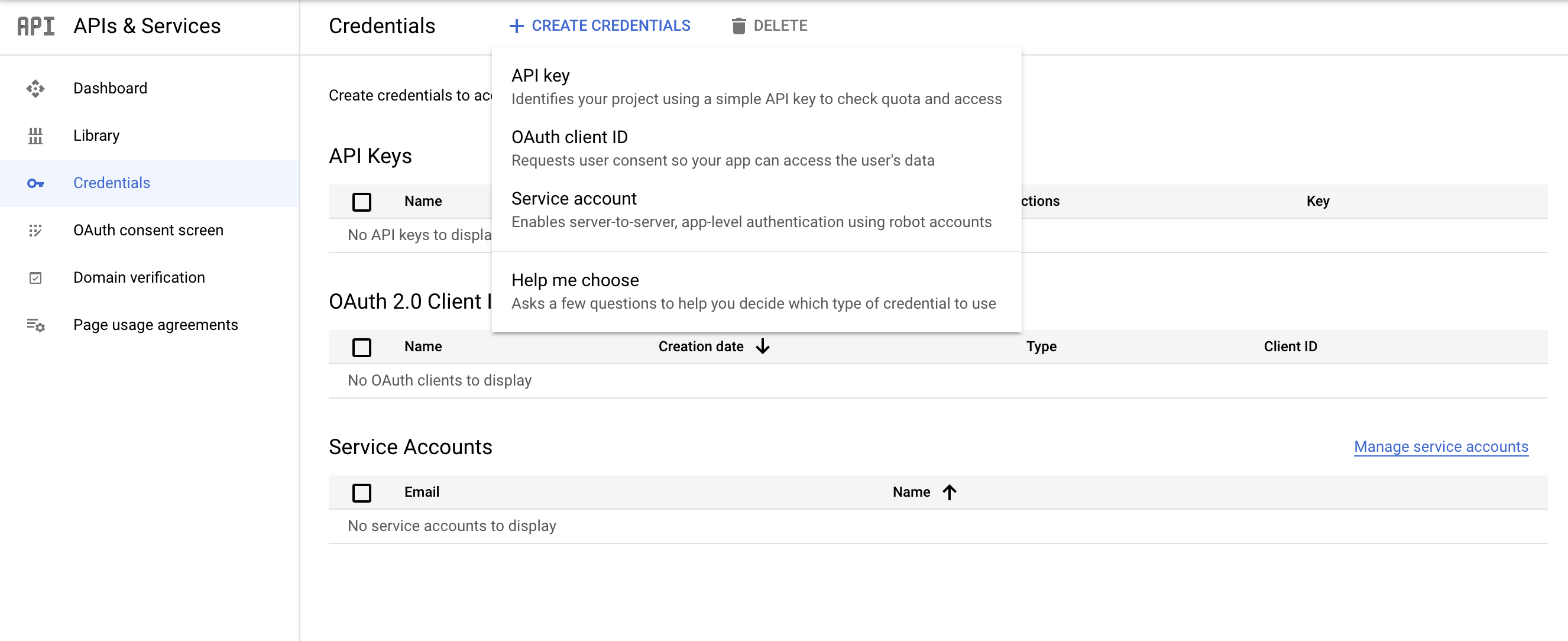

Step 11. We must now create credentials for the OAuth application. Locate the Credentials menu item in the left sidebar, click Create Credentials and select OAuth Client ID.

Figure 57. Connecting Google Drive

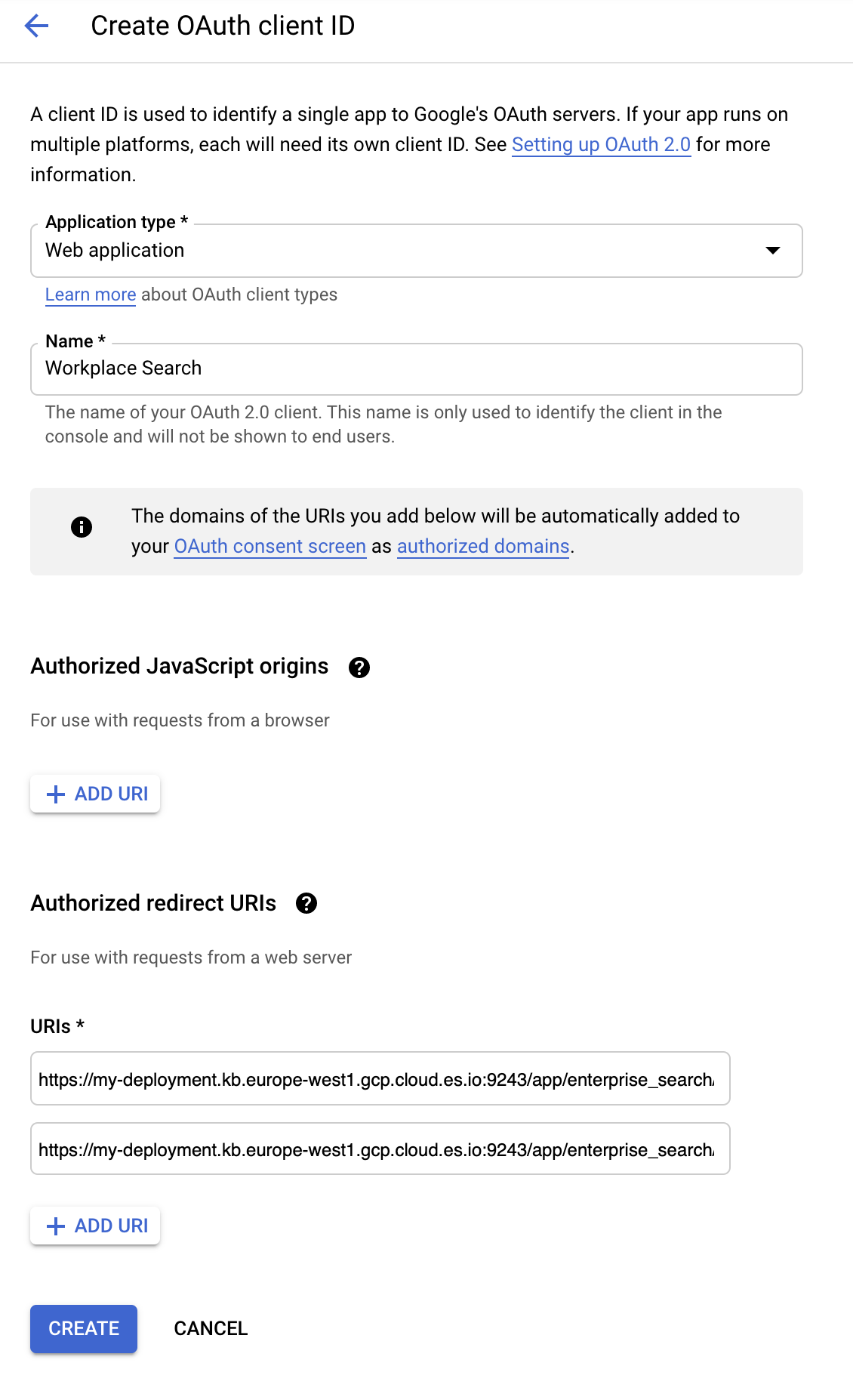

Step 12. Fill out the OAuth form:

Application type: Web application.
Name: Whichever feels best for you. Workplace Search makes sense, keeps things clear.
Authorized redirect URIs: The Workplace Search OAuth redirect URL for your deployment.

Figure 58. Connecting Google Drive

Step 13. Upon submission, you will be presented with a Client ID and Client Secret. Keep them handy, as we’ll need them in a moment.

Step 14. From the Workplace Search administrative dashboard’s Sources area, locate Google Drive, click Configure and provide both the Client ID and Client Secret.

Voilà! The Google Drive connector is now configured, and ready to be used to synchronize content. In order to capture data, you must now connect a Google Drive instance with the adequate authentication credentials.

Connecting Google Drive to Workplace Search

edit

Once the Google Drive connector has been configured, you may connect a Google Drive instance to your organization.

Step 1. Head to your organization’s Workplace Search administrative dashboard, and locate the Sources tab.

Step 2. Click Add a new source.

Step 3. Select Google Drive in the Configured Sources list, and follow the Google Drive authentication flow as presented.

Step 4. Upon the successful authentication flow, you will be redirected to Workplace Search.

Google Drive content will now be captured and will be ready for search gradually as it is synced. Once successfully configured and connected, the Google Drive synchronization automatically occurs every 2 hours.

Document-level permissions

edit

You can synchronize document access permissions from Google Drive to Workplace Search. This will ensure the right people see the right documents.

See Document-level permissions for Google.

Limiting the content to be indexed

edit

If you don’t need to index all the available content, you can specify the indexing rules via the API. This will help shorten indexing times and limit the size of the index. See Customizing indexing. For Google Drive, applicable rule types would be path_template and file_extension.

There are two good things to keep in mind when writing indexing rules for a Google Drive source:

Google Drive native files (Google Docs, Google Sheets, etc) don’t specify an extension, so extension-based rules will never match these.
Document paths will start with the name of the shared drive they exist in. Documents shared from a user’s private drive will appear to have incomplete paths, as the document path can only be resolved as far as the directory structure was shared to the content source’s connecting user.

Synchronized fields

edit

The following table lists the fields synchronized from the connected source to Workplace Search. The attributes in the table apply to the default search application, as follows:

Display name - The label used when displayed in the UI
Field name - The name of the underlying field attribute
Faceted filter - whether the field is a faceted filter by default, or can be enabled (see also: Customizing filters)
Automatic query refinement preceding phrases - The default list of phrases that must precede a value of this field in a search query in order to automatically trigger query refinement. If "None," a value from this field may trigger refinement regardless of where it is found in the query string. If '', a value from this field must be the first token(s) in the query string. If N.A., automatic query refinement is not available for this field by default. All fields that have a faceted filter (default or configurable) can also be configured for automatic query refinement; see also Update a content source, Get a content source’s automatic query refinement details and Customizing filters.

Display name	Field name	Faceted filter	Automatic query refinement preceding phrases
Id	`id`	No	N.A.
URL	`url`	No	N.A.
Title	`title`	No	N.A.
Type	`type`	Default	None
Created at	`created_at`	No	N.A.
Created by	`created_by`	Configurable	[`creator is`, `created by`, `edited by`, `modified by`]
Created by email	`created_by_email`	Configurable	[`creator is`, `created by`, `edited by`, `modified by`]
Updated at	`updated_at`	No	N.A.
Last updated	`last_updated`	No	N.A.
Viewed by me at	`viewed_by_me_at`	No	N.A.
Updated by me at	`updated_by_me_at`	No	N.A.
Updated by	`updated_by`	Configurable	[`edited by`, `updated by`, `modified by`]
Updated by email	`updated_by_email`	Configurable	[`edited by`, `updated by`, `modified by`]
Updated by photo url	`updated_by_photo url`	No	N.A.
Shared by	`shared_by`	Configurable	[`from`, `shared by`]
Shared by email	`shared_by_email`	Configurable	[`from`, `shared by`]
Shared by photo url	`shared_by_photo url`	No	N.A.
Size	`size`	No	N.A.
Author	`author`	Configurable	N.A.
Media type	`mime_type`	Default	None
Extension	`extension`	Default	None
Starred	`starred`	Configurable	N.A.
Path	`path`	No	N.A.
