Connecting Gmail

edit

Connecting Gmail

edit

Gmail is Google’s popular, fast, and secure cloud-based email service. The Gmail connector is a remote connector. This means that Workplace Search will query Google’s servers on your behalf. The results are measured against all of your other stored and remote documents, then surfaced as part of the most relevant set of results.

Remote sources like Gmail are private sources. Once you have configured the connector, each individual member must add it as a unique private source via their personal settings. Each member may connect only one Gmail private content source.

The Gmail connector searches the following data from Gmail:

Gmail Documents

Including ID, File Metadata, Excerpt, Sender, Recipient and timestamps

Configuring the Gmail Connector

edit

Configuring the Gmail connector is the first step prior to connecting the Gmail service to Workplace Search, and requires that you create an OAuth App from the Gmail platform.

Step 1. To get started, log in to the Google Developer Console.

Make sure that you create this project with a trusted and stable Google account. We recommend using a team-owned account.

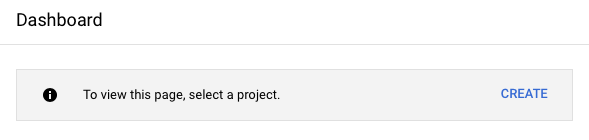

Step 2. We must first create a project, and then add access to the Gmail API to it. Click Create when prompted:

Figure 27. Connecting Gmail

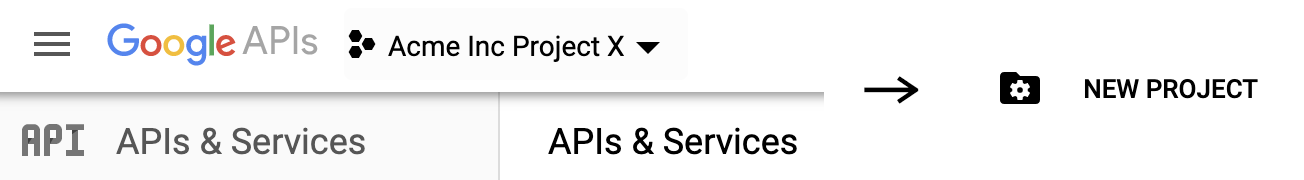

If you already have active projects, you can create a new project from the Project Dropdown menu:

Figure 28. Connecting Gmail

Fill in the project information in a way that best suits your organization.

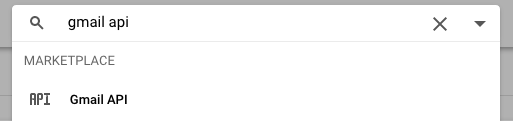

Step 3. Using the search bar located at the top of the console, navigate to the Gmail API:

Figure 29. Connecting Gmail

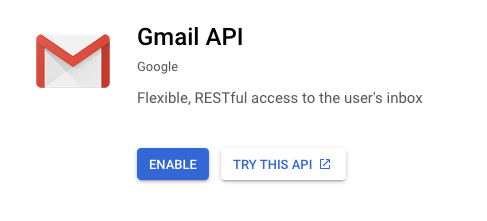

Step 4. Enable access to the Gmail API for this project:

Figure 30. Connecting Gmail

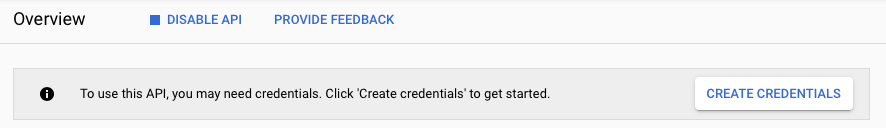

Step 5. You will be prompted to Create Credentials:

Figure 31. Connecting Gmail

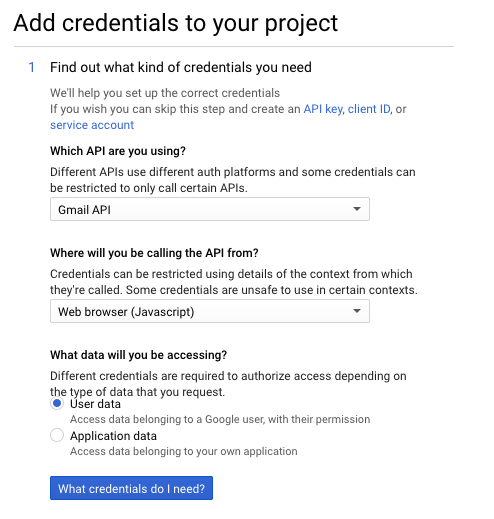

Step 6. Select Gmail API as the API you are using. You will call it from Web browser to access User data:

Figure 32. Connecting Gmail

Step 7. Click What credentials do I need?, and select the Set up consent screen option:

Figure 33. Connecting Gmail

Step 8. Select Internal as User Type.

Step 9. Fill out the information in the OAuth Consent Screen form.

Figure 34. Connecting Gmail

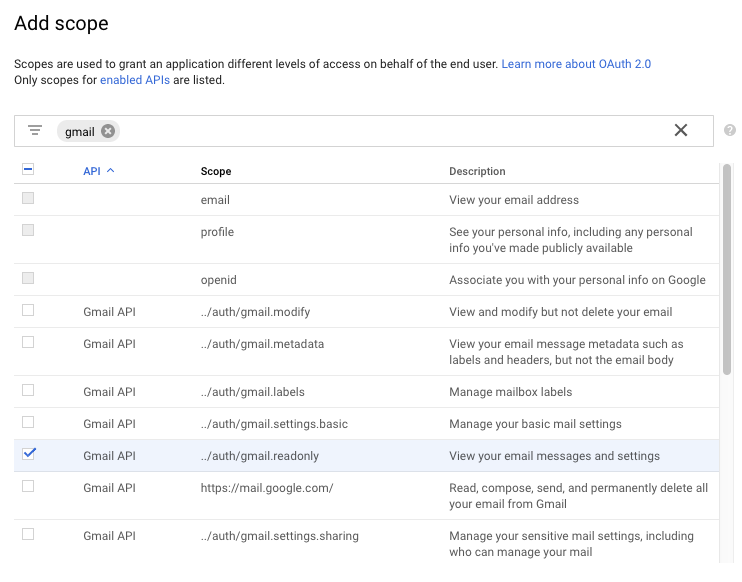

Step 10. In the Scopes for Google APIs section, we must add one value:

../auth/gmail.readonly

Figure 35. Connecting Gmail

Save the changes.

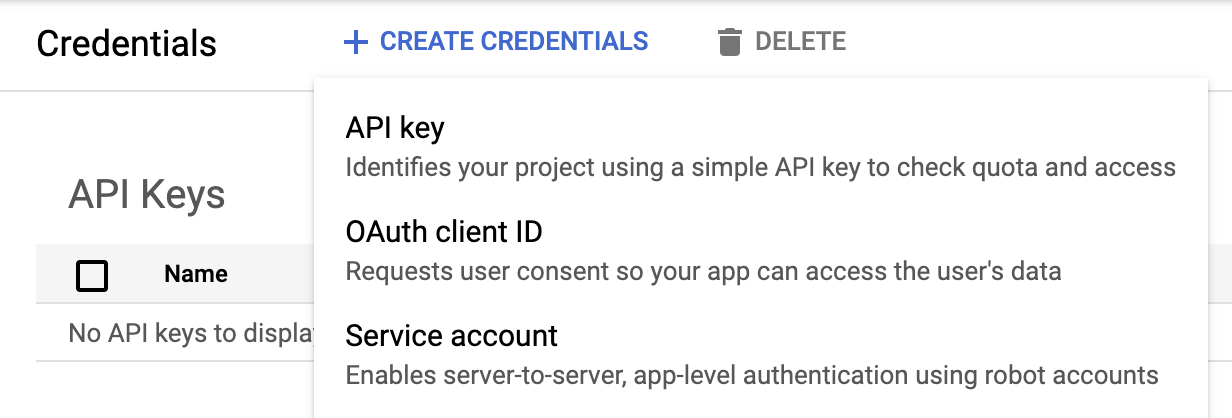

Step 11. We must now create credentials for the OAuth application. Locate the Credentials menu item in the left sidebar, click Create Credentials and select OAuth Client ID.

Figure 36. Connecting Gmail

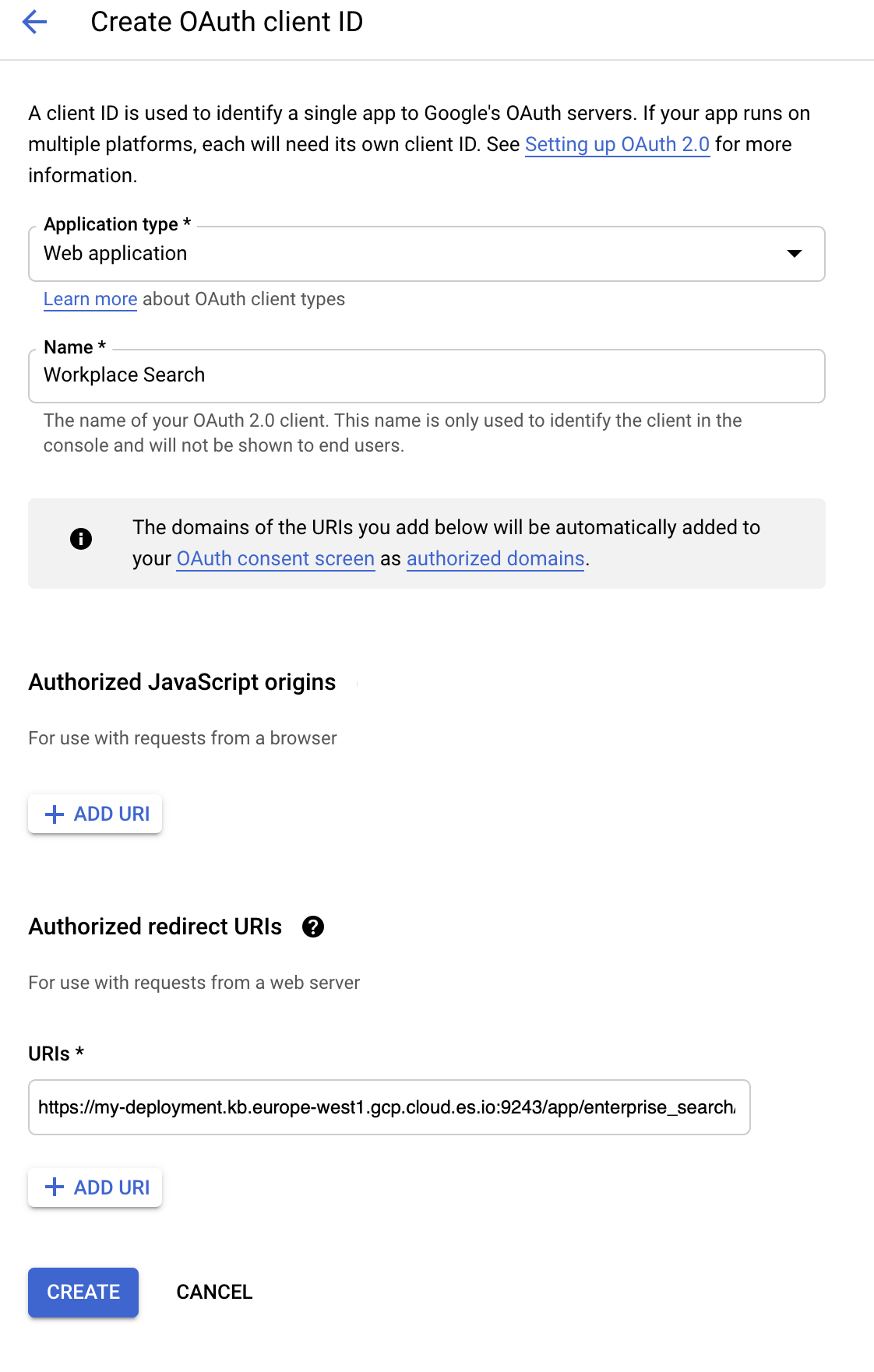

Step 12. Fill out the OAuth form:

Application type: Web application.
Name: Whichever feels best for you. Workplace Search makes sense, keeps things clear.
Authorized redirect URIs: The Workplace Search OAuth redirect URL for your deployment.

Figure 37. Connecting Gmail

Step 13. Upon submission, you will be presented with a Client ID and Client Secret.

Keep them handy, as we’ll need them in a moment.

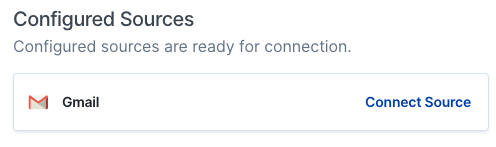

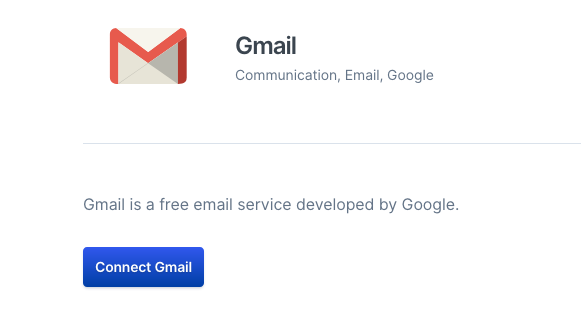

Step 14. From the Workplace Search administrative dashboard’s Sources area, locate Gmail, click Configure and provide both the Client ID and Client Secret.

Voilà! The Gmail connector is now configured, and ready to be used to synchronize content.

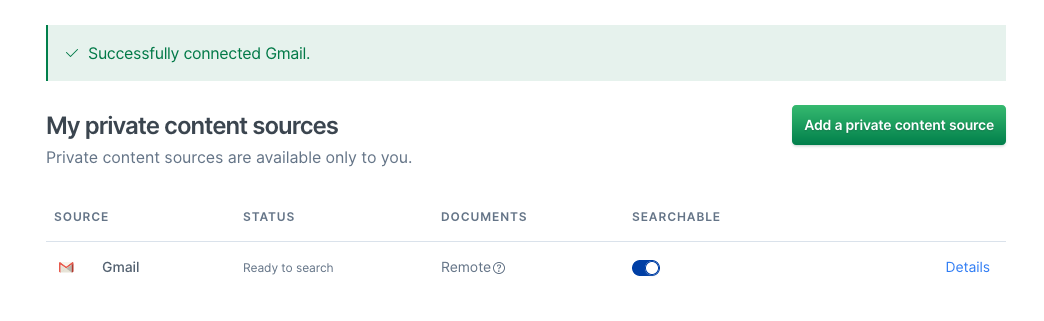

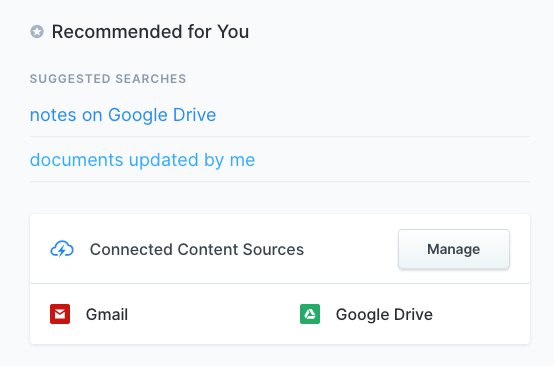

Reminder: Gmail must be added as a private content source.

Each individual will need to add it!
