BitDefender Integration

Version	2.3.0 (View all)
Compatible Kibana version(s)	8.14.3 or higher
Supported Serverless project types What’s this?	Security Observability
Subscription level What’s this?	Basic
Level of support What’s this?	Community

BitDefender GravityZone supports SIEM integration using "push notifications", which are JSON messages sent via HTTP POST to a HTTP or HTTPS endpoint, which this integration can consume.

This integration additionally provides:

Collection of push notification configuration via API polling, which includes the "state" of the push notification service on the BitDefender GravityZone server, e.g. indicating if it is currently enabled or disabled. This is useful as the state may change to disabled (value of 0) for unknown reasons and you may wish to alert on this event.
Collection of push notification statistics via API polling, which includes the number of events sent, and counters for errors of different types, which you may wish to use to troubleshoot lost push notification events and for alerting purposes.
Support for multiple instances of the integration, which may be needed for MSP/MSSP scenarios where multiple BitDefender GravityZone tenants exist.
BitDefender company ID to your own company name/description mapping, in order to determine to which tenant the event relates to in a human friendly way. This is very useful for MSP/MSSP environments or for large organisations with multiple sub-organisations.

This allows you to search, observe and visualize the BitDefender GravityZone events through Elastic, trigger alerts and monitor the BitDefender GravityZone Push Notification service for state and errors.

For more information about BitDefender GravityZone, refer to BitDefender GravityZone and read the Public API - Push documentation.

Compatibility

edit

This integration supports BitDefender GravityZone, which is the business oriented product set sold by BitDefender.

BitDefender products for home users are not supported.

The package collects BitDefender GravityZone push notification transported events sent in jsonrpc, qradar, or splunk format.

The jsonrpc format is recommended default, but the ingest pipeline will attempt to detect if qradar or splunk format events have been received and process them accordingly.

The integration can also collect the push notification configuration and statistics by polling the BitDefender GravityZone API.

Configuration

edit

Enabling the integration in Elastic

edit

In Kibana go to Management > Integrations
In "Search for integrations" search bar type GravityZone
Click on "BitDefender GravityZone" integration from the search results.

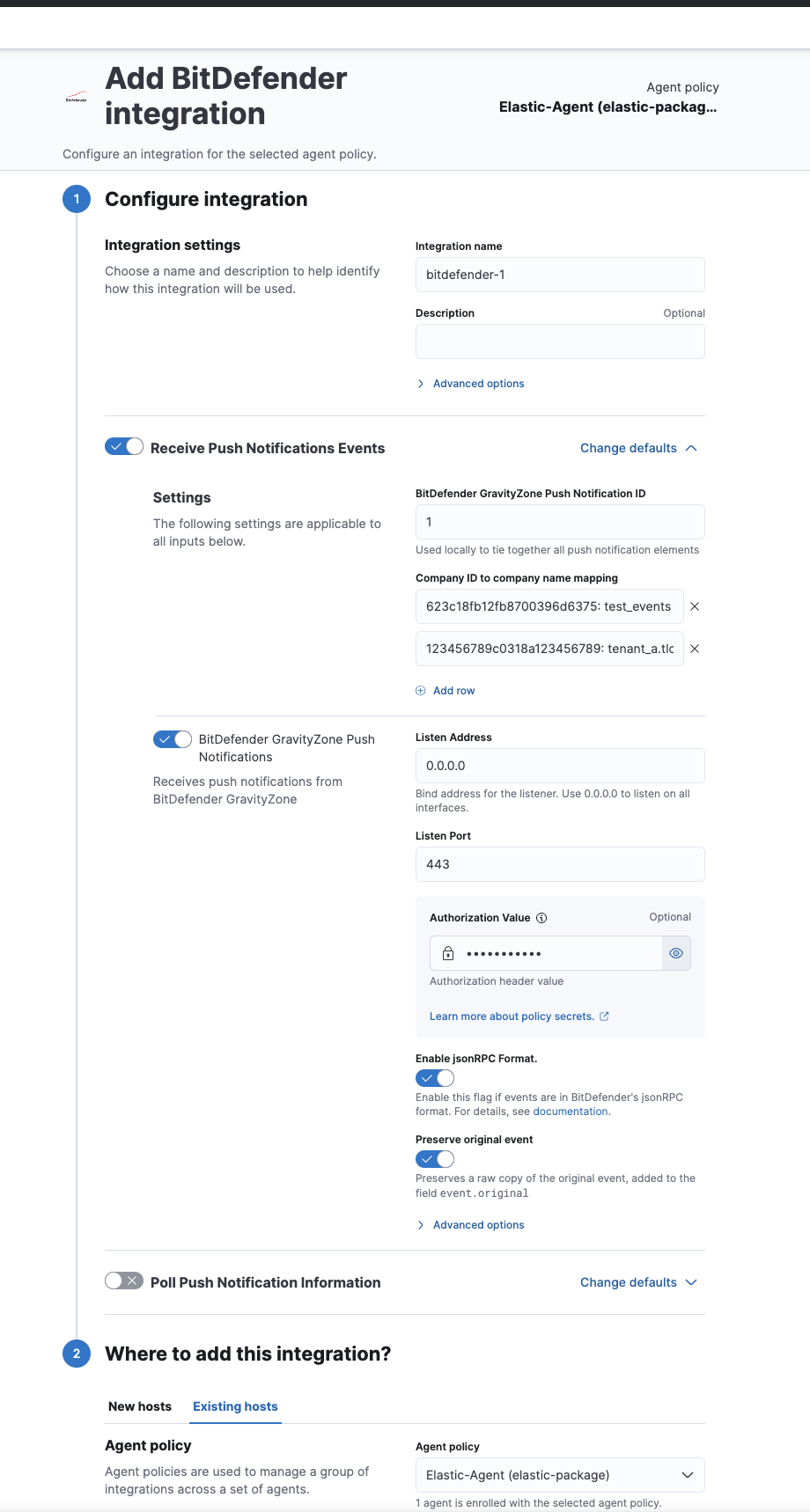

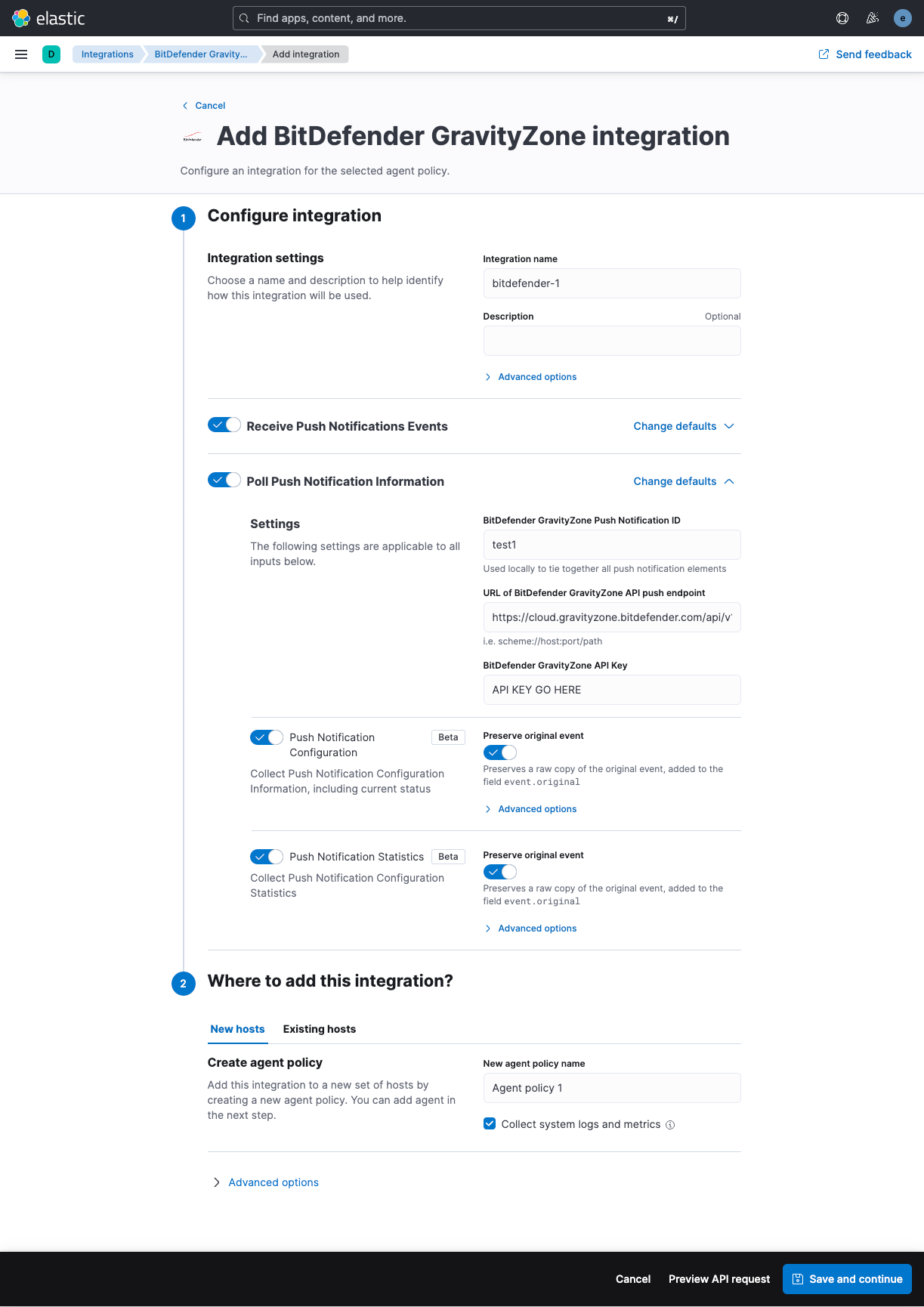

Click on Add BitDefender GravityZone button to add BitDefender GravityZone integration.

Create a BitDefender GravityZone API key that can configure a push notification service

edit

The vendor documentation is available here. However, at the time of writing this is out of date and the screenshots the vendor provides do not accurately describe what you will need to do.

The API key needed to configure push notifications, and collection push notification configuration state and statistics, is typically configured within the BitDefender GravityZone cloud portal here

Bear in mind the API key will be associated to the account you create it from. A named human account may not be desirable, e.g. you may wish to (probably should) create API keys for functions such as push notifications under a non-human/software service account that will never retire or be made redundant.

Navigate to your account details within the GravityZone portal. If you have sufficient privileges you will see the "API keys" section near the bottom of the page. Click "Add" here.

Give the API key a description and tick the "Event Push Service API" box at minimum.

If you intend to use the API key for other API calls you may need to tick other boxes.

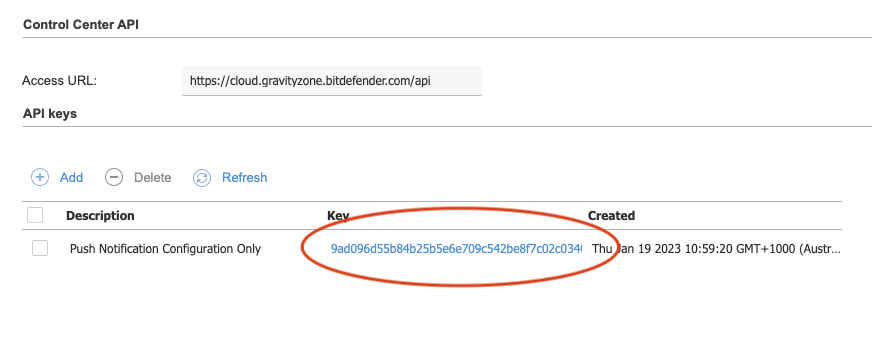

Click the Key value that is shown in blue.

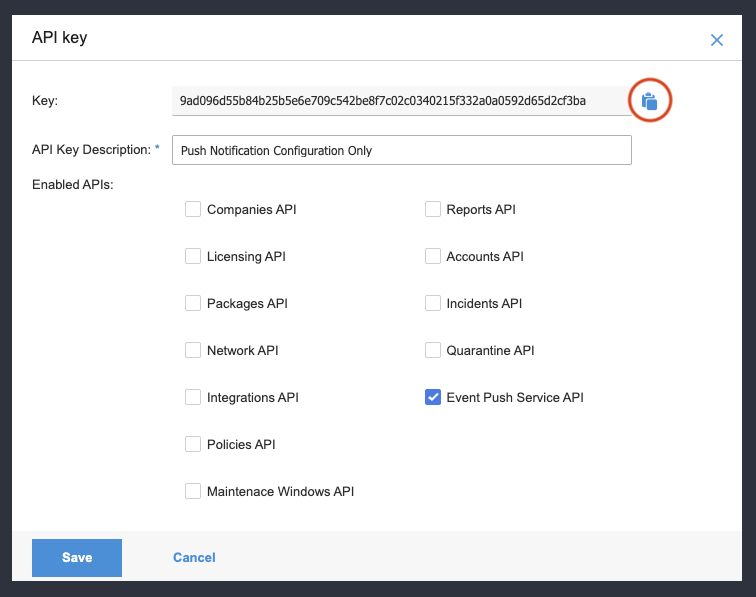

Click the clipboard icon to copy the API key to your PC’s clipboard.

Creating the push notification configuration via BitDefender GravityZone API

edit

The BitDefender documentation for how to do this is here

You should use the jsonrpc format option.

An example using cURL:

curl --location --request POST 'https://cloud.gravityzone.bitdefender.com/api/v1.0/jsonrpc/push' \
--header 'Content-Type: application/json' \
--header 'Accept: application/json' \
--header 'Authorization: Basic TE9MX05JQ0VfVFJZOgo=' \
--data-raw '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "setPushEventSettings",
  "params": {
    "status": 1,
    "serviceType": "jsonrpc",
    "serviceSettings": {
      "authorization": "secret value",
      "requireValidSslCertificate": true,
      "url": "https://your.webhook.receiver.domain.tld/bitdefender/push/notification"
    },
    "subscribeToCompanies": [
      "COMPANY IDS HERE IF YOU HAVE A MULTI TENANT ENVIRONMENT",
      "AND YOU WANT TO LIMIT THE SUBSCRIPTION TO ONLY SOME COMPANIES",
      "OTHERWISE DELETE THE ENTIRE subscribeToCompanies NODE TO GET EVERYTHING"
    ],
    "subscribeToEventTypes": {
      "adcloud": true,
      "antiexploit": true,
      "aph": true,
      "av": true,
      "avc": true,
      "dp": true,
      "endpoint-moved-in": true,
      "endpoint-moved-out": true,
      "exchange-malware": true,
      "exchange-user-credentials": true,
      "fw": true,
      "hd": true,
      "hwid-change": true,
      "install": true,
      "modules": true,
      "network-monitor": true,
      "network-sandboxing": true,
      "new-incident": true,
      "ransomware-mitigation": true,
      "registration": true,
      "security-container-update-available": true,
      "supa-update-status": true,
      "sva": true,
      "sva-load": true,
      "task-status": true,
      "troubleshooting-activity": true,
      "uc": true,
      "uninstall": true
    }
  }
}'

Dashboards

edit

There are two dashboards available as part of the integration,

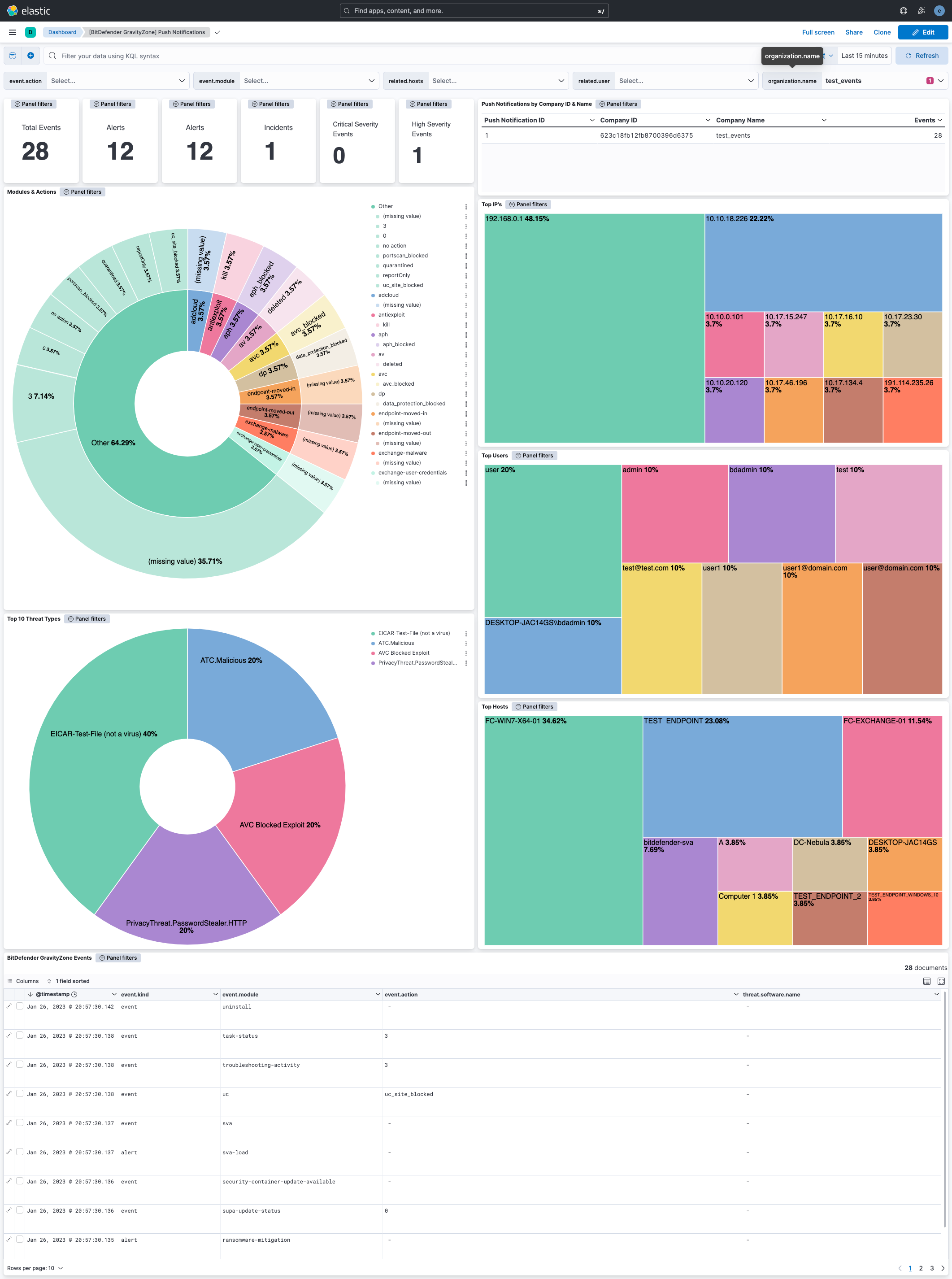

"[BitDefender GravityZone] Push Notifications", which provides a summary of push notifications received within the search window.

"[BitDefender GravityZone] Configuration State & Statistics", which provides graphs and other visualisations related push notification service state and statistics available within the search window.

Configuration State & Statistics Dashboard

Data Stream

edit

Log Stream Push Notifications

edit

The BitDefender GravityZone events dataset provides events from BitDefender GravityZone push notifications that have been received.

All BitDefender GravityZone log events are available in the bitdefender_gravityzone.events field group.

Exported fields

Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
bitdefender.event.testEvent		boolean
bitdefender.event.action		keyword
bitdefender.event.actionTaken		keyword
bitdefender.event.aph_status		integer
bitdefender.event.aph_type		keyword
bitdefender.event.att_ck_id		keyword
bitdefender.event.attack_entry		keyword
bitdefender.event.attack_source		keyword
bitdefender.event.attack_type		keyword
bitdefender.event.attack_types		keyword
bitdefender.event.auto_renew_period		long
bitdefender.event.avc_status		integer
bitdefender.event.block_type		keyword
bitdefender.event.blocked		long
bitdefender.event.blocking_rule_name		keyword
bitdefender.event.categories		keyword
bitdefender.event.cleaned		long
bitdefender.event.command_line_parameters		keyword
bitdefender.event.companyId		keyword
bitdefender.event.company_name		keyword
bitdefender.event.computerIp		keyword
bitdefender.event.computerName		keyword
bitdefender.event.computer_fqdn		keyword
bitdefender.event.computer_id		keyword
bitdefender.event.computer_ip		keyword
bitdefender.event.computer_name		keyword
bitdefender.event.count		long
bitdefender.event.cpuUsage		float
bitdefender.event.created		date
bitdefender.event.date		keyword
bitdefender.event.deleted		long
bitdefender.event.detected_on		date
bitdefender.event.detectionTime		date
bitdefender.event.detection_action		keyword
bitdefender.event.detection_attackTechnique		keyword
bitdefender.event.detection_cve		keyword
bitdefender.event.detection_exploitTechnique		keyword
bitdefender.event.detection_level		keyword
bitdefender.event.detection_name		keyword
bitdefender.event.detection_parentPath		keyword
bitdefender.event.detection_parentPid		keyword
bitdefender.event.detection_path		keyword
bitdefender.event.detection_pid		keyword
bitdefender.event.detection_threatName		keyword
bitdefender.event.detection_time		date
bitdefender.event.detection_username		keyword
bitdefender.event.deviceClass		integer
bitdefender.event.deviceId		keyword
bitdefender.event.deviceName		keyword
bitdefender.event.dlp_status		integer
bitdefender.event.dp_status		integer
bitdefender.event.enabled_services		keyword
bitdefender.event.endDate		date
bitdefender.event.end_subscription_date		date
bitdefender.event.endpointId		keyword
bitdefender.event.errorCode		integer
bitdefender.event.errorMessage		keyword
bitdefender.event.exploit_path		keyword
bitdefender.event.exploit_type		keyword
bitdefender.event.failedStorageType		integer
bitdefender.event.filePaths		keyword
bitdefender.event.fileSizes		keyword
bitdefender.event.file_hash		keyword
bitdefender.event.file_hash_md5		keyword
bitdefender.event.file_hash_sha256		keyword
bitdefender.event.file_name		keyword
bitdefender.event.file_path		keyword
bitdefender.event.final_status		keyword
bitdefender.event.firewall_status		integer
bitdefender.event.fromSupa		integer
bitdefender.event.hash		keyword
bitdefender.event.host_name		keyword
bitdefender.event.hwid		keyword
bitdefender.event.id		long
bitdefender.event.ignored		long
bitdefender.event.incident_id		keyword
bitdefender.event.isSuccessful		integer
bitdefender.event.is_container_host		integer
bitdefender.event.is_fileless_attack		integer
bitdefender.event.issueType		long
bitdefender.event.item_count		keyword
bitdefender.event.jsonrpc.method		keyword
bitdefender.event.jsonrpc.version		keyword
bitdefender.event.lastAdReportDate		keyword
bitdefender.event.last_blocked		keyword
bitdefender.event.lastupdate		keyword
bitdefender.event.license_key		keyword
bitdefender.event.license_limit		long
bitdefender.event.license_type		keyword
bitdefender.event.loadAverage		float
bitdefender.event.localPath		keyword
bitdefender.event.local_port		keyword
bitdefender.event.mailboxes		long
bitdefender.event.main_action		keyword
bitdefender.event.malware.actionTaken		keyword
bitdefender.event.malware.infectedObject		keyword
bitdefender.event.malware.malwareName		keyword
bitdefender.event.malware.malwareType		keyword
bitdefender.event.malware_name		keyword
bitdefender.event.malware_status		integer
bitdefender.event.malware_type		keyword
bitdefender.event.memoryUsage		float
bitdefender.event.minimal_commitment_usage_endpoints		long
bitdefender.event.module		keyword
bitdefender.event.moved_company_id		keyword
bitdefender.event.moved_company_name		keyword
bitdefender.event.networkSharePath		keyword
bitdefender.event.networkUsage		float
bitdefender.event.network_monitor_status		long
bitdefender.event.new_hwid		keyword
bitdefender.event.oldData.features.enabled		boolean
bitdefender.event.oldData.features.id		keyword
bitdefender.event.oldData.features.isFunctioning		boolean
bitdefender.event.oldData.features.registrationStatus		keyword
bitdefender.event.old_hwid		keyword
bitdefender.event.overallUsage		float
bitdefender.event.parent_process_id		long
bitdefender.event.parent_process_path		keyword
bitdefender.event.parent_process_pid		long
bitdefender.event.port		long
bitdefender.event.powered_off		integer
bitdefender.event.present		long
bitdefender.event.process_command_line		keyword
bitdefender.event.process_info_command_line		keyword
bitdefender.event.process_info_path		keyword
bitdefender.event.process_path		keyword
bitdefender.event.process_pid		long
bitdefender.event.productId		long
bitdefender.event.product_installed		keyword
bitdefender.event.product_reboot_required		integer
bitdefender.event.product_registration		keyword
bitdefender.event.product_update_available		integer
bitdefender.event.protocol_id		keyword
bitdefender.event.pu_status		integer
bitdefender.event.quarantined		long
bitdefender.event.reason		integer
bitdefender.event.recipients		keyword
bitdefender.event.remediationActions		keyword
bitdefender.event.saveToBitdefenderCloud		integer
bitdefender.event.scanEngineType		integer
bitdefender.event.sender		keyword
bitdefender.event.serverName		keyword
bitdefender.event.severity		keyword
bitdefender.event.severityScore		integer
bitdefender.event.severity_score		integer
bitdefender.event.signature_update		date
bitdefender.event.signaturesNumber		keyword
bitdefender.event.source_ip		keyword
bitdefender.event.startDate		date
bitdefender.event.status		keyword
bitdefender.event.stopReason		integer
bitdefender.event.storage_ip		ip
bitdefender.event.storage_name		keyword
bitdefender.event.storage_type		keyword
bitdefender.event.subject		keyword
bitdefender.event.svaLoad		keyword
bitdefender.event.syncerId		keyword
bitdefender.event.targetName		keyword
bitdefender.event.target_type		keyword
bitdefender.event.taskId		keyword
bitdefender.event.taskName		keyword
bitdefender.event.taskScanType		integer
bitdefender.event.taskType		keyword
bitdefender.event.threatType		keyword
bitdefender.event.timestamp		keyword
bitdefender.event.uc_application_status		integer
bitdefender.event.uc_categ_filtering		integer
bitdefender.event.uc_type		keyword
bitdefender.event.uc_web_filtering		integer
bitdefender.event.updatesigam		keyword
bitdefender.event.url		keyword
bitdefender.event.user.id		keyword
bitdefender.event.user.name		keyword
bitdefender.event.user.sid		keyword
bitdefender.event.user.userName		keyword
bitdefender.event.user.userSid		keyword
bitdefender.event.userId		keyword
bitdefender.event.user_sid		keyword
bitdefender.event.username		keyword
bitdefender.event.vendorId		long
bitdefender.event.victim_ip		keyword
bitdefender.id		keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
destination.nat.as.number		long
destination.nat.as.organization.name		keyword
destination.nat.geo.city_name		keyword
destination.nat.geo.continent_name		keyword
destination.nat.geo.country_iso_code		keyword
destination.nat.geo.country_name		keyword
destination.nat.geo.location		geo_point
destination.nat.geo.region_iso_code		keyword
destination.nat.geo.region_name		keyword
input.type		keyword

Example

An example event for push_notifications looks as following:

{
    "@timestamp": "2024-07-25T10:16:53.355Z",
    "agent": {
        "ephemeral_id": "e80bc3a4-2ee1-435a-8ff1-cf18df9f0fe8",
        "id": "0eb83218-5f40-45bd-8fb3-9423008f7b6f",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.14.3"
    },
    "bitdefender": {
        "event": {
            "aph_type": "phishing",
            "companyId": "59a14b271da197c6108b4567",
            "computer_fqdn": "fc-exchange-01.fc.dom",
            "computer_id": "59b7d9bfa849af3a1465b7e4",
            "computer_ip": "192.168.0.1",
            "computer_name": "FC-EXCHANGE-01",
            "count": 1,
            "id": 150537,
            "jsonrpc": {
                "method": "addEvents",
                "version": "2.0"
            },
            "last_blocked": "2023-09-13T08:49:43.000Z",
            "module": "aph",
            "product_installed": "BEST",
            "status": "aph_blocked",
            "url": "http://example.com/account/support/"
        },
        "id": "test"
    },
    "data_stream": {
        "dataset": "bitdefender.push_notifications",
        "namespace": "29298",
        "type": "logs"
    },
    "destination": {
        "ip": "192.168.0.1"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "0eb83218-5f40-45bd-8fb3-9423008f7b6f",
        "snapshot": false,
        "version": "8.14.3"
    },
    "event": {
        "action": "aph_blocked",
        "agent_id_status": "verified",
        "category": [
            "threat",
            "network"
        ],
        "dataset": "bitdefender.push_notifications",
        "id": "150537",
        "ingested": "2024-07-25T10:17:03Z",
        "kind": "alert",
        "module": "aph",
        "original": "{\"event\":{\"aph_type\":\"phishing\",\"companyId\":\"59a14b271da197c6108b4567\",\"computer_fqdn\":\"fc-exchange-01.fc.dom\",\"computer_id\":\"59b7d9bfa849af3a1465b7e4\",\"computer_ip\":\"192.168.0.1\",\"computer_name\":\"FC-EXCHANGE-01\",\"count\":1,\"last_blocked\":\"2023-09-13T08:49:43.000Z\",\"module\":\"aph\",\"product_installed\":\"BEST\",\"status\":\"aph_blocked\",\"url\":\"http://example.com/account/support/\"},\"id\":150537,\"jsonrpc\":{\"method\":\"addEvents\",\"version\":\"2.0\"}}",
        "provider": "Antiphishing",
        "severity": 0,
        "timezone": "+00:00",
        "type": [
            "info",
            "access"
        ]
    },
    "host": {
        "hostname": "fc-exchange-01.fc.dom",
        "id": "59b7d9bfa849af3a1465b7e4",
        "ip": [
            "192.168.0.1"
        ],
        "name": "FC-EXCHANGE-01"
    },
    "input": {
        "type": "http_endpoint"
    },
    "message": "aph_blocked, aph type: phishing",
    "organization": {
        "id": "59a14b271da197c6108b4567"
    },
    "related": {
        "hosts": [
            "FC-EXCHANGE-01"
        ],
        "ip": [
            "192.168.0.1"
        ]
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded"
    ],
    "url": {
        "domain": "example.com",
        "original": "http://example.com/account/support/",
        "path": "/account/support/",
        "registered_domain": "example.com",
        "scheme": "http",
        "top_level_domain": "com"
    }
}

Log Stream Push Notification Configuration

edit

The BitDefender GravityZone push notification configuration dataset provides configuration state collected from the BitDefender GravityZone API.

This includes the status of the push notification configuration, which may be indicative of the push notification service being disabled. Alerting based on this may be desirable.

All BitDefender GravityZone push notification configuration states are available in the bitdefender.push.configuration field group.

Exported fields

Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
bitdefender.id		keyword
bitdefender.push.configuration.serviceSettings.requireValidSslCertificate		boolean
bitdefender.push.configuration.serviceSettings.url		keyword
bitdefender.push.configuration.serviceType		keyword
bitdefender.push.configuration.status		long
bitdefender.push.configuration.subscribeToCompanies		keyword
bitdefender.push.configuration.subscribeToEventTypes.adcloud		boolean
bitdefender.push.configuration.subscribeToEventTypes.antiexploit		boolean
bitdefender.push.configuration.subscribeToEventTypes.aph		boolean
bitdefender.push.configuration.subscribeToEventTypes.av		boolean
bitdefender.push.configuration.subscribeToEventTypes.avc		boolean
bitdefender.push.configuration.subscribeToEventTypes.dp		boolean
bitdefender.push.configuration.subscribeToEventTypes.endpoint-moved-in		boolean
bitdefender.push.configuration.subscribeToEventTypes.endpoint-moved-out		boolean
bitdefender.push.configuration.subscribeToEventTypes.exchange-malware		boolean
bitdefender.push.configuration.subscribeToEventTypes.exchange-user-credentials		boolean
bitdefender.push.configuration.subscribeToEventTypes.fw		boolean
bitdefender.push.configuration.subscribeToEventTypes.hd		boolean
bitdefender.push.configuration.subscribeToEventTypes.hwid-change		boolean
bitdefender.push.configuration.subscribeToEventTypes.install		boolean
bitdefender.push.configuration.subscribeToEventTypes.modules		boolean
bitdefender.push.configuration.subscribeToEventTypes.network-monitor		boolean
bitdefender.push.configuration.subscribeToEventTypes.network-sandboxing		boolean
bitdefender.push.configuration.subscribeToEventTypes.new-incident		boolean
bitdefender.push.configuration.subscribeToEventTypes.ransomware-mitigation		boolean
bitdefender.push.configuration.subscribeToEventTypes.registration		boolean
bitdefender.push.configuration.subscribeToEventTypes.security-container-update-available		boolean
bitdefender.push.configuration.subscribeToEventTypes.supa-update-status		boolean
bitdefender.push.configuration.subscribeToEventTypes.sva		boolean
bitdefender.push.configuration.subscribeToEventTypes.sva-load		boolean
bitdefender.push.configuration.subscribeToEventTypes.task-status		boolean
bitdefender.push.configuration.subscribeToEventTypes.troubleshooting-activity		boolean
bitdefender.push.configuration.subscribeToEventTypes.uc		boolean
bitdefender.push.configuration.subscribeToEventTypes.uninstall		boolean
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
input.type		keyword

Example

An example event for push_configuration looks as following:

{
    "@timestamp": "2024-07-15T09:30:33.869Z",
    "agent": {
        "ephemeral_id": "d1d677fd-e585-4395-a4ee-8c3c2670cb99",
        "id": "b2122e94-e7cd-4274-9c2e-856609628a36",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.14.3"
    },
    "bitdefender": {
        "id": "1",
        "push": {
            "configuration": {
                "serviceSettings": {
                    "requireValidSslCertificate": true,
                    "url": "https://your.elastic.agent/bitdefender/push/notification"
                },
                "serviceType": "qradar",
                "status": 1,
                "subscribeToEventTypes": {
                    "adcloud": true,
                    "antiexploit": true,
                    "aph": true,
                    "av": true,
                    "avc": true,
                    "dp": true,
                    "endpoint-moved-in": true,
                    "endpoint-moved-out": true,
                    "exchange-malware": true,
                    "exchange-user-credentials": true,
                    "fw": true,
                    "hd": true,
                    "hwid-change": true,
                    "install": true,
                    "modules": true,
                    "network-monitor": true,
                    "network-sandboxing": true,
                    "new-incident": true,
                    "ransomware-mitigation": true,
                    "registration": true,
                    "security-container-update-available": true,
                    "supa-update-status": true,
                    "sva": true,
                    "sva-load": true,
                    "task-status": true,
                    "troubleshooting-activity": true,
                    "uc": true,
                    "uninstall": true
                }
            }
        }
    },
    "data_stream": {
        "dataset": "bitdefender.push_configuration",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "b2122e94-e7cd-4274-9c2e-856609628a36",
        "snapshot": false,
        "version": "8.14.3"
    },
    "event": {
        "agent_id_status": "verified",
        "created": "2024-07-15T09:30:33.869Z",
        "dataset": "bitdefender.push_configuration",
        "ingested": "2024-07-15T09:30:45Z",
        "original": "{\"id\":\"1\",\"jsonrpc\":\"2.0\",\"result\":{\"serviceSettings\":{\"requireValidSslCertificate\":true,\"url\":\"https://your.elastic.agent/bitdefender/push/notification\"},\"serviceType\":\"qradar\",\"status\":1,\"subscribeToEventTypes\":{\"adcloud\":true,\"antiexploit\":true,\"aph\":true,\"av\":true,\"avc\":true,\"dp\":true,\"endpoint-moved-in\":true,\"endpoint-moved-out\":true,\"exchange-malware\":true,\"exchange-user-credentials\":true,\"fw\":true,\"hd\":true,\"hwid-change\":true,\"install\":true,\"modules\":true,\"network-monitor\":true,\"network-sandboxing\":true,\"new-incident\":true,\"ransomware-mitigation\":true,\"registration\":true,\"security-container-update-available\":true,\"supa-update-status\":true,\"sva\":true,\"sva-load\":true,\"task-status\":true,\"troubleshooting-activity\":true,\"uc\":true,\"uninstall\":true}}}"
    },
    "input": {
        "type": "httpjson"
    },
    "tags": [
        "preserve_original_event",
        "forwarded"
    ]
}

Log Stream Push Notification Statistics

edit

The BitDefender GravityZone push notification statistics dataset provides statistics collected from the BitDefender GravityZone API.

This includes information about errors and HTTP response codes that the push notification service has received when sending push notifications, which may be indicative of failures to deliver push notifications resulting in missing events. Alerting based on this may be desirable.

All BitDefender GravityZone push notification statistics are available in the bitdefender.push.stats field group.

Exported fields

Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
bitdefender.id		keyword
bitdefender.push.stats.count.errorMessages		long
bitdefender.push.stats.count.events		long
bitdefender.push.stats.count.sentMessages		long
bitdefender.push.stats.count.testEvents		long
bitdefender.push.stats.error.configurationError		long
bitdefender.push.stats.error.connectionError		long
bitdefender.push.stats.error.serviceError		long
bitdefender.push.stats.error.statusCode2xx		long
bitdefender.push.stats.error.statusCode300		long
bitdefender.push.stats.error.statusCode400		long
bitdefender.push.stats.error.statusCode500		long
bitdefender.push.stats.error.timeout		long
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
input.type		keyword

Example

An example event for push_statistics looks as following:

{
    "@timestamp": "2023-01-27T07:28:05.023Z",
    "agent": {
        "ephemeral_id": "7e1d4d9d-44a4-4ac8-ab34-72e2763c9bf6",
        "id": "f0239f6f-245e-4d57-bada-68e5f564b259",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.5.1"
    },
    "bitdefender": {
        "id": "test",
        "push": {
            "stats": {
                "count": {
                    "errorMessages": 121,
                    "events": 1415824,
                    "sentMessages": 78368,
                    "testEvents": 0
                },
                "error": {
                    "configurationError": 0,
                    "connectionError": 7,
                    "serviceError": 114,
                    "statusCode2xx": 0,
                    "statusCode300": 0,
                    "statusCode400": 0,
                    "statusCode500": 0,
                    "timeout": 0
                }
            }
        }
    },
    "data_stream": {
        "dataset": "bitdefender.push_statistics",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "f0239f6f-245e-4d57-bada-68e5f564b259",
        "snapshot": false,
        "version": "8.5.1"
    },
    "event": {
        "agent_id_status": "verified",
        "created": "2023-01-27T07:28:05.023Z",
        "dataset": "bitdefender.push_statistics",
        "ingested": "2023-01-27T07:28:06Z",
        "original": "{\"id\":\"test\",\"jsonrpc\":\"2.0\",\"result\":{\"count\":{\"errorMessages\":121,\"events\":1415824,\"sentMessages\":78368,\"testEvents\":0},\"error\":{\"configurationError\":0,\"connectionError\":7,\"serviceError\":114,\"statusCode2xx\":0,\"statusCode300\":0,\"statusCode400\":0,\"statusCode500\":0,\"timeout\":0},\"lastUpdateTime\":\"2023-01-27T09:19:22\"}}"
    },
    "input": {
        "type": "httpjson"
    },
    "tags": [
        "preserve_original_event",
        "forwarded"
    ]
}

Changelog

edit

Changelog

Version	Details	Kibana version(s)
2.3.0	Enhancement (View pull request) Do not remove `event.original` in main ingest pipeline.	8.14.3 or higher
2.2.0	Enhancement (View pull request) Add "preserve_original_event" tag to documents with `event.kind` set to "pipeline_error".	8.14.3 or higher
2.1.3	Bug fix (View pull request) Use triple-brace Mustache templating when referencing variables in ingest pipelines.	8.14.3 or higher
2.1.2	Bug fix (View pull request) Use triple-brace Mustache templating when referencing variables in ingest pipelines.	8.14.3 or higher
2.1.1	Bug fix (View pull request) Ensure remediation actions are correlated with their file paths.	8.14.3 or higher
2.1.0	Enhancement (View pull request) Allow @custom pipeline access to event.original without setting preserve_original_event.	8.14.3 or higher
2.0.0	Enhancement (View pull request) Add jsonRPC format as recommended default.	8.14.3 or higher
1.14.0	Enhancement (View pull request) Update the kibana constraint to ^8.13.0. Modified the field definitions to remove ECS fields made redundant by the ecs@mappings component template.	8.13.0 or higher
1.13.0	Enhancement (View pull request) Update doc with input limitation collecting jsonRPC format.	8.12.0 or higher
1.12.0	Enhancement (View pull request) Set sensitive values as secret.	8.12.0 or higher
1.11.0	Enhancement (View pull request) Disable content-type checks	8.5.1 or higher
1.10.1	Enhancement (View pull request) Changed owners	8.5.1 or higher
1.10.0	Enhancement (View pull request) Limit request tracer log count to five.	8.5.1 or higher
1.9.0	Enhancement (View pull request) ECS version updated to 8.11.0.	8.5.1 or higher
1.8.0	Enhancement (View pull request) Improve event.original check to avoid errors if set.	8.5.1 or higher
1.7.1	Bug fix (View pull request) Fix mapping of group fields	8.5.1 or higher
1.7.0	Enhancement (View pull request) Set community owner type.	8.5.1 or higher
1.6.0	Enhancement (View pull request) ECS version updated to 8.10.0.	8.5.1 or higher
1.5.0	Enhancement (View pull request) The format_version in the package manifest changed from 2.11.0 to 3.0.0. Added owner.type: elastic to package manifest.	8.5.1 or higher
1.4.0	Enhancement (View pull request) Add tags.yml file so that integration’s dashboards and saved searches are tagged with "Security Solution" and displayed in the Security Solution UI.	8.5.1 or higher
1.3.1	Bug fix (View pull request) Remove version attribute from ingest node pipelines.	8.5.1 or higher
1.3.0	Enhancement (View pull request) Add support for HTTP request trace logging.	8.5.1 or higher
1.2.0	Enhancement (View pull request) Update package to ECS 8.9.0.	8.5.1 or higher
1.1.0	Enhancement (View pull request) Document valid duration units.	8.5.1 or higher
1.0.0	Enhancement (View pull request) Release BitDefender as GA.	8.5.1 or higher
0.3.0	Enhancement (View pull request) Ensure event.kind is correctly set for pipeline errors.	—
0.2.0	Enhancement (View pull request) Update package to ECS 8.8.0.	—
0.1.0	Enhancement (View pull request) Update package-spec version to 2.7.0.	—
0.0.1	Enhancement (View pull request) Initial draft of the package	—

« Barracuda CloudGen Firewall integration Bitwarden »
