Iptables module

edit

This is a module for iptables and ip6tables logs. It parses logs received over the network via syslog or from a file. Also, it understands the prefix added by some Ubiquiti firewalls, which includes the rule set name, rule number and the action performed on the traffic (allow/deny).

When you run the module, it performs a few tasks under the hood:

  • Sets the default input to syslog and binds to localhost port 9001 (but don’t worry, you can override the defaults).
  • Uses ingest node to parse and process the log lines, shaping the data into a structure suitable for visualizing in Kibana.
  • Deploys dashboards for visualizing the log data.

Read the quick start to learn how to set up and run modules.

Configure the module

edit

You can further refine the behavior of the iptables module by specifying variable settings in the modules.d/iptables.yml file, or overriding settings at the command line.

The module is by default configured to run via syslog on port 9001. However it can also be configured to read from a file path. See the following example.

- module: iptables
  log:
    enabled: true
    var.paths: ["/var/log/iptables.log"]
    var.input: "file"

Variable settings

edit

Each fileset has separate variable settings for configuring the behavior of the module. If you don’t specify variable settings, the iptables module uses the defaults.

For more information, see Configure variable settings. Also see Override input settings.

When you specify a setting at the command line, remember to prefix the setting with the module name, for example, iptables.log.var.paths instead of log.var.paths.

log log fileset settings

edit
var.paths
An array of glob-based paths that specify where to look for the log files. All patterns supported by Go Glob are also supported here. For example, you can use wildcards to fetch all files from a predefined level of subdirectories: /path/to/log/*/*.log. This fetches all .log files from the subfolders of /path/to/log. It does not fetch log files from the /path/to/log folder itself. If this setting is left empty, Filebeat will choose log paths based on your operating system.
var.syslog_host
The interface to listen to UDP based syslog traffic. Defaults to localhost. Set to 0.0.0.0 to bind to all available interfaces.
var.syslog_port
The UDP port to listen for syslog traffic. Defaults to 9001

Ports below 1024 require Filebeat to run as root.

Timezone support

edit

This module parses logs that don’t contain timezone information. For these logs, Filebeat reads the local timezone and uses it when parsing to convert the timestamp to UTC. The timezone to be used for parsing is included in the event in the event.timezone field.

To disable this conversion, the event.timezone field can be removed with the drop_fields processor.

If logs are originated from systems or applications with a different timezone to the local one, the event.timezone field can be overwritten with the original timezone using the add_fields processor.

See Processors for information about specifying processors in your config.

Example dashboard

edit

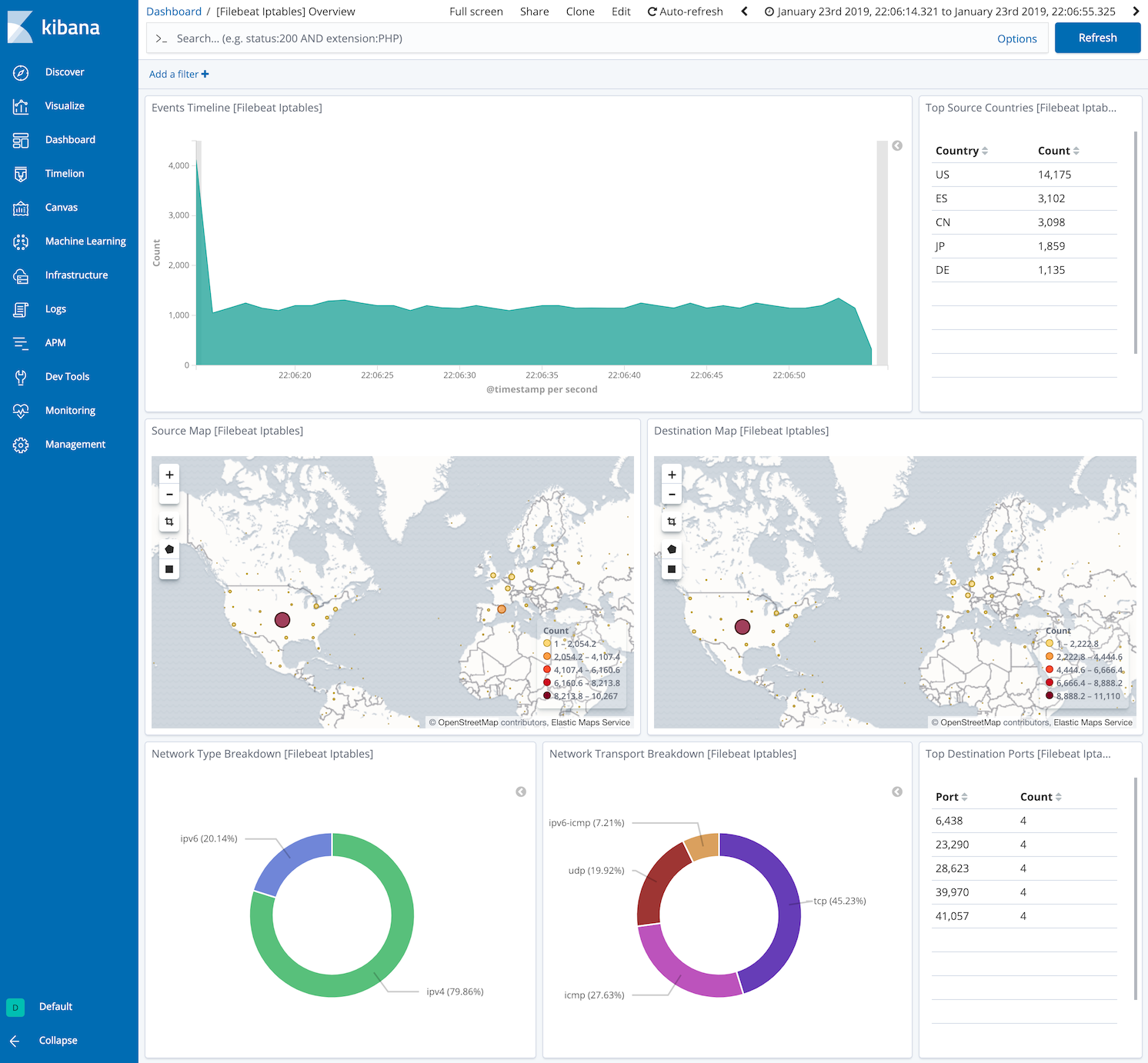

This module comes with sample dashboards showing geolocation and network protocols used. One for all iptables logs:

kibana iptables

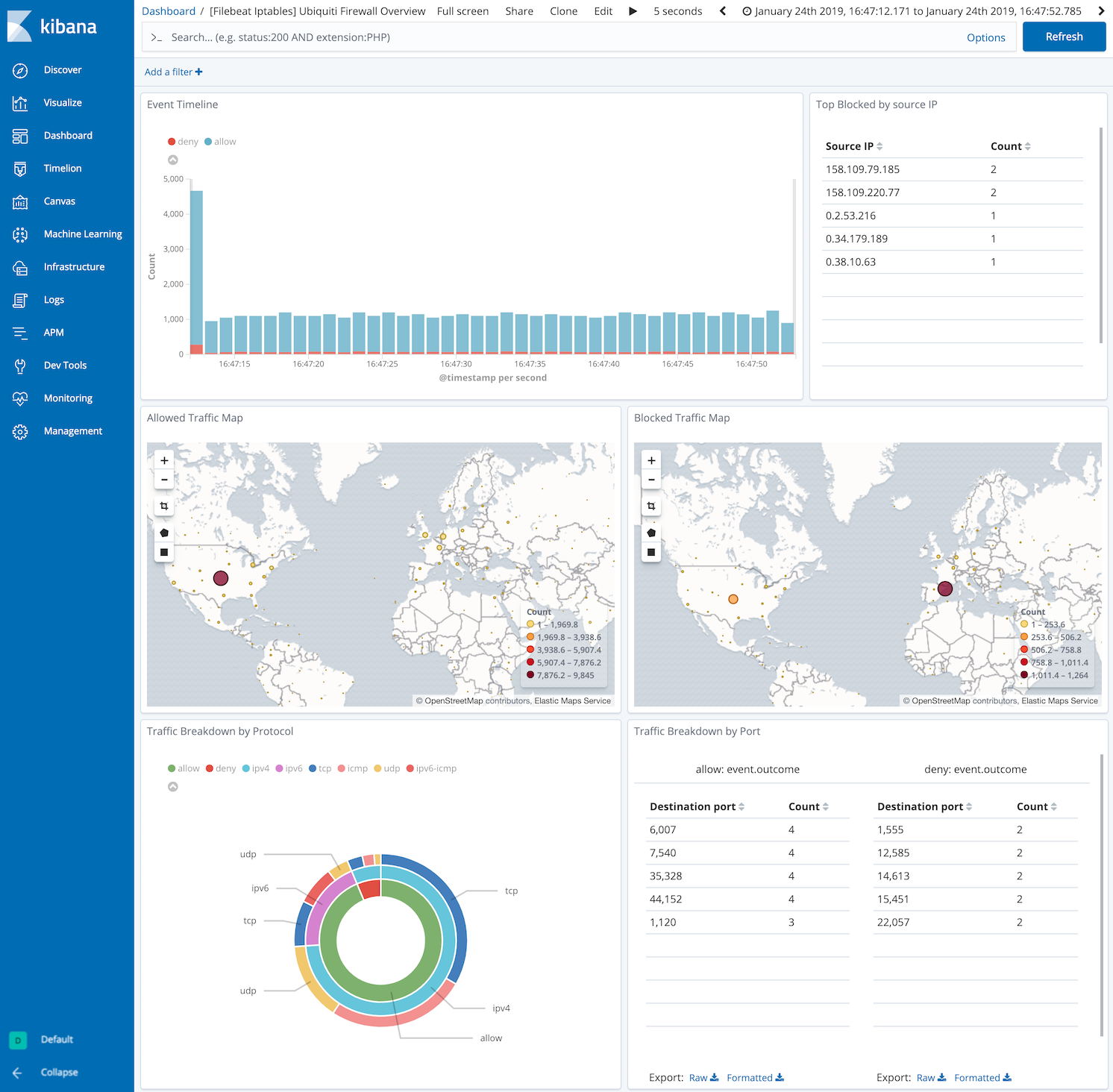

and one specific for Ubiquiti Firewall logs:

kibana iptables ubiquiti

Fields

edit

For a description of each field in the module, see the exported fields section.
