Getting Started

ECS enables and encourages users to normalize event data in order to better analyze, visualize, and correlate their events. Collected events can be normalized at ingest time, consistently searched across indices, and visualized predictably.

Note that when adopting an Elastic solution, such as Observability or Security, all events will map to ECS out of the box. Elastic provides an extensive set of integrations to simplify ingesting your data sources.

If you rely on custom data pipelines and/or building content around specific needs, ECS can still help to alleviate the challenges of searching, analyzing, and visualizing across your data. Let’s see how using a common schema can simplify the search experience, and then take a look at how an event’s contents can be mapped to ECS field sets.

With ECS defining a normalized schema across all of your data sources, querying against those sources is simplified. Consider searching for a particular source IP address prior to adopting ECS. All the various data sources and their field mappings would need to be considered in your query:

src:10.42.42.42 OR client_ip:10.42.42.42 OR apache.access.remote_ip:10.42.42.42 OR
context.user.ip:10.42.42.42 OR src_ip:10.42.42.42

With all sources mapped to ECS, the query becomes much simpler:

source.ip:10.42.42.42

Not only does this simplify writing queries, but saved queries shared with other users become much more obvious. To gain familiarity with ECS fields, you can also take a look at the ECS Field Reference section.

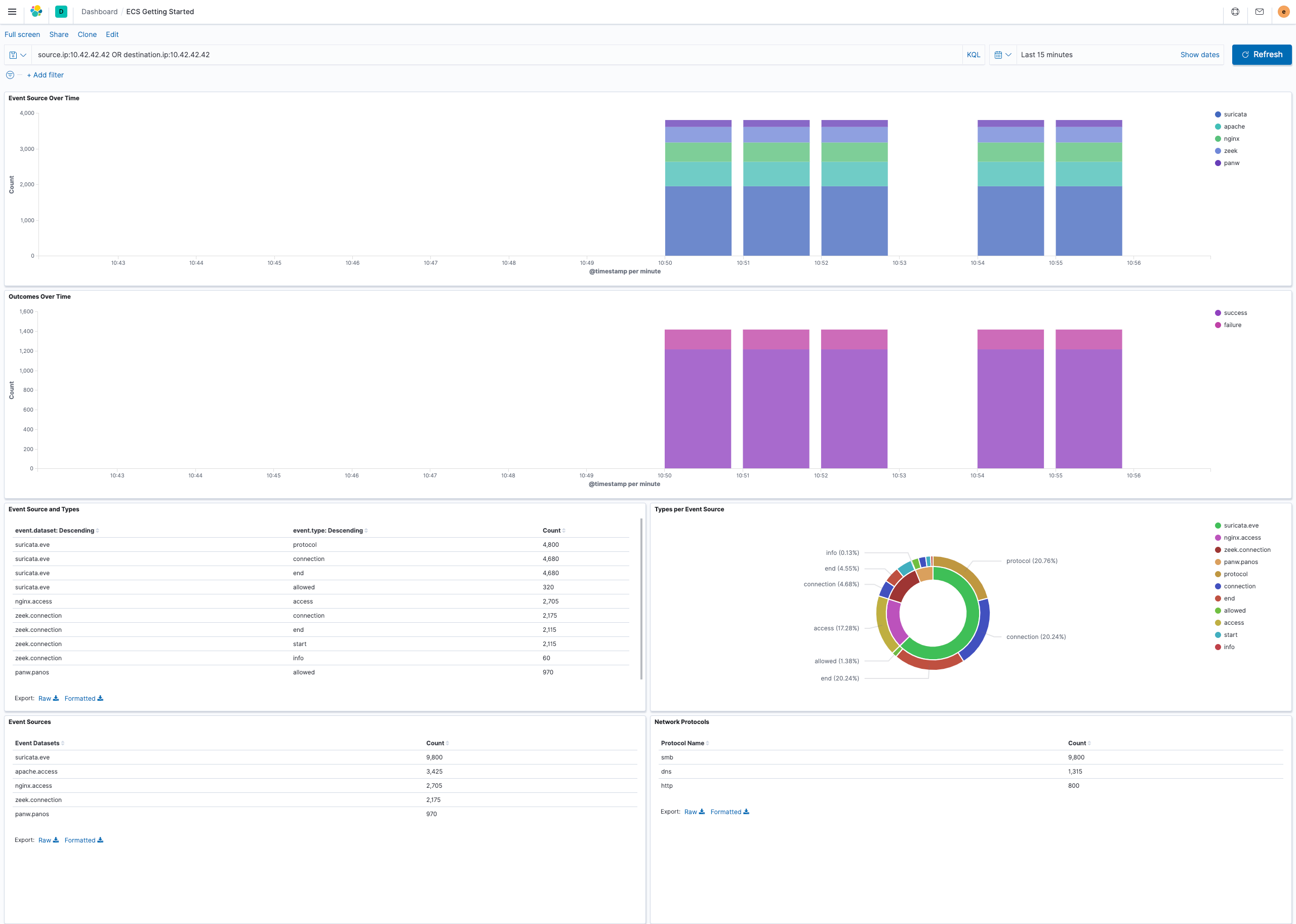

With normalized data from different data sources, building insightful visualizations across sources is simple. From a single, centralized dashboard, events from web servers, IDS/IPS devices, and firewalls can be aggregated and visualized, and enhanced with drill-downs, and pivoting for delving into deeper investigations. Centralized monitoring of diverse data sources is straightforward with normalized ECS data.

To align events to ECS, some sort of parsing will usually be necessary to transform the contents of the original event into the relevant ECS fields. Depending on how you’ve designed your Elastic Stack data ingestion pipelines, the amount of work to parse your events will vary.

For example, an Apache web server log event:

10.42.42.42 - - [15/Jul/2020:20:48:32 +0000] "GET /content HTTP/1.1" 200 2571 "-"
"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_4) AppleWebKit/537.36 (KHTML, like Gecko)
Chrome/83.0.4103.106 Safari/537.36"

In order to map this event to ECS, the contents of the event is associated with the appropriate ECS fields.

Beyond extracting values that are present in the original event, we also populate other fields to provide additional context about the event itself.

Lastly, existing field values can be interpreted or enriched using a processor, with the results populating additional fields in the final event.

Here are some examples of additional fields processed by metadata or parser processors.

We’ve covered at a high level how to map your events to ECS. Now if you’d like your events to render well in the Elastic solutions, check out the reference guides below to learn more about each:
