Geo-line aggregation

edit

Geo-line aggregation

edit

The geo_line aggregation aggregates all geo_point values within a bucket into a LineString ordered by the chosen sort field. This sort can be a date field, for example. The bucket returned is a valid GeoJSON Feature representing the line geometry.

resp = client.indices.create(
    index="test",
    mappings={
        "properties": {
            "my_location": {
                "type": "geo_point"
            },
            "group": {
                "type": "keyword"
            },
            "@timestamp": {
                "type": "date"
            }
        }
    },
)
print(resp)

resp1 = client.bulk(
    index="test",
    refresh=True,
    operations=[
        {
            "index": {}
        },
        {
            "my_location": {
                "lat": 52.373184,
                "lon": 4.889187
            },
            "@timestamp": "2023-01-02T09:00:00Z"
        },
        {
            "index": {}
        },
        {
            "my_location": {
                "lat": 52.370159,
                "lon": 4.885057
            },
            "@timestamp": "2023-01-02T10:00:00Z"
        },
        {
            "index": {}
        },
        {
            "my_location": {
                "lat": 52.369219,
                "lon": 4.901618
            },
            "@timestamp": "2023-01-02T13:00:00Z"
        },
        {
            "index": {}
        },
        {
            "my_location": {
                "lat": 52.374081,
                "lon": 4.91235
            },
            "@timestamp": "2023-01-02T16:00:00Z"
        },
        {
            "index": {}
        },
        {
            "my_location": {
                "lat": 52.371667,
                "lon": 4.914722
            },
            "@timestamp": "2023-01-03T12:00:00Z"
        }
    ],
)
print(resp1)

resp2 = client.search(
    index="test",
    filter_path="aggregations",
    aggs={
        "line": {
            "geo_line": {
                "point": {
                    "field": "my_location"
                },
                "sort": {
                    "field": "@timestamp"
                }
            }
        }
    },
)
print(resp2)
response = client.indices.create(
  index: 'test',
  body: {
    mappings: {
      properties: {
        my_location: {
          type: 'geo_point'
        },
        group: {
          type: 'keyword'
        },
        "@timestamp": {
          type: 'date'
        }
      }
    }
  }
)
puts response

response = client.bulk(
  index: 'test',
  refresh: true,
  body: [
    {
      index: {}
    },
    {
      my_location: {
        lat: 52.373184,
        lon: 4.889187
      },
      "@timestamp": '2023-01-02T09:00:00Z'
    },
    {
      index: {}
    },
    {
      my_location: {
        lat: 52.370159,
        lon: 4.885057
      },
      "@timestamp": '2023-01-02T10:00:00Z'
    },
    {
      index: {}
    },
    {
      my_location: {
        lat: 52.369219,
        lon: 4.901618
      },
      "@timestamp": '2023-01-02T13:00:00Z'
    },
    {
      index: {}
    },
    {
      my_location: {
        lat: 52.374081,
        lon: 4.91235
      },
      "@timestamp": '2023-01-02T16:00:00Z'
    },
    {
      index: {}
    },
    {
      my_location: {
        lat: 52.371667,
        lon: 4.914722
      },
      "@timestamp": '2023-01-03T12:00:00Z'
    }
  ]
)
puts response

response = client.search(
  index: 'test',
  filter_path: 'aggregations',
  body: {
    aggregations: {
      line: {
        geo_line: {
          point: {
            field: 'my_location'
          },
          sort: {
            field: '@timestamp'
          }
        }
      }
    }
  }
)
puts response
const response = await client.indices.create({
  index: "test",
  mappings: {
    properties: {
      my_location: {
        type: "geo_point",
      },
      group: {
        type: "keyword",
      },
      "@timestamp": {
        type: "date",
      },
    },
  },
});
console.log(response);

const response1 = await client.bulk({
  index: "test",
  refresh: "true",
  operations: [
    {
      index: {},
    },
    {
      my_location: {
        lat: 52.373184,
        lon: 4.889187,
      },
      "@timestamp": "2023-01-02T09:00:00Z",
    },
    {
      index: {},
    },
    {
      my_location: {
        lat: 52.370159,
        lon: 4.885057,
      },
      "@timestamp": "2023-01-02T10:00:00Z",
    },
    {
      index: {},
    },
    {
      my_location: {
        lat: 52.369219,
        lon: 4.901618,
      },
      "@timestamp": "2023-01-02T13:00:00Z",
    },
    {
      index: {},
    },
    {
      my_location: {
        lat: 52.374081,
        lon: 4.91235,
      },
      "@timestamp": "2023-01-02T16:00:00Z",
    },
    {
      index: {},
    },
    {
      my_location: {
        lat: 52.371667,
        lon: 4.914722,
      },
      "@timestamp": "2023-01-03T12:00:00Z",
    },
  ],
});
console.log(response1);

const response2 = await client.search({
  index: "test",
  filter_path: "aggregations",
  aggs: {
    line: {
      geo_line: {
        point: {
          field: "my_location",
        },
        sort: {
          field: "@timestamp",
        },
      },
    },
  },
});
console.log(response2);
PUT test
{
    "mappings": {
        "properties": {
            "my_location": { "type": "geo_point" },
            "group":       { "type": "keyword" },
            "@timestamp":  { "type": "date" }
        }
    }
}

POST /test/_bulk?refresh
{"index":{}}
{"my_location": {"lat":52.373184, "lon":4.889187}, "@timestamp": "2023-01-02T09:00:00Z"}
{"index":{}}
{"my_location": {"lat":52.370159, "lon":4.885057}, "@timestamp": "2023-01-02T10:00:00Z"}
{"index":{}}
{"my_location": {"lat":52.369219, "lon":4.901618}, "@timestamp": "2023-01-02T13:00:00Z"}
{"index":{}}
{"my_location": {"lat":52.374081, "lon":4.912350}, "@timestamp": "2023-01-02T16:00:00Z"}
{"index":{}}
{"my_location": {"lat":52.371667, "lon":4.914722}, "@timestamp": "2023-01-03T12:00:00Z"}

POST /test/_search?filter_path=aggregations
{
  "aggs": {
    "line": {
      "geo_line": {
        "point": {"field": "my_location"},
        "sort":  {"field": "@timestamp"}
      }
    }
  }
}

Which returns:

{
  "aggregations": {
    "line": {
      "type": "Feature",
      "geometry": {
        "type": "LineString",
        "coordinates": [
            [ 4.889187, 52.373184 ],
            [ 4.885057, 52.370159 ],
            [ 4.901618, 52.369219 ],
            [ 4.912350, 52.374081 ],
            [ 4.914722, 52.371667 ]
        ]
      },
      "properties": {
        "complete": true
      }
    }
  }
}

The resulting GeoJSON Feature contains both a LineString geometry for the path generated by the aggregation, as well as a map of properties. The property complete informs of whether all documents matched were used to generate the geometry. The size option can be used to limit the number of documents included in the aggregation, leading to results with complete: false. Exactly which documents are dropped from results depends on whether the aggregation is based on time_series or not.

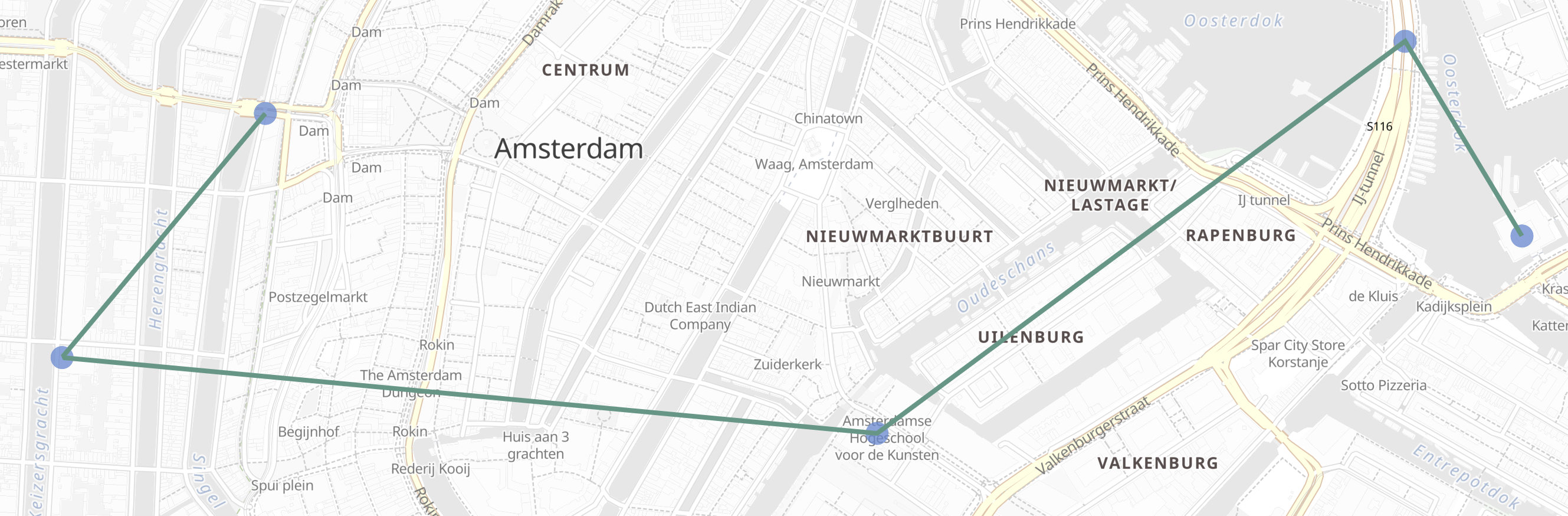

This result could be displayed in a map user interface:

Kibana map with museum tour of Amsterdam

Options

edit
point
(Required)

This option specifies the name of the geo_point field

Example usage configuring my_location as the point field:

"point": {
  "field": "my_location"
}
sort
(Required outside time_series aggregations)

This option specifies the name of the numeric field to use as the sort key for ordering the points. When the geo_line aggregation is nested inside a time_series aggregation, this field defaults to @timestamp, and any other value will result in error.

Example usage configuring @timestamp as the sort key:

"sort": {
  "field": "@timestamp"
}
include_sort
(Optional, boolean, default: false) This option includes, when true, an additional array of the sort values in the feature properties.
sort_order
(Optional, string, default: "ASC") This option accepts one of two values: "ASC", "DESC". The line is sorted in ascending order by the sort key when set to "ASC", and in descending with "DESC".
size
(Optional, integer, default: 10000) The maximum length of the line represented in the aggregation. Valid sizes are between one and 10000. Within time_series the aggregation uses line simplification to constrain the size, otherwise it uses truncation. Refer to Why group with time-series? for a discussion on the subtleties involved.

Grouping

edit

This simple example produces a single track for all the data selected by the query. However, it is far more common to need to group the data into multiple tracks. For example, grouping flight transponder measurements by flight call-sign before sorting each flight by timestamp and producing a separate track for each.

In the following examples we will group the locations of points of interest in the cities of Amsterdam, Antwerp and Paris. The tracks will be ordered by the planned visit sequence for a walking tour of the museums and others attractions.

In order to demonstrate the difference between a time-series grouping and a non-time-series grouping, we will first create an index with time-series enabled, and then give examples of grouping the same data without time-series and with time-series.

resp = client.indices.create(
    index="tour",
    mappings={
        "properties": {
            "city": {
                "type": "keyword",
                "time_series_dimension": True
            },
            "category": {
                "type": "keyword"
            },
            "route": {
                "type": "long"
            },
            "name": {
                "type": "keyword"
            },
            "location": {
                "type": "geo_point"
            },
            "@timestamp": {
                "type": "date"
            }
        }
    },
    settings={
        "index": {
            "mode": "time_series",
            "routing_path": [
                "city"
            ],
            "time_series": {
                "start_time": "2023-01-01T00:00:00Z",
                "end_time": "2024-01-01T00:00:00Z"
            }
        }
    },
)
print(resp)

resp1 = client.bulk(
    index="tour",
    refresh=True,
    operations=[
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-02T09:00:00Z",
            "route": 0,
            "location": "POINT(4.889187 52.373184)",
            "city": "Amsterdam",
            "category": "Attraction",
            "name": "Royal Palace Amsterdam"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-02T10:00:00Z",
            "route": 1,
            "location": "POINT(4.885057 52.370159)",
            "city": "Amsterdam",
            "category": "Attraction",
            "name": "The Amsterdam Dungeon"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-02T13:00:00Z",
            "route": 2,
            "location": "POINT(4.901618 52.369219)",
            "city": "Amsterdam",
            "category": "Museum",
            "name": "Museum Het Rembrandthuis"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-02T16:00:00Z",
            "route": 3,
            "location": "POINT(4.912350 52.374081)",
            "city": "Amsterdam",
            "category": "Museum",
            "name": "NEMO Science Museum"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-03T12:00:00Z",
            "route": 4,
            "location": "POINT(4.914722 52.371667)",
            "city": "Amsterdam",
            "category": "Museum",
            "name": "Nederlands Scheepvaartmuseum"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-04T09:00:00Z",
            "route": 5,
            "location": "POINT(4.401384 51.220292)",
            "city": "Antwerp",
            "category": "Attraction",
            "name": "Cathedral of Our Lady"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-04T12:00:00Z",
            "route": 6,
            "location": "POINT(4.405819 51.221758)",
            "city": "Antwerp",
            "category": "Museum",
            "name": "Snijders&Rockoxhuis"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-04T15:00:00Z",
            "route": 7,
            "location": "POINT(4.405200 51.222900)",
            "city": "Antwerp",
            "category": "Museum",
            "name": "Letterenhuis"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-05T10:00:00Z",
            "route": 8,
            "location": "POINT(2.336389 48.861111)",
            "city": "Paris",
            "category": "Museum",
            "name": "Musée du Louvre"
        },
        {
            "index": {}
        },
        {
            "@timestamp": "2023-01-05T14:00:00Z",
            "route": 9,
            "location": "POINT(2.327000 48.860000)",
            "city": "Paris",
            "category": "Museum",
            "name": "Musée dOrsay"
        }
    ],
)
print(resp1)
response = client.indices.create(
  index: 'tour',
  body: {
    mappings: {
      properties: {
        city: {
          type: 'keyword',
          time_series_dimension: true
        },
        category: {
          type: 'keyword'
        },
        route: {
          type: 'long'
        },
        name: {
          type: 'keyword'
        },
        location: {
          type: 'geo_point'
        },
        "@timestamp": {
          type: 'date'
        }
      }
    },
    settings: {
      index: {
        mode: 'time_series',
        routing_path: [
          'city'
        ],
        time_series: {
          start_time: '2023-01-01T00:00:00Z',
          end_time: '2024-01-01T00:00:00Z'
        }
      }
    }
  }
)
puts response

response = client.bulk(
  index: 'tour',
  refresh: true,
  body: [
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-02T09:00:00Z',
      route: 0,
      location: 'POINT(4.889187 52.373184)',
      city: 'Amsterdam',
      category: 'Attraction',
      name: 'Royal Palace Amsterdam'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-02T10:00:00Z',
      route: 1,
      location: 'POINT(4.885057 52.370159)',
      city: 'Amsterdam',
      category: 'Attraction',
      name: 'The Amsterdam Dungeon'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-02T13:00:00Z',
      route: 2,
      location: 'POINT(4.901618 52.369219)',
      city: 'Amsterdam',
      category: 'Museum',
      name: 'Museum Het Rembrandthuis'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-02T16:00:00Z',
      route: 3,
      location: 'POINT(4.912350 52.374081)',
      city: 'Amsterdam',
      category: 'Museum',
      name: 'NEMO Science Museum'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-03T12:00:00Z',
      route: 4,
      location: 'POINT(4.914722 52.371667)',
      city: 'Amsterdam',
      category: 'Museum',
      name: 'Nederlands Scheepvaartmuseum'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-04T09:00:00Z',
      route: 5,
      location: 'POINT(4.401384 51.220292)',
      city: 'Antwerp',
      category: 'Attraction',
      name: 'Cathedral of Our Lady'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-04T12:00:00Z',
      route: 6,
      location: 'POINT(4.405819 51.221758)',
      city: 'Antwerp',
      category: 'Museum',
      name: 'Snijders&Rockoxhuis'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-04T15:00:00Z',
      route: 7,
      location: 'POINT(4.405200 51.222900)',
      city: 'Antwerp',
      category: 'Museum',
      name: 'Letterenhuis'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-05T10:00:00Z',
      route: 8,
      location: 'POINT(2.336389 48.861111)',
      city: 'Paris',
      category: 'Museum',
      name: 'Musée du Louvre'
    },
    {
      index: {}
    },
    {
      "@timestamp": '2023-01-05T14:00:00Z',
      route: 9,
      location: 'POINT(2.327000 48.860000)',
      city: 'Paris',
      category: 'Museum',
      name: 'Musée dOrsay'
    }
  ]
)
puts response
const response = await client.indices.create({
  index: "tour",
  mappings: {
    properties: {
      city: {
        type: "keyword",
        time_series_dimension: true,
      },
      category: {
        type: "keyword",
      },
      route: {
        type: "long",
      },
      name: {
        type: "keyword",
      },
      location: {
        type: "geo_point",
      },
      "@timestamp": {
        type: "date",
      },
    },
  },
  settings: {
    index: {
      mode: "time_series",
      routing_path: ["city"],
      time_series: {
        start_time: "2023-01-01T00:00:00Z",
        end_time: "2024-01-01T00:00:00Z",
      },
    },
  },
});
console.log(response);

const response1 = await client.bulk({
  index: "tour",
  refresh: "true",
  operations: [
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-02T09:00:00Z",
      route: 0,
      location: "POINT(4.889187 52.373184)",
      city: "Amsterdam",
      category: "Attraction",
      name: "Royal Palace Amsterdam",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-02T10:00:00Z",
      route: 1,
      location: "POINT(4.885057 52.370159)",
      city: "Amsterdam",
      category: "Attraction",
      name: "The Amsterdam Dungeon",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-02T13:00:00Z",
      route: 2,
      location: "POINT(4.901618 52.369219)",
      city: "Amsterdam",
      category: "Museum",
      name: "Museum Het Rembrandthuis",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-02T16:00:00Z",
      route: 3,
      location: "POINT(4.912350 52.374081)",
      city: "Amsterdam",
      category: "Museum",
      name: "NEMO Science Museum",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-03T12:00:00Z",
      route: 4,
      location: "POINT(4.914722 52.371667)",
      city: "Amsterdam",
      category: "Museum",
      name: "Nederlands Scheepvaartmuseum",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-04T09:00:00Z",
      route: 5,
      location: "POINT(4.401384 51.220292)",
      city: "Antwerp",
      category: "Attraction",
      name: "Cathedral of Our Lady",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-04T12:00:00Z",
      route: 6,
      location: "POINT(4.405819 51.221758)",
      city: "Antwerp",
      category: "Museum",
      name: "Snijders&Rockoxhuis",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-04T15:00:00Z",
      route: 7,
      location: "POINT(4.405200 51.222900)",
      city: "Antwerp",
      category: "Museum",
      name: "Letterenhuis",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-05T10:00:00Z",
      route: 8,
      location: "POINT(2.336389 48.861111)",
      city: "Paris",
      category: "Museum",
      name: "Musée du Louvre",
    },
    {
      index: {},
    },
    {
      "@timestamp": "2023-01-05T14:00:00Z",
      route: 9,
      location: "POINT(2.327000 48.860000)",
      city: "Paris",
      category: "Museum",
      name: "Musée dOrsay",
    },
  ],
});
console.log(response1);
PUT tour
{
    "mappings": {
        "properties": {
            "city": {
                "type": "keyword",
                "time_series_dimension": true
            },
            "category":   { "type": "keyword" },
            "route":      { "type": "long" },
            "name":       { "type": "keyword" },
            "location":   { "type": "geo_point" },
            "@timestamp": { "type": "date" }
        }
    },
    "settings": {
        "index": {
            "mode": "time_series",
            "routing_path": [ "city" ],
            "time_series": {
                "start_time": "2023-01-01T00:00:00Z",
                "end_time": "2024-01-01T00:00:00Z"
            }
        }
    }
}

POST /tour/_bulk?refresh
{"index":{}}
{"@timestamp": "2023-01-02T09:00:00Z", "route": 0, "location": "POINT(4.889187 52.373184)", "city": "Amsterdam", "category": "Attraction", "name": "Royal Palace Amsterdam"}
{"index":{}}
{"@timestamp": "2023-01-02T10:00:00Z", "route": 1, "location": "POINT(4.885057 52.370159)", "city": "Amsterdam", "category": "Attraction", "name": "The Amsterdam Dungeon"}
{"index":{}}
{"@timestamp": "2023-01-02T13:00:00Z", "route": 2, "location": "POINT(4.901618 52.369219)", "city": "Amsterdam", "category": "Museum", "name": "Museum Het Rembrandthuis"}
{"index":{}}
{"@timestamp": "2023-01-02T16:00:00Z", "route": 3, "location": "POINT(4.912350 52.374081)", "city": "Amsterdam", "category": "Museum", "name": "NEMO Science Museum"}
{"index":{}}
{"@timestamp": "2023-01-03T12:00:00Z", "route": 4, "location": "POINT(4.914722 52.371667)", "city": "Amsterdam", "category": "Museum", "name": "Nederlands Scheepvaartmuseum"}
{"index":{}}
{"@timestamp": "2023-01-04T09:00:00Z", "route": 5, "location": "POINT(4.401384 51.220292)", "city": "Antwerp", "category": "Attraction", "name": "Cathedral of Our Lady"}
{"index":{}}
{"@timestamp": "2023-01-04T12:00:00Z", "route": 6, "location": "POINT(4.405819 51.221758)", "city": "Antwerp", "category": "Museum", "name": "Snijders&Rockoxhuis"}
{"index":{}}
{"@timestamp": "2023-01-04T15:00:00Z", "route": 7, "location": "POINT(4.405200 51.222900)", "city": "Antwerp", "category": "Museum", "name": "Letterenhuis"}
{"index":{}}
{"@timestamp": "2023-01-05T10:00:00Z", "route": 8, "location": "POINT(2.336389 48.861111)", "city": "Paris", "category": "Museum", "name": "Musée du Louvre"}
{"index":{}}
{"@timestamp": "2023-01-05T14:00:00Z", "route": 9, "location": "POINT(2.327000 48.860000)", "city": "Paris", "category": "Museum", "name": "Musée dOrsay"}

Grouping with terms

edit

Using this data, for a non-time-series use case, the grouping can be done using a terms aggregation based on city name. This would work whether or not we had defined the tour index as a time series index.

resp = client.search(
    index="tour",
    filter_path="aggregations",
    aggregations={
        "path": {
            "terms": {
                "field": "city"
            },
            "aggregations": {
                "museum_tour": {
                    "geo_line": {
                        "point": {
                            "field": "location"
                        },
                        "sort": {
                            "field": "@timestamp"
                        }
                    }
                }
            }
        }
    },
)
print(resp)
const response = await client.search({
  index: "tour",
  filter_path: "aggregations",
  aggregations: {
    path: {
      terms: {
        field: "city",
      },
      aggregations: {
        museum_tour: {
          geo_line: {
            point: {
              field: "location",
            },
            sort: {
              field: "@timestamp",
            },
          },
        },
      },
    },
  },
});
console.log(response);
POST /tour/_search?filter_path=aggregations
{
  "aggregations": {
    "path": {
      "terms": {"field": "city"},
      "aggregations": {
        "museum_tour": {
          "geo_line": {
            "point": {"field": "location"},
            "sort": {"field": "@timestamp"}
          }
        }
      }
    }
  }
}

Which returns:

{
  "aggregations": {
    "path": {
      "doc_count_error_upper_bound": 0,
      "sum_other_doc_count": 0,
      "buckets": [
        {
          "key": "Amsterdam",
          "doc_count": 5,
          "museum_tour": {
            "type": "Feature",
            "geometry": {
              "coordinates": [ [ 4.889187, 52.373184 ], [ 4.885057, 52.370159 ], [ 4.901618, 52.369219 ], [ 4.91235, 52.374081 ], [ 4.914722, 52.371667 ] ],
              "type": "LineString"
            },
            "properties": {
              "complete": true
            }
          }
        },
        {
          "key": "Antwerp",
          "doc_count": 3,
          "museum_tour": {
            "type": "Feature",
            "geometry": {
              "coordinates": [ [ 4.401384, 51.220292 ], [ 4.405819, 51.221758 ], [ 4.4052, 51.2229 ] ],
              "type": "LineString"
            },
            "properties": {
              "complete": true
            }
          }
        },
        {
          "key": "Paris",
          "doc_count": 2,
          "museum_tour": {
            "type": "Feature",
            "geometry": {
              "coordinates": [ [ 2.336389, 48.861111 ], [ 2.327, 48.86 ] ],
              "type": "LineString"
            },
            "properties": {
              "complete": true
            }
          }
        }
      ]
    }
  }
}

These results contain an array of buckets, where each bucket is a JSON object with the key showing the name of the city field, and an inner aggregation result called museum_tour containing a GeoJSON Feature describing the actual route between the various attractions in that city. Each result also includes a properties object with a complete value which will be false if the geometry was truncated to the limits specified in the size parameter. Note that when we use time_series in the next example, we will get the same results structured a little differently.

Grouping with time-series

edit

This functionality is in technical preview and may be changed or removed in a future release. Elastic will work to fix any issues, but features in technical preview are not subject to the support SLA of official GA features.

Using the same data as before, we can also perform the grouping with a time_series aggregation. This will group by TSID, which is defined as the combinations of all fields with time_series_dimension: true, in this case the same city field used in the previous terms aggregation. This example will only work if we defined the tour index as a time series index using index.mode="time_series".

resp = client.search(
    index="tour",
    filter_path="aggregations",
    aggregations={
        "path": {
            "time_series": {},
            "aggregations": {
                "museum_tour": {
                    "geo_line": {
                        "point": {
                            "field": "location"
                        }
                    }
                }
            }
        }
    },
)
print(resp)
const response = await client.search({
  index: "tour",
  filter_path: "aggregations",
  aggregations: {
    path: {
      time_series: {},
      aggregations: {
        museum_tour: {
          geo_line: {
            point: {
              field: "location",
            },
          },
        },
      },
    },
  },
});
console.log(response);
POST /tour/_search?filter_path=aggregations
{
  "aggregations": {
    "path": {
      "time_series": {},
      "aggregations": {
        "museum_tour": {
          "geo_line": {
            "point": {"field": "location"}
          }
        }
      }
    }
  }
}

The geo_line aggregation no longer requires the sort field when nested within a time_series aggregation. This is because the sort field is set to @timestamp, which all time-series indexes are pre-sorted by. If you do set this parameter, and set it to something other than @timestamp you will get an error.

This query will result in:

{
  "aggregations": {
    "path": {
      "buckets": {
        "{city=Paris}": {
          "key": {
            "city": "Paris"
          },
          "doc_count": 2,
          "museum_tour": {
            "type": "Feature",
            "geometry": {
              "coordinates": [ [ 2.336389, 48.861111 ], [ 2.327, 48.86 ] ],
              "type": "LineString"
            },
            "properties": {
              "complete": true
            }
          }
        },
        "{city=Antwerp}": {
          "key": {
            "city": "Antwerp"
          },
          "doc_count": 3,
          "museum_tour": {
            "type": "Feature",
            "geometry": {
              "coordinates": [ [ 4.401384, 51.220292 ], [ 4.405819, 51.221758 ], [ 4.4052, 51.2229 ] ],
              "type": "LineString"
            },
            "properties": {
              "complete": true
            }
          }
        },
        "{city=Amsterdam}": {
          "key": {
            "city": "Amsterdam"
          },
          "doc_count": 5,
          "museum_tour": {
            "type": "Feature",
            "geometry": {
              "coordinates": [ [ 4.889187, 52.373184 ], [ 4.885057, 52.370159 ], [ 4.901618, 52.369219 ], [ 4.91235, 52.374081 ], [ 4.914722, 52.371667 ] ],
              "type": "LineString"
            },
            "properties": {
              "complete": true
            }
          }
        }
      }
    }
  }
}

These results are essentially the same as with the previous terms aggregation example, but structured differently. Here we see the buckets returned as a map, where the key is an internal description of the TSID. This TSID is unique for each unique combination of fields with time_series_dimension: true. Each bucket contains a key field which is also a map of all dimension values for the TSID, in this case only the city name is used for grouping. In addition, there is an inner aggregation result called museum_tour containing a GeoJSON Feature describing the actual route between the various attractions in that city. Each result also includes a properties object with a complete value which will be false if the geometry was simplified to the limits specified in the size parameter.

Why group with time-series?

edit

When reviewing these examples, you might think that there is little difference between using terms or time_series to group the geo-lines. However, there are some important differences in behaviour between the two cases. Time series indexes are stored in a very specific order on disk. They are pre-grouped by the time-series dimension fields, and pre-sorted by the @timestamp field. This allows the geo_line aggregation to be considerably optimized:

  • The same memory allocated for the first bucket can be re-used over and over for all subsequent buckets. This is substantially less memory than required for non-time-series cases where all buckets are collected concurrently.
  • No sorting needs to be done, since the data is pre-sorted by @timestamp. The time-series data will naturally arrive at the aggregation collector in DESC order. This means that if we specify sort_order:ASC (the default), we still collect in DESC order, but perform an efficient in-memory reverse order before generating the final LineString geometry.
  • The size parameter can be used for a streaming line-simplification algorithm. Without time-series, we are forced to truncate data, by default after 10000 documents per bucket, in order to prevent memory usage from being unbounded. This can result in geo-lines being truncated, and therefor loosing important data. With time-series we can run a streaming line-simplification algorithm, retaining control over memory usage, while also maintaining the overall geometry shape. In fact, for most use cases it would work to set this size parameter to a much lower bound, and save even more memory. For example, if the geo_line is to be drawn on a display map with a specific resolution, it might look just as good to simplify to as few as 100 or 200 points. This will save memory on the server, on the network and in the client.

Note: There are other significant advantages to working with time-series data and using time_series index mode. These are discussed in the documentation on time series data streams.

Streaming line simplification

edit

Line simplification is a great way to reduce the size of the final results sent to the client, and displayed in a map user interface. However, normally these algorithms use a lot of memory to perform the simplification, requiring the entire geometry to be maintained in memory together with supporting data for the simplification itself. The use of a streaming line simplification algorithm allows for minimal memory usage during the simplification process by constraining memory to the bounds defined for the simplified geometry. This is only possible if no sorting is required, which is the case when grouping is done by the time_series aggregation, running on an index with the time_series index mode.

Under these conditions the geo_line aggregation allocates memory to the size specified, and then fills that memory with the incoming documents. Once the memory is completely filled, documents from within the line are removed as new documents are added. The choice of document to remove is made to minimize the visual impact on the geometry. This process makes use of the Visvalingam–Whyatt algorithm. Essentially this means points are removed if they have the minimum triangle area, with the triangle defined by the point under consideration and the two points before and after it in the line. In addition, we calculate the area using spherical coordinates so that no planar distortions affect the choice.

In order to demonstrate how much better line simplification is to line truncation, consider this example of the north shore of Kodiak Island. The data for this is only 209 points, but if we want to set size to 100 we get dramatic truncation.

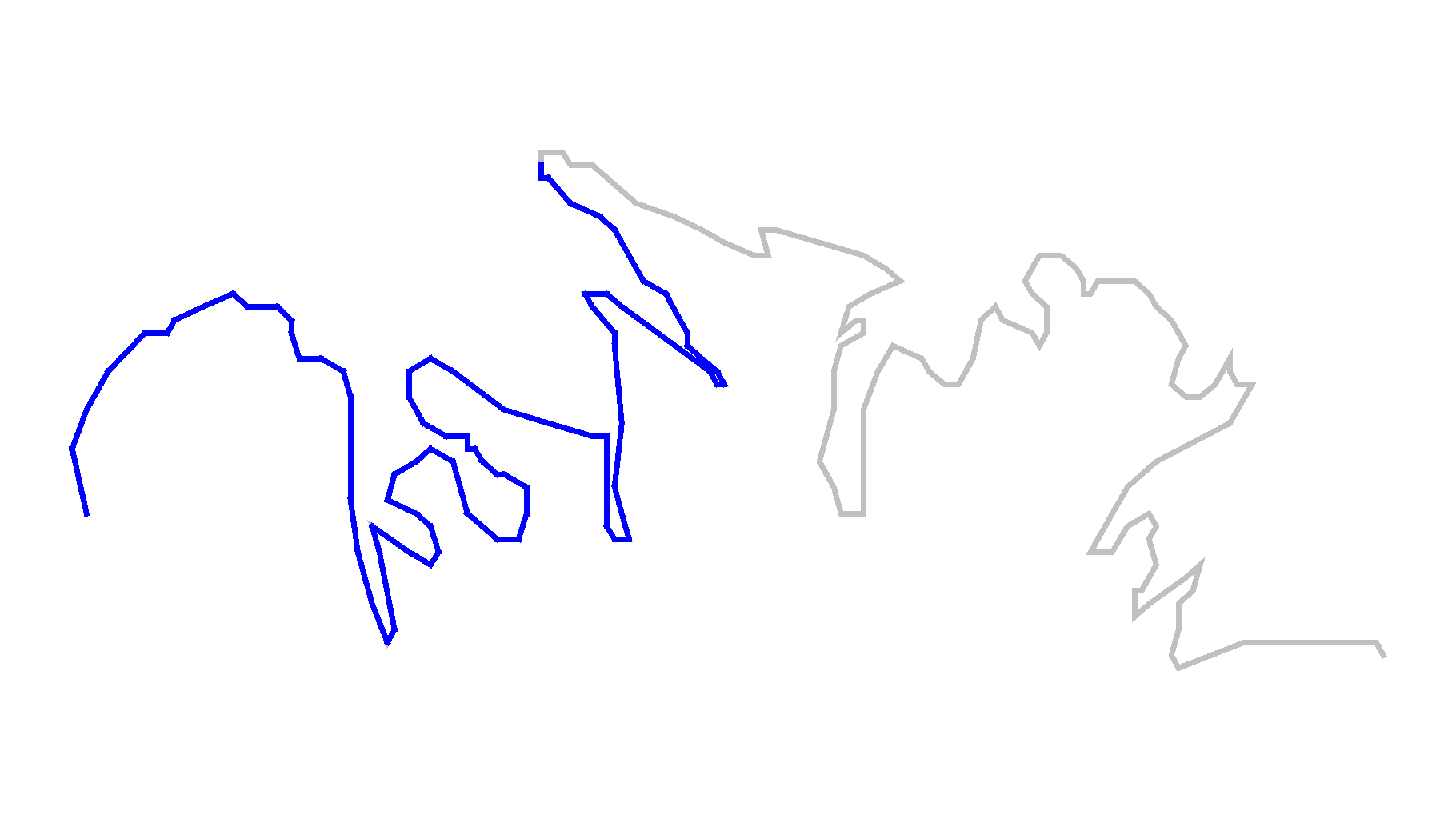

North short of Kodiak Island truncated to 100 points

The grey line is the entire geometry of 209 points, while the blue line is the first 100 points, a very different geometry than the original.

Now consider the same geometry simplified to 100 points.

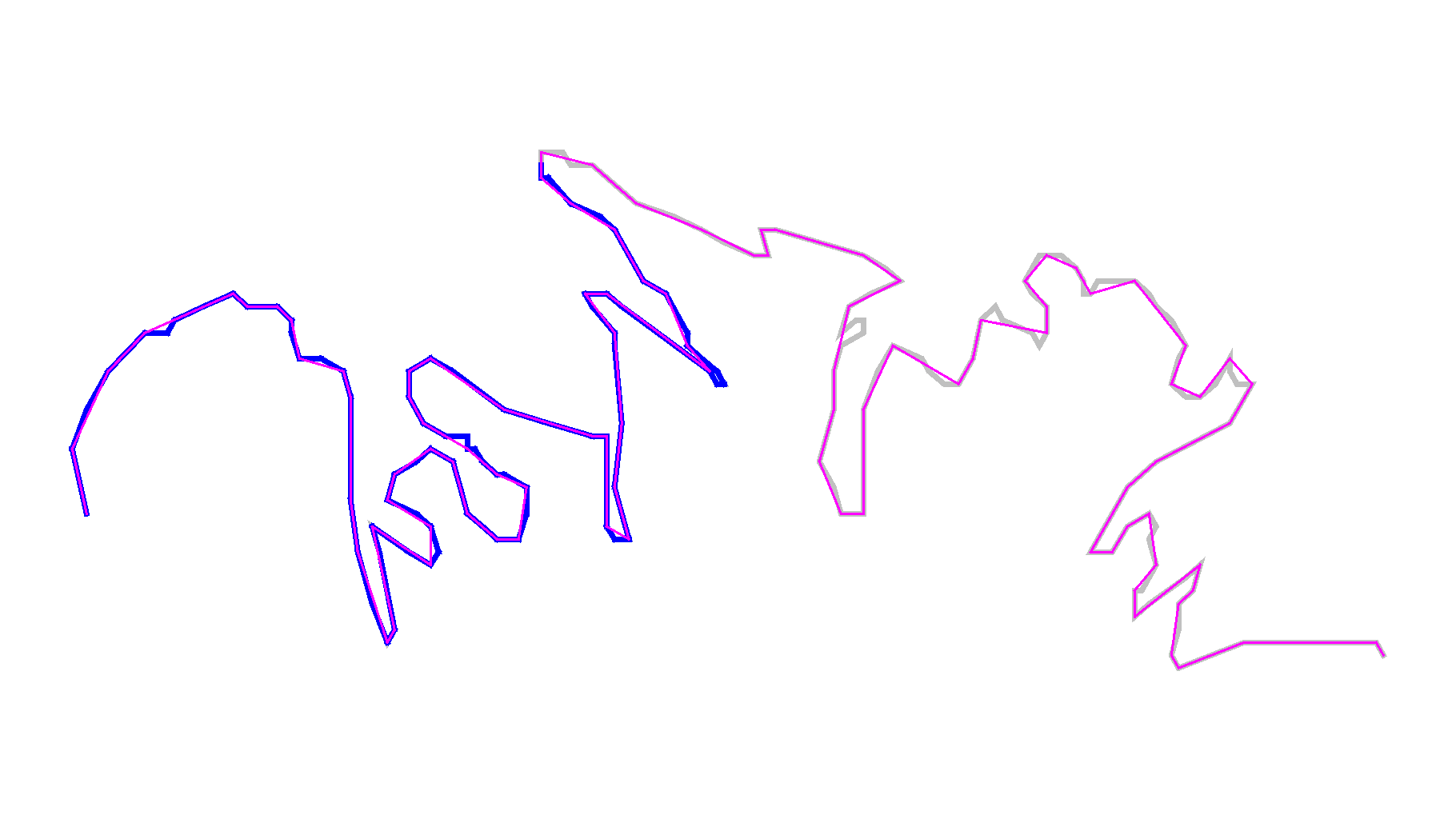

North short of Kodiak Island simplified to 100 points

For comparison we have shown the original in grey, the truncated in blue and the new simplified geometry in magenta. It is possible to see where the new simplified line deviates from the original, but the overall geometry appears almost identical and is still clearly recognizable as the north shore of Kodiak Island.

« Geo-centroid aggregation Cartesian-bounds aggregation »
