Set up Enterprise Search with OpenID Connect single sign-on (SSO)

edit

Set up Enterprise Search with OpenID Connect single sign-on (SSO)

edit

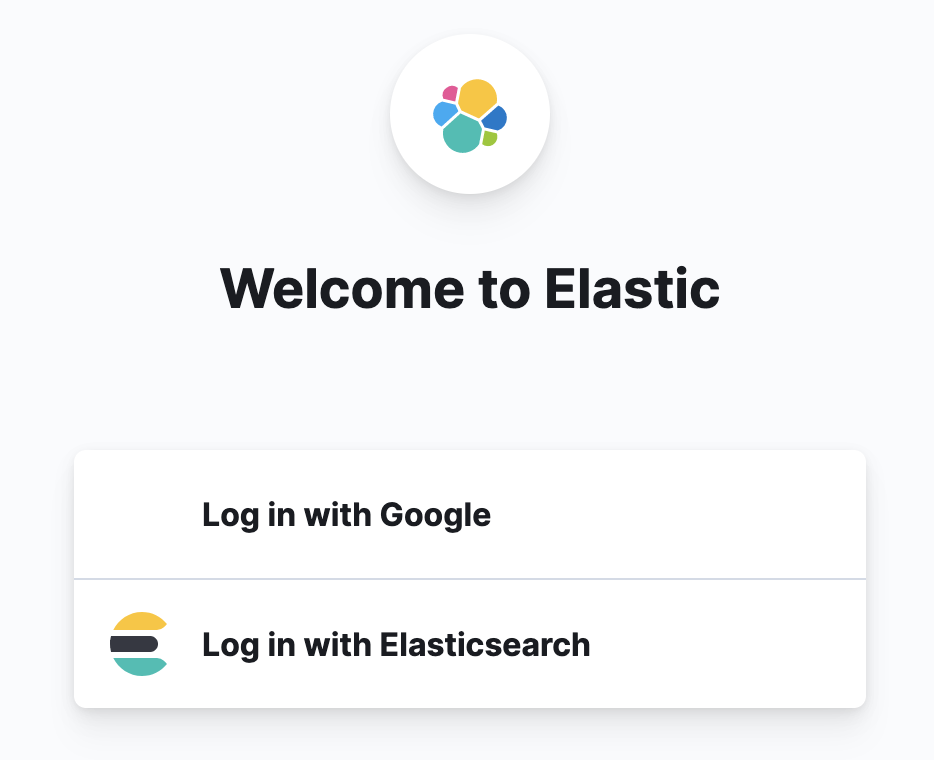

Enterprise Search with Google login

OpenID Connect for Enterprise Search is a platinum feature. In addition, OpenID Connect is only supported in Enterprise Search in Kibana.

The following documentation describes the process of configuring Elasticsearch and Kibana:

Within your Enterprise Search configuration settings, make sure that:

  • kibana.host is set
  • kibana.external_url is set
  • any auth.source configurations are removed.

Configure Enterprise Search role mappings for OpenID Connect users

edit

When you configured Elasticsearch and Kibana for OpenID Connect using the documentation links above, one of the steps advised you to create a role mapping to be able to access Kibana. As a very simple and permissive example, you can give all users in oidc1 realm superuser role, and that will also give them full access to App Search and Workplace Search:

PUT /_security/role_mapping/oidc1_mapping
{
  "roles": [ "superuser" ],
  "enabled": true,
  "rules": {
    "all": [
      {"field": { "realm.name": "oidc1"}}}
    ]
  }
}

However, this might be too permissive. In the following example, users who successfully log in to the oidc1 realm get full access to Kibana, but no access to Enterprise Search:

PUT /_security/role_mapping/oidc1_mapping
{
  "roles": [ "kibana_admin" ],
  "enabled": true,
  "rules": {
    "all": [
      {"field": { "realm.name": "oidc1"}}}
    ]
  }
}

In this case, oidc1 users can be managed via Enterprise Search mappings. Before any mappings can be created, it is necessary to enable role-based access (RBAC) mode in either App Search or Workplace Search. After that, users can be mapped in Users and Roles:

Create a role mapping

Mapping can use common Elasticsearch user attributes, such as username and email, but also anything provided in metadata that is returned by an OIDC provider. The data returned by an OIDC provider depends on what scopes were requested. For example, when openid and email scopes are requested, the Google OpenID Connect provider returns the following metadata:

{
    "oidc(hd)": "example.com",
    "oidc(id_token_hint)": "abcdef",
    "oidc(iss)": "https://accounts.google.com",
    "oidc(email)": "john.smith@example.com",
    "oidc(email_verified)": true,
    "oidc(sub)": "123456789",
    "oidc(azp)": "app-id-here.apps.googleusercontent.com",
    "oidc(at_hash)": "xyz",
    "oidc(picture)": "https://lh3.googleusercontent.com/some-picture",
    "oidc(nonce)": "xxx",
    "oidc(aud)": [
      "app-id-here.apps.googleusercontent.com"
    ]
  }

This metadata can be extracted and assigned to Elasticsearch user’s properties. For example, this snippet in elasticsearch.yml:

xpack:
  security:
    authc:
      realms:
        oidc:
          oidc1:
            order: 2
              claims.principal: email
              claim_patterns.principal: "^([^@]+)@example\\.com$"
              claims.mail: email
              # more settings...
  • extracts email and assigns part of it to the Elasticsearch user’s username (principal) using a pattern
  • also assigns email as-is to the Elasticsearch user’s email. Then, these username and email properties, as well as the Elasticsearch user’s role and metadata, can be used to create a mapping specific to App Search or Workplace search.

Note that the snippet above is only a partial example of settings. For a full set of settings related to OpenID Connect, see the Elasticsearch documentation.
