Crawl a private network using a web crawler on Elastic Cloud

edit

Crawl a private network using a web crawler on Elastic Cloud

edit

The Elastic web crawler can crawl content on a private network if the content is accessible through an HTTP proxy.

This document explains how to configure the web crawler to crawl a private network by walking through a detailed example.

The web crawler is hosted on Elastic Cloud, but has access to protected resources in private networks and other non-public environments.

Infrastructure overview

edit

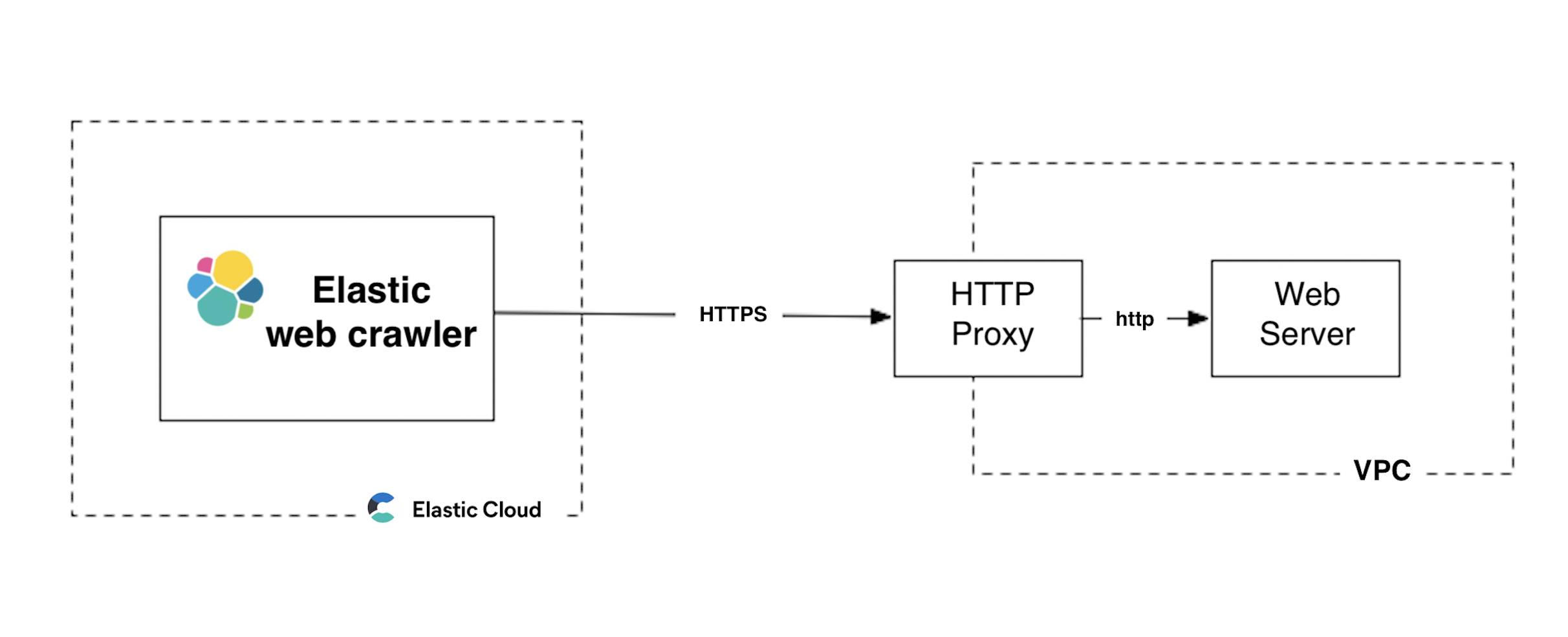

To demonstrate the authenticated proxy server functionality for the web crawler, we will use the infrastructure outlined in this schematic diagram:

crawler proxy schematic

This example includes all the components needed to understand the use case:

  • A VPC (virtual private network) deployed within Google Cloud

  • The VPC contains two cloud instances: web-server and proxy:

    • The web-server hosts a private website, that is only accessible from within the VPC, using a private domain name: http://marlin-docs.internal.
    • The proxy server has basic HTTP authentication set up with the username proxyuser and password proxypass. It is accessible from the public internet using the host name proxy.example.com and the port number 3128.

  • An Enterprise Search deployment running outside of the VPC, in Elastic Cloud.

    • This deployment has no access to the private network hosting our content.

The web crawler supports both HTTP and HTTPS. However, we recommend configuring TLS to protect your content and proxy server credentials.

Refer to your proxy server software documentation for more details on how to set this up.

Testing proxy connections

edit

Before changing your Enterprise Search deployment configuration to use the HTTP proxy described above, first make sure the proxy works and allows access to the private website.

You can configure your web browser to use the proxy and then try to access the private website. Alternatively, use the following command to fetch the home page from the site using a given proxy:

curl --head --proxy https://proxyuser:proxypass@proxy.example.com http://marlin-docs.internal

This request makes a HEAD request to the website, using the proxy. The response should be an HTTP 200 with a set of additional headers. Here is an example response:

HTTP/1.1 200 OK
Content-Type: text/html
Content-Length: 42337
Accept-Ranges: bytes
Server: nginx/1.14.2
Date: Tue, 30 Nov 2021 19:19:14 GMT
Last-Modified: Tue, 30 Nov 2021 17:57:39 GMT
ETag: "61a66613-a561"
Age: 4
X-Cache: HIT from test-proxy
X-Cache-Lookup: HIT from test-proxy:3128
Via: 1.1 test-proxy (squid/4.6)
Connection: keep-alive

We have confirmed that our proxy credentials and connection parameters are correct, and can now change the Enterprise Search configuration.

Configuring Enterprise Search

edit

To prepare our Enterprise Search deployment to use the HTTP proxy for all web crawler operations, we need to add the following user settings:

connector.crawler.http.proxy.host: proxy.example.com
connector.crawler.http.proxy.port: 3128
connector.crawler.http.proxy.protocol: https
connector.crawler.http.proxy.username: proxyuser
connector.crawler.http.proxy.password: proxypass

When this configuration is added, the deployment will perform a graceful restart. You can find detailed instructions on how to work with custom configurations in our official Elastic Cloud documentation.

HTTP proxy with basic authentication requires an appropriate Elastic subscription level. Refer to the Elastic subscriptions pages for Elastic Cloud and self-managed deployments.

Testing the solution

edit

With the configuration complete, we can now test the solution.

  1. Go to Search in Kibana.
  2. Create an Elasticsearch index.
  3. Choose the Use the Web Crawler ingestion method.
  4. Add your domain URL to be validated by the crawler.

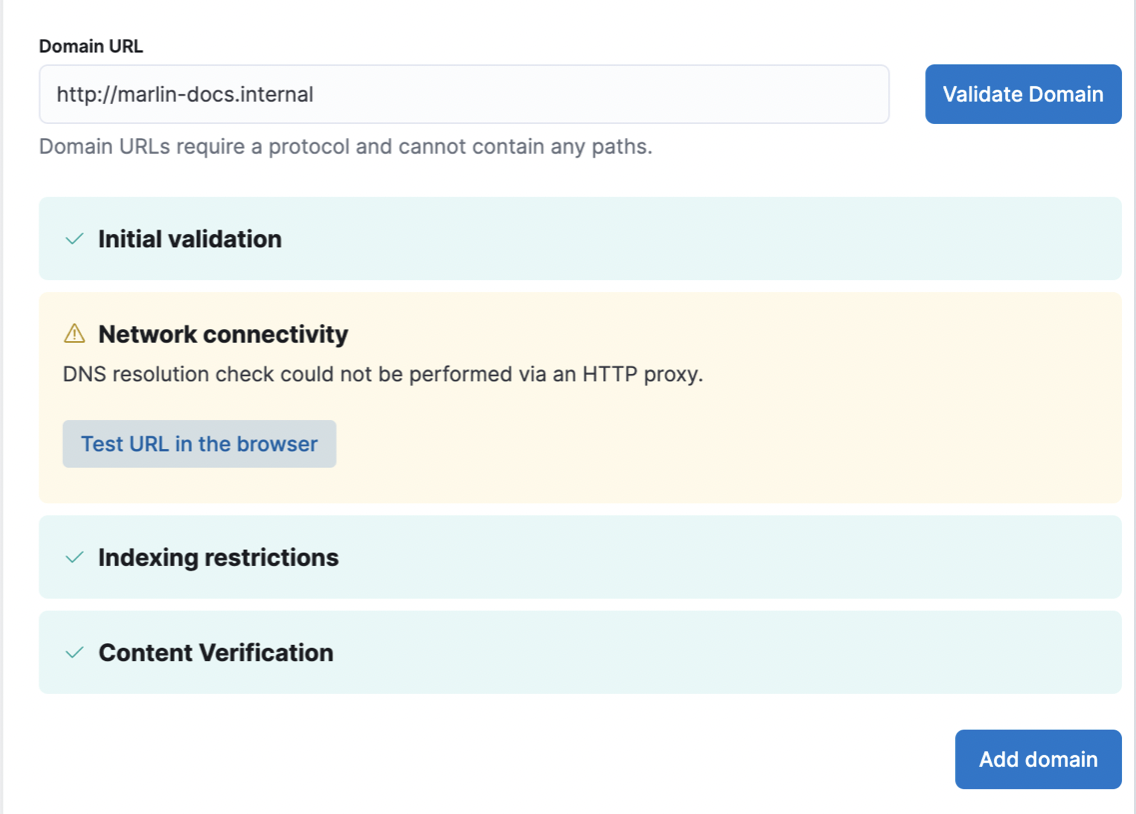

The validation process will look like the one in this image:

crawler proxy validation

The validation process for adding a domain to the web crawler configuration will skip a number of networking-related checks, since these do not work through a proxy. If you do not see the warning like in the above image, check your deployment configuration to ensure you have configured the proxy correctly.

Our private domain is now added to the configuration. We can start the crawl, and the content should be ingested into the deployment. If there are failures, check your crawler logs and proxy server’s logs for clues about what might be going wrong.

If you are using a Squid proxy server, the logs should look like this:

1638298043.202      1 99.250.74.78 TCP_MISS/200 65694 GET http://marlin-docs.internal/docs/gcode/M951.html proxyuser HIER_DIRECT/10.188.0.2 text/html
1638298045.286      1 99.250.74.78 TCP_MISS/200 64730 GET http://marlin-docs.internal/docs/gcode/M997.html proxyuser HIER_DIRECT/10.188.0.2 text/html
1638298045.373      1 99.250.74.78 TCP_MISS/200 63609 GET http://marlin-docs.internal/docs/gcode/M999.html proxyuser HIER_DIRECT/10.188.0.2 text/html
