Search across Elasticsearch indices, App Search engines, and Workplace Search content sources

edit

Search across Elasticsearch indices, App Search engines, and Workplace Search content sources

edit

Learn how to search content stored in different Elastic data stores at once: Elasticsearch indices, App Search engines, and Workplace Search content sources.

An alternative approach that uses Search Applications instead of meta engines is available as an appendix to this document. Refer to Unified search using Search Applications.

Engines, content sources, and indices

edit

All Enterprise Search tools store data in Elasticsearch indices. App Search and Workplace Search each have their own user-friendly abstractions over the underlying Elasticsearch indices: Content Sources and Engines. Refer to Product compatibility for more details.

Newer Enterprise Search tools, like the web crawler, store data directly in Elasticsearch indices. Users can manage these indices in the Content UI.

No matter which tool you used to index and manage your content, you can now search all these data stores at once. Users send one query, and get back one set of relevance-tuned results.

How it works

edit
  • Access the underlying Elasticsearch index for any given ingestion method.
  • Create an App Search engine based on this index.
  • Create a meta engine to combine these engines in one place.
  • Use Elastic Search UI to create a unified search experience over the meta engine.

The user of your search experience is unaware that the data comes from disparate sources, using different tools and abstractions. A unified search experience allows them to query all this data simultaneously.

Example
edit

For example, your team might:

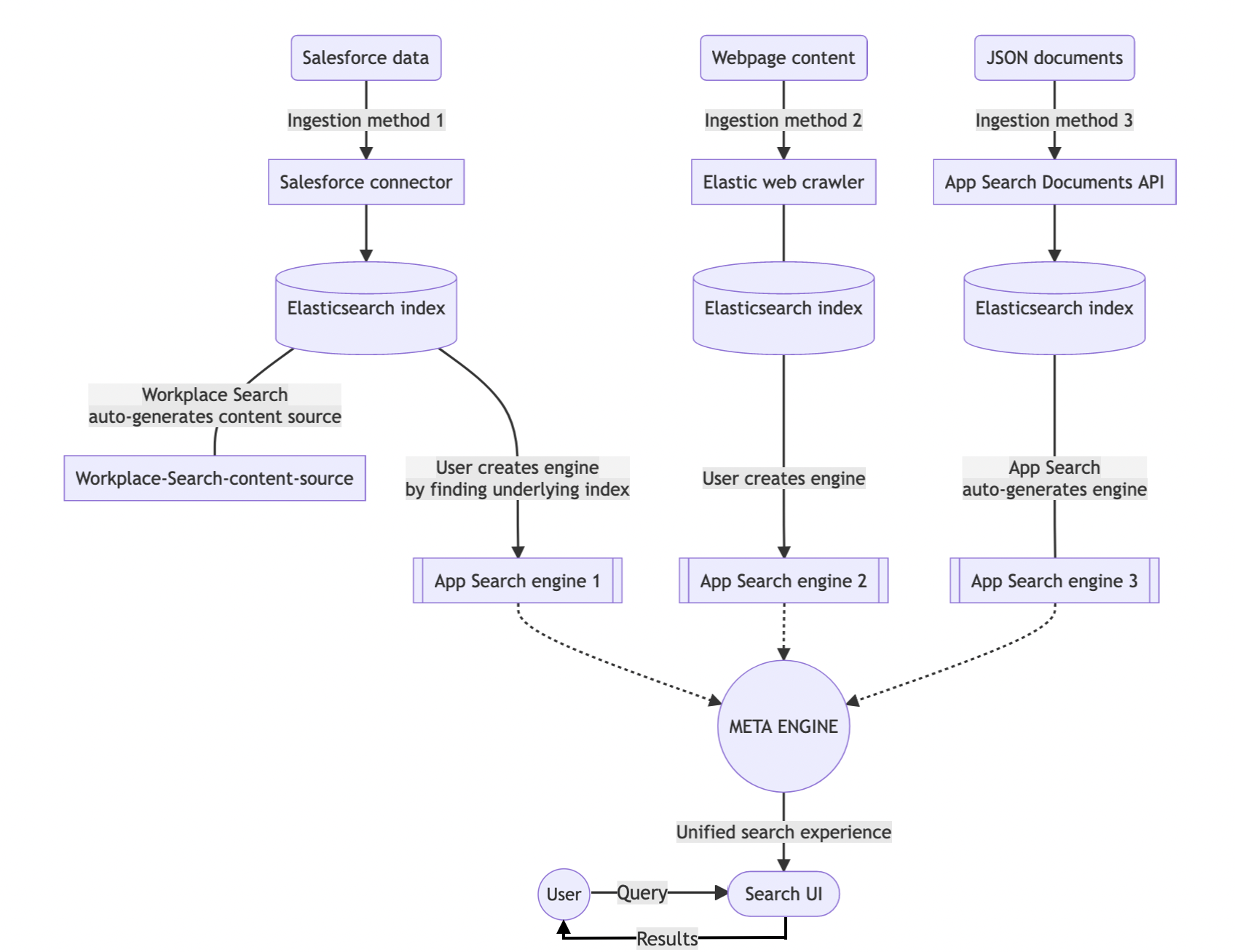

The following diagram shows how these 3 different data sources are ingested and combined into a single search experience. Follow the arrows from the original data source, through the ingestion method, to the underlying Elasticsearch index. From there the user creates App Search engines, and finally a meta engine, to be searched in a single UI.

combine engines indices content sources

In this diagram:

  • Arrowed lines represent steps that require actions by the user.
  • Solid lines without arrows represent automatic steps, requiring no user action.
  • Dashed lines represent the fact that a meta engine contains no documents of its own. A meta engine combines multiple engines, to be searched together as a single engine.

Follow the steps below to learn how to do this.

Step 1: Find the underlying index

edit

Elasticsearch indices are easy to find in the Search content UI. Go to Search > Content > Elasticsearch indices. For indices created using a Search ingestion method, these search- prefixed indices are immediately visible under Available indices.

The underlying indices for Workplace Search content sources are hidden indices. To find these indices see Access content source index.

Step 2: Create an App Search engine

edit

Once you’ve accessed the underlying indices, it’s time to create App Search engines. It only takes a few steps, and the App Search UI guides you through the process.

Jump straight to this screen in Search > App Search > Engines > Create an engine.

Learn how to:

Remember, App Search automatically creates engines for data ingested using App Search tools.

Step 3: Create an App Search meta engine

edit

You now have several App Search engines. Jump to Search > App Search > Engines to create a meta engine in the App Search UI.

See the App Search documentation to learn more about creating meta engines in the Kibana UI.

You can also manage meta engines by API.

Step 4: Create a unified search experience with Search UI

edit

Search UI is a React library maintained by Elastic that allows you to quickly implement search experiences.

You can use App Search’s built-in Search UI page to bootstrap a UI for your meta engine in a few clicks.

You can also see a live preview of your search experience within App Search. If you’d like to customize this UI, but don’t want to build it from scratch, you can download the generated source code. This can be the blueprint for your development. Or, you can use the Search UI library to build a custom UI.

Option 1: Use App Search’s autogenerated Search UI
edit

To get started with the built-in Search UI:

  1. Go to Search > App Search > Engines > your-meta-engine.
  2. Select the Search UI tab.
  3. Follow the instructions to set the fields you want to search over, and the facets you want to display.
  4. Select Generate search experience. This will open a complete search UI based on your indexed documents.
  5. Test out a few queries to see how it works, and start tweaking.

Read the next section if you want to download the source code and run your search UI locally. If you’d prefer to build your Search UI from scratch, jump to Option 2.

Download the source code and run your search UI locally
edit

You’ll need to have node.js and npm installed for this step.

Follow these steps to download and run the search UI locally:

  1. On the generated search experience page, select Download.
  2. Save and then open up the package. The src/config/engine.json file contains all of the preset configuration settings, and setting options are listed in the README file.
  3. Open a terminal window and cd into the package directory.
  4. Run npm install to set everything up.
  5. Run npm start to launch the application.

If you run into any problems, refer to the Search UI or App Search Troubleshooting documentation.

Once you’re comfortable running your search UI locally, you can think about deploying to production environments.

Option 2: Use the Search UI library to build from scratch
edit

Use the search-ui-app-search-connector to create a search UI for your App Search meta engine.

For guidance, follow the tutorial in the Search UI documentation.

Next steps

edit

Unified search using Search Applications

edit

Released in Elastic 8.8.0, search applications are another way to build search experiences using the Elastic platform. A search application is built on top of one or more Elasticsearch indices.

We can replace App Search meta engines in our unified search workflow with a search application. This is a more streamlined approach to building a unified search experience.

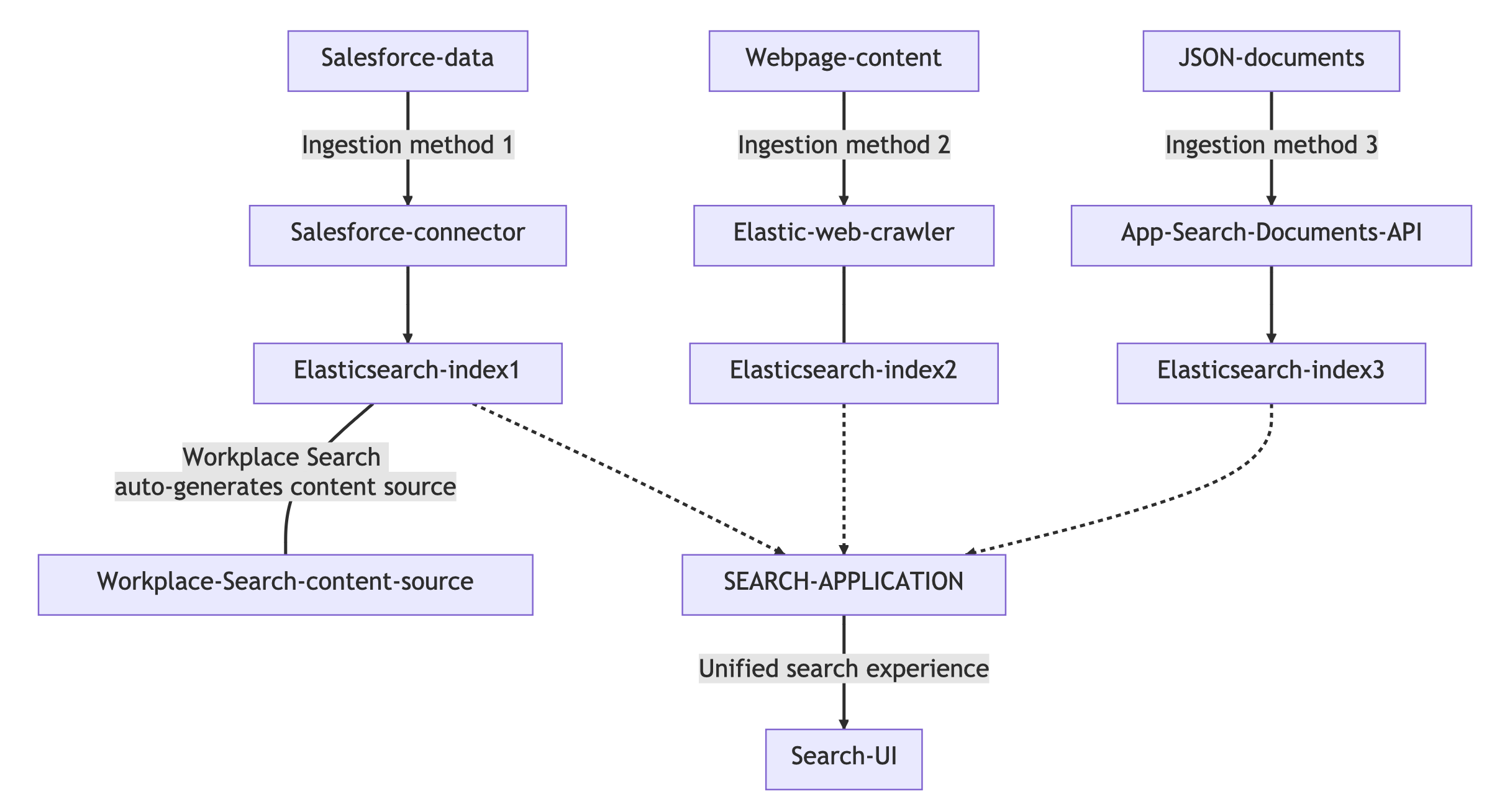

The following diagram shows a schematic overview of this workflow:

search applications unified search

Use the Search UI Elasticsearch connector to build your UI on top of your search application.

You can manage your search applications in the Kibana UI, and also preview search results. Refer to the Search Applications documentation for more details.

You can also use Elasticsearch APIs to manage your search applications.

Use PUT _application/search_application/<name> to add hidden indices (indices created by App Search engines and Workplace Search content sources) to your search application.

Example: API request that includes adding an App Search engine’s hidden index (.ent-search-engine-documents-app-search-my-engine) to a search application:

PUT _application/search_application/my-app
{
  "indices": [ "search-my-index", "search-my-other-index", ".ent-search-engine-documents-app-search-my-engine"]}
