Using a custom ingest pipeline with the Kubernetes Integration

edit

This tutorial explains how to add a custom ingest pipeline to a Kubernetes Integration in order to add specific metadata fields for deployments and cronjobs of pods.

Custom pipelines can be used to add custom data processing, like adding fields, obfuscating sensitive information, and more. Find more information in our tutorial about transforming data with custom ingest pipelines.

Metadata enrichment for Kubernetes

edit

The Kubernetes Integration is used to collect logs and metrics from Kubernetes clusters with Elastic Agent. During the collection, the integration enhances the collected information with extra useful information that users can correlate with different Kubernetes assets. This additional information added on top of collected data, such as labels, annotations, ancestor names of Kubernetes assets, and others, are called metadata.

The Kubernetes Provider offers the add_resource_metadata option to configure the metadata enrichment options.

For Elastic Agent versions >[8.10.4], the default configuration for metadata enrichment is add_resource_metadata.deployment=false and add_resource_metadata.cronjob=false. This means that pods that are created from replicasets that belong to specific deployments would not be enriched with kubernetes.deployment.name. Additionally, pods that are created from jobs that belong to specific cronjobs, would not be enriched with kubernetes.cronjob.name.

Kubernetes Integration Policy > Collect Kubernetes metrics from Kube-state-metrics > Kubernetes Pod Metrics

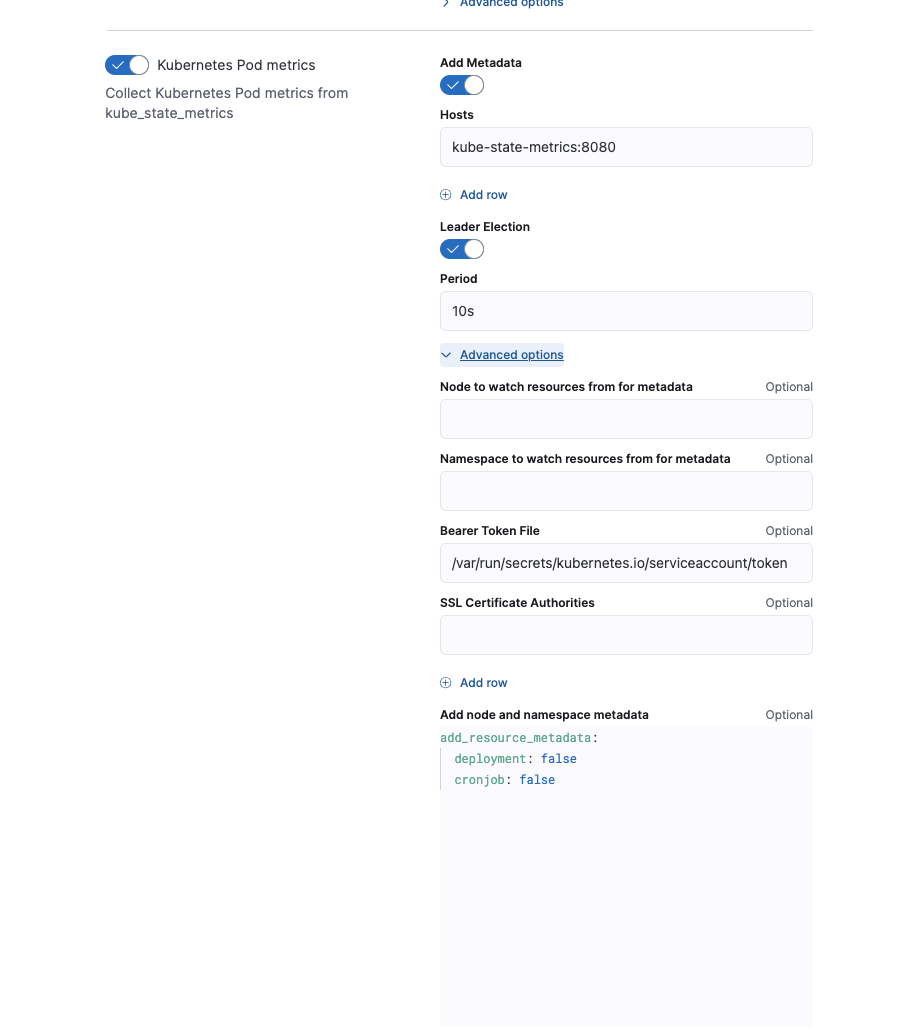

Configure add_resource_metadata

Example: Enabling the enrichment through add_resource_metadata in a Managed Elastic Agent Policy

Note: Enabling deployment and cronjob metadata enrichment leads to an increase of Elastic Agent’s memory consumption. Elastic Agent uses a local cache in order to keep records of the Kubernetes assets from being discovered.

Add deployment and cronjob for Kubernetes pods through ingest pipelines

edit

As an alternative to keeping the feature enabled and using more memory resources for Elastic Agent, users can make use of ingest pipelines to add the missing fields of kubernetes.deployment.name and kubernetes.cronjob.name.

Following the transforming data with custom ingest pipelines tutorial, navigate to state_pod datastream under: Kubernetes Integration Policy > Collect Kubernetes metrics from Kube-state-metrics > Kubernetes Pod Metrics.

Create the following custom ingest pipeline with two processors:

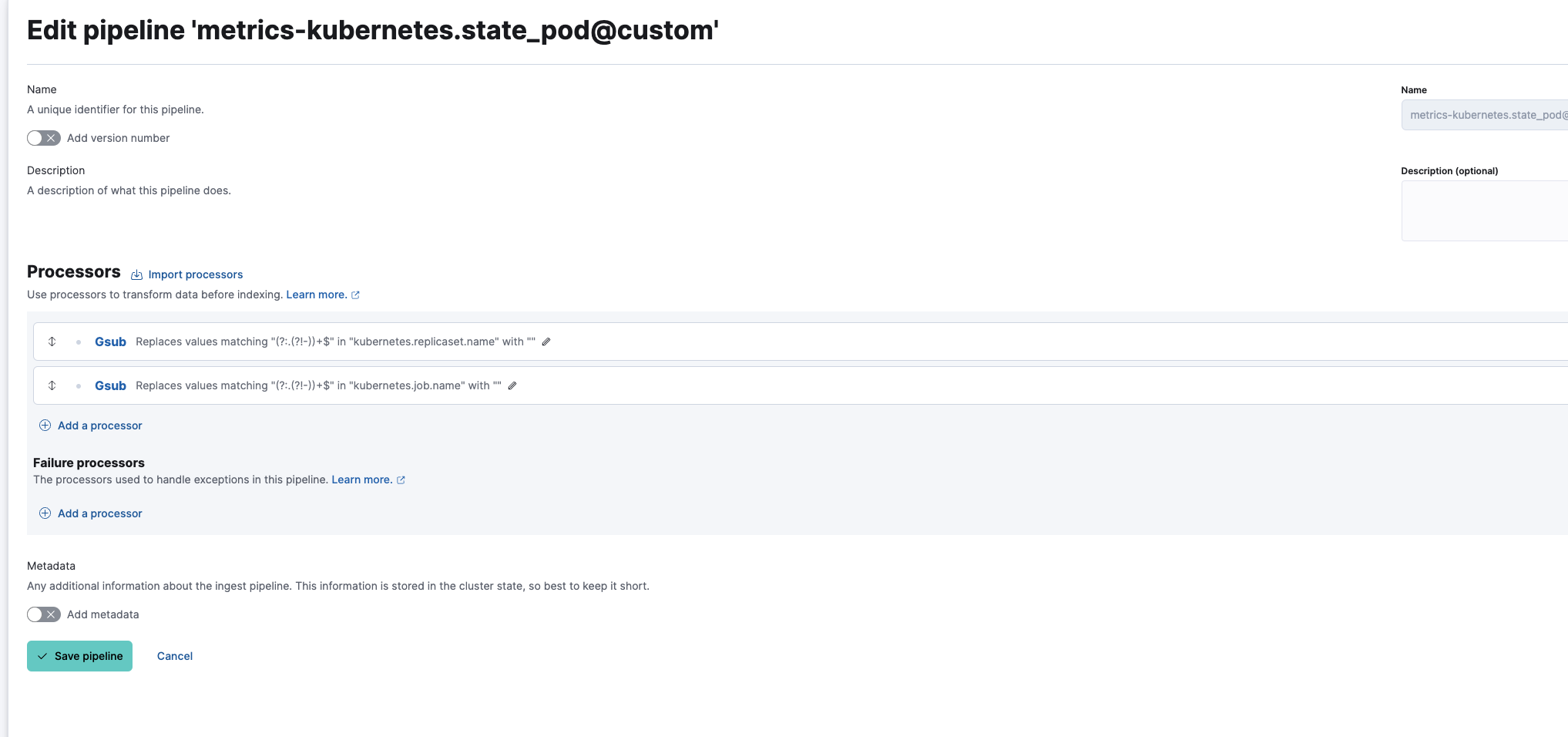

Custom ingest pipeline
Processor for deployment
edit
Gsub Processor for deployment
Processor for cronjob
edit

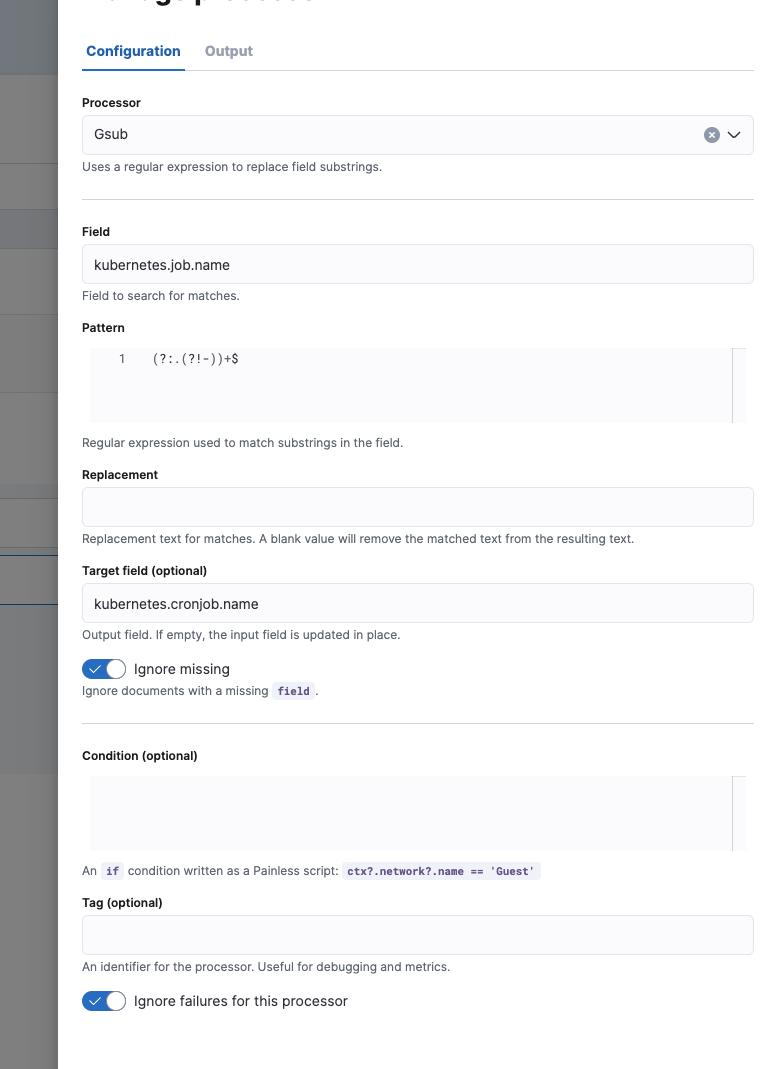

Gsub Processor for cronjob

The final metrics-kubernetes.state_pod@custom ingest pipeline:

[
  {
    "gsub": {
      "field": "kubernetes.replicaset.name",
      "pattern": "(?:.(?!-))+$",
      "replacement": "",
      "target_field": "kubernetes.deployment.name",
      "ignore_missing": true,
      "ignore_failure": true
    }
  },
  {
    "gsub": {
      "field": "kubernetes.job.name",
      "pattern": "(?:.(?!-))+$",
      "replacement": "",
      "target_field": "kubernetes.cronjob.name",
      "ignore_missing": true,
      "ignore_failure": true
    }
  }
]

Note: The ingest pipeline does not check for the actual existence of a deployment and cronjob ancestor, it only adds the specific values.
