Scaling Elastic Agent on Kubernetes

For more information on how to deploy Elastic Agent on Kubernetes, please review these pages:

This document summarizes some key factors and best practices for using Elastic Observability to monitor Kubernetes infrastructure at scale. Users need to consider different parameters and adjust Elastic Stack accordingly. These elements are affected as the size of Kubernetes cluster increases:

The document is divided in two main sections:

The Kubernetes Observability is based on Elastic Kubernetes integration, which collects metrics from several components:

Controller manager and Scheduler datastreams are being enabled only on the specific node that actually runs based on autodiscovery rules

The default manifest provided deploys Elastic Agent as DaemonSet which results in an Elastic Agent being deployed on every node of the Kubernetes cluster.

Additionally, by default one agent is elected as leader (for more information visit Kubernetes LeaderElection Provider). The Elastic Agent Pod which holds the leadership lock is responsible for collecting the cluster-wide metrics in addition to its node’s metrics.

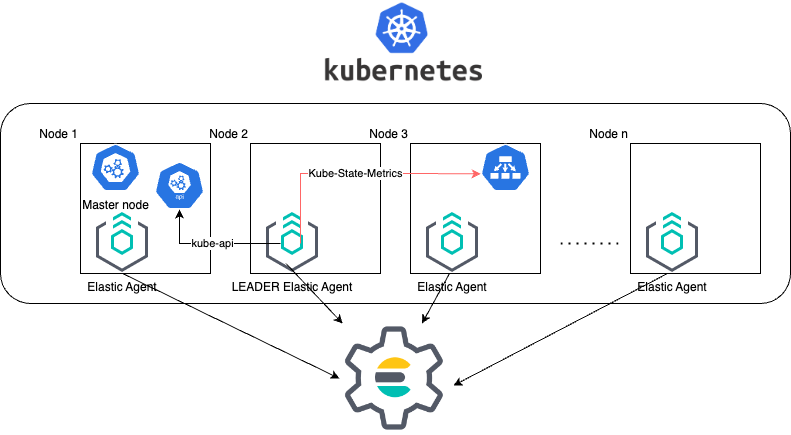

The above schema explains how Elastic Agent collects and sends metrics to Elasticsearch. Because of Leader Agent being responsible to also collecting cluster-lever metrics, this means that it requires additional resources.

The DaemonSet deployment approach with leader election simplifies the installation of the Elastic Agent because we define less Kubernetes Resources in our manifest and we only need one single Agent policy for our Agents. Hence it is the default supported method for Managed Elastic Agent installation

Resourcing of your Pods and the Scheduling priority (check section Scheduling priority) of them are two topics that might be affected as the Kubernetes cluster size increases. The increasing demand of resources might result to under-resource the Elastic Agents of your cluster.

Based on our tests we advise to configure only the limit section of the resources section in the manifest. In this way the request's settings of the resources will fall back to the limits specified. The limits is the upper bound limit of your microservice process, meaning that can operate in less resources and protect Kubernetes to assign bigger usage and protect from possible resource exhaustion.

resources:
    limits:
      cpu: "1000m"
      memory: "200Mi"

Based on our Elastic Agent Scaling tests, the following table provides guidelines to adjust Elastic Agent limits on different Kubernetes sizes:

Sample Elastic Agent Configurations:

Although daemonset installation is simple, it can not accommodate the varying agent resource requirements depending on the collected metrics. The need for appropriate resource assignment at large scale requires more granular installation methods.

Elastic Agent deployment is broken in groups as follows:

Each of these groups of Elastic Agents will have its own policy specific to its function and can be resourced independently in the appropriate manifest to accommodate its specific resource requirements.

Resource assignment led us to alternatives installation methods.

The following alternative configuration methods have been verified:

You can find more information in the document called Elastic Agent Manifests in order to support Kube-State-Metrics Sharding.

Based on our Elastic Agent scaling tests, the following table aims to assist users on how to configure their KSM Sharding as Kubernetes cluster scales:

Setting the low priority to Elastic Agent comparing to other pdos might also result to Elastic Agent being in Pending State.The scheduler tries to preempt (evict) lower priority Pods to make scheduling of the higher pending Pods possible.

Trying to prioritise the agent installation before rest of application microservices, PriorityClasses suggested

Policy configuration of Kubernetes package can heavily affect the amount of metrics collected and finally ingested. Factors that should be considered in order to make your collection and ingestion lighter:

User experience regarding Dashboard responses, is also affected from the size of data being requested. As dashboards can contain multiple visualisations, the general consideration is to split visualisations and group them according to the frequency of access. The less number of visualisations tends to improve user experience.

Additionally, Dashboard Guidelines is constantly updated also to track needs of observability at scale.

The configuration of Elastic Stack needs to be taken under consideration in large scale deployments. In case of Elastic Cloud deployments the choice of the deployment Elastic Cloud hardware profile is important.

For heavy processing and big ingestion rate needs, the CPU-optimised profile is proposed.

After Elastic Agent deployment, we need to verify that Agent services are healthy, not restarting (stability) and that collection of metrics continues with expected rate (latency).

For stability:

If Elastic Agent is configured as managed, in Kibana you can observe under Fleet>Agents

Additionally you can verify the process status with following commands:

kubectl get pods -A | grep elastic
kube-system   elastic-agent-ltzkf                        1/1     Running   0          25h
kube-system   elastic-agent-qw6f4                        1/1     Running   0          25h
kube-system   elastic-agent-wvmpj                        1/1     Running   0          25h

Find leader agent:

❯ k get leases -n kube-system | grep elastic
NAME                                      HOLDER                                                                       AGE
elastic-agent-cluster-leader   elastic-agent-leader-elastic-agent-qw6f4                                     25h

Exec into Leader agent and verify the process status:

❯ kubectl exec -ti -n kube-system elastic-agent-qw6f4 -- bash
root@gke-gke-scaling-gizas-te-default-pool-6689889a-sz02:/usr/share/elastic-agent# ./elastic-agent status
State: HEALTHY
Message: Running
Fleet State: HEALTHY
Fleet Message: (no message)
Components:
  * kubernetes/metrics  (HEALTHY)
                        Healthy: communicating with pid '42423'
  * filestream          (HEALTHY)
                        Healthy: communicating with pid '42431'
  * filestream          (HEALTHY)
                        Healthy: communicating with pid '42443'
  * beat/metrics        (HEALTHY)
                        Healthy: communicating with pid '42453'
  * http/metrics        (HEALTHY)
                        Healthy: communicating with pid '42462'

It is a common problem of lack of CPU/memory resources that agent process restart as Kubernetes size grows. In the logs of agent you

kubectl logs -n kube-system elastic-agent-qw6f4 | grep "kubernetes/metrics"
[ouptut truncated ...]

(HEALTHY->STOPPED): Suppressing FAILED state due to restart for '46554' exited with code '-1'","log":{"source":"elastic-agent"},"component":{"id":"kubernetes/metrics-default","state":"STOPPED"},"unit":{"id":"kubernetes/metrics-default-kubernetes/metrics-kube-state-metrics-c6180794-70ce-4c0d-b775-b251571b6d78","type":"input","state":"STOPPED","old_state":"HEALTHY"},"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2023-04-03T09:33:38.919Z","log.origin":{"file.name":"coordinator/coordinator.go","file.line":861},"message":"Unit state changed kubernetes/metrics-default-kubernetes/metrics-kube-apiserver-c6180794-70ce-4c0d-b775-b251571b6d78 (HEALTHY->STOPPED): Suppressing FAILED state due to restart for '46554' exited with code '-1'","log":{"source":"elastic-agent"}

You can verify the instant resource consumption by running top pod command and identify if agents are close to the limits you have specified in your manifest.

kubectl top pod  -n kube-system | grep elastic
NAME                                                             CPU(cores)   MEMORY(bytes)
elastic-agent-ltzkf                                              30m          354Mi
elastic-agent-qw6f4                                              67m          467Mi
elastic-agent-wvmpj                                              27m          357Mi

Kibana Discovery can be used to identify frequency of your metrics being ingested.

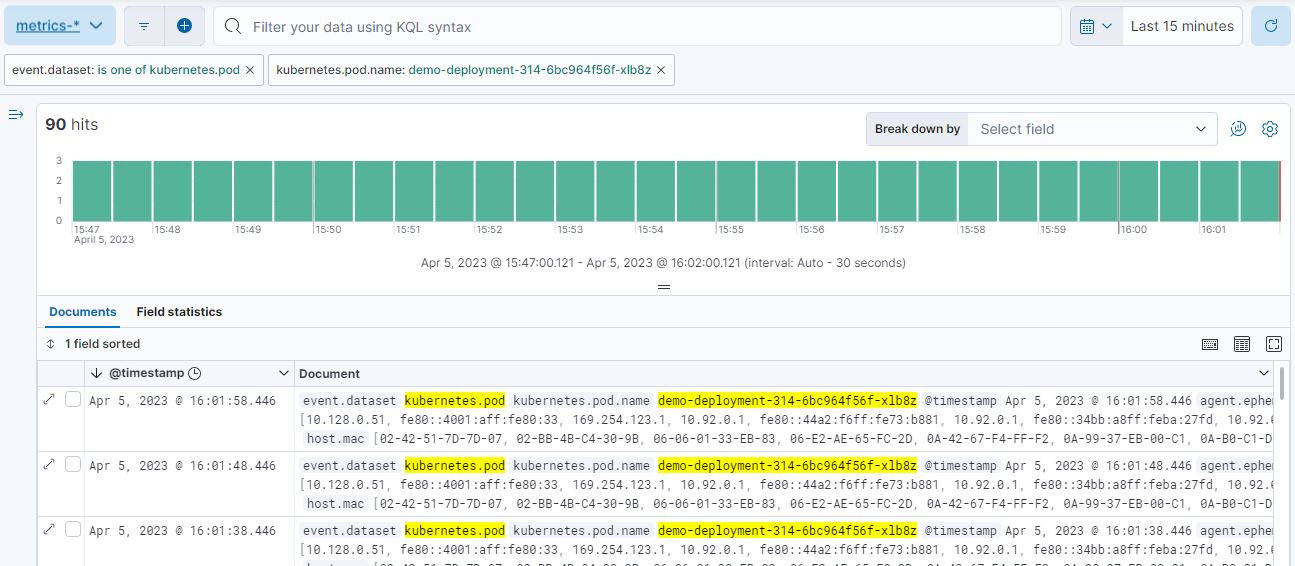

Filter for Pod dataset:

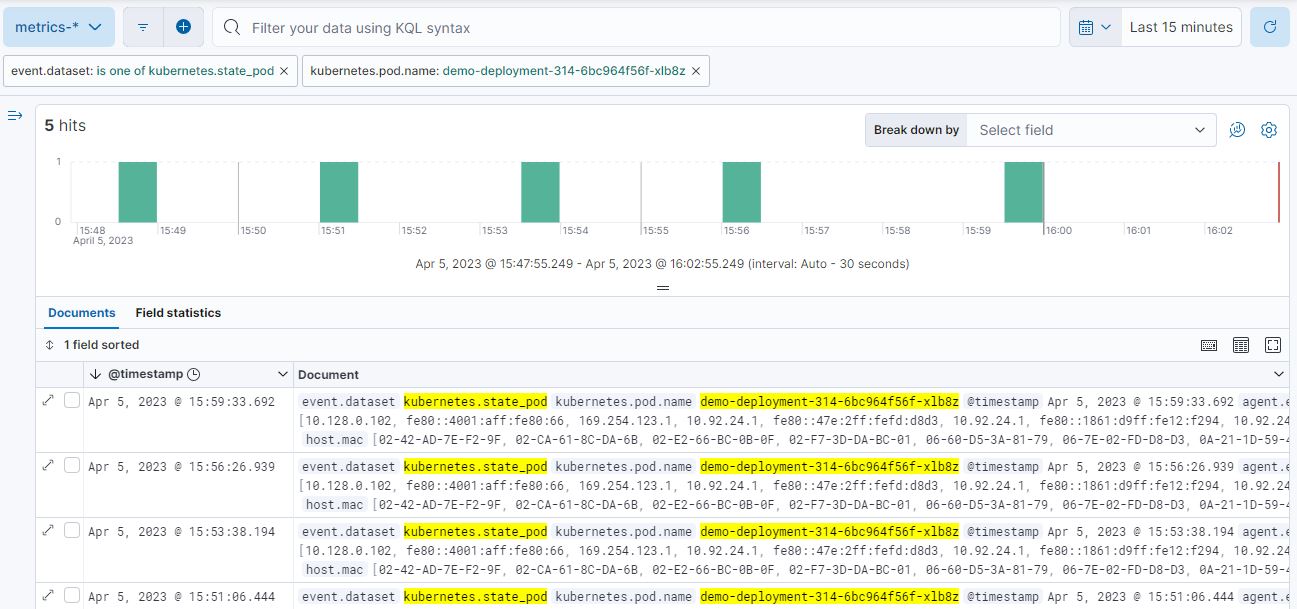

Filter for State_Pod dataset

Identify how many events have been sent to Elasticsearch:

kubectl logs -n kube-system elastic-agent-h24hh -f | grep -i state_pod
[ouptut truncated ...]

"state_pod":{"events":2936,"success":2936}

The number of events denotes the number of documents that should be depicted inside Kibana Discovery page.

In some cases maybe the Elasticsearch can not cope with the rate of data that are trying to be ingested. In order to verify the resource utilisation, installation of [Elastic StackMonitoring Cluster](https://www.elastic.co/guide/en/elasticsearch/reference/current/monitoring-overview.html) is advised.

Additionally, in Elastic Cloud deployments you can navigate to Manage Deployment > Deployments > Monitoring > Performance. Corresponding dashboards for CPU Usage, Index Response Times and Memory Pressure can reveal possible problems and suggest vertical scaling of Elastic Stack resources.
