Alerting

Alerting enables you to define rules, which detect complex conditions within different Kibana apps and trigger actions when those conditions are met. Alerting is integrated with Observability, Security, Maps and Machine Learning. It can be centrally managed from Stack Management and provides a set of built-in connectors and rules for you to use.

Alerting works by running checks on a schedule to detect conditions defined by a rule. When a condition is met, the rule tracks it as an alert and responds by triggering one or more actions. Actions typically involve interaction with Kibana services or third party integrations. Connectors enable actions to talk to these services and integrations. This section describes all of these elements and how they operate together.

A rule specifies a background task that runs on the Kibana server to check for specific conditions. Kibana provides two types of rules: stack rules that are built into Kibana and the rules that are registered by Kibana apps. For more information, refer to Rule types.

A rule consists of three main parts:

For example, when monitoring a set of servers, a rule might:

The following sections describe each part of the rule in more detail.

Under the hood, Kibana rules detect conditions by running a JavaScript function on the Kibana server, which gives it the flexibility to support a wide range of conditions, anything from the results of a simple Elasticsearch query to heavy computations involving data from multiple sources or external systems.

These conditions are packaged and exposed as rule types. A rule type hides the underlying details of the condition, and exposes a set of parameters to control the details of the conditions to detect.

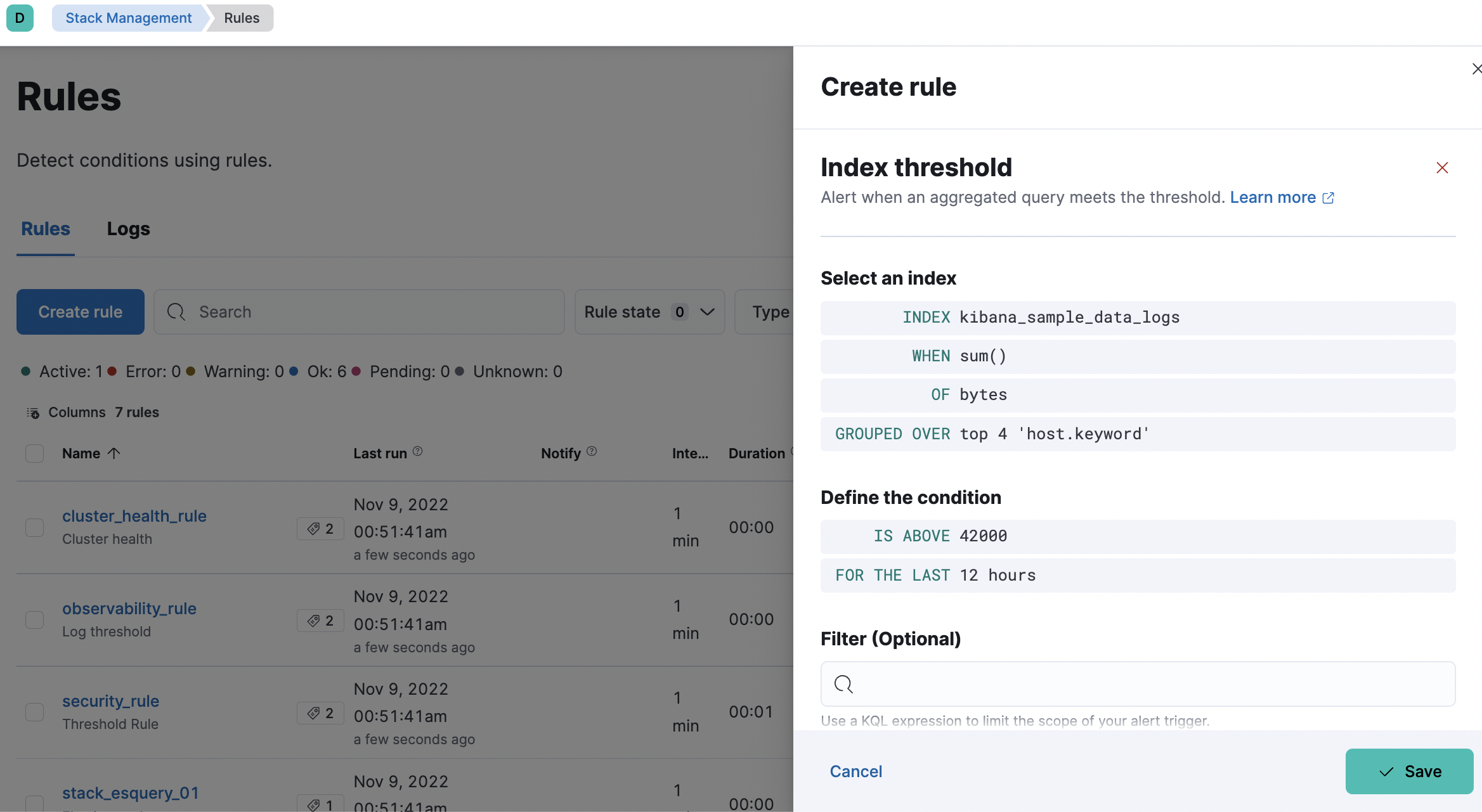

For example, an index threshold rule type lets you specify the index to query, an aggregation field, and a time window, but the details of the underlying Elasticsearch query are hidden.

See Rule types for the rules provided by Kibana and how they express their conditions.

Rule schedules are defined as an interval between subsequent checks, and can range from a few seconds to months.

Actions run as background tasks on the Kibana server when rule conditions are met. Recovery actions likewise run when rule conditions are no longer met. They send notifications by connecting with services inside Kibana or integrating with third-party systems.

When defining actions in a rule, you specify:

Rather than repeatedly entering connection information and credentials for each action, Kibana simplifies action setup using connectors. For example if four rules send email notifications via the same SMTP service, they can all reference the same SMTP connector.

The action frequency defines when the action runs (for example, only when the alert status changes or at specific time intervals). Each rule type also has a set of the action groups that affects when the action runs (for example, when the threshold is met or when the alert is recovered). If you want to reduce the number of notifications you receive without affecting their timeliness, set the action frequency to a summary of alerts. You will receive notifications that summarize the new, ongoing, and recovered alerts at your preferred time intervals.

Some types of rules enable you to further refine the conditions under which actions run. For example, you can specify that actions run only when an alert occurs within a specific time frame or when it matches a KQL query.

Each action definition is therefore a template: all the parameters needed to invoke a service are supplied except for specific values that are only known at the time the rule condition is detected.

In the server monitoring example, the email connector type is used, and server is mapped to the body of the email, using the template string CPU on {{server}} is high.

When the rule detects the condition, it creates an alert containing the details of the condition.

When checking for a condition, a rule might identify multiple occurrences of the condition. Kibana tracks each of these alerts separately. Depending on the action frequency, an action occurs per alert or at the specified alert summary interval.

Using the server monitoring example, each server with average CPU > 0.9 is tracked as an alert. This means a separate email is sent for each server that exceeds the threshold whenever the alert status changes.

A rule consists of conditions, actions, and a schedule. When conditions are met, alerts are created that render actions and invoke them. To make action setup and update easier, actions use connectors that centralize the information used to connect with Kibana services and third-party integrations. The following example ties these concepts together:

Watcher and the Kibana alerting features are both used to detect conditions and can trigger actions in response, but they are completely independent alerting systems.

This section will clarify some of the important differences in the function and intent of the two systems.

Functionally, the alerting features differ in that:

At a higher level, the alerting features allow rich integrations across use cases like APM, Metrics, Security, and Uptime. Prepackaged rule types simplify setup and hide the details of complex, domain-specific detections, while providing a consistent interface across Kibana.
