Quick start
editQuick start
editTo quickly get up and running with Kibana, set up on Cloud, then add a sample data set that you can explore and visualize.
When you’re done, you’ll know how to:
Required privileges
editYou must have read
, write
, and manage
privileges on the kibana_sample_data_*
indices.
Learn how to secure access to Kibana, or refer to Security privileges for more information.
Set up on cloud
editThere’s no faster way to get started than with Elastic Cloud:
- Sign up for a free trial.
- Follow the on-screen steps to create your first project.
That’s it! You’re ready to get some data into your project.
Add sample data
editSample data sets come with sample visualizations, dashboards, and more to help you explore Kibana before you ingest or add your own data.
- Open the Integrations page from the navigation menu or using the global search field.
- In the list of integrations, select Sample Data.
- On the page that opens, select Other sample data sets.
- Install the sample data sets that you want.
Once installed, you can access the sample data in the various Kibana apps available to you.
Explore the data
editDiscover displays the data in an interactive histogram that shows the distribution of data, or documents, over time, and a table that lists the fields for each document that matches the data view. To view a subset of the documents, you can apply filters to the data, and customize the table to display only the fields you want to explore.
- Go to Discover.
-
Change the time filter to Last 7 days.
-

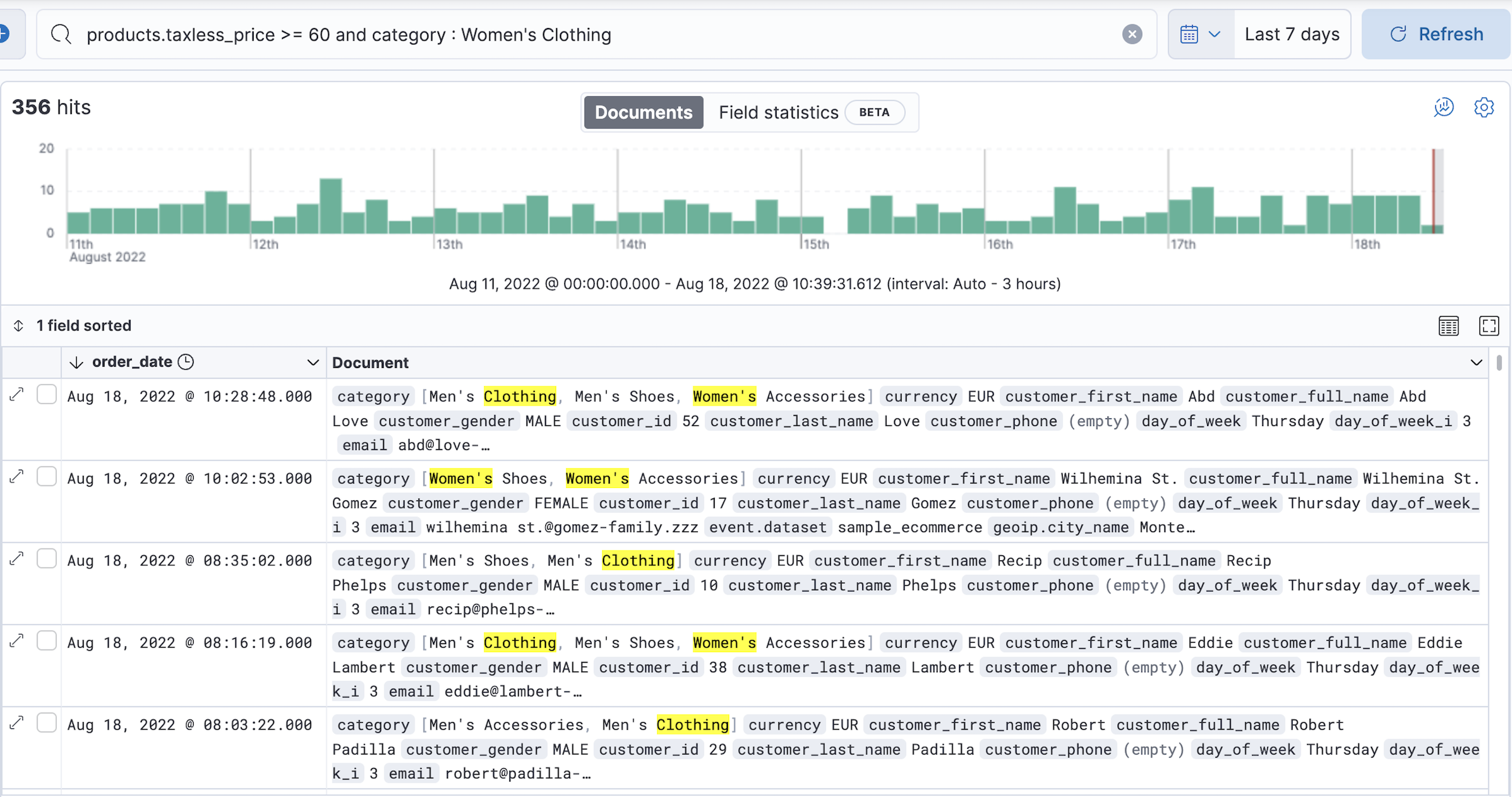

To view the sales orders for women’s clothing that are $60 or more, use the KQL search field:
products.taxless_price >= 60 and category : Women's Clothing
-

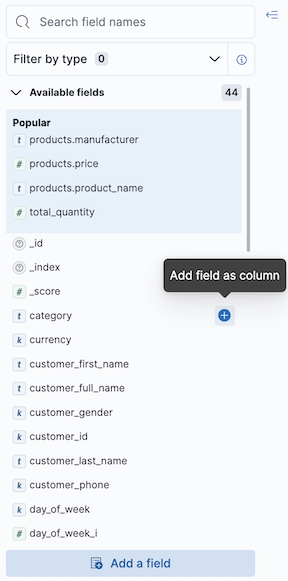

To view only the product categories that contain sales orders, hover over the category field, then click +.
Visualize the data
editA dashboard is a collection of panels that you can use to visualize the data. Panels contain visualizations, interactive controls, text, and more.
- Go to Dashboards.
-

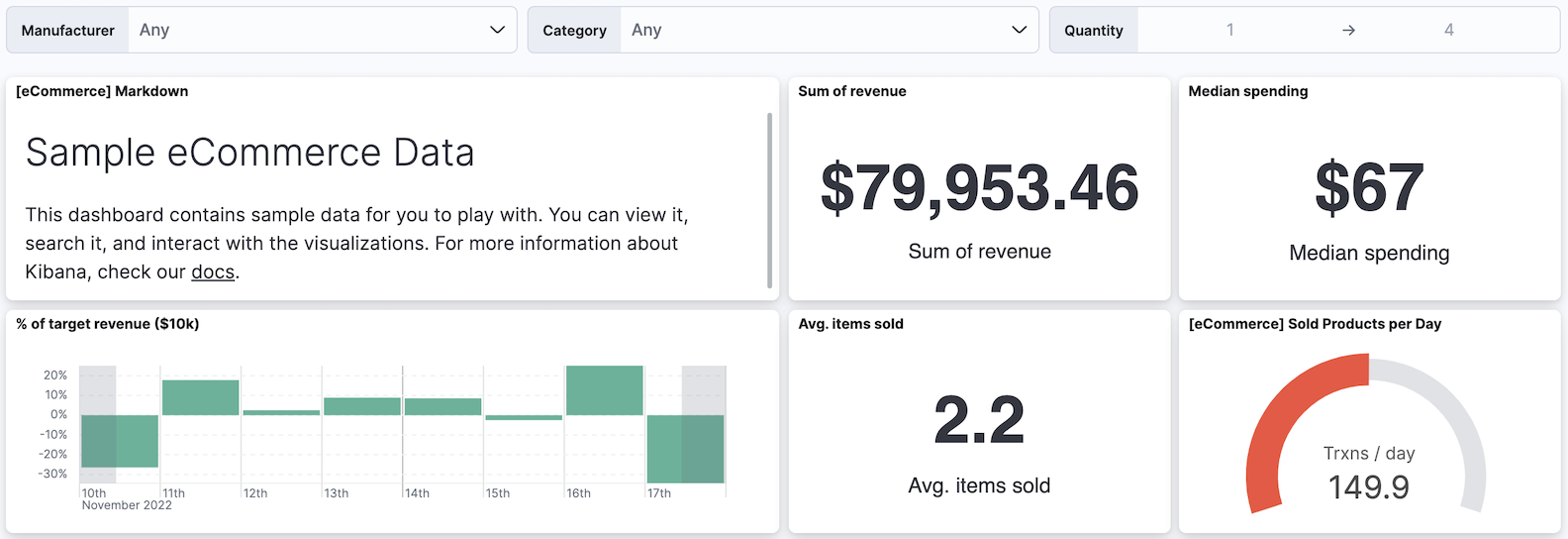

Click [eCommerce] Revenue Dashboard.
Create a visualization panel
editCreate a treemap visualization panel that shows the top sales regions and manufacturers, then add the panel to the dashboard.
- In the toolbar, click Edit.
- On the dashboard, click Create visualization.
-
In the drag-and-drop visualization editor, open the Visualization type dropdown, then select Treemap.
-
From the Available fields list, drag the following fields to the workspace:
- geoip.city_name
-
manufacturer.keyword
-
Click Save and return.
The treemap appears as the last visualization panel on the dashboard.
Interact with the data

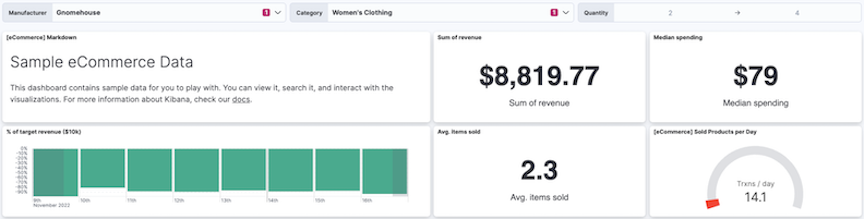

editYou can interact with the dashboard data using controls that allow you to apply dashboard-level filters. Interact with the [eCommerce] Controls panel to view the women’s clothing data from the Gnomehouse manufacturer.
- From the Manufacturer dropdown, select Gnomehouse.
-
From the Category dropdown, select Women’s Clothing.
Filter the data

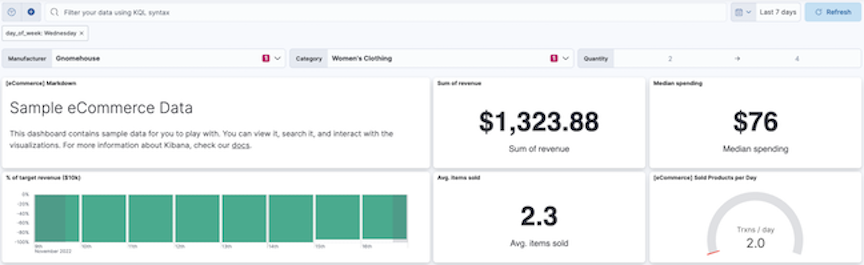

editTo view a subset of the data, you can apply filters to the dashboard data. Apply a filter to view the women’s clothing data generated on Wednesday from the Gnomehouse manufacturer.
-

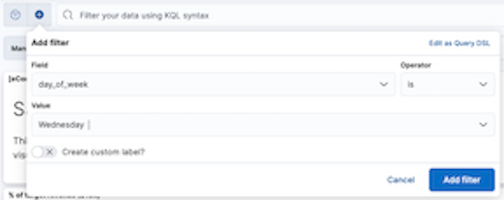

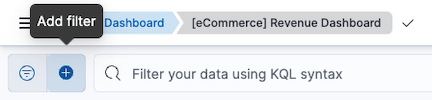

Click Add filter.
- From the Field dropdown, select day_of_week.
- From the Operator dropdown, select is.
-
From the Value dropdown, select Wednesday.
-
Click Add filter.
What’s next?
editAdd your own data. Ready to add your own data? Go to Get started with Elastic Observability, or go to Add data to Kibana and learn about all the ways you can add data.
Explore your own data in Discover. Ready to learn more about exploring your data in Discover? Go to Discover.
Create a dashboard with your own data. Ready to learn more about visualizing your data on a Dashboard? Go to Dashboard.
Try out the machine learning features. Ready to analyze the sample data sets and generate models for its patterns of behavior? Go to Getting started with machine learning.
