Metrics

edit

Metrics

edit

The Metrics overview provides APM agent-specific metrics, which lets you perform more in-depth root cause analysis investigations within the APM UI.

If you’re experiencing a problem with your service, you can use this page to attempt to find the underlying cause. For example, you might be able to correlate a high number of errors with a long transaction duration, high CPU usage, or a memory leak.

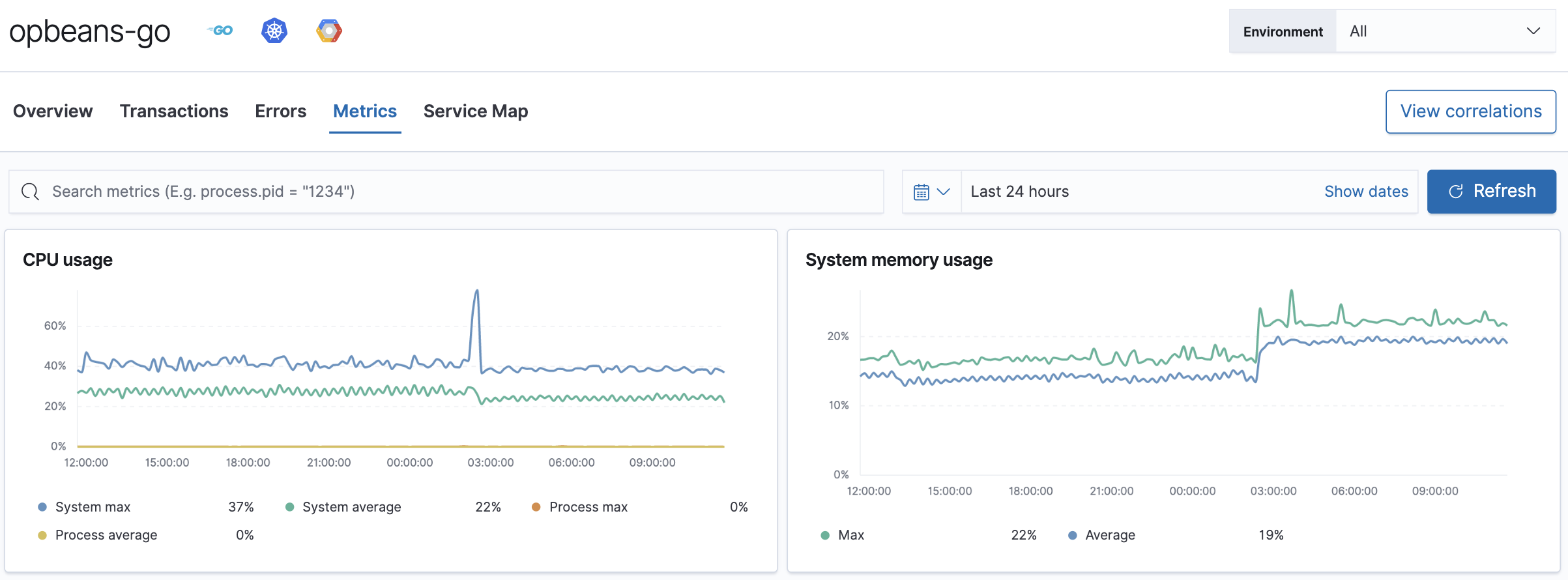

Example view of the Metrics overview in APM UI in Kibana

If you’re using the Java APM agent, you can view metrics for each JVM.

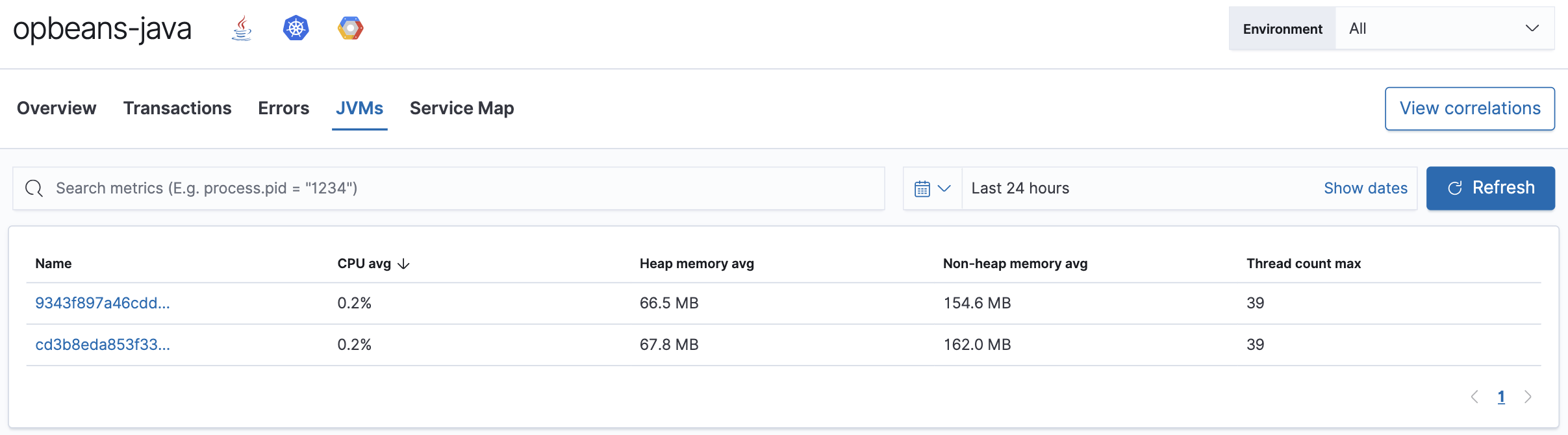

Example view of the Metrics overview for the Java Agent

Breaking down metrics by JVM makes it much easier to analyze the provided metrics: CPU usage, memory usage, heap or non-heap memory, thread count, garbage collection rate, and garbage collection time spent per minute.

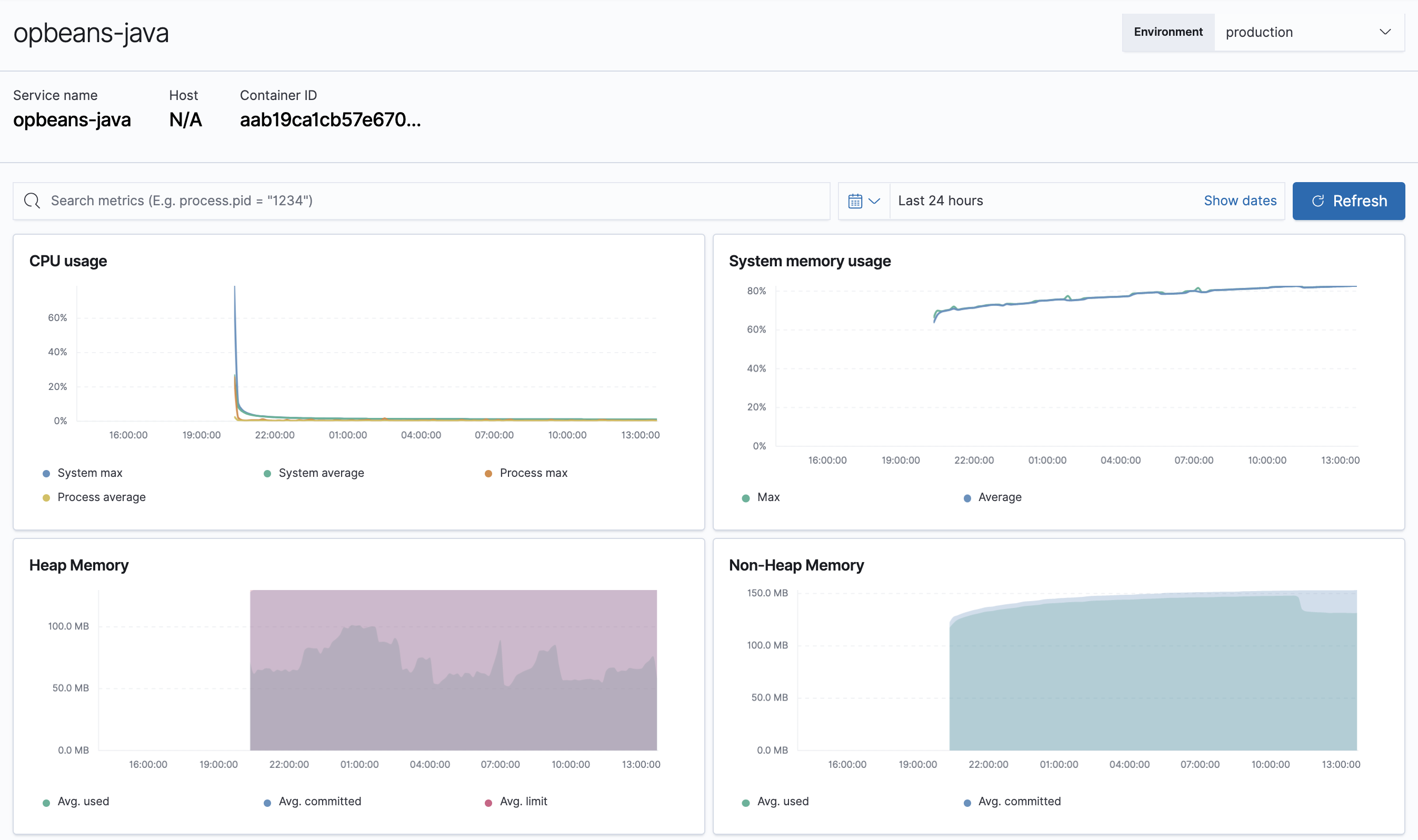

Example view of the Metrics overview for the Java Agent
