Create a service-level objective (SLO)

edit

Create a service-level objective (SLO)

edit

To create and manage SLOs, you need an appropriate license, an Elasticsearch cluster with both transform and ingest node roles present, and SLO access must be configured.

To create an SLO, find SLOs in the main menu or use the global search field.

  • If you’re creating your first SLO, you’ll see an introductory page. Click the Create SLO button.
  • If you’ve created SLOs before, click the Create new SLO button in the upper-right corner of the page.

From here, complete the following steps:

  1. Define your service-level indicator (SLI).
  2. Set your objectives.
  3. Describe your SLO.

For SLOs to function, the cluster must include one or more nodes with both ingest and transform roles. The roles can exist on the same node or be distributed across separate nodes. On ESS deployments (Elastic Cloud), this is handled by the hot nodes, which serve as both ingest and transform nodes.

Define your SLI

edit

The type of SLI to use depends on the location of your data:

Custom KQL
edit

Create an indicator based on any of your Elasticsearch indices or data views. You define two queries: one that yields the good events from your index, and one that yields the total events from your index.

Example: You can define a custom KQL indicator based on the service-logs with the good query defined as nested.field.response.latency <= 100 and nested.field.env : “production” and the total query defined as nested.field.env : “production”.

When defining a custom KQL SLI, set the following fields:

  • Index — The data view or index pattern you want to base the SLI on. For example, service-logs.
  • Timestamp field — The timestamp field used by the index.
  • Query filter — A KQL filter to specify relevant criteria by which to filter the index documents.
  • Good query — The query yielding events that are considered good or successful. For example, nested.field.response.latency <= 100 and nested.field.env : “production”
  • Total query — The query yielding all events to take into account for computing the SLI. For example, nested.field.env : “production”.
  • Group by — The field used to group the data based on the values of the specific field. For example, you could group by the url.domain field, which would create individual SLOs for each value of the selected field.
Custom metric
edit

Create an indicator to define custom equations from metric fields in your indices.

Example: You can define Good events as the sum of the field processor.processed with a filter of "processor.outcome: \"success\"", and the Total events as the sum of processor.processed with a filter of "processor.outcome: *".

When defining a custom metric SLI, set the following fields:

  • Source

    • Index — The data view or index pattern you want to base the SLI on. For example, my-service-*.
    • Timestamp field — The timestamp field used by the index.
    • Query filter — A KQL filter to specify relevant criteria by which to filter the index documents. For example, 'field.environment : "production" and service.name : "my-service"'.

  • Good events

    • Metric [A-Z] — The field that is aggregated using the sum aggregation for good events. For example, processor.processed.
    • Filter [A-Z] — The filter to apply to the metric for good events. For example, "processor.outcome: \"success\"".
    • Equation — The equation that calculates the good metric. For example, A.

  • Total events

    • Metric [A-Z] — The field that is aggregated using the sum aggregation for total events. For example, processor.processed
    • Filter [A-Z] — The filter to apply to the metric for total events. For example, "processor.outcome: *"
    • Equation — The equation that calculates the total metric. For example, A.
  • Group by — The field used to group the data based on the values of the specific field. For example, you could group by the url.domain field, which would create individual SLOs for each value of the selected field.
Timeslice metric
edit

Create an indicator based on a custom equation that uses statistical aggregations and a threshold to determine whether a slice is good or bad. Supported aggregations include Average, Max, Min, Sum, Cardinality, Last value, Std. deviation, Doc count, and Percentile. The equation supports basic math and logic.

This indicator requires you to use the Timeslices budgeting method.

Example: You can define an indicator to determine whether a Kubernetes StatefulSet is healthy. First you set the query filter to orchestrator.cluster.name: "elastic-k8s" AND kubernetes.namespace: "my-ns" AND data_stream.dataset: "kubernetes.state_statefulset". Then you define an equation that compares the number of ready (healthy) replicas to the number of observed replicas: A == B ? 1 : 0, where A retrieves the last value of kubernetes.statefulset.replicas.ready and B retrieves the last value of kubernetes.statefulset.replicas.observed. The equation returns 1 if the condition A == B is true (indicating the same number of replicas) or 0 if it’s false. If the value is less than 1, you can determine that the Kubernetes StatefulSet is unhealthy.

When defining a timeslice metric SLI, set the following fields:

  • Source

    • Index — The data view or index pattern you want to base the SLI on. For example, metrics-*:metrics-*.
    • Timestamp field — The timestamp field used by the index.
    • Query filter — A KQL filter to specify relevant criteria by which to filter the index documents. For example, orchestrator.cluster.name: "elastic-k8s" AND kubernetes.namespace: "my-ns" AND data_stream.dataset: "kubernetes.state_statefulset".

  • Metric definition

    • Aggregation [A-Z] — The type of aggregation to use.
    • Field [A-Z] — The field to use in the aggregation. For example, kubernetes.statefulset.replicas.ready.
    • Filter [A-Z] — The filter to apply to the metric.
    • Equation — The equation that calculates the total metric. For example, A == B ? 1 : 0.
    • Comparator - The type of comparison to perform.
    • Threshold - The value to use along with the comparator to determine if the slice is good or bad.
Histogram metric
edit

Histograms record data in a compressed format and can record latency and delay metrics. You can create an SLI based on histogram metrics using a range aggregation or a value_count aggregation for both the good and total events. Filtering with KQL queries is supported on both event types.

When using a range aggregation, both the from and to thresholds are required for the range and the events are the total number of events within that range. The range includes the from value and excludes the to value.

Example: You can define your Good events using the processor.latency field with a filter of "processor.outcome: \"success\"", and your Total events using the processor.latency field with a filter of "processor.outcome: *".

When defining a histogram metric SLI, set the following fields:

  • Source

    • Index — The data view or index pattern you want to base the SLI on. For example, my-service-*.
    • Timestamp field — The timestamp field used by the index.
    • Query filter — A KQL filter to specify relevant criteria by which to filter the index documents. For example, field.environment : "production" and service.name : "my-service".

  • Good events

    • Aggregation — The type of aggregation to use for good events, either Value count or Range.
    • Field — The field used to aggregate events considered good or successful. For example, processor.latency.
    • From — (range aggregation only) The starting value of the range for good events. For example, 0.
    • To — (range aggregation only) The ending value of the range for good events. For example, 100.
    • KQL filter — The filter for good events. For example, "processor.outcome: \"success\"".

  • Total events

    • Aggregation — The type of aggregation to use for total events, either Value count or Range.
    • Field — The field used to aggregate total events. For example, processor.latency.
    • From — (range aggregation only) The starting value of the range for total events. For example, 0.
    • To — (range aggregation only) The ending value of the range for total events. For example, 100.
    • KQL filter — The filter for total events. For example, "processor.outcome : *".
  • Group by — The field used to group the data based on the values of the specific field. For example, you could group by the url.domain field, which would create individual SLOs for each value of the selected field.
APM latency and APM availability
edit
APM latency
edit

Create an indicator based on latency data received from your instrumented services and a latency threshold.

Example: You can define an indicator on an APM service named banking-service for the production environment, and the transaction name POST /deposit with a latency threshold value of 300ms.

APM availability
edit

Create an indicator based on the availability of your instrumented services. Availability is determined by calculating the percentage of successful transactions (event.outcome : "success") out of the total number of successful and failed transactions—unknown outcomes are excluded.

Example: You can define an indicator on an APM service named search-service for the production environment, and the transaction name POST /search.

When defining an APM latency or APM availability SLI, set the following fields:

  • Service name — The APM service name.
  • Service environment — Either all or the specific environment.
  • Transaction type — Either all or the specific transaction type.
  • Transaction name — Either all or the specific transaction name.
  • Threshold (APM latency only) — The latency threshold in milliseconds (ms) to consider the request as good.
  • Query filter — An optional query filter on the APM data.
Synthetics availability
edit

Create an indicator based on the availability of your synthetic monitors. Availability is determined by calculating the percentage of checks that are successful (monitor.status : "up") out of the total number of checks.

Example: You can define an indicator based on a HTTP monitor being "up" for at least 99% of the time.

When defining a Synthetics availability SLI, set the following fields:

  • Monitor name — The name of one or more synthetic monitors.
  • Project — The ID of one or more projects containing synthetic monitors.
  • Tags — One or more tags assigned to synthetic monitors.
  • Query filter — An optional KQL query used to filter the Synthetics checks on some relevant criteria.

Synthetics availability SLIs are automatically grouped by monitor and location.

Set your objectives

edit

After defining your SLI, you need to set your objectives. To set your objectives, complete the following:

  1. Select your budgeting method
  2. Set your time window
  3. Set your target/SLO percentage
Select your budgeting method
edit

You can select either an occurrences or a timeslices budgeting method:

Occurrences

Uses the number of good events and the number of total events to compute the SLO.

Example: You have a 30 day rolling SLO with a 95% target, and, over the past 30 days, there were 1,355,700 total events. The error budget is 100-95 = 5%, or about 66,785 bad events are tolerated before violating the SLO.

If you had 1,300,000 good events over the same period, the observed value is Good Events / Total Events = 0.95891421 => 95.89%.

Timeslices

Breaks the overall time window into smaller slices of a defined duration, and uses the number of good slices over the number of total slices to compute the SLO.

Timeslice target (%) - Individual timeslices target that determines if the slice is good or bad. Timeslice window (in minutes) - The size of the timeslice window size.

Example: A 30 day rolling SLO defined with five minute slices has a total of 30*24*12 = 8640 slices. If the SLO target is 98%, we have a 100-98 = 2% error budget or 8640 * 0.02 = 172 bad slices available before we violate the SLO.
Set your time window
edit

Select the durations over which you want to compute your SLO. The time window uses the data from the defined rolling period. For example, the last 30 days.

Set your target/SLO (%)
edit

The SLO target objective in percentage.

Describe your SLO

edit

After setting your objectives, give your SLO a name, a short description, and add any relevant tags.

Create an SLO burn rate alert rule

edit

When you use the UI to create an SLO, a default SLO burn rate alert rule is created automatically. The burn rate rule will use the default configuration and no connector. You must configure a connector if you want to receive alerts for SLO breaches.

For more information about configuring the rule, see Create an SLO burn rate rule.

Add an SLO Overview panel to a custom dashboard

edit

After you’ve created your SLO, you can monitor it from the SLOs page in Observability, but you can also add an SLO Overview panel to a custom dashboard. Read more about dashboards in Dashboard and visualizations.

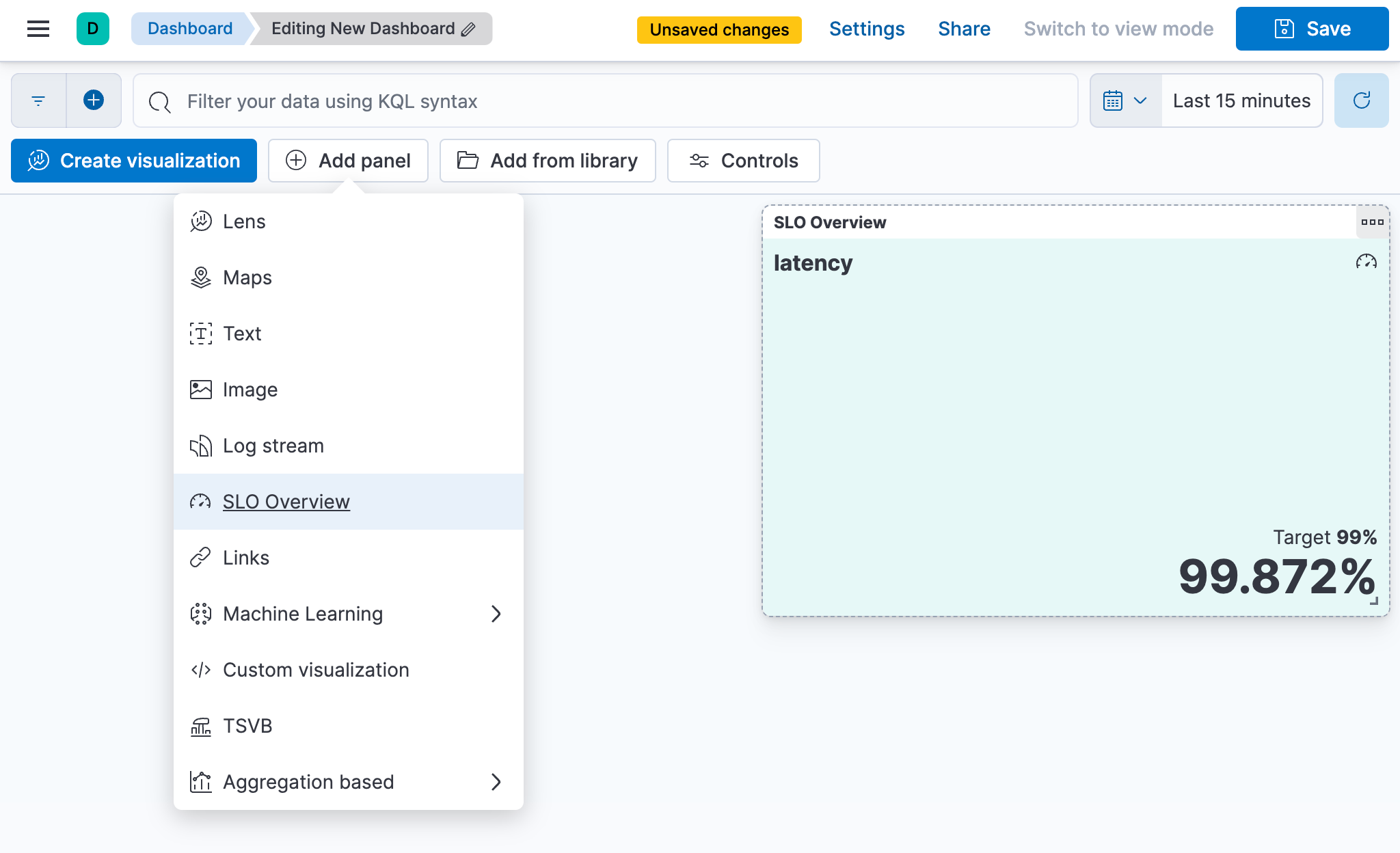

Using the Add panel button to add an SLO Overview widget to a dashboard
