Timeline schema

edit

Timeline schema

edit

The Timeline schema lists all the JSON fields and objects required to create a Timeline or a Timeline template using the Create Timeline API.

All column, dropzone, and filter fields must be ECS fields.

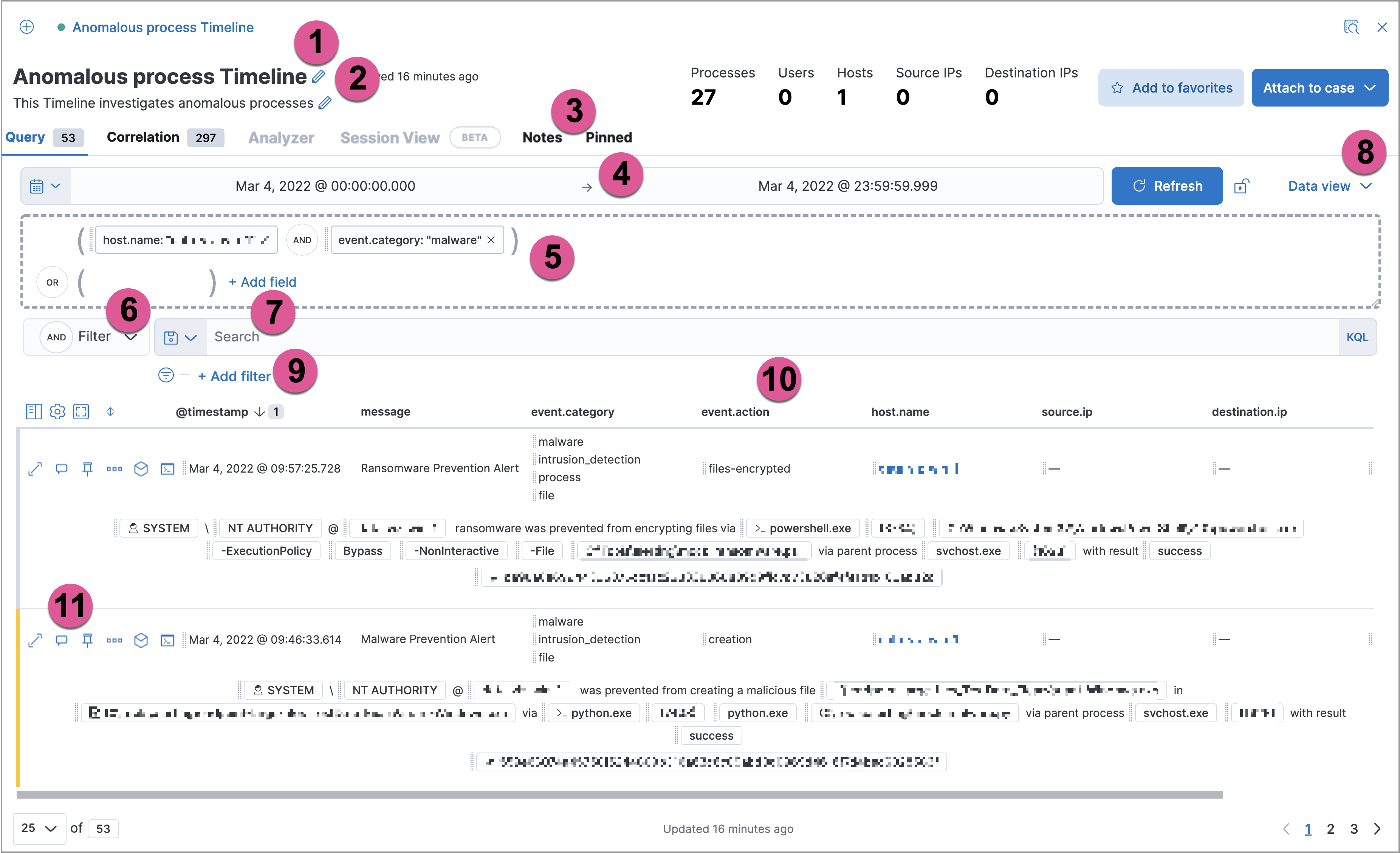

This screenshot maps the Timeline UI components to their JSON objects:

Title (title)
Description (description)
Global notes (globalNotes)
Time filter (dateRange)
Dropzone (each clause is contained in its own dataProviders object)
KQL bar mode (kqlMode)
KQL bar query (kqlQuery)
Data view (dataViewId)
Additional filters (filters)
Column headers (columns)
Event-specific notes (eventNotes)

Name	Type	Description
`columns`	columns[]	The Timeline’s columns.
`created`	Float	The time the Timeline was created, using a 13-digit Epoch timestamp.
`createdBy`	String	The user who created the Timeline.
`dataProviders`	dataProviders[]	Object containing dropzone query clauses.
`dataViewId`	String	ID of the Timeline’s Data View, for example: `"dataViewId":"security-solution-default"`.
`dateRange`	dateRange	The Timeline’s search period: `end`: The time up to which events are searched, using a 13-digit Epoch timestamp. `start`: The time from which events are searched, using a 13-digit Epoch timestamp.
`description`	String	The Timeline’s description.
`eventNotes`	eventNotes[]	Notes added to specific events in the Timeline.
`eventType`	String	Event types displayed in the Timeline, which can be: `All data sources` `Events`: Event sources only `Detection Alerts`: Detection alerts only
`favorite`	favorite[]	Indicates when and who marked a Timeline as a favorite.
`filters`	filters[]	Filters used in addition to the dropzone query.
`globalNotes`	globalNotes[]	Global notes added to the Timeline.
`kqlMode`	String	Indicates whether the KQL bar filters the dropzone query results or searches for additional results, where: `filter`: filters dropzone query results `search`: displays additional search results
`kqlQuery`	kqlQuery	KQL bar query.
`pinnedEventIds`	pinnedEventIds[]	IDs of events pinned to the Timeline’s search results.
`savedObjectId`	String	The Timeline’s saved object ID.
`savedQueryId`	String	If used, the saved query ID used to filter or search dropzone query results.
`sort`	sort	Object indicating how rows are sorted in the Timeline’s grid: `columnId` (string): The ID of the column used to sort results. `sortDirection` (string): The sort direction, which can be either `desc` or `asc`.
`templateTimelineId`	String	A unique ID (UUID) for Timeline templates. For Timelines, the value is `null`.
`templateTimelineVersion`	Integer	Timeline template version number. For Timelines, the value is `null`.
`timelineType`	String	Indicates whether the Timeline is a template or not, where: `default`: Indicates a Timeline used to actively investigate events. `template`: Indicates a Timeline template used when detection rule alerts are investigated in Timeline.
`title`	String	The Timeline’s title.
`updated`	Float	The last time the Timeline was updated, using a 13-digit Epoch timestamp.
`updatedBy`	String	The user who last updated the Timeline.
`version`	String	The Timeline’s version.

columns object

edit

Name	Type	Description
`aggregatable`	Boolean	Indicates whether the field can be aggregated across all indices (used to sort columns in the UI).
`category`	String	The ECS field set to which the field belongs.
`description`	String	UI column field description tooltip.
`example`	String	UI column field example tooltip.
`indexes`	String	Security indices in which the field exists and has the same Elasticsearch type. `null` when all the security indices have the field with the same type.
`id`	String	ECS field name, displayed as the column header in the UI.
`type`	String	The field’s type.

dataProviders object

edit

Name	Type	Description
`and`	dataProviders[]	Array containing dropzone query clauses using `AND` logic.
`enabled`	Boolean	Indicates if the dropzone query clause is enabled.
`excluded`	Boolean	Indicates if the dropzone query clause uses `NOT` logic.
`id`	String	The dropzone query clause’s unique ID.
`name`	String	The dropzone query clause’s name (the clause’s value when Timelines are exported from the UI).
`queryMatch`	queryMatch	The dropzone query clause: `field` (string): The field used to search Security indices. `operator` (string): The clause’s operator, which can be: `:` - The `field` has the specified `value`. `:*` - The field exists. `value` (string): The field’s value used to match results.

eventNotes object

edit

Name	Type	Description
`created`	Float	The time the note was created, using a 13-digit Epoch timestamp.
`createdBy`	String	The user who added the note.
`eventId`	String	The ID of the event to which the note was added.
`note`	String	The note’s text.
`noteId`	String	The note’s ID
`timelineId`	String	The ID of the Timeline to which the note was added.
`updated`	Float	The last time the note was updated, using a 13-digit Epoch timestamp.
`updatedBy`	String	The user who last updated the note.
`version`	String	The note’s version.

favorite object

edit

Name	Type	Description
`favoriteDate`	Float	The time the Timeline was marked as a favorite, using a 13-digit Epoch timestamp.
`fullName`	String	The full name of the user who marked the Timeline as a favorite.
`keySearch`	String	`userName` encoded in Base64.
`userName`	String	The Kibana username of the user who marked the Timeline as a favorite.

filters object

edit

Name	Type	Description
`exists`	String	Exists term query for the specified field (`null` when undefined). For example, `{"field":"user.name"}`.
`meta`	meta	Filter details: `alias` (string): UI filter name. `disabled` (boolean): Indicates if the filter is disabled. `key`(string): Field name or unique string ID. `negate` (boolean): Indicates if the filter query clause uses `NOT` logic. `params` (string): Value of `phrase` filter types. `type` (string): Type of filter. For example, `exists` and `range`. For more information about filtering, see Query DSL.
`match_all`	String	Match all term query for the specified field (`null` when undefined).
`query`	String	DSL query (`null` when undefined). For example, `{"match_phrase":{"ecs.version":"1.4.0"}}`.
`range`	String	Range query (`null` when undefined). For example, `{"@timestamp":{"gte":"now-1d","lt":"now"}}"`.

globalNotes object

edit

Name	Type	Description
`created`	Float	The time the note was created, using a 13-digit Epoch timestamp.
`createdBy`	String	The user who added the note.
`note`	String	The note’s text.
`noteId`	String	The note’s ID
`timelineId`	String	The ID of the Timeline to which the note was added.
`updated`	Float	The last time the note was updated, using a 13-digit Epoch timestamp.
`updatedBy`	String	The user who last updated the note.
`version`	String	The note’s version.

kqlQuery object

edit

Name	Type	Description
`filterQuery`	filterQuery	Object containing query details: `kuery`: Object containing the query’s clauses and type: `expression`(string): The query’s clauses. `kind` (string): The type of query, which can be `kuery` or `lucene`. `serializedQuery` (string): The query represented in JSON format.
