Distributed tracingedit
A trace
is a group of transactions and spans with a common root.
Each trace
tracks the entirety of a single request.
When a trace
travels through multiple services, as is common in a microservice architecture,
it is known as a distributed trace.
Why is distributed tracing important?edit
Distributed tracing enables you to analyze performance throughout your microservice architecture by tracing the entirety of a request — from the initial web request on your front-end service all the way to database queries made on your back-end services.
Tracking requests as they propagate through your services provides an end-to-end picture of where your application is spending time, where errors are occurring, and where bottlenecks are forming. Distributed tracing eliminates individual service’s data silos and reveals what’s happening outside of service borders.
For supported technologies, distributed tracing works out-of-the-box, with no additional configuration required.
How distributed tracing worksedit
Distributed tracing works by injecting a custom traceparent
HTTP header into outgoing requests.
This header includes information, like trace-id
, which is used to identify the current trace,
and parent-id
, which is used to identify the parent of the current span on incoming requests
or the current span on an outgoing request.
When a service is working on a request, it checks for the existence of this HTTP header. If it’s missing, the service starts a new trace. If it exists, the service ensures the current action is added as a child of the existing trace, and continues to propagate the trace.
Trace propagation examplesedit
In this example, Elastic’s Ruby agent communicates with Elastic’s Java agent.
Both support the traceparent
header, and trace data is successfully propagated.
In this example, Elastic’s Ruby agent communicates with OpenTelemetry’s Java agent.
Both support the traceparent
header, and trace data is successfully propagated.

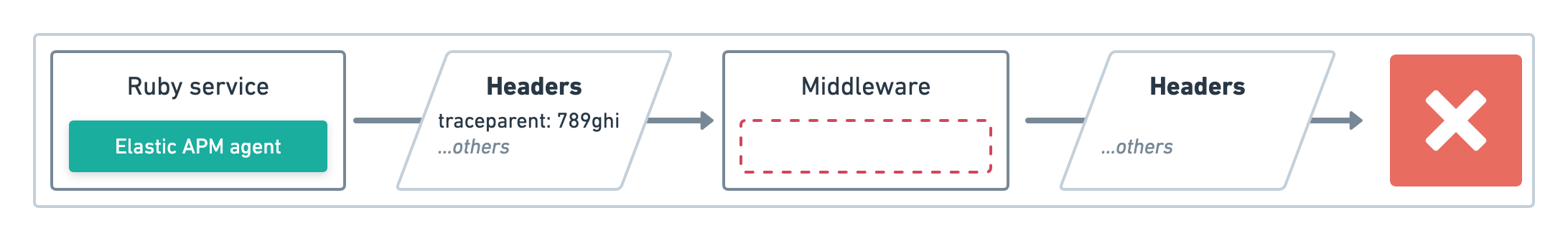

In this example, the trace meets a piece of middleware that doesn’t propagate the traceparent
header.
The distributed trace ends and any further communication will result in a new trace.
W3C Tracecontext specedit
All Elastic agents now support the official W3C tracecontext spec and traceparent
header.
See the table below for the minimum required agent version:
Agent name | Agent Version |
---|---|
Go Agent |
≥ |
Java Agent |
≥ |
.NET Agent |
≥ |
Node.js Agent |
≥ |
Python Agent |
≥ |
Ruby Agent |
≥ |
RUM Agent |
≥ |
Older Elastic agents use a unique elastic-apm-traceparent
header.
For backward-compatibility purposes, new versions of Elastic agents still support this header.
Visualize distributed tracingedit
The APM app’s timeline visualization provides a visual deep-dive into each of your application’s traces:
Manual distributed tracingedit
Elastic agents automatically propagate distributed tracing context for supported technologies. If your service communicates over a different, unsupported protocol, you can manually propagate distributed tracing context from a sending service to a receiving service with each agent’s API.
Add the traceparent
header to outgoing requestsedit
Sending services must add the traceparent
header to outgoing requests.
-
Start a transaction with
StartTransaction
or a span withStartSpan
. - Get the active TraceContext.
- Send the TraceContext to the receiving service.
Example:
-
Start a transaction with
startTransaction
, or a span withstartSpan
. -
Inject the
traceparent
header into the request object withinjectTraceHeaders
Example of manually instrumenting an RPC framework:
// Hook into a callback provided by the RPC framework that is called on outgoing requests public Response onOutgoingRequest(Request request) throws Exception { Span span = ElasticApm.currentSpan() .startSpan("external", "http", null) .setName(request.getMethod() + " " + request.getHost()); try (final Scope scope = transaction.activate()) { span.injectTraceHeaders((name, value) -> request.addHeader(name, value)); return request.execute(); } catch (Exception e) { span.captureException(e); throw e; } finally { span.end(); } }
-
Serialize the distributed tracing context of the active transaction or span with
CurrentTransaction
orCurrentSpan
. - Send the serialized context the receiving service.
Example:
string outgoingDistributedTracingData = (Agent.Tracer.CurrentSpan?.OutgoingDistributedTracingData ?? Agent.Tracer.CurrentTransaction?.OutgoingDistributedTracingData)?.SerializeToString(); // Now send `outgoingDistributedTracingData` to the receiving service
-
Start a transaction with
apm.startTransaction()
, or a span withapm.startSpan()
. -
Get the serialized
traceparent
string of the started transaction/span withcurrentTraceparent
. -
Encode the
traceparent
and send it to the receiving service inside your regular request.
Example using raw UDP to communicate between two services, A and B:
-
Start a transaction with
begin_transaction()
. -
Get the
trace_parent
of the active transaction. -
Send the
trace_parent
to the receiving service.
Example:
-
Start a span with
with_span
. -
Get the active
TraceContext
. -
Send the
TraceContext
to the receiving service.
Add the traceparent
header to incoming requestsedit
Receiving services must parse the incoming traceparent
header,
and start a new transaction or span as a child of the received context.
-
Parse the incoming TraceContext with
ParseTraceparentHeader
orParseTracestateHeader
. -
Start a new transaction or span as a child of the incoming transaction with
StartTransactionOptions
orStartSpanOptions
.
Example:
// Receive incoming TraceContext traceContext, _ := apmhttp.ParseTraceparentHeader(r.Header.Get("Traceparent")) traceContext.State, _ = apmhttp.ParseTracestateHeader(r.Header["Tracestate"]...) opts := apm.TransactionOptions{ TraceContext: traceContext, } transaction := apm.DefaultTracer.StartTransactionOptions("GET /", "request", opts)
-
Create a transaction as a child of the incoming transaction with
startTransactionWithRemoteParent()
. -
Start and name the transaction with
activate()
andsetName()
.
Example:
// Hook into a callback provided by the framework that is called on incoming requests public Response onIncomingRequest(Request request) throws Exception { // creates a transaction representing the server-side handling of the request Transaction transaction = ElasticApm.startTransactionWithRemoteParent(request::getHeader, request::getHeaders); try (final Scope scope = transaction.activate()) { String name = "a useful name like ClassName#methodName where the request is handled"; transaction.setName(name); transaction.setType(Transaction.TYPE_REQUEST); return request.handle(); } catch (Exception e) { transaction.captureException(e); throw e; } finally { transaction.end(); } }
Deserialize the incoming distributed tracing context, and pass it to any of the
StartTransaction
or
CaptureTransaction
APIs — all of which have an optional DistributedTracingData
parameter.
This will create a new transaction or span as a child of the incoming trace context.
Example starting a new transaction:
var transaction2 = Agent.Tracer.StartTransaction("Transaction2", "TestTransaction", DistributedTracingData.TryDeserializeFromString(serializedDistributedTracingData));
-
Decode and store the
traceparent
in the receiving service. -
Pass in the
traceparent
as thechildOf
option to manually start a new transaction as a child of the receivedtraceparent
withapm.startTransaction()
.
Example receiving a traceparent
over raw UDP:
- Create a TraceParent object from a string or HTTP header.
-
Start a new transaction as a child of the
TraceParent
by passing in aTraceParent
object.
Example using HTTP headers:
parent = elasticapm.trace_parent_from_headers(headers_dict) client.begin_transaction('processors', trace_parent=parent)
Create a TraceParent object from HTTP headers formed as a dictionary |
|
Begin a new transaction as a child of the received |
See the TraceParent
API for additional examples.
Start a new transaction or span as a child of the incoming transaction or span with
with_transaction
or
with_span
.
Example:
Distributed tracing with RUMedit
Some additional setup may be required to correlate requests correctly with the Real User Monitoring (RUM) agent.
See the RUM distributed tracing guide for information on enabling cross-origin requests, setting up server configuration, and working with dynamically-generated HTML.
