Azure module

edit

The azure module retrieves different types of log data from Azure. There are several requirements before using the module since the logs will actually be read from azure event hubs.

the logs have to be exported first to the event hubs https://docs.microsoft.com/en-us/azure/event-hubs/event-hubs-create-kafka-enabled
to export activity logs to event hubs users can follow the steps here https://docs.microsoft.com/en-us/azure/azure-monitor/platform/activity-log-export
to export audit and sign-in logs to event hubs users can follow the steps here https://docs.microsoft.com/en-us/azure/active-directory/reports-monitoring/tutorial-azure-monitor-stream-logs-to-event-hub

The module contains the following filesets:

activitylogs: Will retrieve azure activity logs. Control-plane events on Azure Resource Manager resources. Activity logs provide insight into the operations that were performed on resources in your subscription. To learn more, refer to the Azure Activity log documentation.
platformlogs: Will retrieve azure platform logs. Platform logs provide detailed diagnostic and auditing information for Azure resources and the Azure platform they depend on. To learn more, refer to the Azure platform logs documentation.
signinlogs: Will retrieve azure Active Directory sign-in logs. The sign-ins report provides information about the usage of managed applications and user sign-in activities. To learn more, refer to the Azure sign-in logs documentation.
auditlogs: Will retrieve azure Active Directory audit logs. The audit logs provide traceability through logs for all changes done by various features within Azure AD. Examples of audit logs include changes made to any resources within Azure AD like adding or removing users, apps, groups, roles and policies. To learn more, refer to the Azure audit logs documentation.

Module configuration

edit

- module: azure
  activitylogs:
    enabled: true
    var:
      eventhub: "insights-operational-logs"
      consumer_group: "$Default"
      connection_string: ""
      storage_account: ""
      storage_account_key: ""
      resource_manager_endpoint: ""

  platformlogs:
    enabled: false
    var:
      eventhub: ""
      consumer_group: "$Default"
      connection_string: ""
      storage_account: ""
      storage_account_key: ""
      resource_manager_endpoint: ""

  auditlogs:
    enabled: false
    var:
      eventhub: "insights-logs-auditlogs"
      consumer_group: "$Default"
      connection_string: ""
      storage_account: ""
      storage_account_key: ""
      resource_manager_endpoint: ""

  signinlogs:
    enabled: false
    var:
      eventhub: "insights-logs-signinlogs"
      consumer_group: "$Default"
      connection_string: ""
      storage_account: ""
      storage_account_key: ""
      resource_manager_endpoint: ""

eventhub: string Is the fully managed, real-time data ingestion service. Default value of insights-operational-logs for activitylogs, insights-logs-auditlogs for auditlogs, and insights-logs-signinlogs for signinlogs. It is recommended to use a separate eventhub for each log type as the field mappings of each log type are different.
consumer_group: string The publish/subscribe mechanism of Event Hubs is enabled through consumer groups. A consumer group is a view (state, position, or offset) of an entire event hub. Consumer groups enable multiple consuming applications to each have a separate view of the event stream, and to read the stream independently at their own pace and with their own offsets. Default value: $Default
connection_string: string The connection string required to communicate with Event Hubs, steps here https://docs.microsoft.com/en-us/azure/event-hubs/event-hubs-get-connection-string.

A Blob Storage account is required in order to store/retrieve/update the offset or state of the eventhub messages. This means that after stopping the filebeat azure module it can start back up at the spot that it stopped processing messages.

storage_account: string The name of the storage account the state/offsets will be stored and updated.
storage_account_key: string The storage account key, this key will be used to authorize access to data in your storage account.
resource_manager_endpoint: string Optional, by default we are using the azure public environment, to override, users can provide a specific resource manager endpoint in order to use a different azure environment. Ex: https://management.chinacloudapi.cn/ for azure ChinaCloud https://management.microsoftazure.de/ for azure GermanCloud https://management.azure.com/ for azure PublicCloud https://management.usgovcloudapi.net/ for azure USGovernmentCloud Users can also use this in case of a Hybrid Cloud model, where one may define their own endpoints.

When you run the module, it performs a few tasks under the hood:

Sets the default paths to the log files (but don’t worry, you can override the defaults)
Makes sure each multiline log event gets sent as a single event
Uses an Elasticsearch ingest pipeline to parse and process the log lines, shaping the data into a structure suitable for visualizing in Kibana

Read the quick start to learn how to configure and run modules.

Dashboards

edit

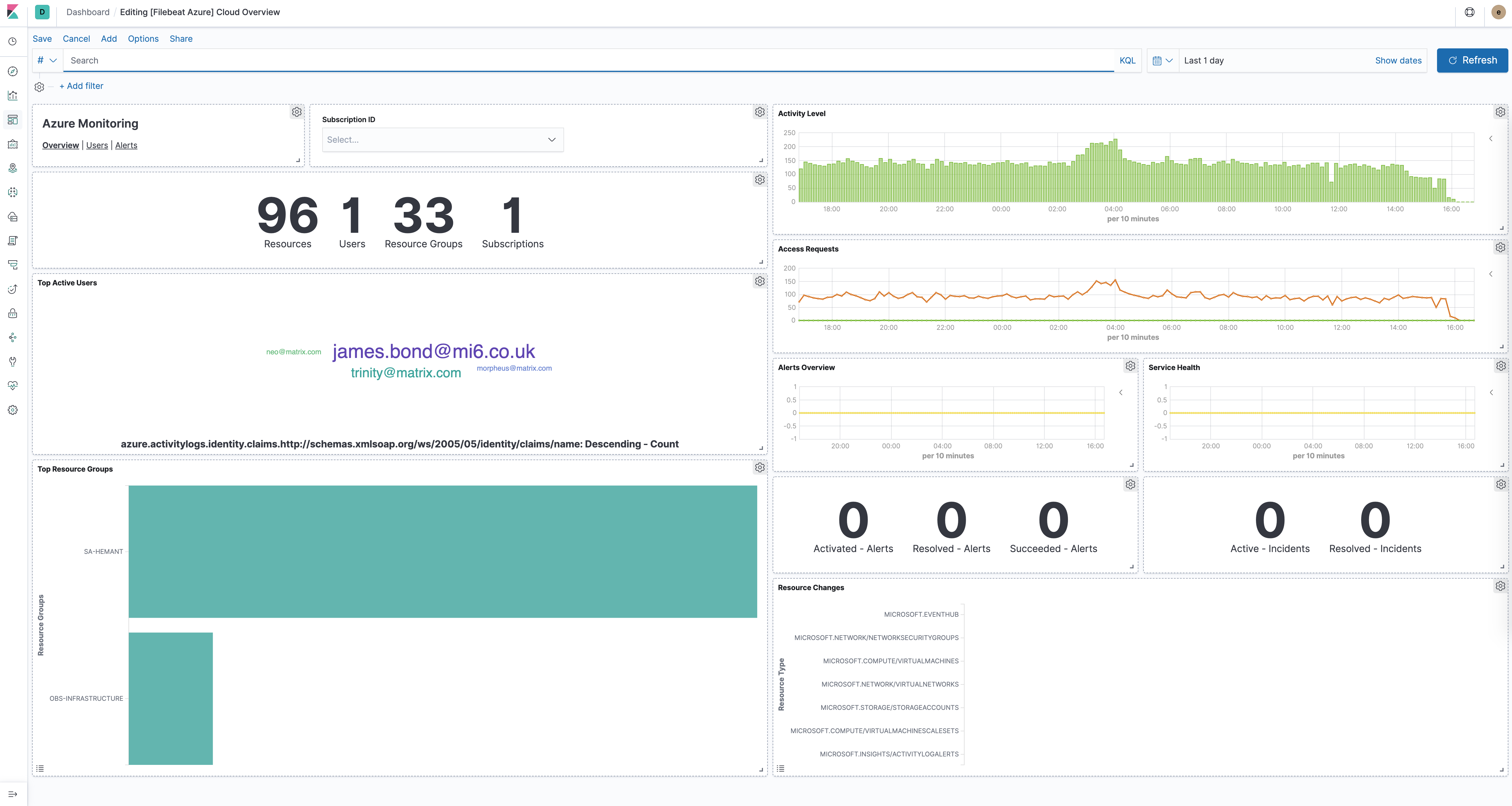

The azure module comes with several predefined dashboards for general cloud overview, user activity and alerts. For example:

Fields

edit

For a description of each field in the module, see the exported fields section.
