Data processing with DISSECT and GROK

edit

Data processing with DISSECT and GROK

edit

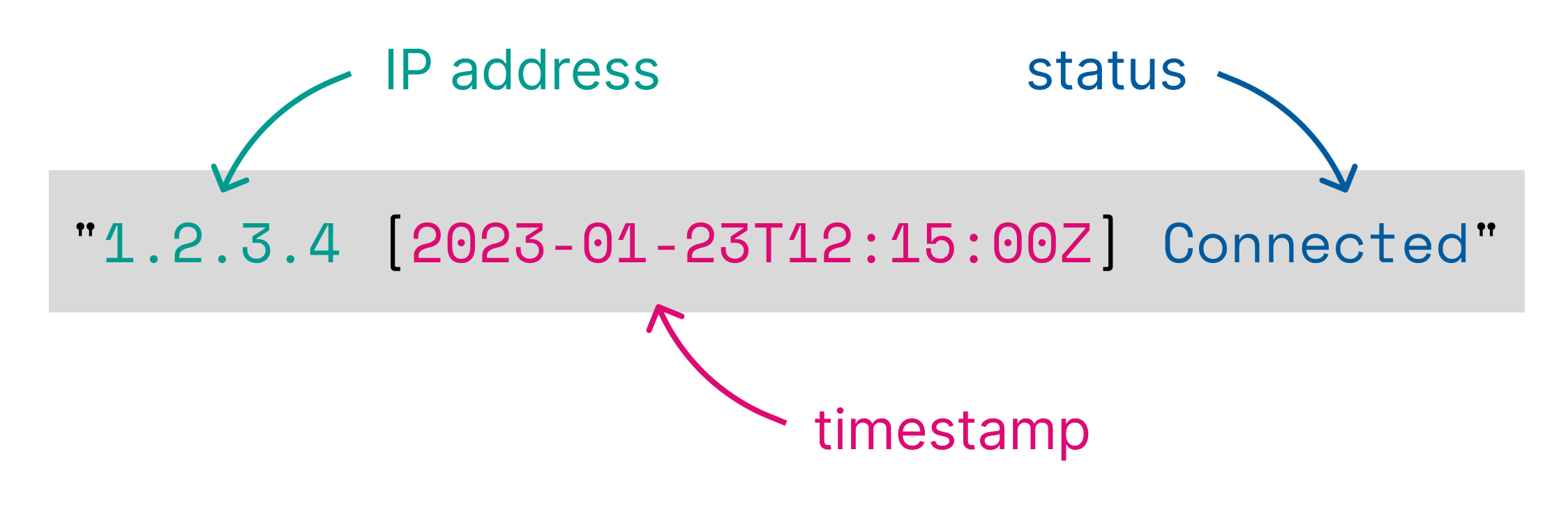

Your data may contain unstructured strings that you want to structure. This makes it easier to analyze the data. For example, log messages may contain IP addresses that you want to extract so you can find the most active IP addresses.

Elasticsearch can structure your data at index time or query time. At index time, you can use the Dissect and Grok ingest processors, or the Logstash Dissect and Grok filters. At query time, you can use the ES|QL DISSECT and GROK commands.

`DISSECT` or `GROK`? Or both?

edit

DISSECT works by breaking up a string using a delimiter-based pattern. GROK works similarly, but uses regular expressions. This makes GROK more powerful, but generally also slower. DISSECT works well when data is reliably repeated. GROK is a better choice when you really need the power of regular expressions, for example when the structure of your text varies from row to row.

You can use both DISSECT and GROK for hybrid use cases. For example when a section of the line is reliably repeated, but the entire line is not. DISSECT can deconstruct the section of the line that is repeated. GROK can process the remaining field values using regular expressions.

Process data with `DISSECT`

edit

The DISSECT processing command matches a string against a delimiter-based pattern, and extracts the specified keys as columns.

For example, the following pattern:

%{clientip} [%{@timestamp}] %{status}

matches a log line of this format:

1.2.3.4 [2023-01-23T12:15:00.000Z] Connected

and results in adding the following columns to the input table:

clientip:keyword	@timestamp:keyword	status:keyword
1.2.3.4	2023-01-23T12:15:00.000Z	Connected

Dissect patterns

edit

A dissect pattern is defined by the parts of the string that will be discarded. In the previous example, the first part to be discarded is a single space. Dissect finds this space, then assigns the value of clientip everything up until that space. Next, dissect matches the [ and then ] and then assigns @timestamp to everything in-between [ and ]. Paying special attention to the parts of the string to discard will help build successful dissect patterns.

An empty key (%{}) or named skip key can be used to match values, but exclude the value from the output.

All matched values are output as keyword string data types. Use the Type conversion functions to convert to another data type.

Dissect also supports key modifiers that can change dissect’s default behavior. For example, you can instruct dissect to ignore certain fields, append fields, skip over padding, etc.

Terminology

edit

dissect pattern

the set of fields and delimiters describing the textual format. Also known as a dissection. The dissection is described using a set of %{} sections: %{a} - %{b} - %{c}

field

the text from %{ to } inclusive.

delimiter

the text between } and the next %{ characters. Any set of characters other than %{, 'not }', or } is a delimiter.

key

the text between the %{ and }, exclusive of the ?, +, & prefixes and the ordinal suffix.

Examples:

%{?aaa} - the key is aaa
%{+bbb/3} - the key is bbb
%{&ccc} - the key is ccc

Examples

edit

The following example parses a string that contains a timestamp, some text, and an IP address:

ROW a = "2023-01-23T12:15:00.000Z - some text - 127.0.0.1"
| DISSECT a "%{date} - %{msg} - %{ip}"
| KEEP date, msg, ip

date:keyword	msg:keyword	ip:keyword
2023-01-23T12:15:00.000Z	some text	127.0.0.1

By default, DISSECT outputs keyword string columns. To convert to another type, use Type conversion functions:

ROW a = "2023-01-23T12:15:00.000Z - some text - 127.0.0.1"
| DISSECT a "%{date} - %{msg} - %{ip}"
| KEEP date, msg, ip
| EVAL date = TO_DATETIME(date)

msg:keyword	ip:keyword	date:date
some text	127.0.0.1	2023-01-23T12:15:00.000Z

Dissect key modifiers

edit

Key modifiers can change the default behavior for dissection. Key modifiers may be found on the left or right of the %{keyname} always inside the %{ and }. For example %{+keyname ->} has the append and right padding modifiers.

Table 80. Dissect key modifiers

Modifier	Name	Position	Example	Description	Details
`->`	Skip right padding	(far) right	`%{keyname1->}`	Skips any repeated characters to the right	link
`+`	Append	left	`%{+keyname} %{+keyname}`	Appends two or more fields together	link
`+` with `/n`	Append with order	left and right	`%{+keyname/2} %{+keyname/1}`	Appends two or more fields together in the order specified	link
`?`	Named skip key	left	`%{?ignoreme}`	Skips the matched value in the output. Same behavior as `%{}`	link

Right padding modifier (`->`)

edit

The algorithm that performs the dissection is very strict in that it requires all characters in the pattern to match the source string. For example, the pattern %{fookey} %{barkey} (1 space), will match the string "foo bar" (1 space), but will not match the string "foo bar" (2 spaces) since the pattern has only 1 space and the source string has 2 spaces.

The right padding modifier helps with this case. Adding the right padding modifier to the pattern %{fookey->} %{barkey}, It will now will match "foo bar" (1 space) and "foo bar" (2 spaces) and even "foo bar" (10 spaces).

Use the right padding modifier to allow for repetition of the characters after a %{keyname->}.

The right padding modifier may be placed on any key with any other modifiers. It should always be the furthest right modifier. For example: %{+keyname/1->} and %{->}

For example:

ROW message="1998-08-10T17:15:42          WARN"
| DISSECT message "%{ts->} %{level}"

message:keyword	ts:keyword	level:keyword
1998-08-10T17:15:42 WARN	1998-08-10T17:15:42	WARN

The right padding modifier may be used with an empty key to help skip unwanted data. For example, the same input string, but wrapped with brackets requires the use of an empty right padded key to achieve the same result.

For example:

ROW message="[1998-08-10T17:15:42]          [WARN]"
| DISSECT message "[%{ts}]%{->}[%{level}]"

message:keyword	ts:keyword	level:keyword
["[1998-08-10T17:15:42] [WARN]"]	1998-08-10T17:15:42	WARN

Append modifier (`+`)

edit

Dissect supports appending two or more results together for the output. Values are appended left to right. An append separator can be specified. In this example the append_separator is defined as a space.

ROW message="john jacob jingleheimer schmidt"
| DISSECT message "%{+name} %{+name} %{+name} %{+name}" APPEND_SEPARATOR=" "

message:keyword	name:keyword
john jacob jingleheimer schmidt	john jacob jingleheimer schmidt

Append with order modifier (`+` and `/n`)

edit

Dissect supports appending two or more results together for the output. Values are appended based on the order defined (/n). An append separator can be specified. In this example the append_separator is defined as a comma.

ROW message="john jacob jingleheimer schmidt"
| DISSECT message "%{+name/2} %{+name/4} %{+name/3} %{+name/1}" APPEND_SEPARATOR=","

message:keyword	name:keyword
john jacob jingleheimer schmidt	schmidt,john,jingleheimer,jacob

Named skip key (`?`)

edit

Dissect supports ignoring matches in the final result. This can be done with an empty key %{}, but for readability it may be desired to give that empty key a name.

This can be done with a named skip key using the {?name} syntax. In the following query, ident and auth are not added to the output table:

ROW message="1.2.3.4 - - 30/Apr/1998:22:00:52 +0000"
| DISSECT message "%{clientip} %{?ident} %{?auth} %{@timestamp}"

message:keyword	clientip:keyword	@timestamp:keyword
1.2.3.4 - - 30/Apr/1998:22:00:52 +0000	1.2.3.4	30/Apr/1998:22:00:52 +0000

Limitations

edit

The DISSECT command does not support reference keys.

Process data with `GROK`

edit

The GROK processing command matches a string against a pattern based on regular expressions, and extracts the specified keys as columns.

For example, the following pattern:

%{IP:ip} \[%{TIMESTAMP_ISO8601:@timestamp}\] %{GREEDYDATA:status}

matches a log line of this format:

1.2.3.4 [2023-01-23T12:15:00.000Z] Connected

Putting it together as an ES|QL query:

ROW a = "1.2.3.4 [2023-01-23T12:15:00.000Z] Connected"
| GROK a "%{IP:ip} \\[%{TIMESTAMP_ISO8601:@timestamp}\\] %{GREEDYDATA:status}"

GROK adds the following columns to the input table:

@timestamp:keyword	ip:keyword	status:keyword
2023-01-23T12:15:00.000Z	1.2.3.4	Connected

Special regex characters in grok patterns, like [ and ] need to be escaped with a \. For example, in the earlier pattern:

%{IP:ip} \[%{TIMESTAMP_ISO8601:@timestamp}\] %{GREEDYDATA:status}

In ES|QL queries, the backslash character itself is a special character that needs to be escaped with another \. For this example, the corresponding ES|QL query becomes:

ROW a = "1.2.3.4 [2023-01-23T12:15:00.000Z] Connected"
| GROK a "%{IP:ip} \\[%{TIMESTAMP_ISO8601:@timestamp}\\] %{GREEDYDATA:status}"

Grok patterns

edit

The syntax for a grok pattern is %{SYNTAX:SEMANTIC}

The SYNTAX is the name of the pattern that matches your text. For example, 3.44 is matched by the NUMBER pattern and 55.3.244.1 is matched by the IP pattern. The syntax is how you match.

The SEMANTIC is the identifier you give to the piece of text being matched. For example, 3.44 could be the duration of an event, so you could call it simply duration. Further, a string 55.3.244.1 might identify the client making a request.

By default, matched values are output as keyword string data types. To convert a semantic’s data type, suffix it with the target data type. For example %{NUMBER:num:int}, which converts the num semantic from a string to an integer. Currently the only supported conversions are int and float. For other types, use the Type conversion functions.

For an overview of the available patterns, refer to GitHub. You can also retrieve a list of all patterns using a REST API.

Regular expressions

edit

Grok is based on regular expressions. Any regular expressions are valid in grok as well. Grok uses the Oniguruma regular expression library. Refer to the Oniguruma GitHub repository for the full supported regexp syntax.

Custom patterns

edit

If grok doesn’t have a pattern you need, you can use the Oniguruma syntax for named capture which lets you match a piece of text and save it as a column:

(?<field_name>the pattern here)

For example, postfix logs have a queue id that is a 10 or 11-character hexadecimal value. This can be captured to a column named queue_id with:

(?<queue_id>[0-9A-F]{10,11})

Examples

edit

The following example parses a string that contains a timestamp, an IP address, an email address, and a number:

ROW a = "2023-01-23T12:15:00.000Z 127.0.0.1 some.email@foo.com 42"
| GROK a "%{TIMESTAMP_ISO8601:date} %{IP:ip} %{EMAILADDRESS:email} %{NUMBER:num}"
| KEEP date, ip, email, num

date:keyword	ip:keyword	email:keyword	num:keyword
2023-01-23T12:15:00.000Z	127.0.0.1	some.email@foo.com	42

By default, GROK outputs keyword string columns. int and float types can be converted by appending :type to the semantics in the pattern. For example {NUMBER:num:int}:

ROW a = "2023-01-23T12:15:00.000Z 127.0.0.1 some.email@foo.com 42"
| GROK a "%{TIMESTAMP_ISO8601:date} %{IP:ip} %{EMAILADDRESS:email} %{NUMBER:num:int}"
| KEEP date, ip, email, num

date:keyword	ip:keyword	email:keyword	num:integer
2023-01-23T12:15:00.000Z	127.0.0.1	some.email@foo.com	42

For other type conversions, use Type conversion functions:

ROW a = "2023-01-23T12:15:00.000Z 127.0.0.1 some.email@foo.com 42"
| GROK a "%{TIMESTAMP_ISO8601:date} %{IP:ip} %{EMAILADDRESS:email} %{NUMBER:num:int}"
| KEEP date, ip, email, num
| EVAL date = TO_DATETIME(date)

ip:keyword	email:keyword	num:integer	date:date
127.0.0.1	some.email@foo.com	42	2023-01-23T12:15:00.000Z

Grok debugger

edit

To write and debug grok patterns, you can use the Grok Debugger. It provides a UI for testing patterns against sample data. Under the covers, it uses the same engine as the GROK command.

Limitations

edit

The GROK command does not support configuring custom patterns, or multiple patterns. The GROK command is not subject to Grok watchdog settings.
