Elastic Agent to Elasticsearch: Air-gapped environment

edit

Elastic Agent to Elasticsearch: Air-gapped environment

edit

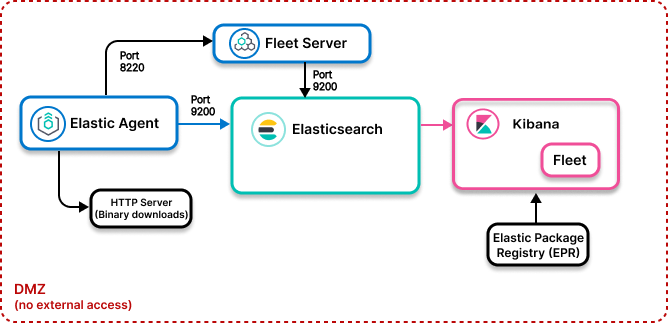

Image showing Elastic Agent and Elasticsearch in an air-gapped environment
Ingest model

All Elastic Stack components deployed inside a DMZ:

  • Control path: Elastic Agent to Fleet to Elasticsearch
  • Data path: Elastic Agent to Elasticsearch
Use when
Your self-managed Elastic Stack deployment has no access to outside networks

Resources

edit

Info for air-gapped environments:
