Elastic Agent to Logstash: Air-gapped environment

edit

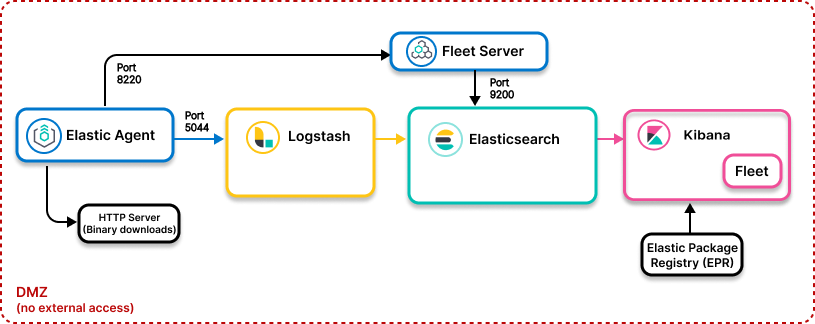

Image showing Elastic Agent
Ingest model

All Elastic Stack components deployed inside a DMZ:

  • Control path: Elastic Agent to Fleet to Elasticsearch
  • Data path: Elastic Agent to Elasticsearch
Use when
Your self-managed Elastic Stack deployment has no access to outside networks

Resources

edit

Info for air-gapped environments:

Geoip database management in air-gapped environments

edit

The Logstash geoip filter requires regular database updates to remain up-to-date with the latest information. If you are using the Logstash geoip filter plugin in an air-gapped environment, you can manage updates through a proxy, a custom endpoint, or manually. Check out Manage your own database updates for more info.
