Using a custom agent with the OpenTelemetry Operator for Kubernetes

This is the second part of a two part series. The first part is available at Zero config OpenTelemetry auto-instrumentation for Kubernetes Java applications. In that first part I walk through setting up and installing the OpenTelemetry Operator for Kubernetes, and configuring that for auto-instrumentation of a Java application using the OpenTelemetry Java agent.

In this second part, I show how to install any Java agent via the OpenTelemetry operator, using the Elastic Java agents as examples.

Installation and configuration recap

Part 1 of this series, Zero config OpenTelemetry auto-instrumentation for Kubernetes Java applications, details the installation and configuration of the OpenTelemetry operator and an Instrumentation resource. Here is an outline of the steps as a reminder:

Install cert-manager, eg
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.14.4/cert-manager.yaml
Install the operator, eg
kubectl apply -f https://github.com/open-telemetry/opentelemetry-operator/releases/latest/download/opentelemetry-operator.yaml
Create an Instrumentation resource
Add an annotation to either the deployment or the namespace
Deploy the application as normal

In that first part, steps 3, 4 & 5 were implemented for the OpenTelemetry Java agent. In this blog I’ll implement them for other agents, using the Elastic APM agents as examples. I assume that steps 1 & 2 outlined above have already been done, ie that the operator is now installed. I will continue using the

banana

namespace for the examples, so ensure that namespace exists (

kubectl create namespace banana

). As per part 1, if you use any of the example instrumentation definitions below, you’ll need to substitute

my.apm.server.url

and

my-apm-secret-token

with the values appropriate for your collector.

Using the Elastic Distribution for OpenTelemetry Java

From version 0.4.0, the Elastic Distribution for OpenTelemetry Java includes the agent jar at the path

/javaagent.jar

in the docker image - which is essentially all that is needed for a docker image to be usable by the OpenTelemetry operator for auto-instrumentation. This means the Instrumentation resource is straightforward to define, and as it’s a distribution of the OpenTelemetry Java agent, all the OpenTelemetry environment can apply:

apiVersion: opentelemetry.io/v1alpha1
kind: Instrumentation
metadata:
  name: elastic-otel
  namespace: banana
spec:
  exporter:
    endpoint: https://my.apm.server.url
  propagators:
    - tracecontext
    - baggage
    - b3
  sampler:
    type: parentbased_traceidratio
    argument: "1.0"
  java:
    image: docker.elastic.co/observability/elastic-otel-javaagent:0.5.0
    env:
      - name: OTEL_EXPORTER_OTLP_HEADERS
        value: "Authorization=Bearer my-apm-secret-token"
      - name: ELASTIC_OTEL_INFERRED_SPANS_ENABLED
        value: "true"
      - name: ELASTIC_OTEL_SPAN_STACK_TRACE_MIN_DURATION
        value: "50"

I’ve included environment for switching on several features in the agent, including

ELASTIC_APM_PROFILING_INFERRED_SPANS_ENABLED to switch on the inferred spans implementation feature described in this blog
Span stack traces are automatically captured if the span takes more than ELASTIC_OTEL_SPAN_STACK_TRACE_MIN_DURATION (default would be 5ms)

Adding in the annotation ...

metadata:
  annotations:
    instrumentation.opentelemetry.io/inject-java: "elastic-otel"

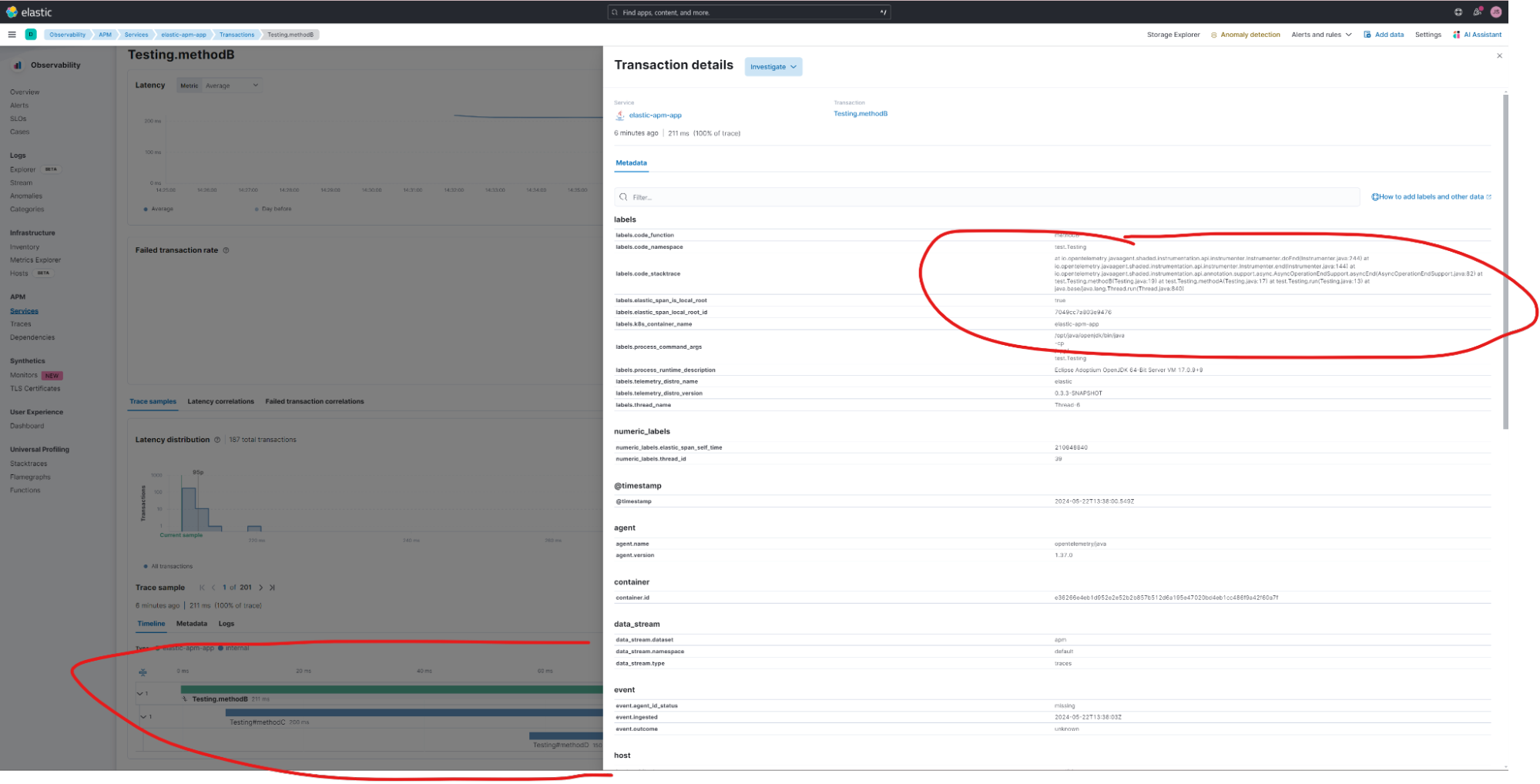

... to the pod yaml gets the application traced, and displayed in the Elastic APM UI, including the inferred child spans and stack traces

The additions from the features mentioned above are circled in red - inferred spans (for methodC and methodD) bottom left, and the stack trace top right. (Note that the pod included the

OTEL_INSTRUMENTATION_METHODS_INCLUDE

environment variable set to

"test.Testing[methodB]"

so that traces from methodB are shown; for pod configuration see the "Trying it" section in part 1)

Using the Elastic APM Java agent

From version 1.50.0, the Elastic APM Java agent includes the agent jar at the path /javaagent.jar in the docker image - which is essentially all that is needed for a docker image to be usable by the OpenTelemetry operator for auto-instrumentation. This means the Instrumentation resource is straightforward to define:

apiVersion: opentelemetry.io/v1alpha1
kind: Instrumentation
metadata:
  name: elastic-apm
  namespace: banana
spec:
  java:
    image: docker.elastic.co/observability/apm-agent-java:1.51.0
    env:
      - name: ELASTIC_APM_SERVER_URL
        value: "https://my.apm.server.url"
      - name: ELASTIC_APM_SECRET_TOKEN
        value: "my-apm-secret-token"
      - name: ELASTIC_APM_LOG_LEVEL
        value: "INFO"
      - name: ELASTIC_APM_PROFILING_INFERRED_SPANS_ENABLED
        value: "true"
      - name: ELASTIC_APM_LOG_SENDING
        value: "true"

I’ve included environment for switching on several features in the agent, including

ELASTIC_APM_LOG_LEVEL set to the default value (INFO) which could easily be switched to DEBUG
ELASTIC_APM_PROFILING_INFERRED_SPANS_ENABLED to switch on the inferred spans implementation equivalent to the feature described in this blog
ELASTIC_APM_LOG_SENDING which switches on sending logs to the APM UI, the logs are automatically correlated with transactions (for all common logging frameworks)

Adding in the annotation ...

metadata:
  annotations:
     instrumentation.opentelemetry.io/inject-java: "elastic-apm"

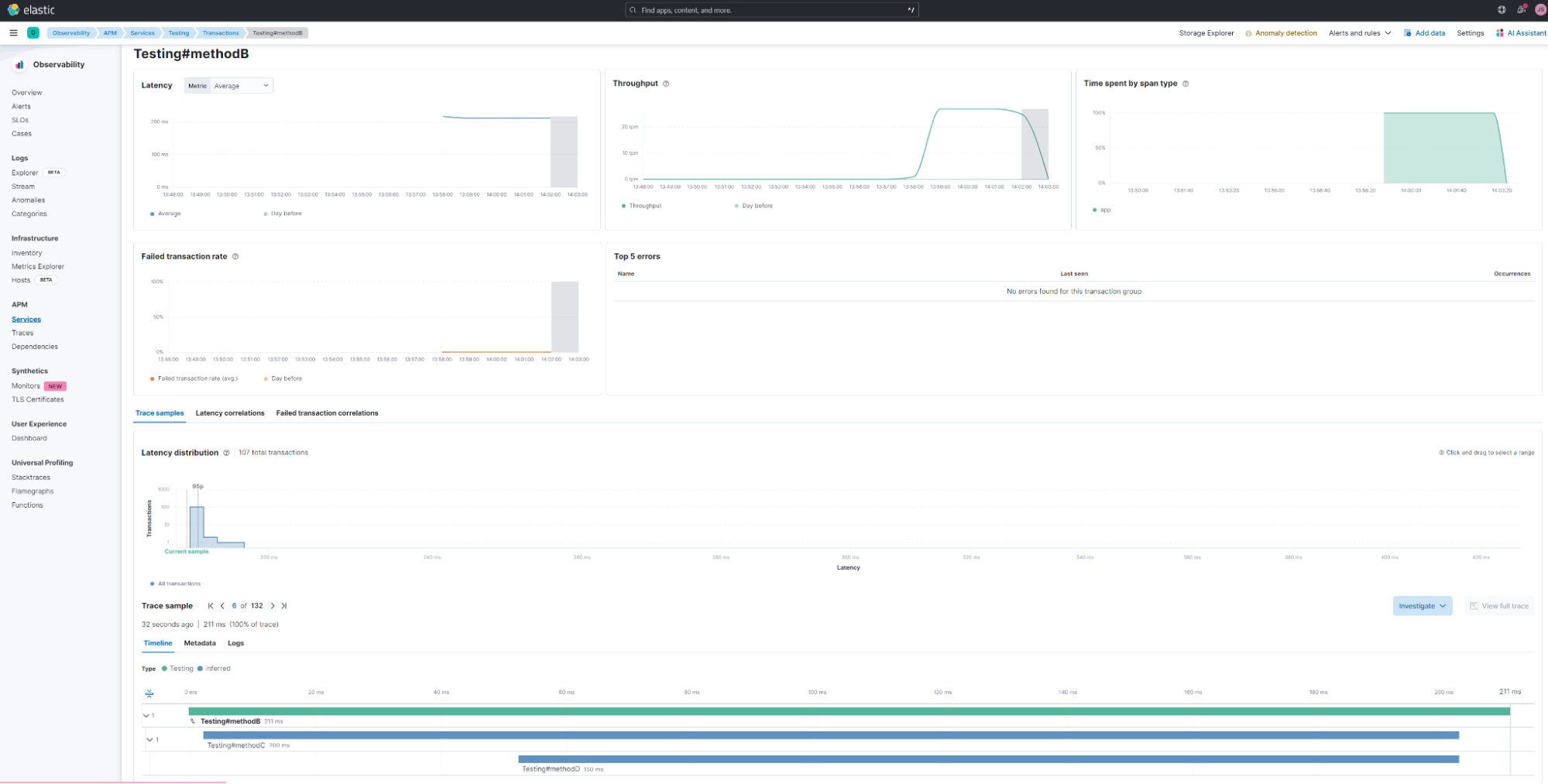

... to the pod yaml gets the application traced, and displayed in the Elastic APM UI, including the inferred child spans

(Note that the pod included the

ELASTIC_APM_TRACE_METHODS

environment variable set to

"test.Testing#methodB"

so that traces from methodB are shown; for pod configuration see the "Trying it" section in part 1)

Using an extension with the OpenTelemetry Java agent

Setting up an Instrumentation resource for the OpenTelemetry Java agent is straightforward and was done in part 1 of this two part series - and you can see from the above examples it’s just a matter of deciding on the docker image URL you want to use. However if you want to include an extension in your deployment, this is a little more complex, but also supported by the operator. Basically the extensions you want to include with the agent need to be in docker images - or you have to build an image which includes the extensions that are not already in images. Then you declare the images and the directories the extensions are in, in the Instrumentation resource. As an example, I’ll show an Instrumentation which uses version 2.5.0 of the OpenTelemetry Java agent together with the inferred spans extension from the Elastic OpenTelemetry Java distribution. The distro image includes the extension at path

/extensions/elastic-otel-agentextension.jar

. The Instrumentation resource allows either directories or file paths to be specified, here I’ll list the directory:

apiVersion: opentelemetry.io/v1alpha1
kind: Instrumentation
metadata:
  name: otel-plus-extension-instrumentation
  namespace: banana
spec:
  exporter:
    endpoint: https://my.apm.server.url
  propagators:
    - tracecontext
    - baggage
    - b3
  sampler:
    type: parentbased_traceidratio
    argument: "1.0"
  java:
    image: ghcr.io/open-telemetry/opentelemetry-operator/autoinstrumentation-java:2.5.0
    extensions:
      - image: "docker.elastic.co/observability/elastic-otel-javaagent:0.5.0"
        dir: "/extensions"
    env:
      - name: OTEL_EXPORTER_OTLP_HEADERS
        value: "Authorization=Bearer my-apm-secret-token"
      - name: ELASTIC_OTEL_INFERRED_SPANS_ENABLED
        value: "true"

Note that you can have multiple

image … dir

pairs, ie include multiple extensions from different images. Note also if you are testing this specific configuration that the inferred spans extension included here will be contributed to the OpenTelemetry contrib repo at some point after this blog is published, after which the extension may no longer be present in a later version of the referred image (since it will be available from the contrib repo instead).

Next steps

Here I’ve shown how to use any agent with the OpenTelemetry Operator for Kubernetes, and configure that for your system. In particular the examples have showcased how to use the Elastic Java agents to auto-instrument Java applications running in your Kubernetes clusters, along with how to enable features, using Instrumentation resources. And you can set it up for either zero config for deployments, or for just one annotation which is generally a more flexible mechanism (you can have multiple Instrumentation resource definitions, and the deployment can select the appropriate one for its application).
