Searching by music: Leveraging vector search for audio information retrieval

Welcome to the future of music information retrieval, where machine learning, vector databases, and audio data analysis converge to deliver exciting new possibilities! If you're interested in the world of music data analytics or merely passionate about how technology is revolutionizing the music industry, this guide is for you.

Here, we will take you on a journey of searching music data using an approach known as vector search. Since more than 80% of our world data is unstructured, it is good to know how to treat different kinds of data other than text.

If you want to follow and execute the code while reading, access the file on GitHub listed at the end of this article.

The architecture

Imagine if you could hum the tune of a song you're trying to recall, and suddenly the song you hummed appears on the screen? Of course, given the necessary effort and data model tuning, that's what we're going to do today.

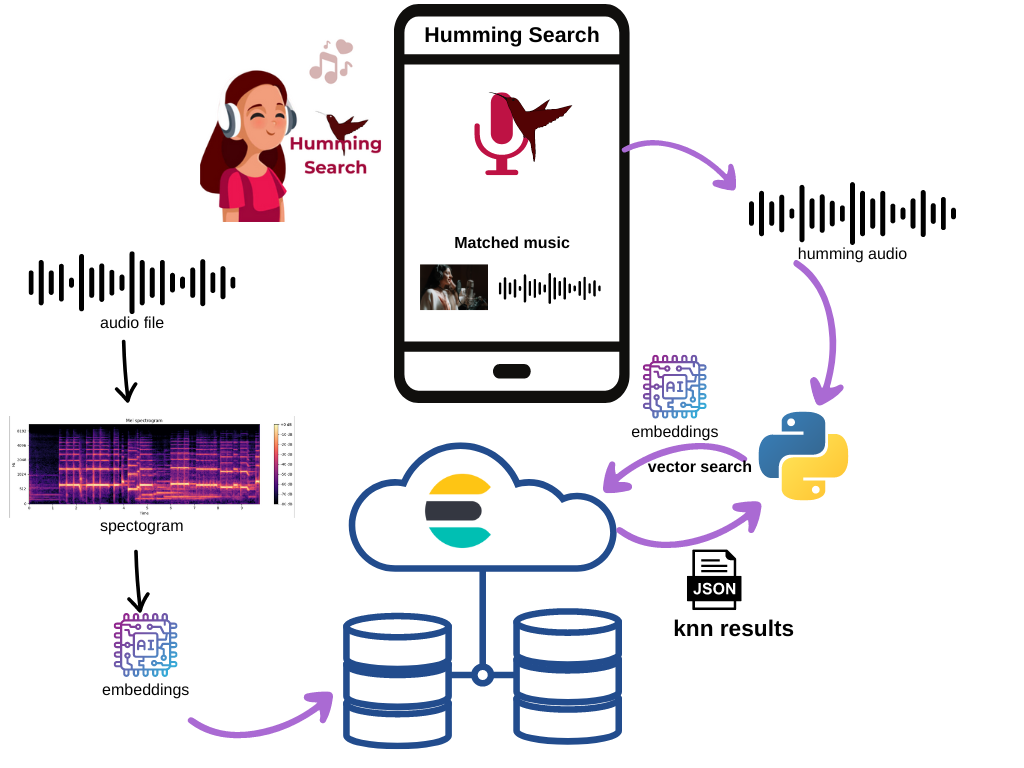

To achieve our result, we will create an architecture as shown below:

The main actor here is the embeddings. We will use the audio embedding generated by a model to use as a search key in our vector search.

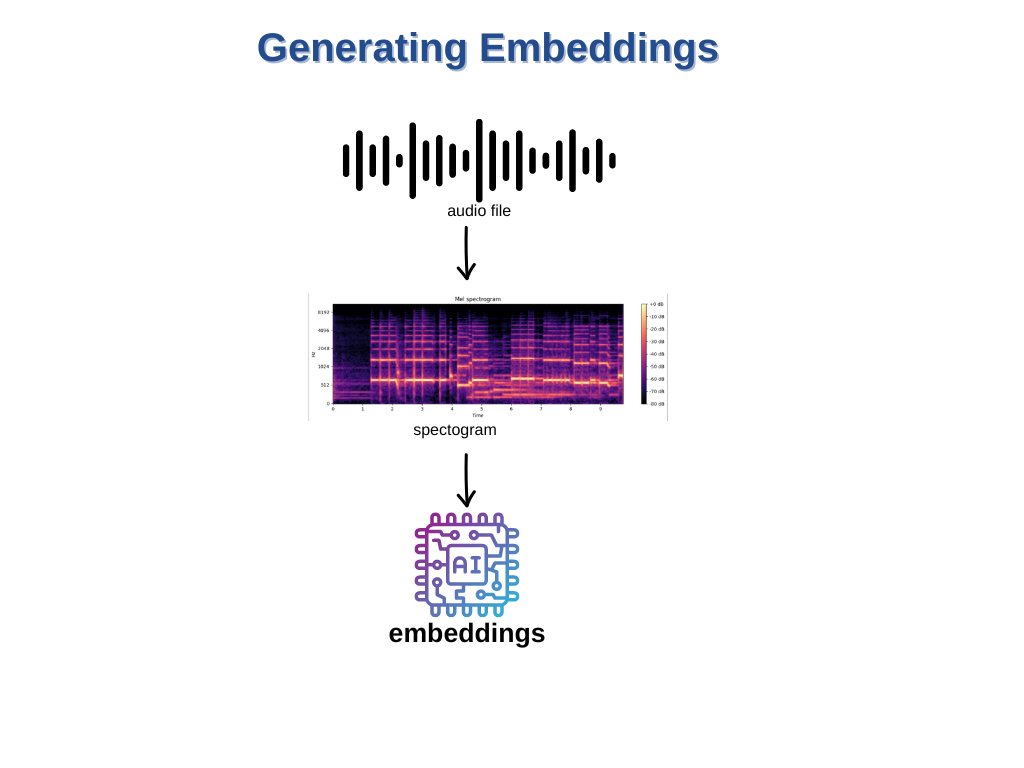

How to generate an audio embedding

At the core of generating embeddings are models that are trained on millions of examples to deliver more relevant and accurate results. For audio, these models can be trained on a vast amount of audio data. The output of these models is a dense numeric representation of the audio (i.e., the audio embedding). This high-dimensional vector captures key characteristics of the audio clip, allowing for similarity computations and efficient searches in the embedded space.

For that job, we will use librosa (open source python package) to generate audio embeddings. This typically involves extracting meaningful features from audio files, such as Mel-frequency cepstral coefficients (MFCCs), chroma, and mel-scaled spectrogram features. So, how can we implement audio search with Elasticsearch®?

Step 1: Creating an index to store audio data

First things first, we need to create an index in Elasticsearch before populating our vector database with our music data.

Begin by deploying Elasticsearch (we have a 14-day free trial for you).
During the process, remember to store the credentials (username, password) to be used in our Python code.
For simplicity, we will use Python code running on a Jupyter Notebook (Google Collab).

1.1 Create our audio data set index

Now that we have a connection, let's create an index that will store audio information.

# Here we're defining the index configuration. We're setting up mappings for our index which determine the data types for the fields in our documents.
index_config = {
  "mappings": {
    "_source": {
          "excludes": ["audio-embedding"]
      },
  "properties": {
      "audio-embedding": {
        "type": "dense_vector",
        "dims": 2048,
        "index": True,
        "similarity": "cosine"
      },
      "path": {
        "type": "text",
        "fields": {
          "keyword": {
            "type": "keyword",
            "ignore_above": 256
          }
        }
      },
      "timestamp": {
        "type": "date"
      },
      "title": {
        "type": "text"
      }
    }
  }
}

# Index name for creating in Elasticsearch
index_name = "my-audio-index"

# Checking and creating the index
if not es.indices.exists(index=index_name):
   index_creation = es.indices.create(index=index_name, ignore=400, body=index_config)
   print("index created: ", index_creation)
else:
   print("Index already exists.")

The provided Python code uses the Elasticsearch Python client to create an index with specific configurations. The aim of the index is to provide a structure that allows for search operations on dense vector fields, which are typically used to store vector representations or embeddings of some entity (such as audio files in this case).

The index_config object defines the mapping properties of this index, including fields for "audio-embedding", "path", "timestamp", and "title". The "audio-embedding" field is specified as a "dense_vector" type, accommodating for a dimensionality of 2048, and is indexed with "cosine" similarities, which dictate the method used to calculate the distance between vectors during search operations. The "path" field will store the path to play the audio. Note that to accommodate an embedding dimensionality of 2048, you'll need to use Elasticsearch version 8.8.0 or later.

The script then checks whether an index exists in the Elasticsearch instance. If the index does not exist, it creates a new index with the specified configuration. This type of index configuration can be used in scenarios such as audio search, where audio files are transformed into vector representations for indexing and subsequent similarity-based retrieval.

Step 2: Populating Elasticsearch with audio data

At the end of this step, you will have an index read to be filled with audio data to create our datastore. So that we can proceed with audio search, we first need to populate our database.

2.1 Selecting audio data to ingest

Numerous audio data sets have specific objectives. For our example, I will utilize files generated on the Google Music LM page, specifically from the Text and Melody Conditioning section. Put your audio files *.wav in a specific directory — in this case, I choose my GoogleDrive "/content/drive/MyDrive/audios".

import os


def list_audio_files(directory):
    # The list to store the names of .mp3, .wav files
    audio_files = []


    # Check if the path exists
    if os.path.exists(directory):
        # Walk the directory
        for root, dirs, files in os.walk(directory):
            for file in files:
                # Check if the file is a .wav file
                if file.endswith('.wav'):
                    # Extract the filename from the path
                    filename = os.path.splitext(file)[0]
                    print(filename)


                    # Add the file to the list
                    audio_files.append(file)
    else:
        print(f"The directory '{directory}' does not exist.")


    # Return the list of .mp3 files
    return audio_files


# Use the function
audio_files = list_audio_files("/content/drive/MyDrive/audios")

The code defines a function named list_audio_files that takes a directory as an argument. This function aims to traverse through a provided directory and its subdirectories, looking for audio files with the extension “.wav”. The function would need to be modified if support for .mp3 files is desired.

2.2 The power of embeddings for vector search

This step is where the magic happens. Vector similarity search is a mechanism to store, retrieve, and search for vectors based on their similarity given a query, commonly used in applications such as image retrieval, natural language processing, recommendation systems, and more. This concept is widely used due to the rise of deep learning and the representation of data using embeddings. Essentially, embeddings are vector representations of high-dimensional data.

The fundamental idea is to represent data items (e.g., images, documents, user profiles) as vectors in a high-dimensional space. Then, the similarity between vectors is measured using a distance metric, such as cosine similarity or Euclidean distance, and the most similar vectors are returned as the search results. While text embeddings are extracted using linguistic features, audio embeddings are often generated using spectrograms or other audio signal features.

generate embeddings — The process of creating embeddings for both text and audio data involves transforming the data into vectors using a feature extraction or embedding technique and then indexing these vectors in the vector search database.

2.2.3 Extracting the audio features

The next step involves analyzing our audio files and extracting meaningful features. This step is critical as it helps the machine learning model to understand and learn from our audio data.

In the context of audio signal processing for machine learning, the process of feature extraction from spectrograms is a crucial step. Spectrograms are visual representations of the frequency content of audio signals over time. The identified features in this context encompass three specific types:

Mel-frequency cepstral coefficients (MFCCs): MFCCs are coefficients that capture the spectral characteristics of audio signals in a manner more closely related to human auditory perception.
Chroma features: Chroma features represent the 12 distinct pitch classes of the musical octave and are particularly useful in music-related tasks.
Spectral contrast: Spectral contrast focuses on the perceptual brightness of different frequency bands within an audio signal.

By analyzing and comparing the effectiveness of these feature sets in real-world text files, researchers and practitioners can gain valuable insights into their suitability for various audio-based machine learning applications, such as audio classification and analysis.

First, we will need to convert our audio files into a suitable format for analysis. Libraries like librosa in Python can help with this conversion, turning the audio files into spectrograms.
Next, we will extract features from these spectrograms.
Then, we will save these features and send them as inputs for our machine learning model.

We are using panns_inference, which is a Python library designed for audio tagging and sound event detection tasks. The models used in this library are trained from PANNs, which stands for Large-Scale Pretrained Audio Neural Networks, a method for audio pattern recognition.

!pip install -qU panns-inference librosa

from panns_inference import AudioTagging


# load the default model into the gpu.
model = AudioTagging(checkpoint_path=None, device='cuda') # change device to cpu if a gpu is not available

Note: It may take a few minutes to download the PANNS inference model.

import numpy as np


# Function to normalize a vector. Normalizing a vector
means adjusting the values measured in different scales
to a common scale.
def normalize(v):
   # np.linalg.norm computes the vector's norm (magnitude).
The norm is the total length of all vectors in a space.
   norm = np.linalg.norm(v)
   if norm == 0:
        return v

   # Return the normalized vector.
   return v / norm


# Function to get an embedding of an audio file. An embedding is a reduced-dimensionality representation of the file.
def get_embedding (audio_file):

  # Load the audio file using librosa's load function, which returns an audio time series and its corresponding sample rate.
  a, _ = librosa.load(audio_file, sr=44100)

  # Reshape the audio time series to have an extra dimension, which is required by the model's inference function.
  query_audio = a[None, :]

  # Perform inference on the reshaped audio using the model. This returns an embedding of the audio.
  _, emb = model.inference(query_audio)


  # Normalize the embedding. This scales the embedding to have a length (magnitude) of 1, while maintaining its direction.
  normalized_v = normalize(emb[0])


  # Return the normalized embedding required for dot_product elastic similarity dense vector
  return normalized_v

2.3 Insert audio data into Elasticsearch

Now we have everything we need to insert our audio data into the Elasticsearch index.

from datetime import datetime


#Storing Songs in Elasticsearch with Vector Embeddings:
def store_in_elasticsearch(song, embedding, path, index_name, genre, vec_field):
  body = {
      'audio-embedding' : embedding,
      'title': song,
      'timestamp': datetime.now(),
      'path' : path,
      'genre' : genre


  }


  es.index(index=index_name, document=body)
  print ("stored...",song, embedding, path, genre, index_name)

audio_path = "/content/drive/MyDrive/@Blogs/MusicSearch/audios/"
# Initialize a list genre for test
genre_lst = ['jazz', 'opera', 'piano','prompt', 'humming', 'string', 'capella', 'eletronic', 'guitar']


for filename in audio_files:
  audio_file = audio_path + filename

  emb = get_embedding(audio_file)


  song = filename


  # Compare if genre list exists inside the song
  for g in genre_lst:
    if g in song.lower():
        genre = g
    else:
        genre = "generic"


  store_in_elasticsearch(song, emb, audio_file, index_name, genre, 2 )

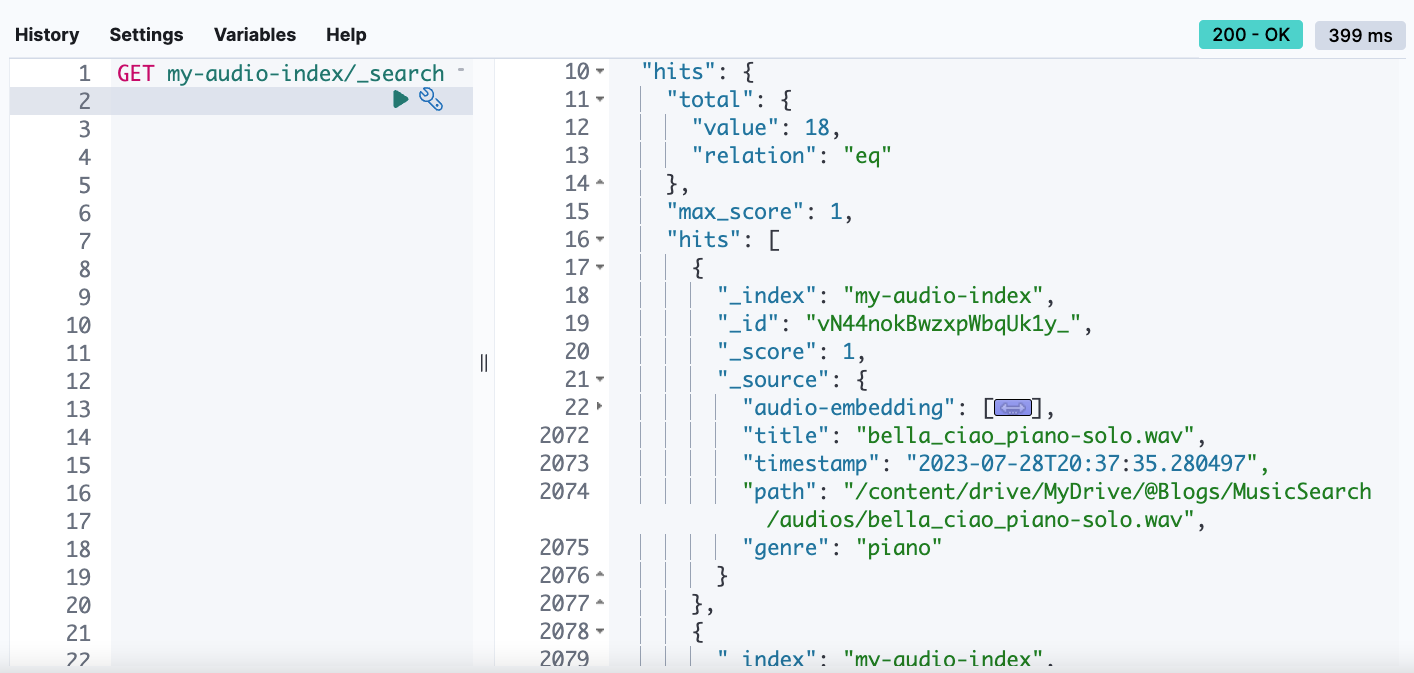

2.4 Visualizing the results in Kibana

At this point, we can check our index with audio data embedded in an audio-embedding dense-vector field. Kibana® Dev Tools, particularly the Console feature, is a powerful interface for interacting with your Elasticsearch cluster. It provides a way to directly send RESTful commands to Elasticsearch and view the results in a user-friendly format.

Step 3: Searching by music

Now, you can perform vector similarity search using the generated embeddings. When you provide an input song to the system, it will transform the song into an embedding, search the database for similar embeddings, and return songs with similar features.

# Define a function to query audio vector in Elasticsearch
def query_audio_vector(es, emb, field_key, index_name):
    # Initialize the query structure
    query = {
        "bool": {
            "filter": [{
                "exists": {
                    "field": field_key
                }
            }]
        }
    }


    # KNN search parameters
    # field is the name of the field to perform the search on
    # k is the number of nearest neighbors to find
    # num_candidates is the number of candidates to consider (more means slower but potentially more accurate results)
    # query_vector is the vector to find nearest neighbors for
    # boost is the multiplier for scores (higher means this match is considered more important)
    knn = {
        "field": field_key,
        "k": 2,
        "num_candidates": 100,
        "query_vector": emb,
        "boost": 100
    }


    # The fields to retrieve from the matching documents
    fields = ["title", "path", "genre", "body_content", "url"]


    # The name of the index to search
    index = index_name


    # Perform the search
    resp = es.search(index=index,
                     query=query,
                     knn=knn,
                     fields=fields,
                     size=5,
                     source=False)


    # Return the search results
    return resp

Let's start with the fun part!

3.1 Selecting music to search

In the code below, we select music directly from GitHub audios directory and use the Audio music to play the result inside Google Colab.

# Import necessary modules for audio display from IPython
from IPython.display import Audio, display


# Provide the URL of the audio file
my_audio = "/content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_humming.wav"


# Display the audio file in the notebook
Audio(my_audio)

You can play the music by clicking Play.

3.2 Searching the music

Now, let's run a code to search for that music "my_audio " inside Elasticsearch. We will use only the audio file for search.

# Generate the embedding vector from the provided audio file
emb = get_embedding(audio_file)


# Query the Elasticsearch instance 'es' with the embedding vector 'emb', field key 'audio-embedding',
# and index name 'my-audio-index'
resp = query_audio_vector (es, emb.tolist(), "audio-embedding", "my-audio-index" )

And Elasticsearch will return you all the music similar to your key song:

{
    'total': {
        'value': 18,
        'relation': 'eq'
    },
    'max_score': 100.0,
    'hits': [
        {
            '_index': 'my-audio-index',
            '_id': 'tt44nokBwzxpWbqUfVwN',
            '_score': 100.0,
            'fields': {
                'path': ['/content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_humming.wav'],
                'genre': ['humming'],
                'title': ['bella_ciao_humming.wav']
            }
        },
        {
            '_index': 'my-audio-index',
            '_id': 'u944nokBwzxpWbqUj1zy',
            '_score': 86.1148,
            'fields': {
                'path': ['/content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_opera-singer.wav'],
                'genre': ['opera'],
                'title': ['bella_ciao_opera-singer.wav']
            }
        },
        {
            '_index': 'my-audio-index',
            '_id': 'vt44nokBwzxpWbqUm1xK',
            '_score': 0.0,
            'fields': {
                'path': ['/content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_tribal-drums-and-flute.wav'],
                'genre': ['generic'],
                'title': ['bella_ciao_tribal-drums-and-flute.wav']
            }
        },
        {
            '_index': 'my-audio-index',
            '_id': 'uN44nokBwzxpWbqUhFye',
            '_score': 0.0,
            'fields': {
                'path': ['/content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_electronic-synth-lead.wav'],
                'genre': ['generic'],
                'title': ['bella_ciao_electronic-synth-lead.wav']
            }
        },
        {
            '_index': 'my-audio-index',
            '_id': 'wN44nokBwzxpWbqUpFyT',
            '_score': 0.0,
            'fields': {
                'path': ['/content/drive/MyDrive/@Blogs/MusicSearch/audios/a-cappella-chorus.wav'],
                'genre': ['generic'],
                'title': ['a-cappella-chorus.wav']
            }
        }
    ]
}

A little code to help play the results:

NUM_MUSIC = 5 # example value


for i in range(NUM_MUSIC):
  path = resp['hits']['hits'][i]['fields']['path'][0]
  print(path)

content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_humming.wav /content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_humming.wav /content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_a-cappella-chorus.wav /content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_electronic-synth-lead.wav /content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_guitar-solo.wav

Audio("/content/drive/MyDrive/@Blogs/MusicSearch/audios/bella_ciao_a-cappella-chorus.wav")

Now, you can check the result by clicking Play.

3.3 Analyzing the results

So, can I deploy this code in a production environment and sell my app? No, as a probabilistic model, the Probabilistic Auditory Neural Network (PANN), and any other machine learning models, require an increased volume of data and additional fine-tuning to be effectively applied in real-world scenarios.

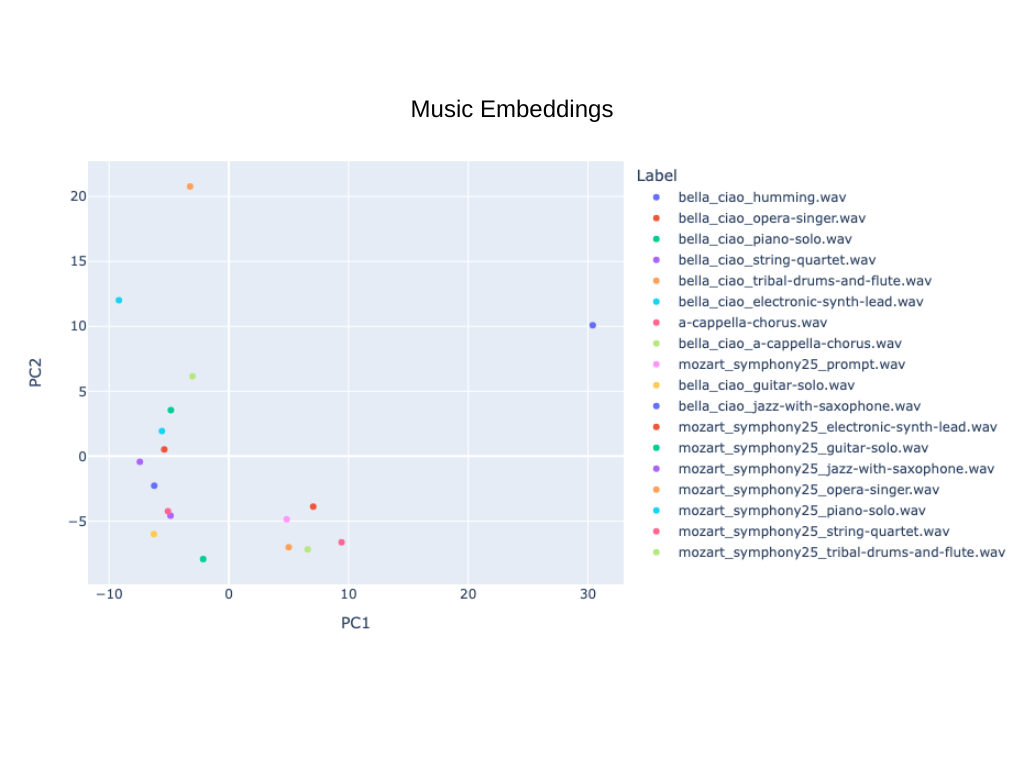

This is made evident by the graph visualizing the embeddings associated with our sample of 18 songs, which can cause false positives for a kNN approach. However, a notable challenge persists for future data engineers: the task of identifying the optimal model for query by humming. This represents a fascinating intersection of machine learning and auditory cognition, which calls for rigorous research and innovative problem-solving.

3.4 Improving the POC with a UI (optional)

With a little modification, I copied and pasted this entire code to Streamlit. Streamlit is a Python library that simplifies creating interactive web applications for data science and machine learning projects. It allows newcomers to easily turn data scripts into shareable web apps without extensive web development knowledge.

The result is this app:

A window to the future of audio search

We have successfully implemented a music search system using Elasticsearch vectors in Python. This serves as an initial point in the field of audio search and could potentially inspire more innovative concepts by utilizing this architectural approach. By altering the models, it is possible to develop diverse applications. Additionally, porting the inference to Elasticsearch could potentially enhance the performance. Visit Elastic’s machine learning page to learn more about it.

This indicates the considerable potential and adaptability of this technology for a variety of search applications beyond text.

All the code is available in a single Google Colab file, elastic-music_search.ipynb, on GitHub.

References
