Under the SADBRIDGE with GOSAR: QUASAR Gets a Golang Rewrite

Introduction

Elastic Security Labs recently observed a new intrusion set targeting Chinese-speaking regions, tracked as REF3864. These organized campaigns target victims by masquerading as legitimate software such as web browsers or social media messaging services. The threat group behind these campaigns shows a moderate degree of versatility in delivering malware across multiple platforms such as Linux, Windows, and Android. During this investigation, our team discovered a unique Windows infection chain with a custom loader we call SADBRIDGE. This loader deploys a Golang-based reimplementation of QUASAR, which we refer to as GOSAR. This is our team’s first time observing a rewrite of QUASAR in the Golang programming language.

Key takeaways

• Ongoing campaigns targeting Chinese language speakers with malicious installers masquerading as legitimate software like Telegram and the Opera web browser
• Infection chains employ injection and DLL side-loading using a custom loader (SADBRIDGE)
• SADBRIDGE deploys a newly-discovered variant of the QUASAR backdoor written in Golang (GOSAR)
• GOSAR is a multi-functional backdoor under active development with incomplete features and iterations of improved features observed over time
• Elastic Security provides comprehensive prevention and detection capabilities against this attack chain

REF3864 Campaign Overview

In November, the Elastic Security Labs team observed a unique infection chain when detonating several different samples uploaded to VirusTotal. These different samples were hosted via landing pages masquerading as legitimate software such as Telegram or the Opera GX browser.

During this investigation, we uncovered multiple infection chains involving similar techniques:

• Trojanized MSI installers with low detections
• Masquerading using legitimate software bundled with malicious DLLs
• Custom SADBRIDGE loader deployed
• Final stage GOSAR loaded

We believe these campaigns have flown under the radar due to multiple levels of abstraction. Typically, the first phase involves opening an archive file (ZIP) that includes an MSI installer. Legitimate software like the Windows x64dbg.exe debugging application is used behind-the-scenes to load a malicious, patched DLL (x64bridge.dll). This DLL kicks off a new legitimate program (MonitoringHost.exe) where it side-loads another malicious DLL (HealthServiceRuntime.dll), ultimately performing injection and loading the GOSAR implant in memory via injection.

Malware researchers extracted SADBRIDGE configurations that reveal adversary-designated campaign dates, and indicate operations with similar TTP’s have been ongoing since at least December 2023. The command-and-control (C2) infrastructure for GOSAR often masquerades under trusted services or software to appear benign and conform to victim expectations for software installers. Throughout the execution chain, there is a focus centered around enumerating Chinese AV products such as 360tray.exe, along with firewall rule names and descriptions in Chinese. Due to these customizations we believe this threat is geared towards targeting Chinese language speakers. Additionally, extensive usage of Chinese language logging indicates the attackers are also Chinese language speakers.

QUASAR has previously been used in state-sponsored espionage, non-state hacktivism, and criminal financially motivated attacks since 2017 (Qualys, Evolution of Quasar RAT), including by China-linked APT10. A rewrite in Golang might capitalize on institutional knowledge gained over this period, allowing for additional capabilities without extensive retraining of previously effective TTPs.

GOSAR extends QUASAR with additional information-gathering capabilities, multi-OS support, and improved evasion against anti-virus products and malware classifiers. However, the generic lure websites, and lack of additional targeting information, or actions on the objective, leave us with insufficient evidence to identify attacker motivation(s).

SADBRIDGE Introduction

The SADBRIDGE malware loader is packaged as an MSI executable for delivery and uses DLL side-loading with various injection techniques to execute malicious payloads. SADBRIDGE abuses legitimate applications such as x64dbg.exe and MonitoringHost.exe to load malicious DLLs like x64bridge.dll and HealthServiceRuntime.dll, which leads to subsequent stages and shellcodes.

Persistence is achieved through service creation and registry modifications. Privilege escalation to Administrator occurs silently using a UAC bypass technique that abuses the ICMLuaUtil COM interface. In addition, SADBRIDGE incorporates a privilege escalation bypass through Windows Task Scheduler to execute its main payload with SYSTEM level privileges.

The SADBRIDGE configuration is encrypted using a simple subtraction of 0x1 on each byte of the configuration string. The encrypted stages are all appended with a .log extension, and decrypted during runtime using XOR and the LZNT1 decompression algorithm.

SADBRIDGE employs PoolParty, APC queues, and token manipulation techniques for process injection. To avoid sandbox analysis, it uses long Sleep API calls. Another defense evasion technique involves API patching to disable Windows security mechanisms such as the Antimalware Scan Interface (AMSI) and Event Tracing for Windows (ETW).

The following deep dive is structured to explore the execution chain, providing a step-by-step walkthrough of the capabilities and functionalities of significant files and stages, based on the configuration of the analyzed sample. The analysis aims to highlight the interaction between each component and their roles in reaching the final payload.

SADBRIDGE Code Analysis

MSI Analysis

The initial files are packaged in an MSI using Advanced Installer, the main files of interest are x64dbg.exe and x64bridge.dll.

By using MSI tooling (lessmsi), we can see the LaunchApp entrypoint in aicustact.dll is configured to execute the file path specified in the AI_APP_FILE property.

If we navigate to this AI_APP_FILE property, we can see the file tied to this configuration is x64dbg.exe. This represents the file that will be executed after the installation is completed, the legitimate NetFxRepairTool.exe is never executed.

x64bridge.dll Side-loading

When x64dbg.exe gets executed, it calls the BridgeInit export from x64bridge.dll. BridgeInit is a wrapper for the BridgeStart function.

Similar to techniques observed with BLISTER, SADBRIDGE patches the export of a legitimate DLL.

During the malware initialization routine, SADBRIDGE begins with generating a hash using the hostname and a magic seed 0x4E67C6A7. This hash is used as a directory name for storing the encrypted configuration file. The encrypted configuration is written to C:\Users\Public\Documents\<hostname_hash>\edbtmp.log. This file contains the attributes FILE_ATTRIBUTE_SYSTEM, FILE_ATTRIBUTE_READONLY, FILE_ATTRIBUTE_HIDDEN to hide itself from an ordinary directory listing.

Decrypting the configuration is straightforward, the encrypted chunks are separated with null bytes. For each byte within the encrypted chunks, we can increment them by 0x1.

The configuration consists of:

• Possible campaign date
• Strings to be used for creating services
• New name for MonitoringHost.exe (DevQueryBroker.exe)
• DLL name for the DLL to be sideloaded by MonitoringHost.exe (HealthServiceRuntime.dll)
• Absolute paths for additional stages (.log files)
• The primary injection target for hosting GOSAR (svchost.exe)

The DevQueryBroker directory (C:\ProgramData\Microsoft\DeviceSync\Device\Stage\Data\DevQueryBroker\) contains all of the encrypted stages (.log files) that are decrypted at runtime. The file (DevQueryBroker.exe) is a renamed copy of Microsoft legitimate application (MonitoringHost.exe).

Finally, it creates a process to run DevQueryBroker.exe which side-loads the malicious HealthServiceRuntime.dll in the same folder.

HealthServiceRuntime.dll

This module drops both an encrypted and partially decrypted shellcode in the User’s %TEMP% directory. The file name for the shellcode follows the format: log<random_string>.tmp. Each byte of the partially decrypted shellcode is then decremented by 0x10 to fully decrypt. The shellcode is executed in a new thread of the same process.

The malware leverages API hashing using the same algorithm in research published by SonicWall, the hashing algorithm is listed in the Appendix section. The shellcode decrypts DevQueryBroker.log into a PE file then performs a simple XOR operation with a single byte (0x42) in the first third of the file where then it decompresses the result using the LZNT1 algorithm.

The shellcode then unmaps any existing mappings at the PE file's preferred base address using NtUnmapViewOfSection, ensuring that a call to VirtualAlloc will allocate memory starting at the preferred base address. Finally, it maps the decrypted PE file to this allocated memory and transfers execution to its entry point. All shellcodes identified and executed by SADBRIDGE share an identical code structure, differing only in the specific .log files they reference for decryption and execution.

DevQueryBroker.log

The malware dynamically loads amsi.dll to disable critical security mechanisms in Windows. It patches AmsiScanBuffer in amsi.dll by inserting instructions to modify the return value to 0x80070057, the standardized Microsoft error code E_INVALIDARG indicating invalid arguments, and returning prematurely, to effectively bypass the scanning logic. Similarly, it patches AmsiOpenSession to always return the same error code E_INVALIDARG. Additionally, it patches EtwEventWrite in ntdll.dll, replacing the first instruction with a ret instruction to disable Event Tracing for Windows (ETW), suppressing any logging of malicious activity.

Following the patching, an encrypted shellcode is written to temp.ini at path (C:\ProgramData\Microsoft\DeviceSync\Device\Stage\Data\DevQueryBroker\temp.ini).
The malware checks the current process token’s group membership to determine its privilege level. It verifies if the process belongs to the LocalSystem account by initializing a SID with the SECURITY_LOCAL_SYSTEM_RID and calling CheckTokenMembership. If not, it attempts to check for membership in the Administrators group by creating a SID using SECURITY_BUILTIN_DOMAIN_RID and DOMAIN_ALIAS_RID_ADMINS and performing a similar token membership check.

If the current process does not have LocalSystem or Administrator privileges, privileges are first elevated to Administrator through a UAC bypass mechanism by leveraging the ICMLuaUtil COM interface. It crafts a moniker string "Elevation:Administrator!new:{3E5FC7F9-9A51-4367-9063-A120244FBEC7}" to create an instance of the CMSTPLUA object with Administrator privileges. Once the object is created and the ICMLuaUtil interface is obtained, the malware uses the exposed ShellExec method of the interface to run DevQueryBroker.exe.

If a task or a service is not created to run DevQueryBroker.exe routinely, the malware checks if the Anti-Virus process 360tray.exe is running. If it is not running, a service is created for privilege escalation to SYSTEM, with the following properties:

• Service name: DevQueryBrokerService
  Binary path name: “C:\ProgramData\Microsoft\DeviceSync\Device\Stage\Data\DevQueryBroker\DevQueryBroker.exe -svc”.
• Display name: DevQuery Background Discovery Broker Service
• Description: Enables apps to discover devices with a background task.
• Start type: Automatically at system boot
• Privileges: LocalSystem

If 360tray.exe is detected running, the malware writes an encrypted PE file to DevQueryBrokerService.log, then maps a next-stage PE file (Stage 1) into the current process memory, transferring execution to it.

Once DevQueryBroker.exe is re-triggered with SYSTEM level privileges and reaches this part of the chain, the malware checks the Windows version. For systems running Vista or later (excluding Windows 7), it maps another next-stage (Stage 2) into memory and transfers execution there.

On Windows 7, however, it executes a shellcode, which decrypts and runs the DevQueryBrokerPre.log file.

Stage 1 Injection (explorer.exe)

SADBRIDGE utilizes PoolParty Variant 7 to inject shellcode into explorer.exe by targeting its thread pool’s I/O completion queue. It first duplicates a handle to the target process's I/O completion queue. It then allocates memory within explorer.exe to store the shellcode. Additional memory is allocated to store a crafted TP_DIRECT structure, which includes the base address of the shellcode as the callback address. Finally, it calls ZwSetIoCompletion, passing a pointer to the TP_DIRECT structure to queue a packet to the I/O completion queue of the target process's worker factory (worker threads manager), effectively triggering the execution of the injected shellcode.

This shellcode decrypts the DevQueryBrokerService.log file, unmaps any memory regions occupying its preferred base address, maps the PE file to that address, and then executes its entry point. This behavior mirrors the previously observed shellcode.

Stage 2 Injection (spoolsv.exe/lsass.exe)

For Stage 2, SADBRIDGE injects shellcode into spoolsv.exe, or lsass.exe if spoolsv.exe is unavailable, using the same injection technique as in Stage 1. The shellcode exhibits similar behavior to the earlier stages: it decrypts DevQueryBrokerPre.log into a PE file, unmaps any regions occupying its preferred base address, maps the PE file, and then transfers execution to its entry point.

DevQueryBrokerService.log

The shellcode decrypted from DevQueryBrokerService.log as mentioned in the previous section leverages a privilege escalation technique using the Windows Task Scheduler. SADBRIDGE integrates a public UAC bypass technique using the IElevatedFactorySever COM object to indirectly create the scheduled task. This task is configured to run DevQueryBroker.exe on a daily basis with SYSTEM level privileges using the task name DevQueryBrokerService.

In order to cover its tracks, the malware spoofs the image path and command-line by modifying the Process Environment Block (PEB) directly, likely in an attempt to disguise the COM service as coming from explorer.exe.

DevQueryBrokerPre.log

SADBRIDGE creates a service named DevQueryBrokerServiceSvc under the registry subkey SYSTEM\CurrentControlSet\Services\DevQueryBrokerServiceSvc with the following attributes:

• Description: Enables apps to discover devices with a background task.
• DisplayName: DevQuery Background Discovery Broker Service
• ErrorControl: 1
• ImagePath: %systemRoot%\system32\svchost.exe -k netsvcs
• ObjectName: LocalSystem
• Start: 2 (auto-start)
• Type: 16.
• Failure Actions:
  • Resets failure count every 24 hours.
  • Executes three restart attempts: a 20ms delay for the first, and a 1-minute delay for the second and third.

The service parameters specify the ServiceDll located at C:\Program Files (x86)\Common Files\Microsoft Shared\Stationery\<hostname_hash>\DevQueryBrokerService.dll. If the DLL file does not exist, it will be dropped to disk right after.

DevQueryBrokerService.dll has a similar code structure as HealthServiceRuntime.dll, which is seen in the earlier stages of the execution chain. It is responsible for decrypting DevQueryBroker.log and running it. The ServiceDll will be loaded and executed by svchost.exe when the service starts.

Additionally, it modifies the SOFTWARE\Microsoft\Windows NT\CurrentVersion\Svchost\netsvcs key to include an entry for DevQueryBrokerServiceSvc to integrate the newly created service into the group of services managed by the netsvcs service host group.

SADBRIDGE then deletes the scheduled task and service created previously by removing the registry subkeys SOFTWARE\\Microsoft\\Windows NT\\CurrentVersion\\Schedule\\TaskCache\\Tree\\DevQueryBrokerService and SYSTEM\\CurrentControlSet\\Services\\DevQueryBrokerService.

Finally, it removes the files DevQueryBroker.exe and HealthServiceRuntime.dll in the C:\ProgramData\Microsoft\DeviceSync\Device\Stage\Data\DevQueryBroker folder, as the new persistence mechanism is in place.

GOSAR Injection

In the latter half of the code, SADBRIDGE enumerates all active sessions on the local machine using the WTSEnumerateSessionsA API.

If sessions are found, it iterates through each session:

• For each session, it attempts to retrieve the username (WTSUserName) using WTSQuerySessionInformationA. If the query fails, it moves to the next session.
• If WTSUserName is not empty, the code targets svchost.exe, passing its path, the session ID, and the content of the loader configuration to a subroutine that injects the final stage.
• If WTSUserName is empty but the session's WinStationName is "Services" (indicating a service session), it targets dllhost.exe instead, passing the same parameters to the final stage injection subroutine.

If no sessions are found, it enters an infinite loop to repeatedly enumerate sessions and invoke the subroutine for injecting the final stage, while performing checks to avoid redundant injections.

Logged-in sessions target svchost.exe, while service sessions or sessions without a logged-in user target dllhost.exe.

If a session ID is available, the code attempts to duplicate the user token for that session and elevate the duplicated token's integrity level to S-1-16-12288 (System integrity). It then uses the elevated token to create a child process (svchost.exe or dllhost.exe) via CreateProcessAsUserA.

If token manipulation fails or no session ID is available (system processes can have a session ID of 0), it falls back to creating a process without a token using CreateProcessA.

The encrypted shellcode C:\ProgramData\Microsoft\DeviceSync\Device\Stage\Data\DevQueryBroker\temp.ini is decrypted using the same XOR and LZNT1 decompression technique seen previously to decrypt .log files, and APC injection is used to queue the shellcode for execution in the newly created process’s thread.

Finally, the injected shellcode decrypts DevQueryBrokerCore.log to GOSAR and runs it in the newly created process’s memory.

GOSAR Introduction

GOSAR is a multi-functional remote access trojan found targeting Windows and Linux systems. This backdoor includes capabilities such as retrieving system information, taking screenshots, executing commands, keylogging, and much more. The GOSAR backdoor retains much of QUASAR's core functionality and behavior, while incorporating several modifications that differentiate it from the original version.

By rewriting malware in modern languages like Go, this can offer reduced detection rates as many antivirus solutions and malware classifiers struggle to identify malicious strings/characteristics under these new programming constructs. Below is a good example of an unpacked GOSAR receiving only 5 detections upon upload.

Notably, this variant supports multiple platforms, including ELF binaries for Linux systems and traditional PE files for Windows. This cross-platform capability aligns with the adaptability of Go, making it more versatile than the original .NET-based QUASAR. Within the following section, we will focus on highlighting GOSAR’s code structure, new features and additions compared to the open-source version (QUASAR).

GOSAR Code Analysis Overview

Code structure of GOSAR

As the binary retained all its symbols, we were able to reconstruct the source code structure, which was extracted from a sample of version 0.12.01

• vibrant/config: Contains the configuration files for the malware.
• vibrant/proto: Houses all the Google Protocol Buffers (proto) declarations.
• vibrant/network: Includes functions related to networking, such as the main connection loop, proxy handling and also thread to configure the firewall and setting up a listener
• vibrant/msgs/resolvers: Defines the commands handled by the malware. These commands are assigned to an object within the vibrant_msgs_init* functions.
• vibrant/msgs/services: Introduces new functionality, such as running services like keyloggers, clipboard logger, these services are started in the vibrant_network._ptr_Connection.Start function.
• vibrant/logs: Responsible for logging the malware’s execution. The logs are encrypted with an AES key stored in the configuration. The malware decrypts the logs in chunks using AES.
• vibrant/pkg/helpers: Contains helper functions used across various malware commands and services.
• vibrant/pkg/screenshot: Handles the screenshot capture functionality on the infected system.
• vibrant/pkg/utils: Includes utility functions, such as generating random values.
• vibrant/pkg/native: Provides functions for calling Windows API (WINAPI) functions.

New Additions to GOSAR

Communication and information gathering

This new variant continues to use the same communication method as the original, based on TCP TLS. Upon connection, it first sends system information to the C2, with 4 new fields added:

• IPAddress
• AntiVirus
• ClipboardSettings
• Wallets

The list of AntiViruses and digital wallets are initialized in the function vibrant_pkg_helpers_init and can be found at the bottom of this document.

Services

The malware handles 3 services that are started during the initial connection of the client to the C2:

• vibrant_services_KeyLogger
• vibrant_services_ClipboardLogger
• vibrant_services_TickWriteFile

KeyLogger

The keylogging functionality in GOSAR is implemented in the vibrant_services_KeyLogger function. This feature relies on Windows APIs to intercept and record keystrokes on the infected system by setting a global Windows hook with SetWindowsHookEx with the parameter WH_KEYBOARD_LL to monitor low-level keyboard events. The hook function is named vibrant_services_KeyLogger_func1.

ClipboardLogger

The clipboard logging functionality is straightforward and relies on Windows APIs. It first checks for the availability of clipboard data using IsClipboardFormatAvailable then retrieves it using GetClipboardData API.

TickWriteFile

Both ClipboardLogger and KeyLogger services collect data that is written by the TickWriteFile periodically to directory (C:\ProgramData\Microsoft\Windows\Start Menu\Programs\diagnostics) under a file of the current date, example 2024-11-27.
It can be decrypted by first subtracting the value 0x1f then xoring it with the value 0x18 as shown in the CyberChef recipe.

Networking setup

After initializing its services, the malware spawns three threads dedicated to its networking setup.

• vibrant_network_ConfigFirewallRule
• vibrant_network_ConfigHosts
• vibrant_network_ConfigAutoListener

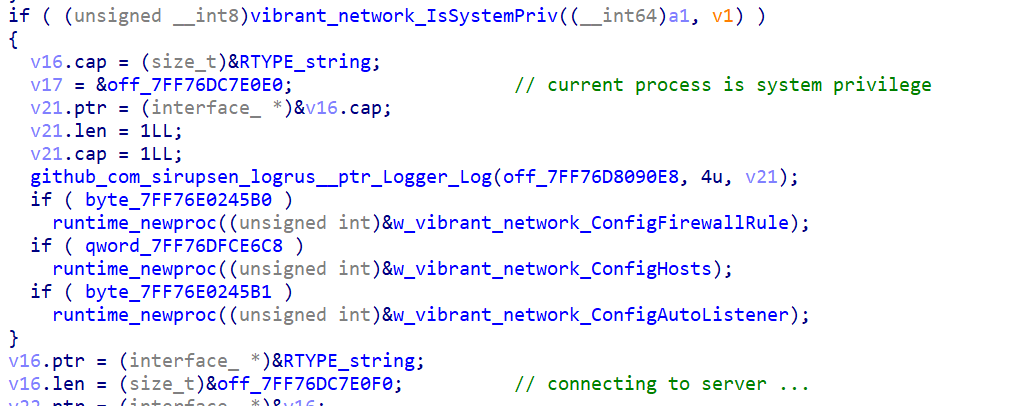

Threads handling networking setup

ConfigFirewallRule

The malware creates an inbound firewall rule for the ports range 51756-51776 under a Chinese name that is translated to Distributed Transaction Coordinator (LAN) it allows all programs and IP addresses inbound the description is set to :Inbound rules for the core transaction manager of the Distributed Transaction Coordinator service are managed remotely through RPC/TCP.

ConfigHosts

This function adds an entry to c:\Windows\System32\Drivers\etc\hosts the following 127.0.0.1 micrornetworks.com. The reason for adding this entry is unclear, but it is likely due to missing functionalities or incomplete features in the malware's current development stage.

ConfigAutoListener

This functionality of the malware runs an HTTP server listener on the first available port within the range 51756-51776, which was previously allowed by a firewall rule. Interestingly, the server does not handle any commands, which proves that the malware is still under development. The current version we have only processes a GET request to the URI /security.js, responding with the string callback();, any other request returns a 404 error code. This minimal response could indicate that the server is a placeholder or part of an early development stage, with the potential for more complex functionalities to be added later

Logs

The malware saves its runtime logs in the directory: %APPDATA%\Roaming\Microsoft\Logs under the filename formatted as: windows-update-log-<YearMonthDay>.log.
Each log entry is encrypted with HMAC-AES algorithm; the key is hardcoded in the vibrant_config function, the following is an example:

The attacker can remotely retrieve the malware's runtime logs by issuing the command ResolveGetRunLogs.

Plugins

The malware has the capability to execute plugins, which are PE files downloaded from the C2 and stored on disk encrypted with an XOR algorithm. These plugins are saved at the path: C:\ProgramData\policy-err.log. To execute a plugin, the command ResolveDoExecutePlugin is called, it first checks if a plugin is available.

It then loads a native DLL reflectively that is stored in base64 format in the binary named plugins.dll and executes its export function ExecPlugin.

ExecPlugin creates a suspended process of C:\Windows\System32\msiexec.exe with the arguments /package /quiet. It then queues Asynchronous Procedure Calls (APC) to the process's main thread. When the thread is resumed, the queued shellcode is executed.

The shellcode reads the encrypted plugin stored at C:\ProgramData\policy-err.log, decrypts it using a hardcoded 1-byte XOR key, and reflectively loads and executes it.

HVNC

The malware supports hidden VNC(HVNC) through the existing socket, it exposes 5 commands

• ResolveHVNCCommand
• ResolveGetHVNCScreen
• ResolveStopHVNC
• ResolveDoHVNCKeyboardEvent
• ResolveDoHVNCMouseEvent

The first command that is executed is ResolveGetHVNCScreen which will first initialise it and set up a view, it uses an embedded native DLL HiddenDesktop.dll in base64 format, the DLL is reflectively loaded into memory and executed.

The DLL is responsible for executing low level APIs to setup the HVNC, with a total of 7 exported functions:

• ExcuteCommand
• DoMouseScroll
• DoMouseRightClick
• DoMouseMove
• DoMouseLeftClick
• DoKeyPress
• CaptureScreen

The first export function called is Initialise to initialise a desktop with CreateDesktopA API. This HVNC implementation handles 17 commands in total that can be found in ExcuteCommand export, as noted it does have a typo in the name, the command ID is forwarded from the malware’s command ResolveHVNCCommand that will call ExcuteCommand.

Screenshot

The malware loads reflectively the third and last PE DLL embedded in base64 format named Capture.dll, it has 5 export functions:

• CaptureFirstScreen
• CaptureNextScreen
• GetBitmapInfo
• GetBitmapInfoSize
• SetQuality

The library is first initialized by calling resolvers_ResolveGetBitmapInfo that reflectively loads and executes its DllEntryPoint which will setup the screen capture structures using common Windows APIs like CreateCompatibleDC, CreateCompatibleBitmap and CreateDIBSection. The 2 export functions CaptureFirstScreen and CaptureNextScreen are used to capture a screenshot of the victim's desktop as a JPEG image.

Observation

Interestingly, the original .NET QUASAR server can still be used to receive beaconing from GOSAR samples, as they have retained the same communication protocol. However, operational use of it would require significant modifications to support GOSAR functionalities.

It is unclear whether the authors updated or extended the open source .NET QUASAR server, or developed a completely new one. It is worth mentioning that they have retained the default listening port, 1080, consistent with the original implementation.

New functionality

The following table provides a description of all the newly added commands:

Malware and MITRE ATT&CK

Elastic uses the MITRE ATT&CK framework to document common tactics, techniques, and procedures that threats use against enterprise networks.

Tactics

Tactics represent the why of a technique or sub-technique. It is the adversary’s tactical goal: the reason for performing an action.

• Collection
• Command and Control
• Defense Evasion
• Discovery
• Execution
• Exfiltration
• Persistence
• Privilege Escalation

Techniques

Techniques represent how an adversary achieves a tactical goal by performing an action.

• Hijack Execution Flow: DLL Side-Loading
• Input Capture: Keylogging
• Process Injection: Asynchronous Procedure Call
• Process Discovery
• Hide Artifacts: Hidden Window
• Create or Modify System Process: Windows Service
• Non-Standard Port
• Abuse Elevation Control Mechanism: Bypass User Account Control
• Obfuscated Files or Information
• Impair Defenses: Disable or Modify Tools
• Virtualization/Sandbox Evasion: Time Based Evasion

Mitigating REF3864

Detection

• Potential Antimalware Scan Interface Bypass via PowerShell
• Unusual Print Spooler Child Process
• Execution from Unusual Directory - Command Line
• External IP Lookup from Non-Browser Process
• Unusual Parent-Child Relationship
• Unusual Network Connection via DllHost
• Unusual Persistence via Services Registry
• Parent Process PID Spoofing

Prevention

• Network Connection via Process with Unusual Arguments
• Potential Masquerading as SVCHOST
• Network Module Loaded from Suspicious Unbacked Memory
• UAC Bypass via ICMLuaUtil Elevated COM Interface
• Potential Image Load with a Spoofed Creation Time

YARA

Elastic Security has created YARA rules to identify this activity.

• Multi.Trojan.Gosar
• Windows.Trojan.SadBridge

Observations

The following observables were discussed in this research:

References

The following were referenced throughout the above research:

• https://zcgonvh.com/post/Advanced_Windows_Task_Scheduler_Playbook-Part.2_from_COM_to_UAC_bypass_and_get_SYSTEM_dirtectly.html
• https://www.sonicwall.com/blog/project-androm-backdoor-trojan
• https://www.safebreach.com/blog/process-injection-using-windows-thread-pools/
• https://gist.github.com/api0cradle/d4aaef39db0d845627d819b2b6b30512

Appendix

Hashing algorithm (SADBRIDGE)

def ror(x, n, max_bits=32) -> int:
    """Rotate right within a max bit limit, default 32-bit."""
    n %= max_bits
    return ((x >> n) | (x << (max_bits - n))) & (2**max_bits - 1)

def ror_13(data) -> int:
    data = data.encode('ascii')
    hash_value = 0

    for byte in data:
        hash_value = ror(hash_value, 13)

        if byte >= 0x61:
            byte -= 32  # Convert to uppercase
        hash_value = (hash_value + byte) & 0xFFFFFFFF

    return hash_value


def generate_hash(data, dll) -> int:
    dll_hash = ror_13(dll)
    result = (dll_hash + ror_13(data)) & 0xFFFFFFFF

    return hex(result)

AV products checked in GOSAR
