How to deploy named entity recognition

You can use these instructions to deploy a named entity recognition (NER) model in Elasticsearch, test the model, and add it to an inference ingest pipeline. The model that is used in the example is publicly available on HuggingFace.

To follow along the process on this page, you must have:

You can use the Eland client to install the natural language processing model. Eland commands can be run in Docker. First, you need to clone the Eland repository then create a Docker image of Eland:

git clone git@github.com:elastic/eland.git
cd eland
docker build -t elastic/eland .

After the script finishes, your Eland Docker client is ready to use.

Select a NER model from the third-party model reference list. This example uses an uncased NER model.

Install the model by running the eland_import_model_hub command in the Docker image:

docker run -it --rm docker.elastic.co/eland/eland \
    eland_import_hub_model \
      --cloud-id $CLOUD_ID \
      -u <username> -p <password> \
      --hub-model-id elastic/distilbert-base-uncased-finetuned-conll03-english \
      --task-type ner \
      --start

You need to provide an administrator username and its password and replace the $CLOUD_ID with the ID of your Cloud deployment. This Cloud ID can be copied from the deployments page on your Cloud website.

Since the --start option is used at the end of the Eland import command, Elasticsearch deploys the model ready to use. If you have multiple models and want to select which model to deploy, you can use the Machine Learning > Model Management user interface in Kibana to manage the starting and stopping of models.

Go to the Machine Learning > Trained Models page and synchronize your trained models. A warning message is displayed at the top of the page that says "ML job and trained model synchronization required". Follow the link to "Synchronize your jobs and trained models." Then click Synchronize. You can also wait for the automatic synchronization that occurs in every hour, or use the sync machine learning objects API.

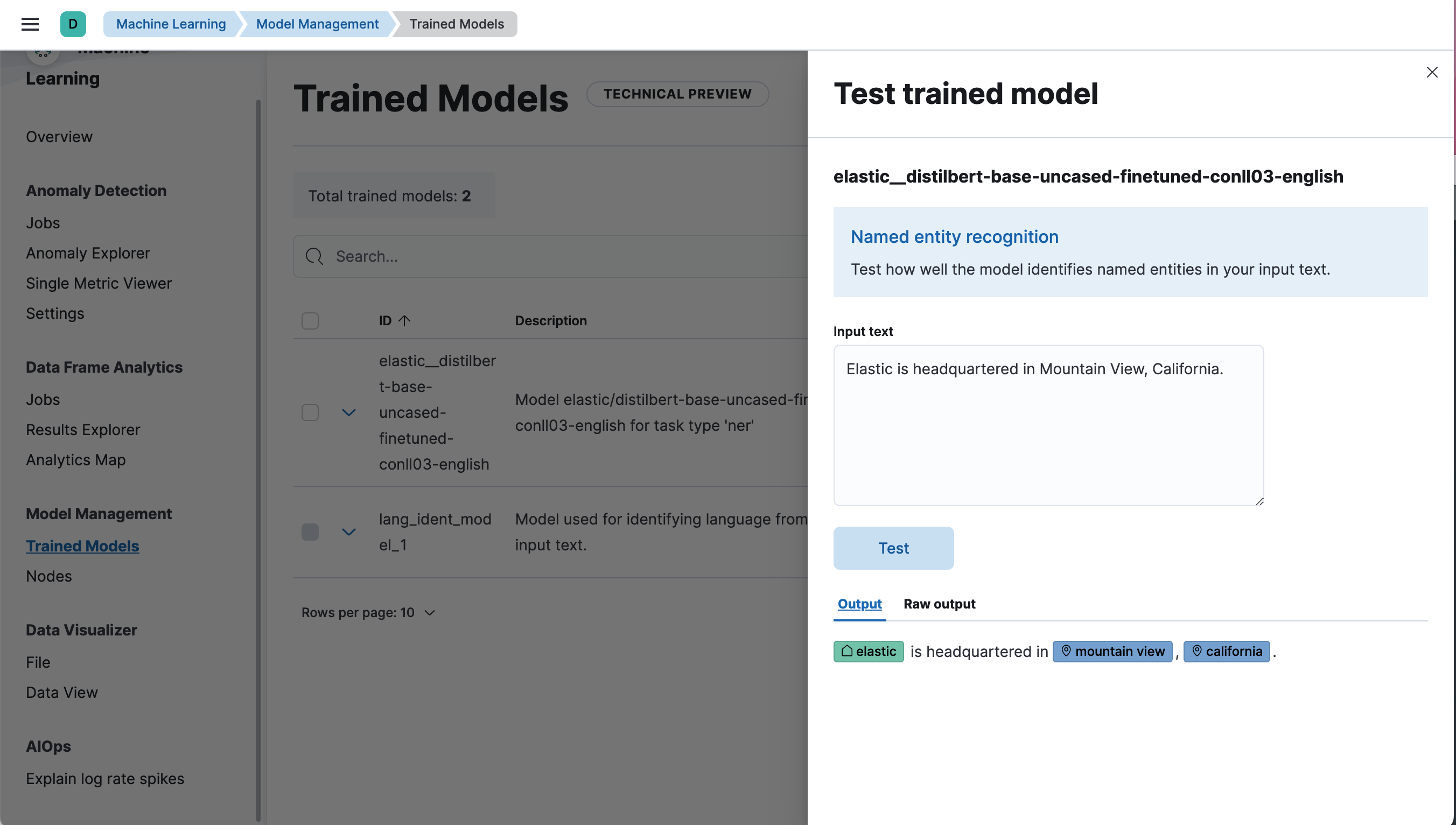

Deployed models can be evaluated in Kibana under Machine Learning > Trained Models by selecting the Test model action for the respective model.

POST _ml/trained_models/elastic__distilbert-base-uncased-finetuned-conll03-english/_infer
{
  "docs": [
    {
      "text_field": "Elastic is headquartered in Mountain View, California."
    }
  ]
}

{
  "inference_results": [
    {
      "predicted_value": "[Elastic](ORG&Elastic) is headquartered in [Mountain View](LOC&Mountain+View), [California](LOC&California).",
      "entities": [
        {
          "entity": "elastic",
          "class_name": "ORG",
          "class_probability": 0.9958921231805256,
          "start_pos": 0,
          "end_pos": 7
        },
        {
          "entity": "mountain view",
          "class_name": "LOC",
          "class_probability": 0.9844731508992688,
          "start_pos": 28,
          "end_pos": 41
        },
        {
          "entity": "california",
          "class_name": "LOC",
          "class_probability": 0.9972361009811214,
          "start_pos": 43,
          "end_pos": 53
        }
      ]
    }
  ]
}

Using the example text "Elastic is headquartered in Mountain View, California.", the model finds three entities: an organization "Elastic", and two locations "Mountain View" and "California".

You can perform bulk inference on documents as they are ingested by using an inference processor in your ingest pipeline. The novel Les Misérables by Victor Hugo is used as an example for inference in the following example. Download the novel text split by paragraph as a JSON file, then upload it by using the Data Visualizer. Give the new index the name les-miserables when uploading the file.

Now create an ingest pipeline either in the Stack management UI or by using the API:

PUT _ingest/pipeline/ner
{
  "description": "NER pipeline",
  "processors": [
    {
      "inference": {
        "model_id": "elastic__distilbert-base-uncased-finetuned-conll03-english",
        "target_field": "ml.ner",
        "field_map": {
          "paragraph": "text_field"
        }
      }
    },
    {
      "script": {
        "lang": "painless",
        "if": "return ctx['ml']['ner'].containsKey('entities')",
        "source": "Map tags = new HashMap(); for (item in ctx['ml']['ner']['entities']) { if (!tags.containsKey(item.class_name)) tags[item.class_name] = new HashSet(); tags[item.class_name].add(item.entity);} ctx['tags'] = tags;"
      }
    }
  ],
  "on_failure": [
    {
      "set": {
        "description": "Index document to 'failed-<index>'",
        "field": "_index",
        "value": "failed-{{{ _index }}}"
      }
    },
    {
      "set": {
        "description": "Set error message",
        "field": "ingest.failure",
        "value": "{{_ingest.on_failure_message}}"
      }
    }
  ]
}

The field_map object of the inference processor maps the paragraph field in the Les Misérables documents to text_field (the name of the field the model is configured to use). The target_field is the name of the field to write the inference results to.

The script processor pulls out the entities and groups them by type. The end result is lists of people, locations, and organizations detected in the input text. This painless script enables you to build visualizations from the fields that are created.

The purpose of the on_failure clause is to record errors. It sets the _index meta field to a new value, and the document is now stored there. It also sets a new field ingest.failure and the error message is written to this field. Inference can fail for a number of easily fixable reasons. Perhaps the model has not been deployed, or the input field is missing in some of the source documents. By redirecting the failed documents to another index and setting the error message, those failed inferences are not lost and can be reviewed later. When the errors are fixed, reindex from the failed index to recover the unsuccessful requests.

Ingest the text of the novel - the index les-miserables - through the pipeline you created:

POST _reindex
{
  "source": {
    "index": "les-miserables",
    "size": 50
  },
  "dest": {
    "index": "les-miserables-infer",
    "pipeline": "ner"
  }
}

Take a random paragraph from the source document as an example:

{
    "paragraph": "Father Gillenormand did not do it intentionally, but inattention to proper names was an aristocratic habit of his.",
    "line": 12700
}

After the text is ingested through the NER pipeline, find the resulting document stored in Elasticsearch:

GET /les-miserables-infer/_search
{
  "query": {
    "term": {
      "line": 12700
    }
  }
}

The request returns the document marked up with one identified person:

(...)
"paragraph": "Father Gillenormand did not do it intentionally, but inattention to proper names was an aristocratic habit of his.",
  "@timestamp": "2020-01-01T17:38:25.000+01:00",
  "line": 12700,
  "ml": {
    "ner": {
      "predicted_value": "Father [Gillenormand](PER&Gillenormand) did not do it intentionally, but inattention to proper names was an aristocratic habit of his.",
      "entities": [
        {
          "entity": "gillenormand",
          "class_name": "PER",
          "class_probability": 0.9452480789333386,
          "start_pos": 7,
          "end_pos": 19
        }
      ],
      "model_id": "elastic__distilbert-base-uncased-finetuned-conll03-english"
    }
  },
  "tags": {
    "PER": [
      "gillenormand"
    ]
  }
(...)

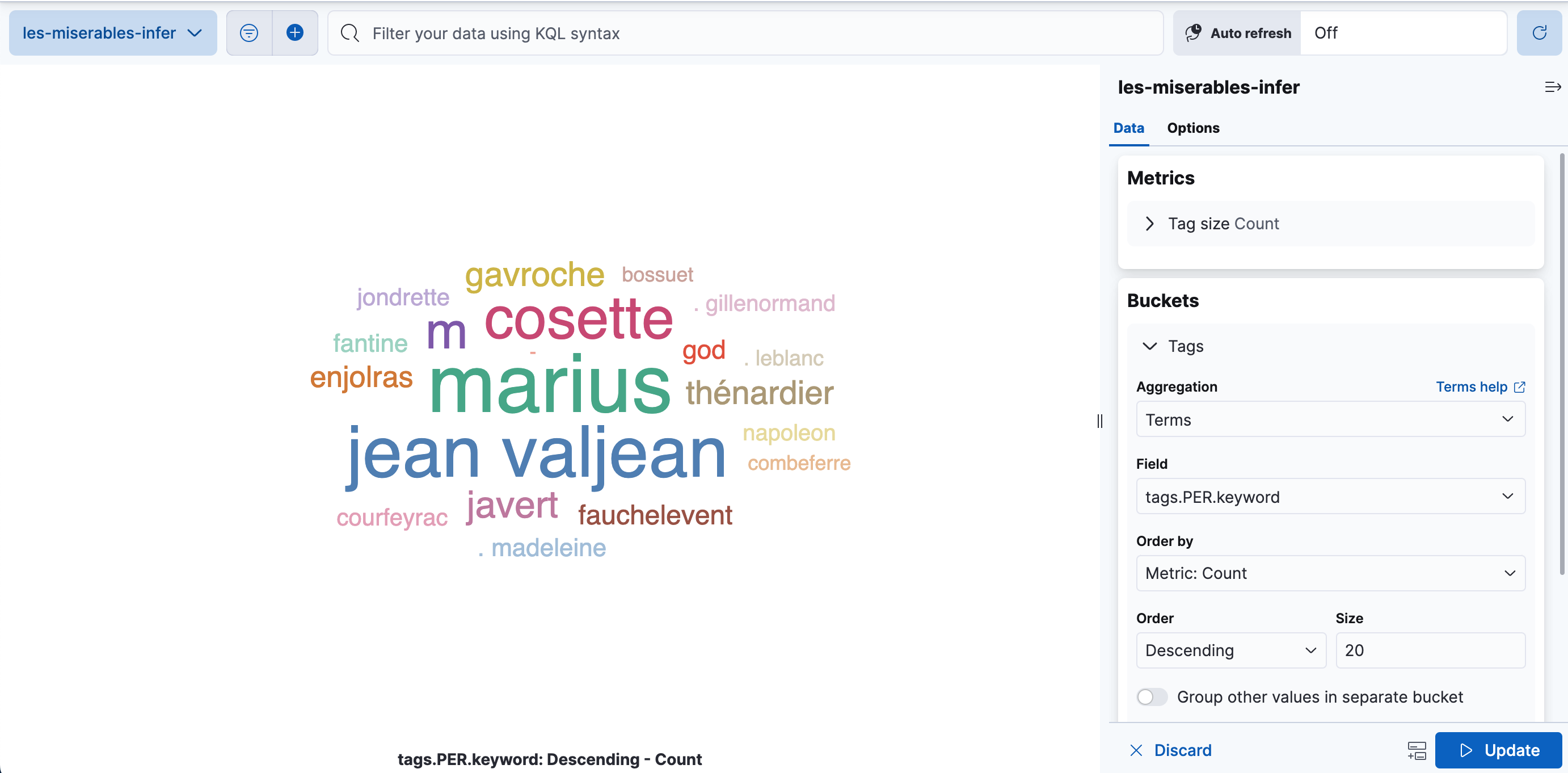

You can create a tag cloud to visualize your data processed by the inference pipeline. A tag cloud is a visualization that scales words by the frequency at which they occur. It is a handy tool for viewing the entities found in the data.

In Kibana, open Stack management > Data views, and create a new data view from the les-miserables-infer index pattern.

Open Dashboard and create a new dashboard. Select the Aggregation based-type > Tag cloud visualization. Choose the new data view as the source.

Add a new bucket with a term aggregation, select the tags.PER.keyword field, and increase the size to 20.

Optionally, adjust the time selector to cover the data points in the data view if you selected a time field when creating it.

Update and save the visualization.
