Parsing Logs with Logstash

edit

Parsing Logs with Logstash

edit

In Stashing Your First Event, you created a basic Logstash pipeline to test your Logstash setup. In the real world, a Logstash pipeline is a bit more complex: it typically has one or more input, filter, and output plugins.

In this section, you create a Logstash pipeline that uses Filebeat to take Apache web logs as input, parses those logs to create specific, named fields from the logs, and writes the parsed data to an Elasticsearch cluster. Rather than defining the pipeline configuration at the command line, you’ll define the pipeline in a config file.

To get started, go here to download the sample data set used in this example. Unpack the file.

Configuring Filebeat to Send Log Lines to Logstash

edit

Before you create the Logstash pipeline, you’ll configure Filebeat to send log lines to Logstash. The Filebeat client is a lightweight, resource-friendly tool that collects logs from files on the server and forwards these logs to your Logstash instance for processing. Filebeat is designed for reliability and low latency. Filebeat has a light resource footprint on the host machine, and the Beats input plugin minimizes the resource demands on the Logstash instance.

In a typical use case, Filebeat runs on a separate machine from the machine running your Logstash instance. For the purposes of this tutorial, Logstash and Filebeat are running on the same machine.

The default Logstash installation includes the Beats input plugin. The Beats input plugin enables Logstash to receive events from the Elastic Beats framework, which means that any Beat written to work with the Beats framework, such as Packetbeat and Metricbeat, can also send event data to Logstash.

To install Filebeat on your data source machine, download the appropriate package from the Filebeat product page. You can also refer to Getting Started with Filebeat in the Beats documentation for additional installation instructions.

After installing Filebeat, you need to configure it. Open the filebeat.yml file located in your Filebeat installation directory, and replace the contents with the following lines. Make sure paths points to the example Apache log file, logstash-tutorial.log, that you downloaded earlier:

filebeat.inputs:
- type: log
  paths:
    - /path/to/file/logstash-tutorial.log
output.logstash:
  hosts: ["localhost:5044"]

Absolute path to the file or files that Filebeat processes.

Save your changes.

To keep the configuration simple, you won’t specify TLS/SSL settings as you would in a real world scenario.

At the data source machine, run Filebeat with the following command:

sudo ./filebeat -e -c filebeat.yml -d "publish"

If you run Filebeat as root, you need to change ownership of the configuration file (see Config File Ownership and Permissions in the Beats Platform Reference).

Filebeat will attempt to connect on port 5044. Until Logstash starts with an active Beats plugin, there won’t be any answer on that port, so any messages you see regarding failure to connect on that port are normal for now.

Configuring Logstash for Filebeat Input

edit

Next, you create a Logstash configuration pipeline that uses the Beats input plugin to receive events from Beats.

The following text represents the skeleton of a configuration pipeline:

# The # character at the beginning of a line indicates a comment. Use
# comments to describe your configuration.
input {
}
# The filter part of this file is commented out to indicate that it is
# optional.
# filter {
#
# }
output {
}

This skeleton is non-functional, because the input and output sections don’t have any valid options defined.

To get started, copy and paste the skeleton configuration pipeline into a file named first-pipeline.conf in your home Logstash directory.

Next, configure your Logstash instance to use the Beats input plugin by adding the following lines to the input section of the first-pipeline.conf file:

    beats {
        port => "5044"
    }

You’ll configure Logstash to write to Elasticsearch later. For now, you can add the following line to the output section so that the output is printed to stdout when you run Logstash:

    stdout { codec => rubydebug }

When you’re done, the contents of first-pipeline.conf should look like this:

input {
    beats {
        port => "5044"
    }
}
# The filter part of this file is commented out to indicate that it is
# optional.
# filter {
#
# }
output {
    stdout { codec => rubydebug }
}

To verify your configuration, run the following command:

bin/logstash -f first-pipeline.conf --config.test_and_exit

The --config.test_and_exit option parses your configuration file and reports any errors.

If the configuration file passes the configuration test, start Logstash with the following command:

bin/logstash -f first-pipeline.conf --config.reload.automatic

The --config.reload.automatic option enables automatic config reloading so that you don’t have to stop and restart Logstash every time you modify the configuration file.

As Logstash starts up, you might see one or more warning messages about Logstash ignoring the pipelines.yml file. You can safely ignore this warning. The pipelines.yml file is used for running multiple pipelines in a single Logstash instance. For the examples shown here, you are running a single pipeline.

If your pipeline is working correctly, you should see a series of events like the following written to the console:

{
    "@timestamp" => 2017-11-09T01:44:20.071Z,
        "offset" => 325,
      "@version" => "1",
          "beat" => {
            "name" => "My-MacBook-Pro.local",
        "hostname" => "My-MacBook-Pro.local",
         "version" => "6.0.0"
    },
          "host" => "My-MacBook-Pro.local",
    "prospector" => {
        "type" => "log"
    },
    "input" => {
        "type" => "log"
    },
        "source" => "/path/to/file/logstash-tutorial.log",
       "message" => "83.149.9.216 - - [04/Jan/2015:05:13:42 +0000] \"GET /presentations/logstash-monitorama-2013/images/kibana-search.png HTTP/1.1\" 200 203023 \"http://semicomplete.com/presentations/logstash-monitorama-2013/\" \"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36\"",
          "tags" => [
        [0] "beats_input_codec_plain_applied"
    ]
}
...

Parsing Web Logs with the Grok Filter Plugin

edit

Now you have a working pipeline that reads log lines from Filebeat. However you’ll notice that the format of the log messages is not ideal. You want to parse the log messages to create specific, named fields from the logs. To do this, you’ll use the grok filter plugin.

The grok filter plugin is one of several plugins that are available by default in Logstash. For details on how to manage Logstash plugins, see the reference documentation for the plugin manager.

The grok filter plugin enables you to parse the unstructured log data into something structured and queryable.

Because the grok filter plugin looks for patterns in the incoming log data, configuring the plugin requires you to make decisions about how to identify the patterns that are of interest to your use case. A representative line from the web server log sample looks like this:

83.149.9.216 - - [04/Jan/2015:05:13:42 +0000] "GET /presentations/logstash-monitorama-2013/images/kibana-search.png
HTTP/1.1" 200 203023 "http://semicomplete.com/presentations/logstash-monitorama-2013/" "Mozilla/5.0 (Macintosh; Intel
Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36"

The IP address at the beginning of the line is easy to identify, as is the timestamp in brackets. To parse the data, you can use the %{COMBINEDAPACHELOG} grok pattern, which structures lines from the Apache log using the following schema:

Information	Field Name
IP Address	`clientip`
User ID	`ident`
User Authentication	`auth`
timestamp	`timestamp`
HTTP Verb	`verb`
Request body	`request`
HTTP Version	`httpversion`
HTTP Status Code	`response`
Bytes served	`bytes`
Referrer URL	`referrer`
User agent	`agent`

If you need help building grok patterns, try out the Grok Debugger. The Grok Debugger is an X-Pack feature under the Basic License and is therefore free to use.

Edit the first-pipeline.conf file and replace the entire filter section with the following text:

filter {
    grok {
        match => { "message" => "%{COMBINEDAPACHELOG}"}
    }
}

When you’re done, the contents of first-pipeline.conf should look like this:

input {
    beats {
        port => "5044"
    }
}
filter {
    grok {
        match => { "message" => "%{COMBINEDAPACHELOG}"}
    }
}
output {
    stdout { codec => rubydebug }
}

Save your changes. Because you’ve enabled automatic config reloading, you don’t have to restart Logstash to pick up your changes. However, you do need to force Filebeat to read the log file from scratch. To do this, go to the terminal window where Filebeat is running and press Ctrl+C to shut down Filebeat. Then delete the Filebeat registry file. For example, run:

sudo rm data/registry

Since Filebeat stores the state of each file it harvests in the registry, deleting the registry file forces Filebeat to read all the files it’s harvesting from scratch.

Next, restart Filebeat with the following command:

sudo ./filebeat -e -c filebeat.yml -d "publish"

There might be a slight delay before Filebeat begins processing events if it needs to wait for Logstash to reload the config file.

After Logstash applies the grok pattern, the events will have the following JSON representation:

{
        "request" => "/presentations/logstash-monitorama-2013/images/kibana-search.png",
          "agent" => "\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36\"",
         "offset" => 325,
           "auth" => "-",
          "ident" => "-",
           "verb" => "GET",
     "prospector" => {
        "type" => "log"
    },
     "input" => {
        "type" => "log"
    },
         "source" => "/path/to/file/logstash-tutorial.log",
        "message" => "83.149.9.216 - - [04/Jan/2015:05:13:42 +0000] \"GET /presentations/logstash-monitorama-2013/images/kibana-search.png HTTP/1.1\" 200 203023 \"http://semicomplete.com/presentations/logstash-monitorama-2013/\" \"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36\"",
           "tags" => [
        [0] "beats_input_codec_plain_applied"
    ],
       "referrer" => "\"http://semicomplete.com/presentations/logstash-monitorama-2013/\"",
     "@timestamp" => 2017-11-09T02:51:12.416Z,
       "response" => "200",
          "bytes" => "203023",
       "clientip" => "83.149.9.216",
       "@version" => "1",
           "beat" => {
            "name" => "My-MacBook-Pro.local",
        "hostname" => "My-MacBook-Pro.local",
         "version" => "6.0.0"
    },
           "host" => "My-MacBook-Pro.local",
    "httpversion" => "1.1",
      "timestamp" => "04/Jan/2015:05:13:42 +0000"
}

Notice that the event includes the original message, but the log message is also broken down into specific fields.

Enhancing Your Data with the Geoip Filter Plugin

edit

In addition to parsing log data for better searches, filter plugins can derive supplementary information from existing data. As an example, the geoip plugin looks up IP addresses, derives geographic location information from the addresses, and adds that location information to the logs.

Configure your Logstash instance to use the geoip filter plugin by adding the following lines to the filter section of the first-pipeline.conf file:

    geoip {
        source => "clientip"
    }

The geoip plugin configuration requires you to specify the name of the source field that contains the IP address to look up. In this example, the clientip field contains the IP address.

Since filters are evaluated in sequence, make sure that the geoip section is after the grok section of the configuration file and that both the grok and geoip sections are nested within the filter section.

When you’re done, the contents of first-pipeline.conf should look like this:

input {
    beats {
        port => "5044"
    }
}
 filter {
    grok {
        match => { "message" => "%{COMBINEDAPACHELOG}"}
    }
    geoip {
        source => "clientip"
    }
}
output {
    stdout { codec => rubydebug }
}

Save your changes. To force Filebeat to read the log file from scratch, as you did earlier, shut down Filebeat (press Ctrl+C), delete the registry file, and then restart Filebeat with the following command:

sudo ./filebeat -e -c filebeat.yml -d "publish"

Notice that the event now contains geographic location information:

{
        "request" => "/presentations/logstash-monitorama-2013/images/kibana-search.png",
          "agent" => "\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36\"",
          "geoip" => {
              "timezone" => "Europe/Moscow",
                    "ip" => "83.149.9.216",
              "latitude" => 55.7485,
        "continent_code" => "EU",
             "city_name" => "Moscow",
          "country_name" => "Russia",
         "country_code2" => "RU",
         "country_code3" => "RU",
           "region_name" => "Moscow",
              "location" => {
            "lon" => 37.6184,
            "lat" => 55.7485
        },
           "postal_code" => "101194",
           "region_code" => "MOW",
             "longitude" => 37.6184
    },
    ...

Indexing Your Data into Elasticsearch

edit

Now that the web logs are broken down into specific fields, you’re ready to get your data into Elasticsearch.

You can run Elasticsearch on your own hardware or use our hosted Elasticsearch Service that is available on AWS, GCP, and Azure. Try the Elasticsearch Service for free.

The Logstash pipeline can index the data into an Elasticsearch cluster. Edit the first-pipeline.conf file and replace the entire output section with the following text:

output {
    elasticsearch {
        hosts => [ "localhost:9200" ]
    }
}

With this configuration, Logstash uses http protocol to connect to Elasticsearch. The above example assumes that Logstash and Elasticsearch are running on the same instance. You can specify a remote Elasticsearch instance by using the hosts configuration to specify something like hosts => [ "es-machine:9092" ].

At this point, your first-pipeline.conf file has input, filter, and output sections properly configured, and looks something like this:

input {
    beats {
        port => "5044"
    }
}
 filter {
    grok {
        match => { "message" => "%{COMBINEDAPACHELOG}"}
    }
    geoip {
        source => "clientip"
    }
}
output {
    elasticsearch {
        hosts => [ "localhost:9200" ]
    }
}

sudo ./filebeat -e -c filebeat.yml -d "publish"

Testing Your Pipeline

edit

Now that the Logstash pipeline is configured to index the data into an Elasticsearch cluster, you can query Elasticsearch.

Try a test query to Elasticsearch based on the fields created by the grok filter plugin. Replace $DATE with the current date, in YYYY.MM.DD format:

curl -XGET 'localhost:9200/logstash-$DATE/_search?pretty&q=response=200'

The date used in the index name is based on UTC, not the timezone where Logstash is running. If the query returns index_not_found_exception, make sure that logstash-$DATE reflects the actual name of the index. To see a list of available indexes, use this query: curl 'localhost:9200/_cat/indices?v'.

You should get multiple hits back. For example:

{
  "took": 50,
  "timed_out": false,
  "_shards": {
    "total": 5,
    "successful": 5,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": 98,
    "max_score": 2.793642,
    "hits": [
      {
        "_index": "logstash-2017.11.09",
        "_type": "doc",
        "_id": "3IzDnl8BW52sR0fx5wdV",
        "_score": 2.793642,
        "_source": {
          "request": "/presentations/logstash-monitorama-2013/images/frontend-response-codes.png",
          "agent": """"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36"""",
          "geoip": {
            "timezone": "Europe/Moscow",
            "ip": "83.149.9.216",
            "latitude": 55.7485,
            "continent_code": "EU",
            "city_name": "Moscow",
            "country_name": "Russia",
            "country_code2": "RU",
            "country_code3": "RU",
            "region_name": "Moscow",
            "location": {
              "lon": 37.6184,
              "lat": 55.7485
            },
            "postal_code": "101194",
            "region_code": "MOW",
            "longitude": 37.6184
          },
          "offset": 2932,
          "auth": "-",
          "ident": "-",
          "verb": "GET",
          "prospector": {
            "type": "log"
          },
          "input": {
            "type": "log"
          },
          "source": "/path/to/file/logstash-tutorial.log",
          "message": """83.149.9.216 - - [04/Jan/2015:05:13:45 +0000] "GET /presentations/logstash-monitorama-2013/images/frontend-response-codes.png HTTP/1.1" 200 52878 "http://semicomplete.com/presentations/logstash-monitorama-2013/" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.77 Safari/537.36"""",
          "tags": [
            "beats_input_codec_plain_applied"
          ],
          "referrer": """"http://semicomplete.com/presentations/logstash-monitorama-2013/"""",
          "@timestamp": "2017-11-09T03:11:35.304Z",
          "response": "200",
          "bytes": "52878",
          "clientip": "83.149.9.216",
          "@version": "1",
          "beat": {
            "name": "My-MacBook-Pro.local",
            "hostname": "My-MacBook-Pro.local",
            "version": "6.0.0"
          },
          "host": "My-MacBook-Pro.local",
          "httpversion": "1.1",
          "timestamp": "04/Jan/2015:05:13:45 +0000"
        }
      },
    ...

Try another search for the geographic information derived from the IP address. Replace $DATE with the current date, in YYYY.MM.DD format:

curl -XGET 'localhost:9200/logstash-$DATE/_search?pretty&q=geoip.city_name=Buffalo'

A few log entries come from Buffalo, so the query produces the following response:

{
  "took": 9,
  "timed_out": false,
  "_shards": {
    "total": 5,
    "successful": 5,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": 2,
    "max_score": 2.6390574,
    "hits": [
      {
        "_index": "logstash-2017.11.09",
        "_type": "doc",
        "_id": "L4zDnl8BW52sR0fx5whY",
        "_score": 2.6390574,
        "_source": {
          "request": "/blog/geekery/disabling-battery-in-ubuntu-vms.html?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+semicomplete%2Fmain+%28semicomplete.com+-+Jordan+Sissel%29",
          "agent": """"Tiny Tiny RSS/1.11 (http://tt-rss.org/)"""",
          "geoip": {
            "timezone": "America/New_York",
            "ip": "198.46.149.143",
            "latitude": 42.8864,
            "continent_code": "NA",
            "city_name": "Buffalo",
            "country_name": "United States",
            "country_code2": "US",
            "dma_code": 514,
            "country_code3": "US",
            "region_name": "New York",
            "location": {
              "lon": -78.8781,
              "lat": 42.8864
            },
            "postal_code": "14202",
            "region_code": "NY",
            "longitude": -78.8781
          },
          "offset": 22795,
          "auth": "-",
          "ident": "-",
          "verb": "GET",
          "prospector": {
            "type": "log"
          },
          "input": {
            "type": "log"
          },
          "source": "/path/to/file/logstash-tutorial.log",
          "message": """198.46.149.143 - - [04/Jan/2015:05:29:13 +0000] "GET /blog/geekery/disabling-battery-in-ubuntu-vms.html?utm_source=feedburner&utm_medium=feed&utm_campaign=Feed%3A+semicomplete%2Fmain+%28semicomplete.com+-+Jordan+Sissel%29 HTTP/1.1" 200 9316 "-" "Tiny Tiny RSS/1.11 (http://tt-rss.org/)"""",
          "tags": [
            "beats_input_codec_plain_applied"
          ],
          "referrer": """"-"""",
          "@timestamp": "2017-11-09T03:11:35.321Z",
          "response": "200",
          "bytes": "9316",
          "clientip": "198.46.149.143",
          "@version": "1",
          "beat": {
            "name": "My-MacBook-Pro.local",
            "hostname": "My-MacBook-Pro.local",
            "version": "6.0.0"
          },
          "host": "My-MacBook-Pro.local",
          "httpversion": "1.1",
          "timestamp": "04/Jan/2015:05:29:13 +0000"
        }
      },
     ...

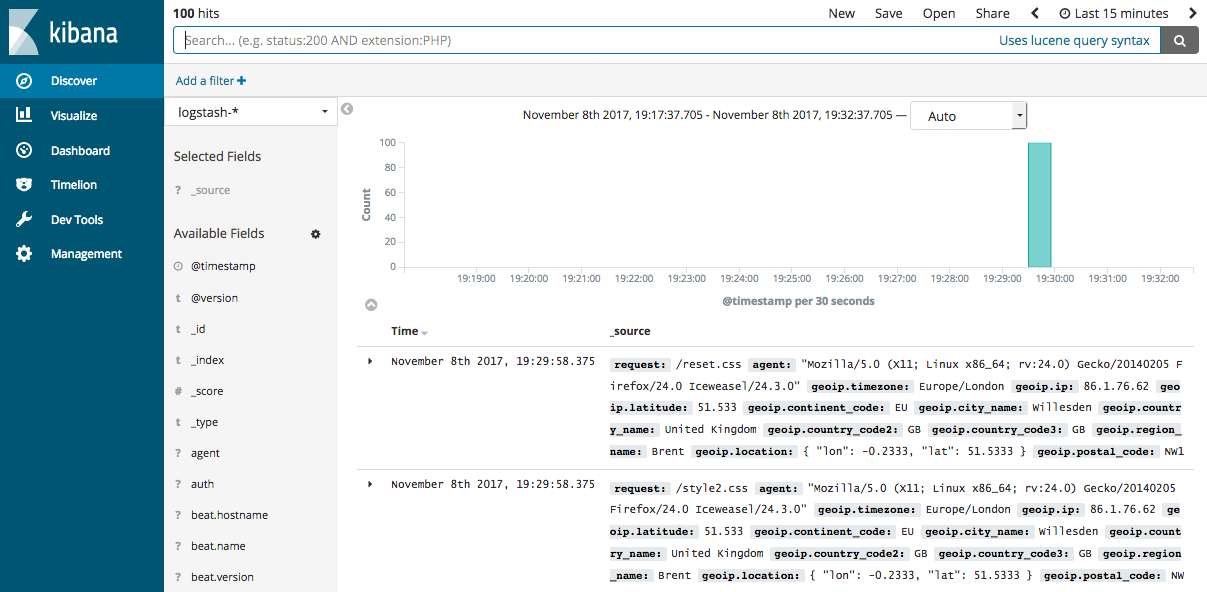

If you are using Kibana to visualize your data, you can also explore the Filebeat data in Kibana:

See the Filebeat getting started docs for info about loading the Kibana index pattern for Filebeat.

You’ve successfully created a pipeline that uses Filebeat to take Apache web logs as input, parses those logs to create specific, named fields from the logs, and writes the parsed data to an Elasticsearch cluster. Next, you learn how to create a pipeline that uses multiple input and output plugins.

« Stashing Your First Event Stitching Together Multiple Input and Output Plugins »
