Monitor Kubernetes: Observe the health and performance of your Kubernetes deployments

edit

Monitor Kubernetes: Observe the health and performance of your Kubernetes deployments

edit

Applications running in a containerized environment like Kubernetes pose a unique monitoring challenge: how do you diagnose and resolve issues with hundreds of microservices on thousands (or millions) of containers, running in ephemeral and disposable pods?

A successful Kubernetes monitoring solution has a few requirements:

  • Monitors all layers of your technology stack, including:

    • The host systems where Kubernetes is running.
    • Kubernetes core components, nodes, pods, and containers running within the cluster.
    • All of the applications and services are running in Kubernetes containers.
  • Automatically detects and monitors services as they appear dynamically.
  • Provides a way to correlate related data so that you can group and explore related metrics, logs, and other observability data.

What you’ll learn

edit

This guide describes how to use Elastic Observability to observe all layers of your application, including the orchestration software itself:

  • Collect logs and metrics from Kubernetes and your applications
  • Collect trace data from applications deployed with Kubernetes
  • Centralize the data in the Elastic Stack
  • Explore the data in real-time using tailored dashboards and Observability UIs

This guide describes how to deploy Elastic monitoring agents as DaemonSets using the Elastic Agent manifest files. For other deployment options, see the Kubernetes operator and custom resource definitions from Elastic Cloud on Kubernetes (ECK).

Monitoring architecture

edit

The Elastic Stack provides the following components for monitoring Kubernetes:

  1. Elastic Agent is a single, unified way to add monitoring for data like logs and metrics to your host.
  2. Elastic Agent Kubernetes integration, in tandem with Elastic Agent, collects logs and metrics from Kubernetes clusters.
  3. APM (described later) to monitor, detect, and diagnose complex application performance issues.
  4. Elasticsearch for storing and searching your data.
  5. Observability apps in Kibana for visualizing and managing your observability data.

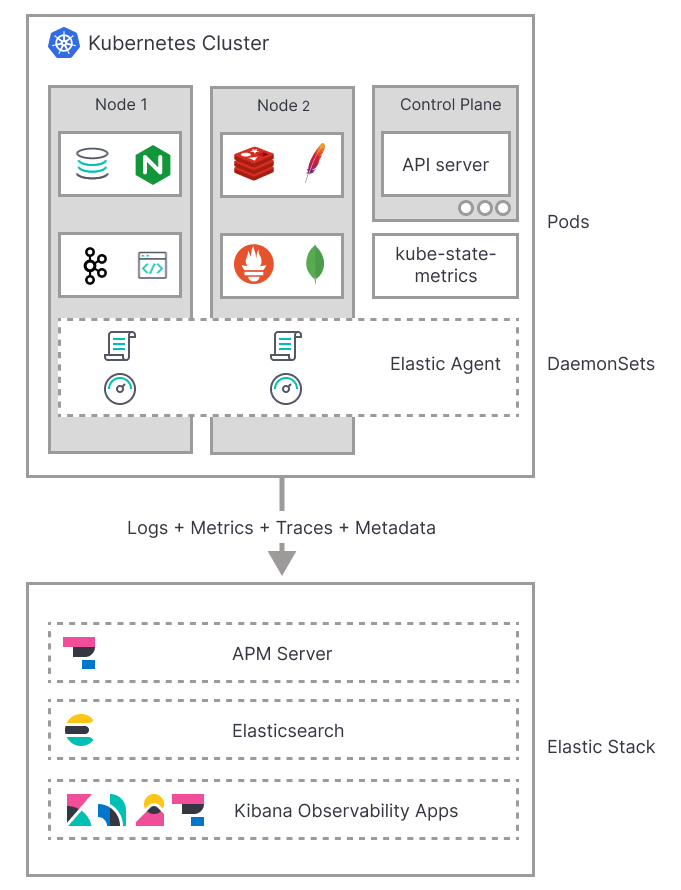

Kubernetes monitoring architecture

The default installation of Elastic Agent is deployed to Kubernetes as a DaemonSet to ensure an instance is running on each node of the cluster. It collects logs and metrics from pods, containers, and applications running on Kubernetes.

Metadata

edit

Elastic Agent provides processors for adding metadata to events. The metadata is valuable for grouping and exploring related data. For example, when analyzing container logs, you want to know the host and container name, and be able to correlate logs, metrics, and traces.

The default deployments include processors, when needed, for enriching events with cloud and host metadata.

Metadata processors for cloud

For more on these processors, refer to the add_cloud_metadata and add_host_metadata documentation.

By default, the Kubernetes integration enriches logs and metrics with valuable metadata.

All Kubernetes metrics are enriched with metadata by default. The enrichment happens in code, and can be configured with the add_resource_metadata block on each dataset. For more information on configuring the add_resource_metadata block, refer to Configure kubelet API metadata enrichment and Configure kube-state-metrics metadata enrichment.

All Kubernetes logs are enriched with metadata by default. For more on configuring metadata enrichment, refer to Collect Kubernetes container logs.

Now that you have a basic understanding of the monitoring architecture, let’s learn how to deploy monitoring to your Kubernetes environment.

Before you begin

edit

Before you can monitor Kubernetes, you need the following:

  • Elasticsearch for storing and searching your observability data and Kibana for visualizing and managing it.
  • If you want to collect Kubernetes state metrics, you need to deploy kube-state-metrics. For deployment instructions, refer to the Kubernetes docs.

Part 1: Add and Configure the Kubernetes integration

edit

To start collecting logs and metrics from your Kubernetes clusters, first add the Kubernetes integration to your policy and configure the metrics and logs you want to collect.

Step 1: Add the Kubernetes integration to your deployment

edit

Follow these steps to add the Kubernetes integration to your policy:

  1. Select Add integrations from your deployment’s homepage.
  2. Enter "Kubernetes" in the search bar, and select the Kubernetes integration.
  3. Click Add Kubernetes at the top of the Kubernetes integration page.
  4. Click Add integration only (skip agent installation) at the bottom of the Add integration page.

Continue to Step 2: Configure your Kubernetes integration.

Step 2: Configure your Kubernetes integration

edit

The Kubernetes integration can fetch metrics and logs from several components. From the Add Kubernetes integration page, configure the options for the metrics and logs you want to collect. The following sections outline the configuration options.

Collect Metrics

Collecting metrics about Kubernetes clusters and the workloads running on top of them is a key aspect of Kubernetes observability. You need to collect metrics about the resources running on the underlying infrastructure (for example, the machines of your Kubernetes cluster), metrics for the whole cluster, as well as individual metrics for the containers and pods. Specifically, you need to monitor the health and performance of:

  • The hosts where Kubernetes components are running. Each host produces metrics like CPU, memory, disk utilization, and disk and network I/O.
  • Kubernetes containers, which produce their own set of metrics.
  • The applications running as Kubernetes pods, such as application servers and databases, each producing its own set of metrics.
  • Additional Kubernetes resources (like services, deployments, cronjobs) are valuable assets of the whole infrastructure and produce their own set of metrics that need monitoring.

Elastic Agent along with the Kubernetes integration provides a unified solution to monitor all layers of your Kubernetes technology stack, so you don’t need multiple technologies to collect metrics.

You have the following options for collecting metrics about your Kubernetes clusters and the workloads running on top of them:

Collect logs

Collecting and analyzing logs of both Kubernetes core components and various applications running on top of Kubernetes is a powerful tool for Kubernetes observability. Containers running within Kubernetes pods publish logs to stdout or stderr.

You have the following options for collecting Kubernetes logs:

Collect Kubernetes metrics from kubelet API

edit

Collecting metrics from the kubelet API is on by default. Kubelet is an agent that runs on each Kubernetes node that is key to managing individual pods and the nodes that host them. For more information on kubelet, refer to the Kubernetes kubelet docs.

Elastic Agent along with the Kubernetes integration can collect metrics from the kubelet API to gather important information about the state of your Kubernetes nodes, pods, containers, and other resources. paleExpand the following list to see all available metrics from the kubelet API.

Expand to see available metrics from the kubelet API

Container metrics

Monitor the overall resource usage, performance, and status at the container level. Learn more at kubelet container metrics.

Node metrics

Monitor the overall resource usage, performance, and status at the node level. Learn more at kubelet node metrics.

Pod metrics

Monitor the overall resource usage, performance, and status at the pod level. Learn more at kubelet pod metrics.

System metrics

Monitor the overall resource usage, performance, and status of your system containers. Learn more at kubelet system metrics.

Volume metrics

Monitor the storage usage and capacity of your persistent volumes. Learn more at kubelet volume metrics.

Configure the kubelet API options
edit

Provide the following information for each of the kubelet API options:

Add Metadata

This option adds metadata to events. The metadata is valuable for grouping and exploring related data. This option is on by default.

Bearer Token File

The file path to the token used to authenticate with the kubelet API.

Hosts

The address of the kubelet API server that Elastic will connect to for collecting metrics. ${env.NODE_NAME} is an environment variable that represents the name of the Kubernetes node. Port 10250 is the default port where the kubelet API listens for HTTPS connections.

Period

How frequently to poll the kubelet API for metrics. The default is every 10 seconds.

SSL Verification Mode

Specify how to handle SSL verification. none means that SSL verification is disabled.

Configure kubelet API metadata enrichment
edit

Under Kubernetes Container metrics and Kubernetes Pod metrics, you can configure metadata enrichment from Advanced options → Add node and namespace metadata.

From here, update the add_resource_metadata block to configure enrichment:

 add_resource_metadata:
   namespace:
     include_labels: ["namespacelabel1"]
   node:
     include_labels: ["nodelabel2"]
     include_annotations: ["nodeannotation1"]
   deployment: false

Collect Kubernetes metrics from kube-state-metrics

edit

You need to deploy kube-state-metrics before you can use it to collect metric data. To learn how, refer to the Kubernetes deployment docs.

Collecting metrics from kube-state-metrics is on by default. The kube-state-metrics service provides cluster-wide metrics on the health of Kubernetes objects. Refer to the kube-state-metrics docs for more information.

kube-state-metrics provides horizontal sharding to support large Kubernetes deployments. Refer to the kube-state-metrics sharding documentation for more information.

With the Kubernetes integration, you can collect a number of metrics using the kube-state-metrics. Expand the following list to see all available metrics from kube-state-metrics.

Expand to see available metrics from kube-state-metrics

Container metrics

Monitor Container performance to ensure efficiency and stability in pods. Learn more at kube-state-metrics container metrics.

CronJob metrics

Monitor CronJob performance and ensure they’re running reliably and efficiently. Learn more at kube-state-metrics CronJob metrics.

Kubernetes DaemonSet metrics

Monitor DaemonSet health and distribution. Learn more at kube-state-metrics DaemonSet metrics.

Kubernetes Deployment metrics

Monitor deployment status and configuration. Learn more at kube-state-metrics deployment metrics.

Kubernetes Job metrics

Monitor job completion statuses and execution. Learn more at kube-state-metrics job metrics.

Kubernetes Namespace metrics

Monitor namespace active and terminating statuses. Learn more at kube-state-metrics namespace metrics.

Kubernetes Node metrics

Monitor node health and resource usage. Learn more at kube-state-metrics node metrics.

Kubernetes PersistentVolume metrics

Monitor PersistentVolume size, status, and storage configuration. Learn more at kube-state-metrics PersistentVolume metrics.

Kubernetes PersistentVolumeClaim metrics

Monitor PersistentVolumeClaim phases, classes, and storage requests. Learn more at kube-state-metrics PersistentVolumeClaim metrics.

Kubernetes Pod metrics

Monitor pod health and performance. Learn more at kube-state-metrics pod metrics.

Kubernetes ReplicaSet metrics

Monitor ReplicaSets status and the number of replicas in your ReplicaSets. Learn more at kube-state-metrics ReplicaSet metrics.

Kubernetes ResourceQuota metrics

Monitor resource limits and current usage. Learn more at kube-state-metrics ResourceQuota metrics.

Kubernetes Service metrics

Monitor service configuration, accessibility, and network integration. Learn more at kube-state-metrics service metrics.

Kubernetes StatefulSet metrics

Monitor StatefulSet configuration, status, and scaling. Learn more at kube-state-metrics StatefulSet metrics.

Kubernetes StorageClass metrics

Monitor how storage is provisioned and allocated. Learn more at kube-state-metrics StorageClass metrics.

Configure the kube-state-metrics options
edit

Provide the following information for each of the kube-state-metrics options:

Add Metadata

This option adds metadata to events. The metadata is valuable for grouping and exploring related data. This option is on by default.

Hosts

The address where kube-state-metrics is running. Port 8080 is the default.

Leader Election

When on (default behavior), only the Elastic Agent that holds the leadership lock will retrieve metrics from the kube_state_metrics. This prevents duplicate data in multi-node Kubernetes clusters.

Period

How frequently to poll the kube-state-metrics for metrics. The default is every 10 seconds.

Configure kube-state-metrics metadata enrichment
edit

Under Kubernetes Container metrics and Kubernetes Pod metrics, you can configure metadata enrichment from Advanced options → Add node and namespace metadata.

From here, update the add_resource_metadata block to configure enrichment:

add_resource_metadata:
  namespace:
   enabled: true
    #use_regex_include: false
    include_labels: ["namespacelabel1"]
    #use_regex_exclude: false
    #exclude_labels: ["namespacelabel2"]
  node:
   enabled: true
    #use_regex_include: false
    include_labels: ["nodelabel2"]
    include_annotations: ["nodeannotation1"]
    #use_regex_exclude: false
    #exclude_labels: ["nodelabel3"]
  #deployment: false
  #cronjob: false

Collect Kubernetes metrics from Kubernetes API server

edit

Collecting metrics from the kube-apiserver is on by default. The kube-apiserver sets up and validates pods, services, and other API objects. These metrics provide insight into the API server’s performance, workload, and health.

Refer to kube-apiserver metrics for more on the metrics collected.

Configure Kubernetes API server options
edit

Provide the following information to collect kube-apiserver metrics:

Bearer Token File

The file path to the token used to authenticate with the kube-apiserver.

Hosts

The address of the Kubernetes API server that the integration connects to. It uses the KUBERNETES_SERVICE_HOST and KUBERNETES_SERVICE_PORT environment variables.

Leader Election

When on (default behavior), only the Elastic Agent that holds the leadership lock will retrieve metrics from the kube-apiserver. This prevents duplicate data in multi-node Kubernetes clusters.

Period

How frequently to poll the kube-state-metrics for metrics. The default is every 30 seconds.

SSL Certificate Authorities

The path to the certificate authority (CA) bundle used to verify the Kubernetes API server’s TLS certificate.

Collect Kubernetes metrics from Kubernetes proxy

edit

The kube-proxy runs on each node and maintains network rules. Collecting metrics from the kube-proxy is on by default. These metrics provide insight into the proxy’s networking activity, performance, and resource usage.

Refer to kube-proxy metrics for more on the metrics collected.

Configure Kubernetes proxy options
edit

Provide the following information to collect Kubernetes Proxy metrics:

Hosts

The address where kube-proxy is running. Port 10249 is the default.

Period

How frequently to poll the kube-state-metrics for metrics. The default is every 10 seconds.

Collect Kubernetes metrics from Kubernetes scheduler

edit

The kube-scheduler assigns new pods with no node assignment to the most appropriate node. Turn this option on to get metrics from the kube-scheduler. These metrics provide insight on the performance, resource usage, and health of the kube-scheduler.

Refer to kube-scheduler metrics for more on the metrics collected.

Configure Kubernetes scheduler options
edit

Provide the following information to collect Kubernetes scheduler metrics:

Bearer Token File

The file path to the token used to authenticate with the kube-scheduler.

Hosts

The address and port of the kube-scheduler from which the Elastic integration should collect metrics. Port 10259 is the default.

Period

How frequently to poll the kube-scheduler for metrics. The default is every 10 seconds.

SSL Verification Mode

Specify how to handle SSL verification. Defaults to none meaning that SSL verification is disabled.

Collect Kubernetes metrics from Kubernetes controller-manager

edit

The kube-controller-manager regulates the state of the clusters. Turn this option on to get metrics from the kube-controller-manager. These metrics provide insight on the performance, resource usage, and health of the kube-controller-manager.

Refer to kube-controller-manager metrics for more on the metrics collected.

Configure Kubernetes controller-manager options
edit

Provide the following information to collect kube-controller-manager metrics:

Bearer Token File

The file path to the token used to authenticate with the kube-controller-manager.

Hosts

The address and port of the kube-controller-manager from which the integration should collect metrics. Port 10259 is the default.

Period

How frequently to poll the kube-controller-manager for metrics. The default is every 10 seconds.

SSL Verification Mode

Specify how to handle SSL verification. Defaults to none meaning that SSL verification is disabled.

Collect Kubernetes events from Kubernetes API Server

edit

Event metrics give you an overall view of what’s happening in a cluster. These metrics help you understand what’s happening in your cluster and improve reliability and stability. Collecting Kubernetes events from the Kubernetes API server is on by default.

Refer to events metrics for more on the metrics collected.

Configure events from the Kubernetes API server
edit

Provide the following information to collect Kubernetes events metrics:

Period

How frequently to poll the kube-api-server for events. The default is every 10 seconds.

Add Metadata

Turn on to add metadata to events. The metadata is valuable for grouping and exploring related data.

Skip older events

Ignores events that occurred before a certain time

Leader Election

When on (default behavior), only the Elastic Agent that holds the leadership lock will retrieve metrics from the kube-apiserver. This prevents duplicate data in multi-node Kubernetes clusters.

Collect Kubernetes container logs

edit

Collecting and parsing Kubernetes container logs is on by default. Containers running within Kubernetes pods publish logs to stdout or stderr. These logs are written to a location known to kubelet. The container parser is enabled by default. You can enable additional parsers in advanced settings.

Metadata enrichment is also enabled by default, and is based on the Kubernetes provider. Use the add_resource_metadata block of the Kubernetes provider to configure it. Refer to the Kubernetes provider docs for more on configuring the provider.

Refer to Kubernetes container logs for more on collecting container logs.

Configure Kubernetes container logs
edit

Provide the following information to collect container logs:

Use Symlinks

A symlink is lightweight and doesn’t contain the data of the log files, but points to their actual location. Symlinks are used by default.

Condition

You can specify a condition to control whether a configuration is applied to the running Elastic Agent.

Collect Kubernetes audit logs

edit

This functionality is in technical preview and may be changed or removed in a future release. Elastic will work to fix any issues, but features in technical preview are not subject to the support SLA of official GA features.

Turn this option on to collect audit logs. Kubernetes audit logs record requests that come to the Kubernetes API from internal and external components. These logs help you understand cluster behavior and debug issues.

Refer to Kubernetes audit logs for more on collecting audit logs.

Part 2: Configure and install the standalone Elastic Agent

edit

After configuring your integration, you need to download and update your manifest. First, download the manifest by completing the following steps:

  1. At the bottom of the Add Kubernetes integration page, click Save and continue.
  2. Click Add Elastic Agent to your hosts.
  3. Under Enroll in Fleet?, select Run standalone.

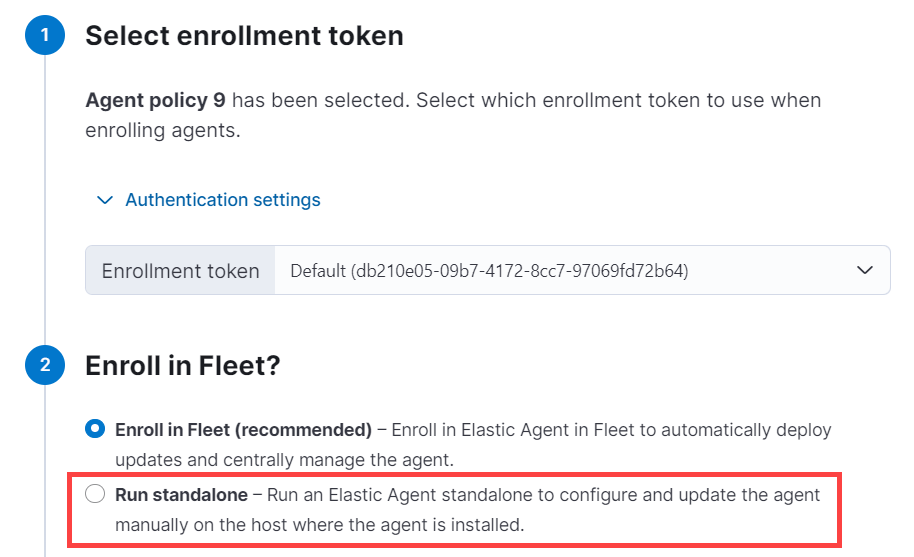

    Select run standalone under Enroll in Fleet
  4. Under Configure the agent, select Download Manifest.

After downloading the manifest, open it and update the ES_USERNAME and ES_PASSWORD environment variables in the DaemonSet to match your Elasticsearch credentials.

You can also further modify the manifest to fit your needs. For example, you might want to enable autodiscovery to automatically discover container logs. Refer to the autodiscovery docs in the Fleet guide for more on enabling autodiscovery in your manifest.

Once you are ready to deploy your Elastic Agent:

  1. From the directory where you’ve downloaded the manifest, run the following apply command:

    kubectl apply -f elastic-agent-standalone-kubernetes.yml
  2. Check the Elastic Agent status with the following command:

    kubectl -n kube-system get pods -l app=elastic-agent

Refer to Debug standalone Elastic Agents if you run into any issues with configuring or installing your Elastic Agent.

Part 3: Explore logs and metrics

edit

Use Kibana to view the metric and log data collected by Elastic Agent. Refer to the following sections for more on viewing your data.

View performance and health metrics

edit

To view the performance and health metrics collected by Elastic Agent, open Kibana and go to Observability → Infrastructure.

On the Inventory page, you can switch between different views to see an overview of the containers and pods running on Kubernetes:

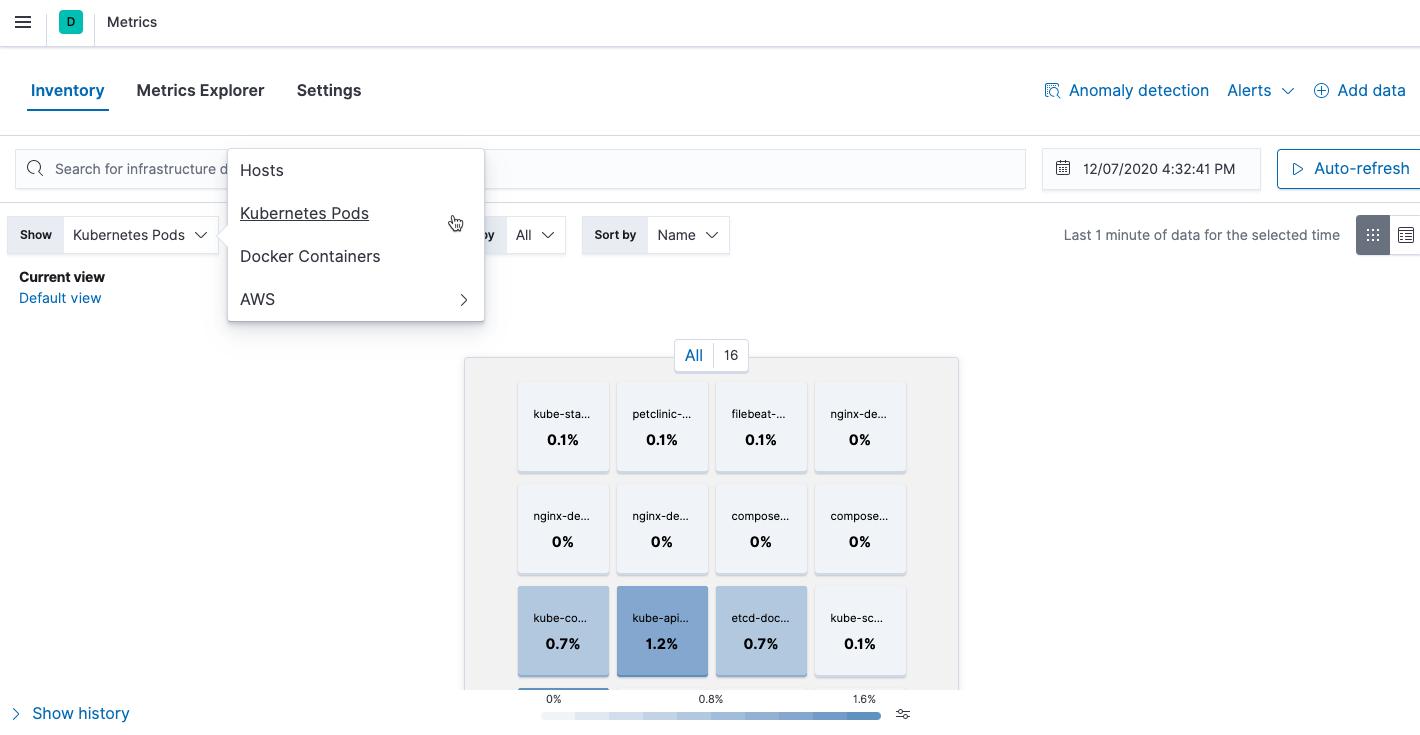

Inventory page that shows Kubernetes pods

For more on using the Inventory page, refer to View infrastructure metrics by resource type.

On the Metrics Explorer page, you can group and analyze metrics for the resources that you are monitoring.

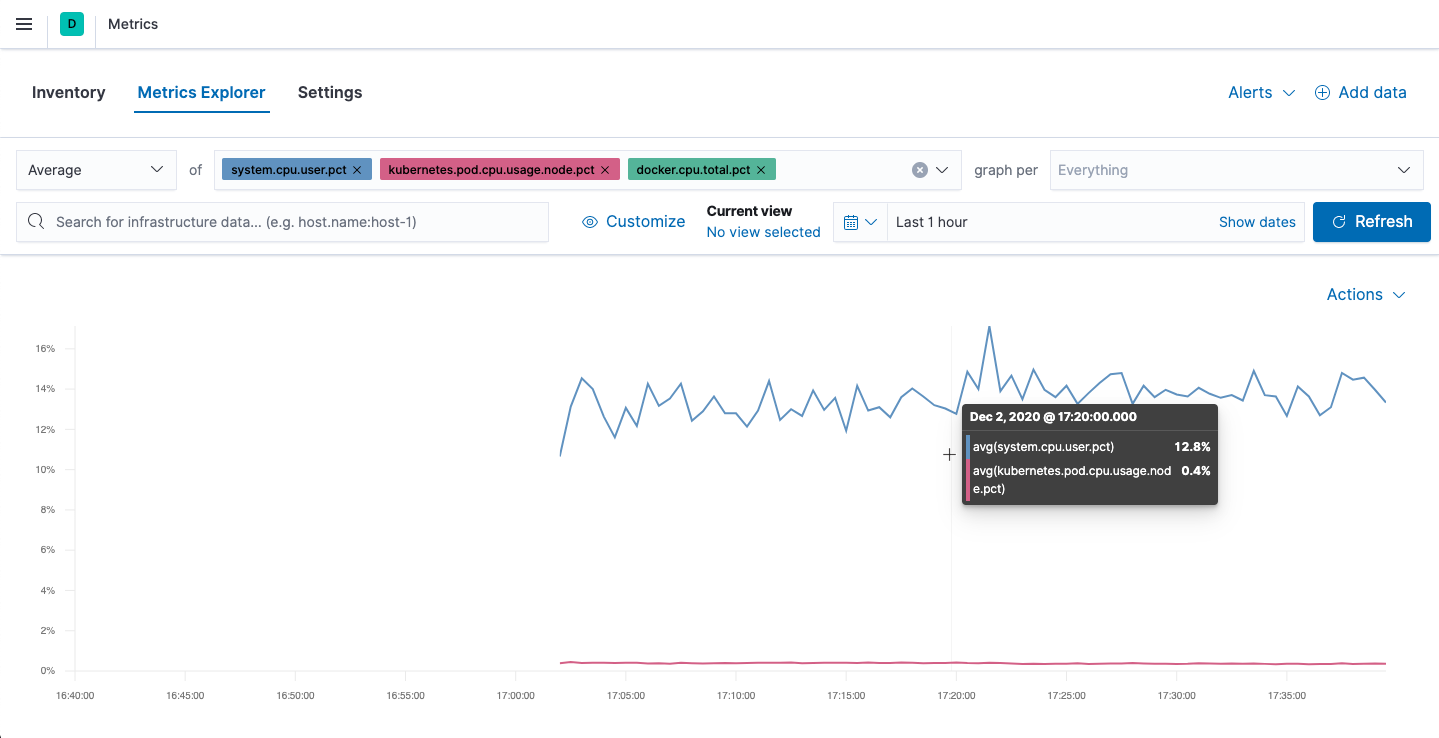

Metrics dashboard that shows CPU usage for Kubernetes pods

For more on using the Metrics Explorer page, refer to Explore infrastructure metrics over time.

View logs

edit

To view Kubernetes logs, open Kibana and go to Observability → Logs Explorer. With Logs Explorer, you can quickly search and filter your log data, get information about the structure of log fields, and display your findings in a visualization.

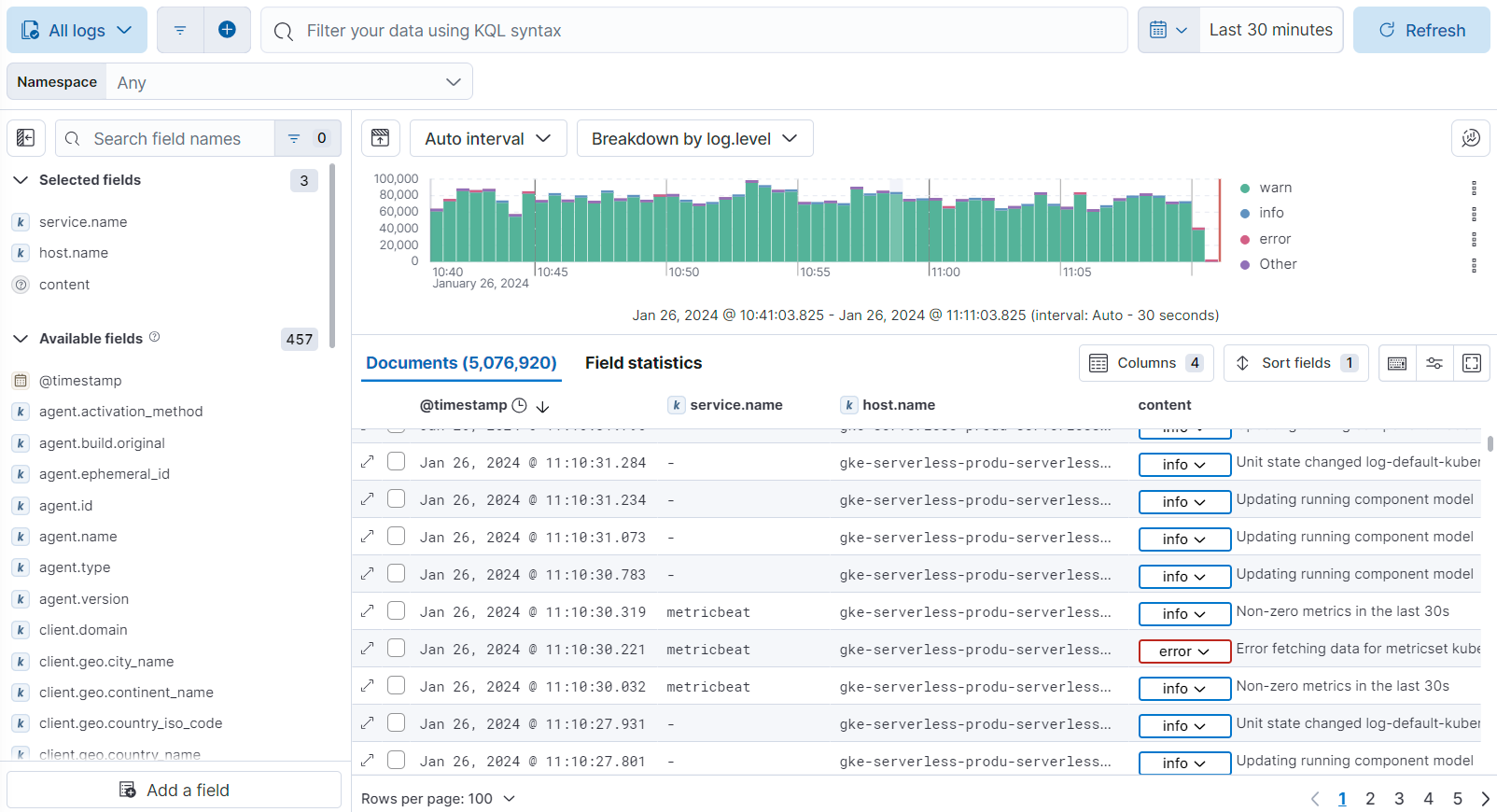

screenshot of the logs explorer main page

From Logs Explorer, you can select the Kubernetes integration from the data selector to view your Kubernetes data.

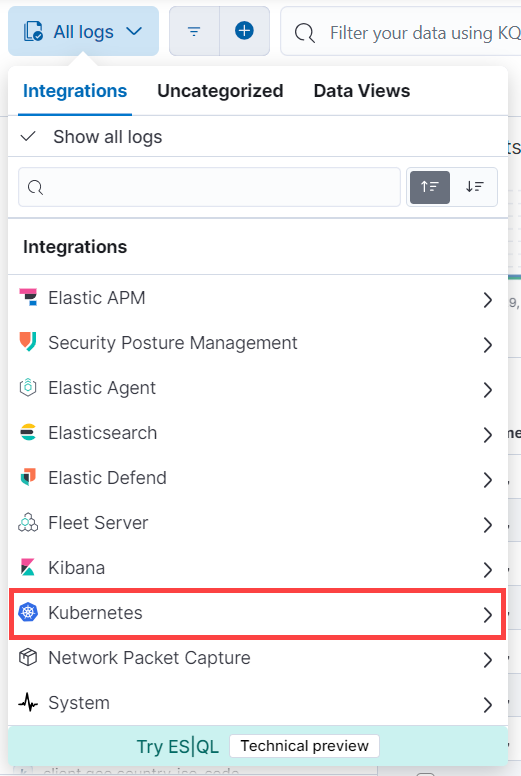

screenshot of the logs explorer main page

From here, you can filter your log data and dive deeper into individual logs to find and troubleshoot issues. For more information, refer to:

Part 4: Monitor application performance

edit

Quickly triage and troubleshoot application performance problems with the help of Elastic application performance monitoring (APM).

Think of a latency spike — APM can help you narrow the scope of your investigation to a single service. Because you’ve also ingested and correlated logs and metrics, you can then link the problem to CPU and memory utilization or error log entries of a particular Kubernetes pod.

Step 1: Set up APM

edit

Application monitoring data is streamed from your applications running in Kubernetes to APM, where it is validated, processed, and transformed into Elasticsearch documents.

There are many ways to deploy APM when working with Kubernetes, but this guide assumes that you’re using our hosted Elasticsearch Service on Elastic Cloud. If you haven’t done so already, enable APM in the Elasticsearch Service console.

If you want to manage APM yourself, there are a few alternative options:

Expand alternatives
  • Elastic Cloud on Kubernetes (ECK) — The Elastic recommended approach for managing APM Server deployed with Kubernetes. Built on the Kubernetes Operator pattern, ECK extends basic Kubernetes orchestration capabilities to support the setup and management of APM Server on Kubernetes.
  • Deploy APM Server as a DaemonSet — Ensure a running instance of APM Server on each node in your cluster. Useful when all pods in a node should share a single APM Server instance.
  • Deploy APM Server as a sidecar — For environments that should not share an APM Server, like when directing traces from multiple applications to separate Elasticsearch clusters.
  • Download and install APM Server — The classic, non-Kubernetes option.

Step 2: Save your secret token

edit

A secret token is used to secure communication between APM agents and APM Server. To create or update your secret token in Kibana:

  1. Open Kibana and navigate to Fleet.
  2. Under the Agent policies tab, select the policy you would like to configure.
  3. Find the Elastic APM integration and select Actions → Edit integration.
  4. Navigate to Agent authorization → Secret token and set the value of your token.
  5. Click Save integration. The APM Server will restart before the change takes effect.

To avoid exposing the secret token, you can store it in a Kubernetes secret. For example:

kubectl create secret generic apm-secret --from-literal=ELASTIC_APM_SECRET_TOKEN=asecretpassword --namespace=kube-system

Create the secret in the same namespace that you’ll be deploying your applications in.

If you’re managing APM Server yourself, see secret token for instructions on how to set up your secret token.

If you are using ECK to set up APM Server, the operator automatically generates an {APM-server-name}-apm-token secret for you.

Step 3: Install and configure APM Agents

edit

In most cases, setting up APM agents and thereby instrumenting your applications is as easy as installing a library and adding a few lines of code.

Select your application’s language for details:

Attach the agent

The Java agent can instrument supported technologies without any changes to an application image or code. To do this, you’ll need an init container based on an official Elastic APM docker image.

Before your application starts, copy the agent from the init container into a shared volume. For example, with the Java agent:

    # ...
    spec:
      volumes:
      - name: elastic-apm-agent
        emptyDir: {}
      initContainers:
      - name: elastic-java-agent
        image: docker.elastic.co/observability/apm-agent-java:1.12.0
        volumeMounts:
        - mountPath: /elastic/apm/agent
          name: elastic-apm-agent
        command: ['cp', '-v', '/usr/agent/elastic-apm-agent.jar', '/elastic/apm/agent']

The shared volume

Build the initContainer from the official Elastic Java agent image

Copy the agent to the shared volume

The Java command line needs a way to pick up this javaagent configuration. You can use the standard JVM TI JAVA_TOOL_OPTIONS environment variable to do this. It doesn’t have to be explicitly specified and is picked up automatically by the JVM when it starts.

For JVMs that don’t support this option, you can use any other environment variable — either one already defined in your startup script, like JAVA_OPTS in some servlet container scripts, or add a dedicated empty one that will have no effect if it’s not set.

      # ...
      containers:
      - name: your-app-container
        env:
        # ...
        - name: JAVA_TOOL_OPTIONS
          value: -javaagent:/elastic/apm/agent/elastic-apm-agent.jar

Used for the command line to pick up the javaagent configuration

Configure the agent

Configure the agent using environment variables:

        # ...
        - name: ELASTIC_APM_SERVER_URLS
          value: "apm-server-url-goes-here"
        - name: ELASTIC_APM_SECRET_TOKEN
          valueFrom:
            secretKeyRef:
              name: apm-secret
              key: ELASTIC_APM_SECRET_TOKEN
        - name: ELASTIC_APM_SERVICE_NAME
          value: "service-name-goes-here"
        - name: ELASTIC_APM_APPLICATION_PACKAGES
          value: "org.springframework.samples.petclinic"
        - name: JAVA_TOOL_OPTIONS
          value: -javaagent:/elastic/apm/agent/elastic-apm-agent.jar

Defaults to http://localhost:8200

Pass in ELASTIC_APM_SECRET_TOKEN from the apm-secret keystore created previously

Allowed characters: a-z, A-Z, 0-9, -, _, and space

Used to determine whether a stack trace frame is an in-app frame or a library frame.

Explained previously

Learn more in the agent reference

Step 4: Configure Kubernetes data

edit

In most instances, APM agents automatically read Kubernetes data from inside the container and send it to APM Server. If this is not the case, or if you wish to override this data, you can set environment variables for the agents to read. These environment variable are set via the Downward API in your Kubernetes pod spec:

      # ...
      containers:
      - name: your-app-container
        env:
        # ...
        - name: KUBERNETES_NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        - name: KUBERNETES_POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: KUBERNETES_POD_UID
          valueFrom:
            fieldRef:
              fieldPath: metadata.uid

The table below maps these environment variables to the APM metadata event field:

Environment variable Metadata field name

KUBERNETES_NODE_NAME

system.kubernetes.node.name

KUBERNETES_POD_NAME

system.kubernetes.pod.name

KUBERNETES_NAMESPACE

system.kubernetes.namespace

KUBERNETES_POD_UID

system.kubernetes.pod.uid

Step 5: Deploy your application

edit

APM agents are deployed with your application.

Resource configuration file example

A complete resource configuration file based on the previous steps.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: <<your-app>>
  namespace: kube-system
  labels:
    app: <<your-app>>
    service: <<your-app>>
spec:
  replicas: 1
  selector:
    matchLabels:
      app: <<your-app>>
  template:
    metadata:
      labels:
        app: <<your-app>>
        service: <<your-app>>
    spec:
      dnsPolicy: ClusterFirstWithHostNet
      volumes:
      - name: elastic-apm-agent
        emptyDir: {}
      initContainers:
      - name: elastic-java-agent
        image: docker.elastic.co/observability/apm-agent-java:1.12.0
        volumeMounts:
        - mountPath: /elastic/apm/agent
          name: elastic-apm-agent
        command: ['cp', '-v', '/usr/agent/elastic-apm-agent.jar', '/elastic/apm/agent']
      containers:
      - name: <<your-app>>
        image: <<your-app>>
        volumeMounts:
        - mountPath: /elastic/apm/agent
          name: elastic-apm-agent
        env:
        - name: ELASTIC_APM_SERVER_URL
          value: "apm-server-url-goes-here"
        - name: ELASTIC_APM_SECRET_TOKEN
          valueFrom:
            secretKeyRef:
              name: apm-secret
              key: ELASTIC_APM_SECRET_TOKEN
        - name: ELASTIC_APM_SERVICE_NAME
          value: "petclinic"
        - name: ELASTIC_APM_APPLICATION_PACKAGES
          value: "org.springframework.samples.petclinic"
        - name: ELASTIC_APM_ENVIRONMENT
          value: test
        - name: JAVA_TOOL_OPTIONS
          value: -javaagent:/elastic/apm/agent/elastic-apm-agent.jar
        - name: KUBERNETES_NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        - name: KUBERNETES_POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: KUBERNETES_POD_UID
          valueFrom:
            fieldRef:
              fieldPath: metadata.uid
kubectl apply -f demo.yml

View your traces in Kibana

edit

To view your application’s trace data, open Kibana and go to Observability → Services.

The APM UI allows you to monitor your software services and applications in real-time: visualize detailed performance information on your services, identify and analyze errors, and monitor host-level and agent-specific metrics like JVM and Go runtime metrics.

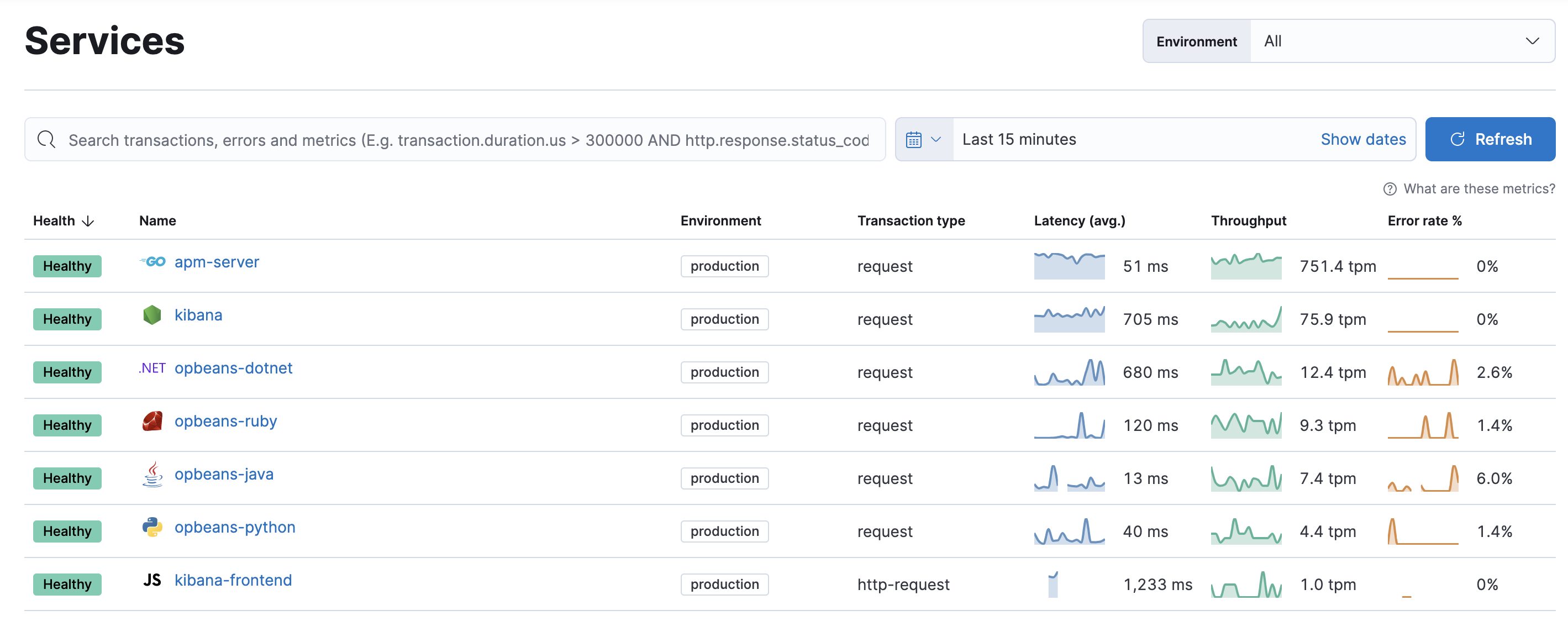

APM UI Kubernetes

Having access to application-level insights with just a few clicks can drastically decrease the time you spend debugging errors, slow response times, and crashes.

Best of all, because Kubernetes environment variables have been mapped to APM metadata events, you can filter your trace data by Kubernetes namespace, node.name, pod.name, and pod.uid.

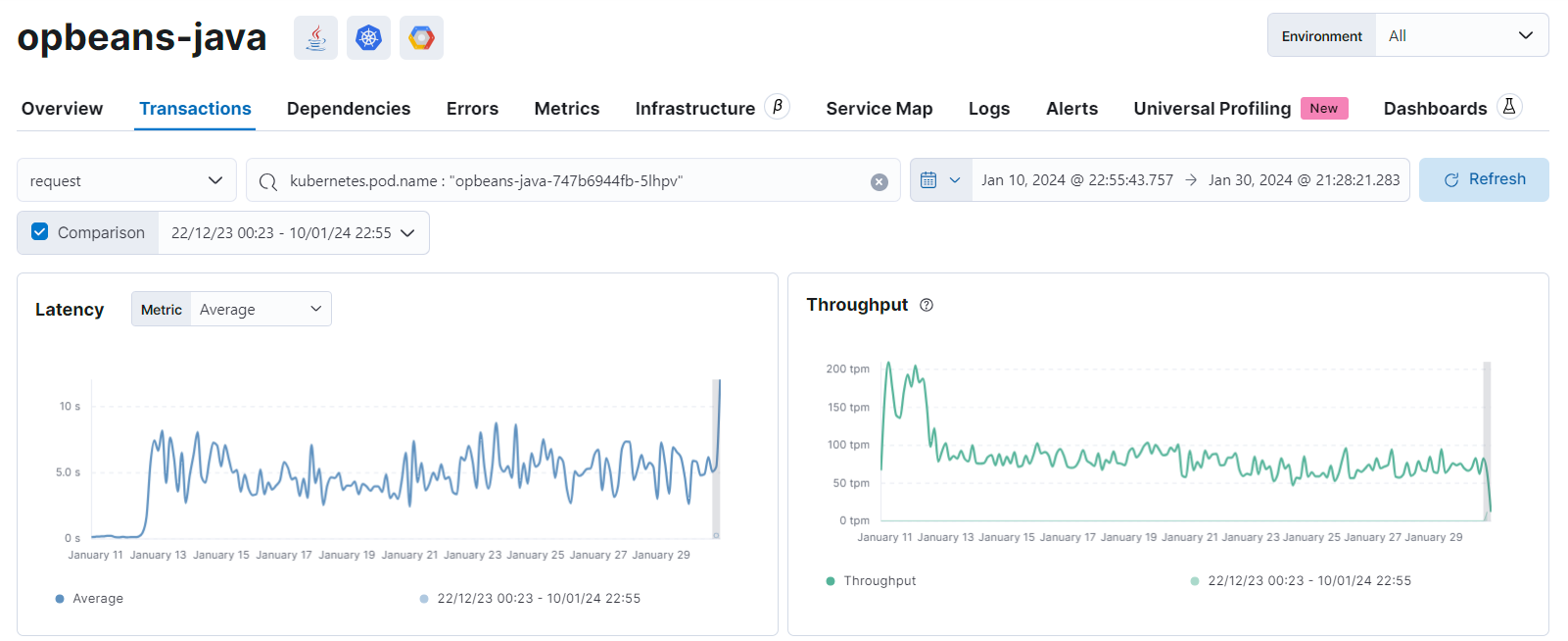

APM UI Kubernetes

What’s next

edit
  • Want to protect your endpoints from security threats? Try Elastic Security. Adding endpoint protection is just another integration that you add to the agent policy!
  • Are your eyes bleary from staring at a wall of screens? Create alerts and find out about problems while sipping your favorite beverage poolside.
  • Want Elastic to do the heavy lifting? Use machine learning to detect anomalies.
