Data streams

edit

Data streams

edit

Elastic Agent uses data streams to store time series data across multiple indices while giving you a single named resource for requests. Data streams are well-suited for logs, metrics, traces, and other continuously generated data. They offer a host of benefits over other indexing strategies:

Reduced number of fields per index: Indices only need to store a specific subset of your data–meaning no more indices with hundreds of thousands of fields. This leads to better space efficiency and faster queries. As an added bonus, only relevant fields are shown in Discover.
More granular data control: For example, file system, load, CPU, network, and process metrics are sent to different indices–each potentially with its own rollover, retention, and security permissions.
Flexible: Use the custom namespace component to divide and organize data in a way that makes sense to your use case or company.
Fewer ingest permissions required: Data ingestion only requires permissions to append data.

Data stream naming scheme

edit

Elastic Agent uses the Elastic data stream naming scheme to name data streams. The naming scheme splits data into different streams based on the following components:

type: A generic type describing the data, such as logs, metrics, traces, or synthetics.
dataset: The dataset is defined by the integration and describes the ingested data and its structure for each index. For example, you might have a dataset for process metrics with a field describing whether the process is running or not, and another dataset for disk I/O metrics with a field describing the number of bytes read.
namespace: A user-configurable arbitrary grouping, such as an environment (dev, prod, or qa), a team, or a strategic business unit. A namespace can be up to 100 bytes in length (multibyte characters will count toward this limit faster). Using a namespace makes it easier to search data from a given source by using a matching pattern. You can also use matching patterns to give users access to data when creating user roles.

The naming scheme separates each components with a - character:

<type>-<dataset>-<namespace>

For example, if you’ve set up the Nginx integration with a namespace of prod, Elastic Agent uses the logs type, nginx.access dataset, and prod namespace to store data in the following data stream:

logs-nginx.access-prod

Alternatively, if you use the APM integration with a namespace of dev, Elastic Agent stores data in the following data stream:

traces-apm-dev

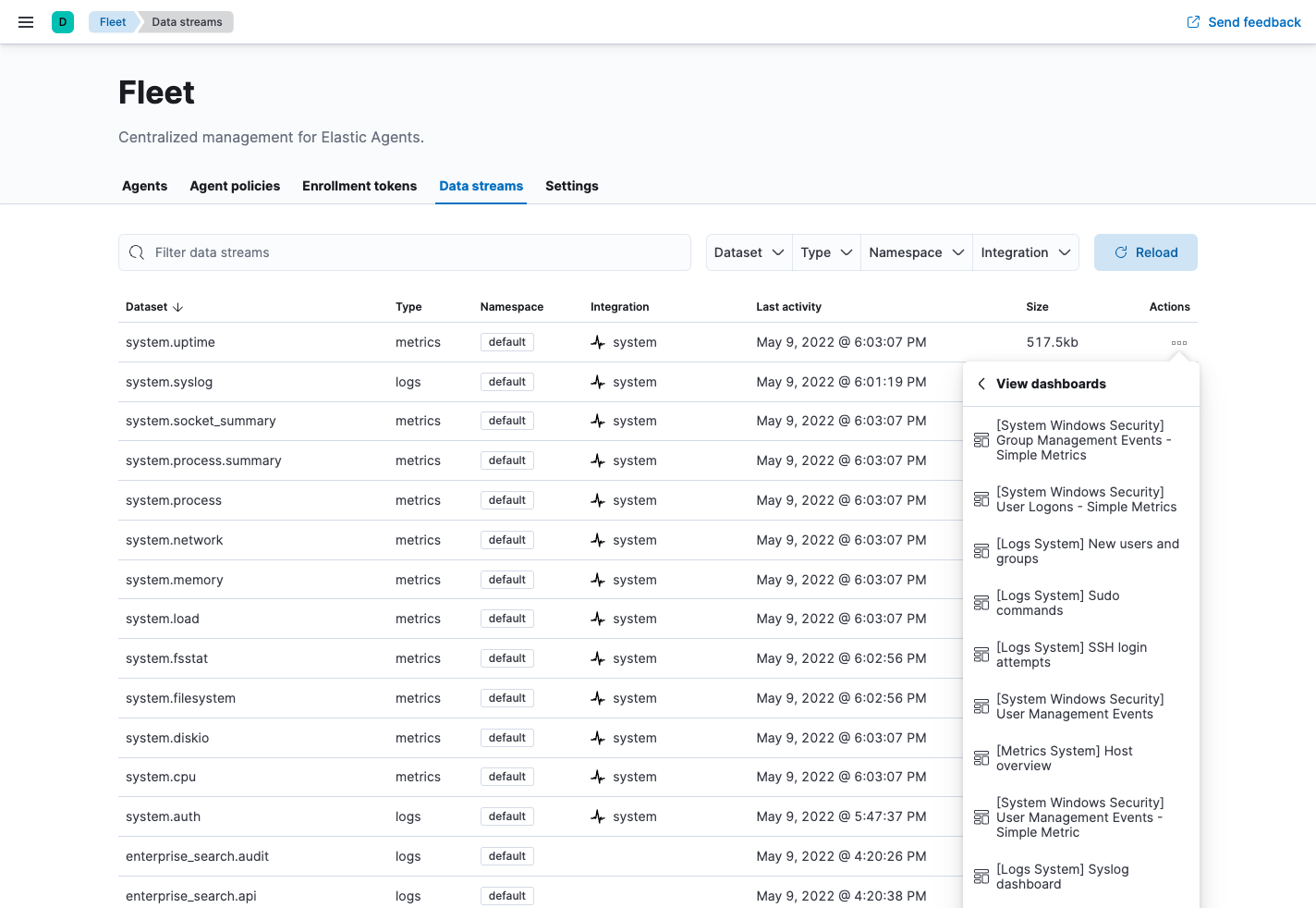

All data streams, and the pre-built dashboards that they ship with, are viewable on the Fleet Data Streams page:

If you’re familiar with the concept of indices, you can think of each data stream as a separate index in Elasticsearch. Under the hood though, things are a bit more complex. All of the juicy details are available in Elasticsearch Data streams.

Data views

edit

When searching your data in Kibana, you can use a data view to search across all or some of your data streams.

Index templates

edit

An index template is a way to tell Elasticsearch how to configure an index when it is created. For data streams, the index template configures the stream’s backing indices as they are created.

Elasticsearch provides the following built-in, ECS based templates: logs-*-*, metrics-*-*, and synthetics-*-*. Elastic Agent integrations can also provide dataset-specific index templates, like logs-nginx.access-*. These templates are loaded when the integration is installed, and are used to configure the integration’s data streams.

Edit the Elasticsearch index template

edit

Custom index mappings may conflict with the mappings defined by the integration and may break the integration in Kibana. Do not change or customize any default mappings.

When you install an integration, Fleet creates a default @custom component template for each data stream. The Custom component templates are named following the pattern: <name_of_data_stream>@custom.

You can edit a @custom component template to customize your Elasticsearch indices:

Open Kibana and navigate to to Stack Management > Index Management > Data Streams.
Find and click the name of the integration data stream, such as logs-cisco_ise.log-default.
Click the index template link for the data stream to see the list of associated component templates.
Navigate to Stack Management > Index Management > Component Templates.
Search for the name of the data stream’s custom component template and click the edit icon.
Add any custom index settings, metadata, or mappings. For example, you may want to:
- Customize the index lifecycle policy applied to a data stream. See Configure a custom index lifecycle policy in the APM Guide for a walk-through.

  Specify lifecycle name in the index settings:
```
{
  "index": {
    "lifecycle": {
       "name": "my_policy"
     }
  }
}
```
- Change the number of replicas per index. Specify the number of replica shards in the index settings:
```
{
  "index": {
    "number_of_replicas": "2"
  }
}
```

Changes to component templates are not applied retroactively to existing indices. For changes to take effect, you must create a new write index for the data stream. You can do this with the Elasticsearch Rollover API.

Index lifecycle management (ILM)

edit

Use the index lifecycle management (ILM) feature in Elasticsearch to manage your Elastic Agent data stream indices as they age. For example, create a new index after a certain period of time, or delete stale indices to enforce data retention standards.

Installed integrations may have one or many associated data streams—each with an associated ILM policy. By default, these data streams use an ILM policy that matches their data type. For example, the data stream metrics-system.logs-*, uses the metrics ILM policy as defined in the metrics-system.logs index template.

Want to customize your index lifecycle management? See Tutorial: Customize data retention policies.

Ingest pipelines

edit

Elastic Agent integration data streams ship with a default ingest pipeline that preprocesses and enriches data before indexing. The default pipeline should not be directly edited as changes can easily break the functionality of the integration.

Starting in version 8.4, all default ingest pipelines call a non-existent and non-versioned "@custom" ingest pipeline. If left uncreated, this pipeline has no effect on your data. However, if added to a data stream and customized, this pipeline can be used for custom data processing, adding fields, sanitizing data, and more.

The full name of the @custom pipeline follows the following pattern: <type>-<dataset>@custom. The @custom pipeline can directly contain processors or you can use the pipeline processor to call other pipelines that can be shared across multiple data streams or integrations. The @custom pipeline will persist across all version upgrades.

See Tutorial: Transform data with custom ingest pipelines to get started.
